Product Description

The Harloff SC8030DREDP-DSS2310 SureDry Scope Drying Cabinet with 10-Scope capacity features an external HEPA filtered positive drying system and two 5-scope Dri-Scope Aid® manifolds that supplies HEPA-filtered air to all internal channels. This combination provides facilities with the assurance that they will be able to meet all current and anticipated future guidelines for external and internal drying of endoscopes, providing their patients the best possible assurance of infection prevention.

  • The industry best external HEPA filtered positive pressure drying system with two intake fans, one exhaust fan, and an easy to replace filter system! Meets or exceeds current AORN, SGNA and AAMI Guidelines.
  • Dri-Scope Aid® is the industry leading internal lumen drying system. The Dri-Scope Aid® Cabinet supplies HEPA-filtered air to all internal channels to aid in drying endoscopes with an automated drying cycle for improved turn-around time, and a continuous venting cycle for overnight storage. The Dri-Scope Aid® system in the SureDry Scope Cabinets provides a complete drying system for your facility.

Dri-Scope Aid® Features & Benefits:

  • Constant Flow - Consistent Pressure - Repeatable Results
  • Significantly improves drying of internal channels
  • HEPA filter offers a 99.97% retention rate of particles that have a size > 0.3μm
  • Provides constant air delivery through all internal endoscope channels
  • Short drying cycle for quick turn-around time
  • Continuous venting cycle for overnight storage
  • Automatic high-pressure shutoff
  • Fulfills forced air recommendations
  • Self-adjusting high-pressure regulation

Dri-Scope Aid® Ease of Operation:

  • Hands-free operation
  • Visual display of purging times
  • Simple to attach, disposable, individual scope connectors meet SGNA and AORN guidelines (Sold Separately)
  • Works with all major endoscope brands
  • Filter replacement indicator light
  • Dries 1 to 10 endoscopes

Scope Cabinet Features:

  • Positive pressure fully redundant fan system
  • Unit features 2 intake fans and 1 exhaust fan
  • Fan run time is fully adjustable and activated each time cabinet is closed
  • HEPA filter removes 99.7% of particulates, 0.03 Microns
  • Replaceable HEPA Filter system without removal of scopes
  • Holds 10 scopes with secure adjustable mounting system
  • Medical grade electrical system
  • Easy to clean removable drip tray
  • Tempered glass double doors
  • Basic Electronic Pushbutton lock
    • Key lock override
    • Factory set user and supervisor code
    • Cabinet may be programmed in the field
  • Powder Coated Steel available in multiple colors
  • Cabinets are delivered fully assembled
  • Twelve (12) year warranty on manufactured parts
  • One (1) year warranty on any bought-out (not fabricated or manufactured by Harloff) part or component (i.e. hardware, casters, drawer slides, plastic tops, electronic components, etc.)
  • Overall Dimensions: 93" H x 30" W x 24" D

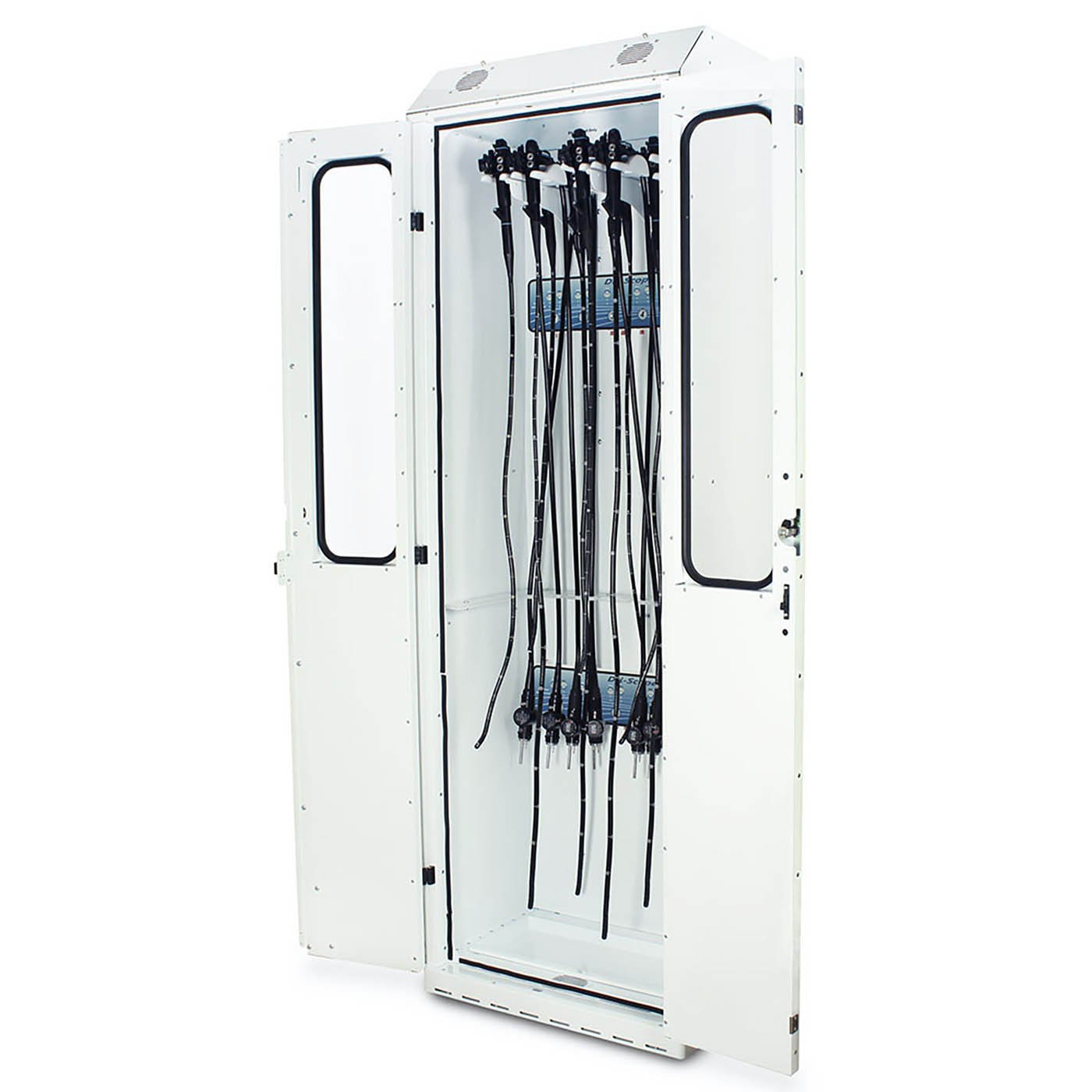

  • Images shown with endoscopes - not included
  • Scope Connectors and tubing are sold separately by Dri-Scope Aid® to ensure you receive the proper accessories for use with your specific endoscope brand and model(s)

For a cheaper version of this Scope Drying Cabinet without the Dri-Scope Aid®, consider model SC8030DREDP!

About this Brand

Specifications

Specifications
Manufacturer Harloff
Latex Free Yes
Actual Product Weight 328 lbs
Overall Height 93"
Overall Length 24"
Overall Width 30"
Cabinet Capacity 10 Scopes
Material Steel
Door Style Double
Lock Type Digital Keypad
Country of Manufacture United States
Item Ships From Colorado

Instructions

Warranty: Harloff Healthcare Products and Accessories are manufactured, tested and inspected in accordance with specific engineering requirements, and are warranted to be free from defects in workmanship and materials for a period of twelve (12) years from date of purchase and limited to parts manufactured by Harloff, including cabinets, drawers, and bumper frames. One (1) year on any bought-out (not fabricated or manufactured by Harloff) part or component (i.e. hardware, casters, drawer slides, plastic tops, electronic components, etc.). The warranty is limited to original purchaser of equipment. This warranty does not apply to freight damage or failure caused by abuse, misuse, neglect, lack of proper maintenance, age, unauthorized modification or repair, or to damage caused by theft or unauthorized entry. There is no reimbursement for labor to repair or maintain Harloff Healthcare Products. Return freight on warranty claims is the responsibility of the claimant- unless unit is brought back at Harloff request. Reasonable maintenance on Healthcare Products is the responsibility of the purchaser. This includes but is not limited to tightening loose hardware, applying touchup paint to scratches, bumps, wear areas and any holes drilled for mounting accessories after receipt, reseating drawer slides, and cleaning surfaces where corrosive liquids have spilled is also the purchaser's responsibility and do not apply.

Freight Shipping

Please Note: This item ships via motor freight carrier. Shipping fees often have to be re-quoted when purchasing this item. Our website estimates freight charges based on delivery to a location with a truck height dock. Examples of additional services include liftgate service, inside delivery, call ahead service, or limited access. If you would like to know the total delivery charges in advance of placing an order, we recommend requesting a quote for this item prior to placing your order. At quote or order submission, please make note of your receiving hours and specific delivery needs. Customer Service will reach out to you if additional details are needed. If you have questions about the motor freight delivery process please contact Customer Service.

Returns

Permission to return goods is strictly at the discretion of the manufacturer. An authorization number must be requested from Customer Service within 30 days from date of original delivery. A restocking fee and return freight will be charged for all returns. Returned goods must be shipped in original packaging & returned in unused, resalable condition. Credit will not be issued if product is received damaged.
