Name: Edan U60 Color Compact Ultrasound System
Brand: EdanUSA
SKU: U60-MAINUNIT
Price: 7542 USD
Availability: InStock

Product Description

The Edan U60 Color Compact Ultrasound System empowers users with innovative imaging technologies and dedicated features, making it one of the most capable diagnostic ultrasound machines on the market.

Features:

Dual transducer ports allow 2 transducers to connect simultaneously
Highly portable and can be used anywhere
Backlit keyboard and easy-to-use control panel
Customizable user-defined controls
Multiple peripheral ports enable easy connectivity and image archiving
Battery operation of up to 60 minutes provides an uninterrupted workflow
Large-capacity data storage and flexible image archiving solutions, supporting USB and DICOM
Wide variety of probe selections for versatile applications*
Speckle Reduction Imaging (eSRI) - Improves contrast resolution while maintaining detail
Spatial Compounding Imaging - Utilizes multiple lines of sight to improve contrast resolution
Multi-Beam Technology - Maintains high frame rates in all modes, including color and pulse
Phase-Inversion Tissue Harmonic Imaging - Reduces image noise and clutter
Multi-Frequency Transducer Technology - Allows multiple frequencies in 2D, harmonics, and Doppler, increasing transducer utility
User-Programmable Smart Pre-Sets - Quickly adjust settings to customize imaging preferences
Imaging Modes: Brightness (B-mode), Motion (M-mode), Color Doppler, Power Doppler Imaging (PDI) / Directional PDI (DPDI), Pulsed Wave (PW) Doppler, Continuous Wave (CW) Doppler, High Pulse Repetition Frequency (HPRF)
Applications: Abdomen, Gynecology, Obstetrics, Cardiology, Small Parts, Urology, Vascular, Pediatric, and Musculoskeletal
Accessories Included:
- User manual
- Quick guide

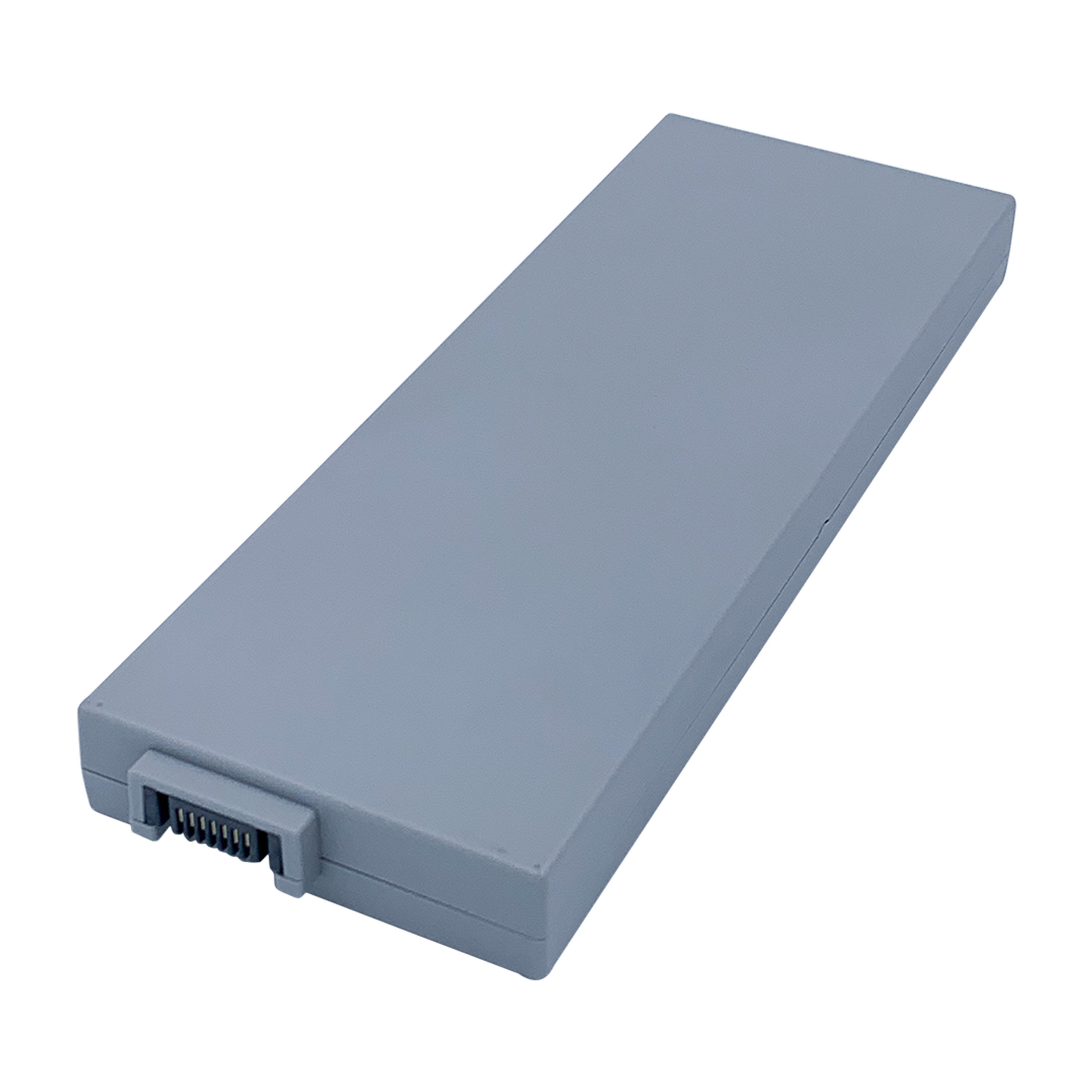

- Rechargeable lithium-ion battery (14.8 V, 5000 mAh)
- Grounding cable
- Power cord (USA standard)
- Transducer holder
- Flash disk (Netac, 4G, USB 2.0 Protocol)
- Potential equalization conductor

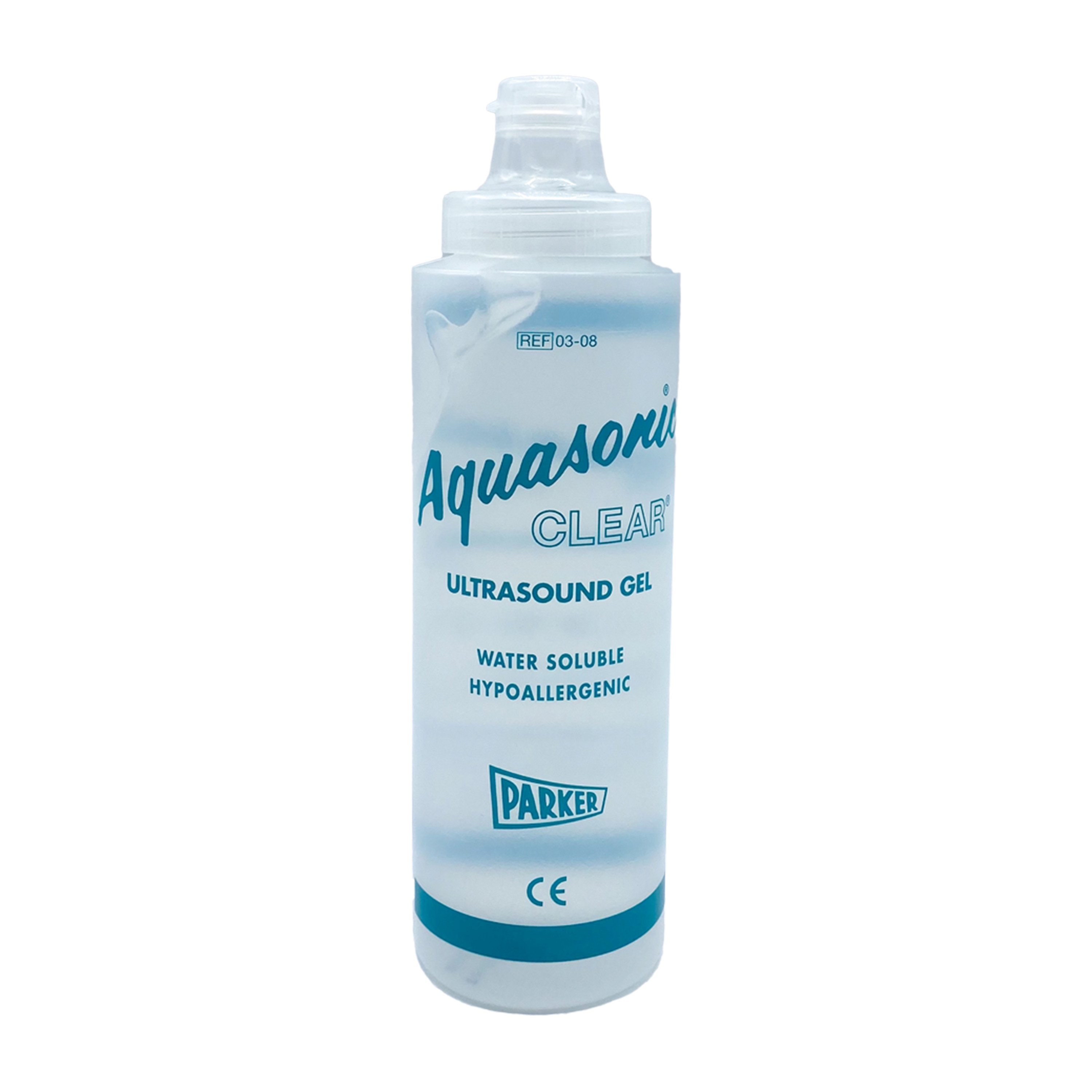

- Ultrasound gel (250 g)
- Carrying case

Technical Specifications:

Warranty: 2 Years
Overall Dimensions: 8.66" D x 14.57" W x 13.78" H
Actual Product Weight: 18.52 lbs

DISPLAY

Monitor: 15" TFT-LCD
Resolution: 1024 x 768 pixels
Imaging Field Size: 640 x 512
Video Out Size: 800 x 600
Capture Size: BMP, JPG, AVI, DCM 1024 x 768; FRM, CIN 640 x 512
View Angle: Up 85°, Down 85°, Left 85°, Right 85°

IMAGING STORAGE

500GB hard drive
Storage: ≤ 227,555 static images in BMP format (hard drive)
Maximum Clip:
- B-Mode: 1227
- Color Mode: 409
- M-Mode: 90
- PW/CW Doppler Mode: 15

BATTERY

Rechargeable lithium-ion battery
Capacity: 5000 mAh
Battery Life: 80 minutes
Maximum Charging Time: 8 hours

ELECTRICAL POWER

Voltage: 110 V – 240 VAC
Frequency: 50/60 Hz
Power: 97.4 W

IMAGING PARAMETERS

B-Mode

Image Type: Detail/Soft/H Contrast/ Penetration
Zoom (7 Levels):
- x1.44, 96, x2.56, x4.0, x5.76, x9.0, x16.0 (available on live state)
- x1.31, x1.78, x2.56, x4.0, x7.11, x10.24, x16.0 (available on freeze state)
Depth: 1.9 cm – 3.24 cm
Frequency: 2.0 MHz – 15.0 MHz
eSRI: 0 – 8
Rejection: 0 – 7
Scan Angle: 0 – 3
Gain: 0 – 13, 0 dB, 2 dB/step
TGC: 8 segments
Dynamic Range: 30 dB – 150 dB, 4 dB/step
Scan Mode: Hiden/HiFR
Maximum Frame Rate: 244 f/s
Map: 0 – 14
Frame Persist: 0 – 7
Focus Position: 0 – 15
Focus Number: 1 – 4
Pseudo Color: 6 types
H Reverse: On/Off
V Reverse: On/Off
90 Rotation: 0/1/2/3
B/W Invert: On/Off
Spatial Compounding: On/Off (maximum 3 angles)
Display Format: Single (B), Dual (B + B), Quad 4B (B, 2B, 4B)
Center Line: On/Off

M-Mode

Sweep Speed: 0 – 3
Line Average: 0 – 7
Gray Map: 0 – 14
Pseudo Color: 6 types
Gain: 0 dB – 13 dB, 2 dB/step
Frequency: 2.0 MHz – 15.0 MHz (3 fundamental and 2 harmonic frequencies)
Dynamic Range: 30 dB – 150 dB, 4 dB/step
B/M Display: Up/Down, Left/Right

Pulsed Wave Doppler

Flow Type: H Flow/ M Flow/L Flow
HPRF: On/Off
Duplex and triplex display
Frequency: 2.5 MHz – 8.0 MHz
PRF: 16 levels, 1 kHz – 15 kHz
Gain: 1 dB – 80 dB, 1 dB/step
Dynamic Range: 30 dB – 90 dB, 2 dB/step
Wall Filter: 0 – 3
Sweep Speed: 0 (10.3 seconds), 1 (7.95 seconds), 2 (5.19 seconds), 3 (3.97 seconds), 4 (2.75 seconds), 5 (1.53 seconds)
Baseline: 0 – 6
Correct Angle: -79°, 1°/step
Quick Angle: -79°/-60°/-30°/0°/30°/60°/79°
Steer: 0°, ±10°
Invert: On/Off
Volume: 0 – 7
Pseudo Color: 6 types
Sample Volume: 16 levels, 0.5 mm – 20 mm

Continuous Wave Doppler

Flow Type: H Flow/M Flow/L Flow
Frequency: 2.0 MHz
PRF: 0 – 32, 0.8, -80 KHz
Gain: 1 dB – 80 dB, 1dB/step
Dynamic Range: 30 dB – 90 dB, 2 dB/step
Wall Filter: 0 – 3
Sweep Speed: 0 (10.3 seconds), 1 (7.95 seconds), 2 (5.19 seconds), 3 (3.97 seconds), 4 (2.75 s), 5 (1.53 seconds)
Baseline: 0 – 6
Correct Angle: -79°, 1°/step
Quick Angle: -79°/-60°/-30°/0°/30°/60°/79°
Invert: On/Off
Volume: 0 – 7
Pseudo Color: 6 types

Color Doppler

Flow Type: H Flow/M Flow/L Flow
Dual Live: B/B + C
ROI Size/Position: Adjustable
ROI Color: Green, Yellow
Frequency: 2.5 MHz – 8.0 MHz
Gain: 1 dB – 80 dB, 1dB/step
Maximum Frame Rate: 38 f/s
Persist: 0 – 7
Smooth Filter: 0 – 7
Wall Filter: 0 – 7
Map: 0 – 7
Angle Steer: 0°, ±10°
PRF: 16 levels, 0.5 kHz – 11 kHz
Scale: 9 cm/s – 175 cm/s
Baseline: 0 – 6
Threshold: 0 – 15
Invert: On/Off
Packet Size: 4 levels
Flow Type: H Flow/M Flow/L Flow
Dual Live: B/B + PDI
Directional Power Doppler Imaging(DPDI)
ROI Size/Position: Adjustable
ROI Color: Green, Yellow
Frequency: 2.5 MHz – 8.0 MHz
Gain: 1 dB – 80dB, 1dB/step
Maximum Frame Rate: 38 f/s
Persist: 0 – 7
Smooth Filter: 0 – 7
Wall Filter: 0 – 7
Map: 0 – 7
Angle Steer: 0°, ±10°
Baseline: 0 – 6
Threshold: 0 – 15
Invert: On/Off (available on DPDI)
Packet Size: 4 levels

*Please Note: The transducers are sold separately.
