Edan Acclarix AX2 Color Compact Ultrasound System

DISPLAY

• Monitor: 15.6" high-resolution LCD
• Resolution: 1920 x 1080 pixels
• Open Angle: 0° – 180°
• Touch Screen: 10.1" touch screen
• Touch Screen Features: Gesture-control, virtual TGC sliders, support QWERTY keyboard for text input, and adjustable brightness

IMAGE FIELD

• Mechanical Index (MI)
• Thermal Index (TI)
• Imaging parameters
• Gray Scale bar
• Depth Scale
• Center Mark
• Measured result window
• TGC curve

DISPLAY MODES

• B Mode:
  • B, 2B
  • Color Mode: B/C (single, dual)
  • B+B/C (dual live)
  • B/C/PW (triplex mode)
• PDI/DPDI Mode:
  • B/PDI (DPDI) (single, dual)
  • B+B/PDI (DPDI) (dual live)
  • B/PDI (DPDI)/PW (triplex mode)
• PW Mode:
  • B/PW (update)
  • B/PW (duplex, simultaneous)
  • B/C/PW (update)
  • B/C/PW, B/PDI (DPDI)/PW (triplex mode)
• CW Mode:
  • B/CW
  • B/C/CW, B/PDI (DPDI)/CW
• M Mode: B/M (Display Layout: Up/Down, Left/Right)

POWER SUPPLY

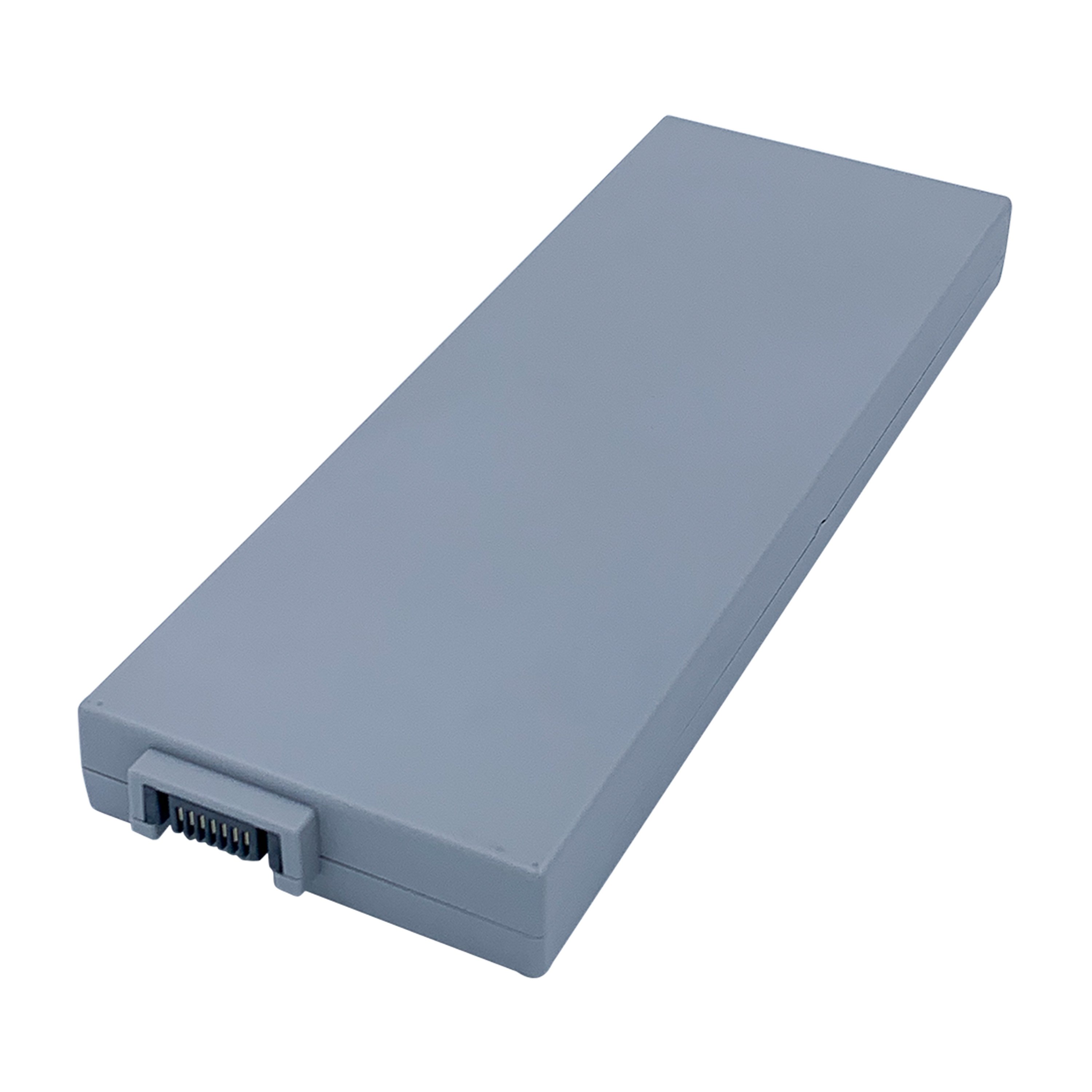

• TWSLB-003 Lithium Battery:
  • Capacity: 5000 mAh
  • Working Time:
    • 1 Hour: One fully charged battery
    • 2 Hours: Two fully charged batteries
  • Charging Time:
    • ~2.5 Hours: One battery
    • ~ 5 Hours: Two batteries
• TWSLB-018 Lithium Battery:
  • Capacity: 6800 mAh
  • Working Time:
    • 1.5 hours: One fully charged battery
    • 3 hours: Two fully charged batteries
  • Charging Time:
    • ~3.5 hours: One battery
    • ~ 6.5 hours: Two batteries

SYSTEM ARCHITECTURE

• Physical Channels: 64
• Beam Forming: Quad beam
• Processor: ARM
• Memory: 2 GB
• Hard Drive: 120G SSD
• Operating System: Android
• System Boot-Up: About 30 seconds
• Boot-Up from Sleep: 5 seconds
• Shutdown: 3 seconds

DICOM 3.0

• Connectivity to the DICOM server for storage of all static images with patient information
• Manual transfer in the background on demand
• Transfer management UI for viewing transfer task status
• DICOM Modality Worklist:
  • Enables query of the patient worklist schedule from the hospital information system to the ultrasound system via DICOM network connection
  • Query of the worklist on demand or at the start of the exam
• Populates the Patient Information screen with patient demographic information automatically when one patient is selected

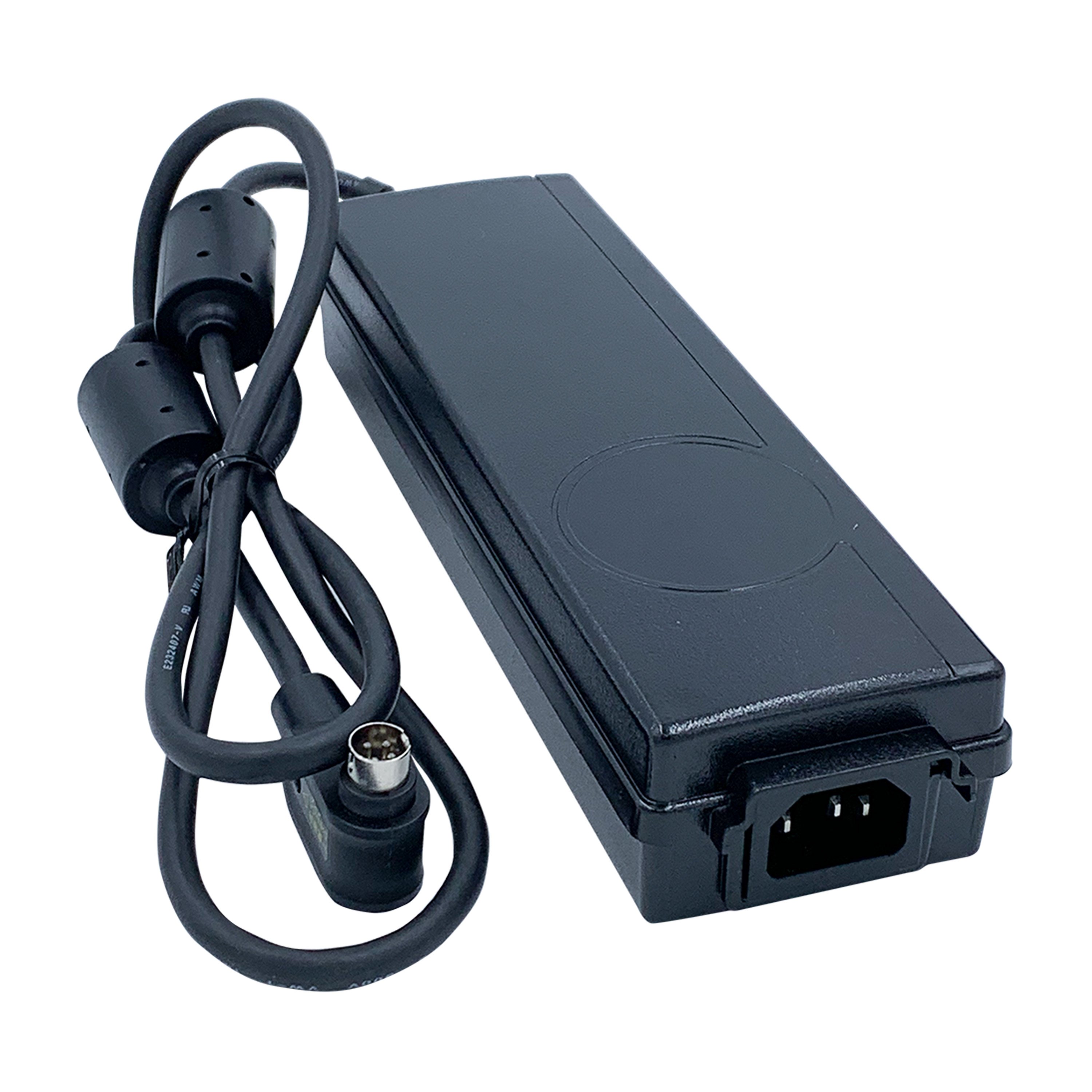

AC POWER REQUIREMENTS

• Voltage: 100 V ~ 240 V
• Frequency: 50 Hz/60 Hz

NETWORK

• Wired network connection
• Wi-Fi connection

B-Mode (Live Imaging)

• Image Type: Detail/General/Penetration
• Auto: TGC, Gain
• Digital Zoom: x0.8 – x2.0, x0.5 – x16.0 (tender)
• Display Depth: 1 cm – 45 cm
• Frequency:
  • 1 MHz – 17 MHz, 1 MHz – 19 MHz (tender)
  • 3 fundamental + 2 harmonic
  • 5 fundamental + 5 harmonic (tender)
• eSRI: Off, Low, Medium, High
• FOV: Small, Medium, Large, Full
• Steer: 0°, ±10°
• Gain: 0 dB – 100 dB, 0 dB – 260 dB (tender)
• TCG: 8 segments
• Dynamic Range: 40 dB – 96 dB, 20 dB – 320 dB (tender)
• Line Density: Low, Medium, High
• Maximum Frame Rate: 551f/s (depends on transducer)
• Map: 11 types, 20 types (tender)
• Persistence: Off, Low, Medium, High
• Focus Position (Adjustable): Maximum 16 positions
• Focus Number (Adjustable): 1 – 3, 1 – 4
• Colorize: On/Off
• Tint: 5 types, 20 types (tender)
• Spatial Compounding: On, Off (maximum 3 angles)
• Trapezoid: On/Off
• Acoustic Power: 10% - 100%

PW-Mode (Live Imaging)

• Image Type: HighFlow/MidFlow/LowFlow
• HPRF: Automatic invocation to maintain gate location/scale
• Frequency: 2 levels, 5 levels (tender)
• PRF: 0.9 kHz – 14.7 kHz
• Gain: 0 dB – 100 dB
• Dynamic Range: 10 dB – 70 dB
• Wall Filter: Low, Medium, High
• Sweep Speed: Fast/High/Medium/Low/Slow (Corresponds to sweep time of 2 seconds, 3 seconds, 4 seconds, 6 seconds, and 8 seconds per screen, respectively)
• Baseline: 9 levels
• Angle Correction: -80° to 80°
• Quick Angle: -60°/0°/60°
• Steer:
  • 0°, ±10°, ±20°
  • 0°, ±5°, ±10°
  • 0°, ±10°, ±20°
• Volume: 0 – 99
• Map: 11 types
• Colorize: On/Off
• Tint: 5 types, 20 types (tender)
• Gate Size: 0.5 mm – 20 mm
• Strip Size: Small, Medium, Large, Full
• Acoustic Power: 10% – 100%

M-Mode (Live Imaging)

• Sweep Speed: Fast/High/Medium/Low/Slow (Corresponds to sweep time of 1 second, 2 seconds, 4 seconds, 8 seconds, and 12 seconds per screen, respectively)
• Line Persist: Off, Low, Medium, High
• Map: 11 types
• Colorize: On/Off
• Tint: 5 types, 20 types (tender)
• Gain: 0 dB – 100 dB, 0 dB – 260 dB (tender)
• Frequency:
  • 1 MHz – 17 MHz, 1 MHz – 19 MHz (tender)
  • 3 fundamental + 2 harmonic
  • 5 fundamental + 5 harmonic
• Dynamic Range: 40 dB – 96 dB, 20 dB – 320 dB (tender)
• Strip Size: Small, Medium, Large, Full
• Side-by-Side: On (Left/Right), Off (Up/Down)
• Acoustic Power: 10% – 100%

CW-Mode (Live Imaging)

• Image Type: HighFlow/MidFlow/LowFlow
• PRF: 1 kHz – 100 kHz
• Gain: 0 kHz – 100 kHz
• Dynamic Range: 10 dB – 70 dB
• Wall Filter: Low, Medium, High
• Speed Sweep: Fast/High/Med/Low/Slow (Corresponds to sweep time of 2 seconds, 3 seconds, 4 seconds, 6 seconds, and 8 seconds per screen, respectively)
• Baseline: 9 levels
• Angle Correction: -80° to 80°
• Quick Angle: -60°/0°/60°
• Volume: 0 – 99
• Map: 11 types
• Colorize: On/Off
• Tint: 5 types, 20 types (tender)
• Gate Size: 0.5 mm – 20 mm
• Strip Size: Small, Medium, Large, Full
• Acoustic Power: 10% – 100%

Color/Power Doppler Imaging/Directional Power Doppler Imaging Mode (Live Imaging)

• Image Type: HighFlow/MidFlow/LowFlow
• Frequency: 2 levels, 5 levels (tender)
• Gain 0 db – 100 db
• Line Density: Low, Medium, High
• Dynamic Range: 0 dB – 70 dB (not available for Color Mode)
• Maximum Frame Rate: 257 f/s (depends on transducer)
• Persistence: Off, Low, Medium, High
• Smooth: Off, Low, Medium, High
• Wall Filter: Low, Medium, High
• Color Map: 8 types, 20 types (tender)
• Steer Angle:
  • 0°, ±10°, ±20°
  • 0°, ±15°, ±30°
  • 0°, ±5°, ±10°
  • 0°, ±10°, ±20°
• PRF: 0.6 kHz – 11.4 kHz
• Baseline: 25 levels (not available for PDI mode)
• Threshold: 0 – 100
• Invert: On, Off (not available for PDI mode)
• Acoustic Power: 10% – 100%
