Product Description

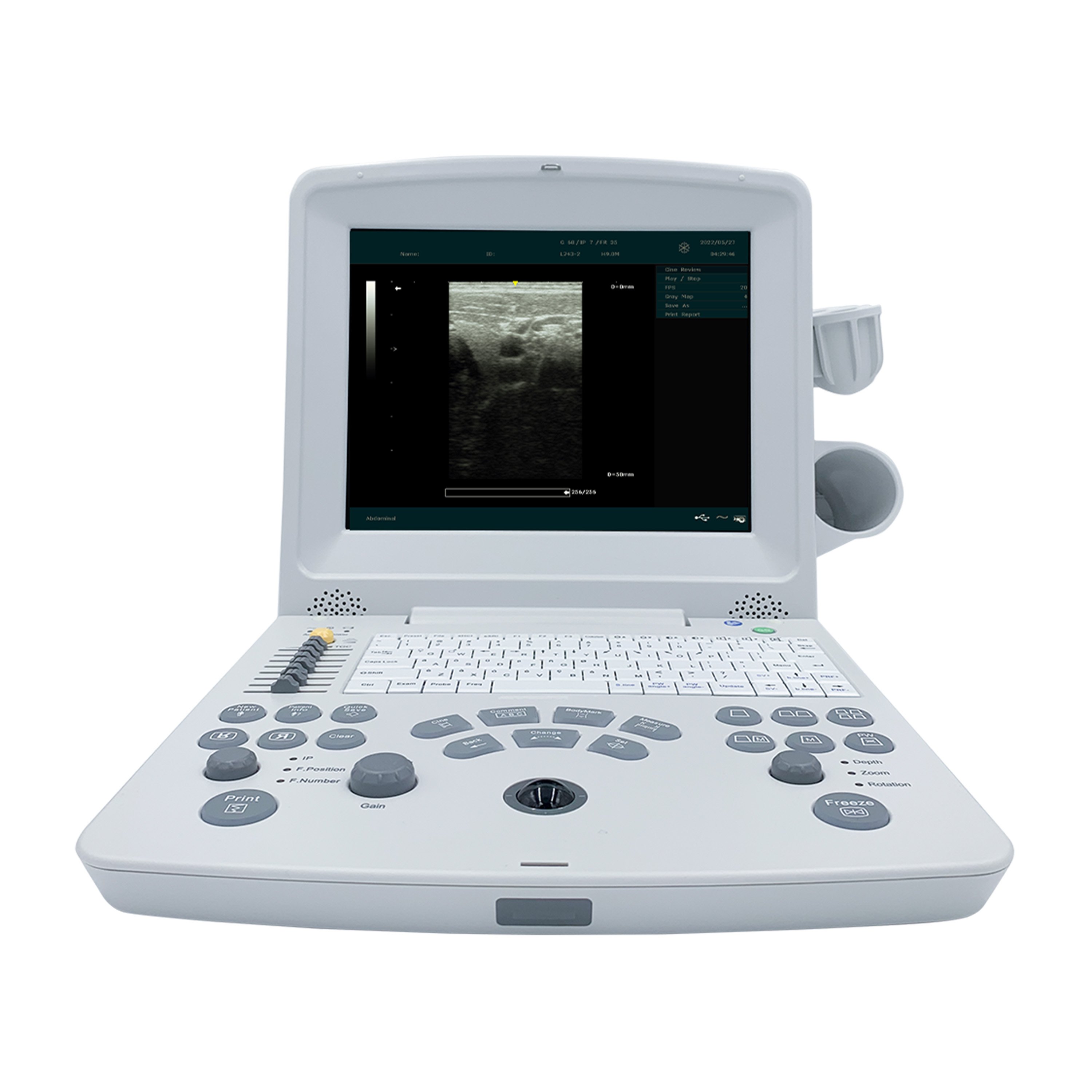

The Edan DUS60 Black-and-White Compact Ultrasound System is designed to withstand all working conditions while remaining intuitive for users, making it the premier choice for ultrasound imaging.

Features:

  • Dual transducer ports

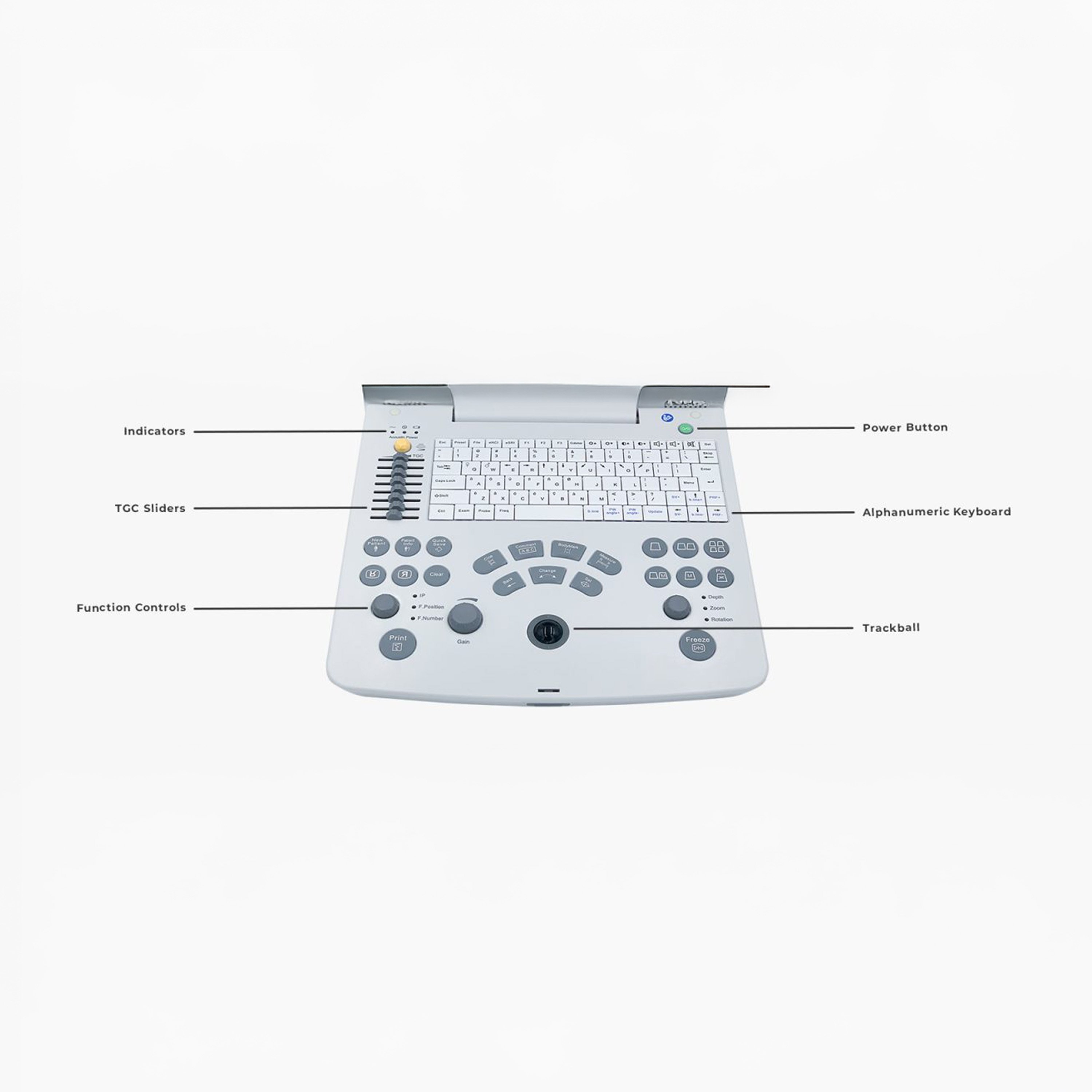

  • Backlit keyboard and easy-to-use control panel
  • Wide variety of probe selections for versatile applications*

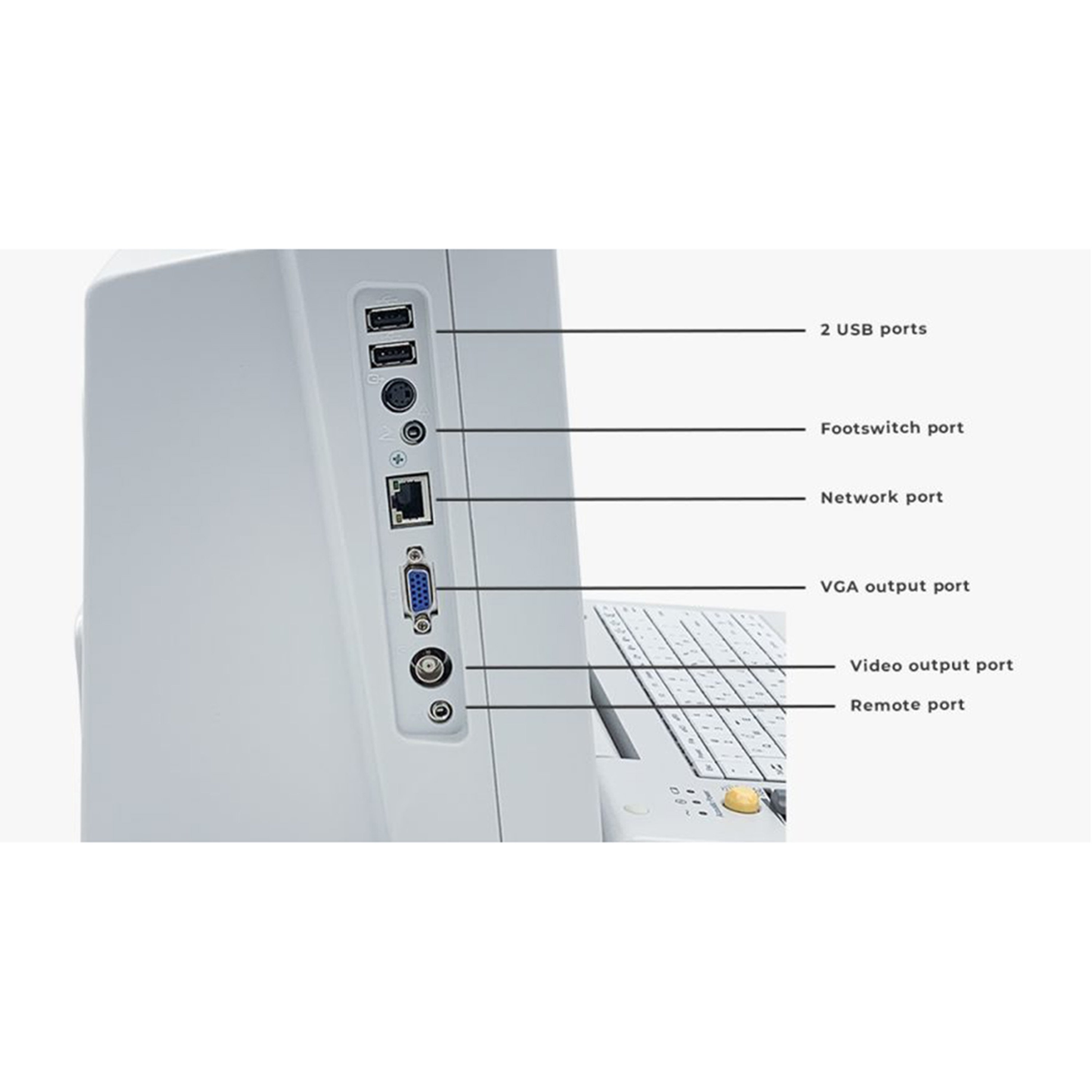

  • Data transfer via USB (2 ports) and DICOM 3.0
  • Intelligent 8-segment TGC
  • 5 frequency transducers*
  • IP (Image Processing) function
  • Measurement and calculation software packages
  • Imaging Technique and Function: Harmonic Imaging, Multi-Beam-Forming, Speckle Reduction Imaging (eSRI), Synthetic Receiving Aperture, Pan Zoom, Needle Guide
  • Imaging Modes: Brightness (B-mode), Motion (M-mode), 2B, 4B, B+M, and Pulsed Wave (PW) Doppler

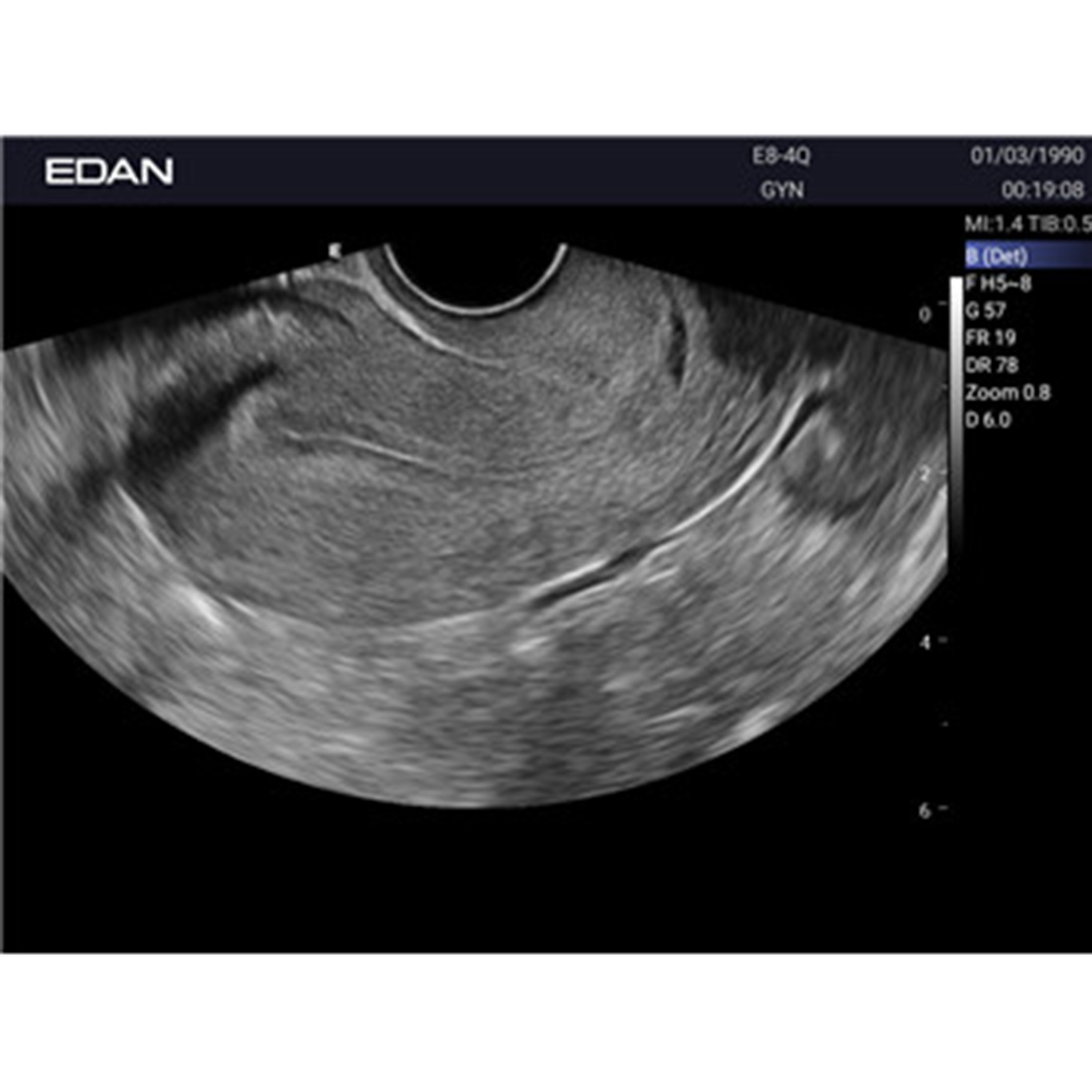

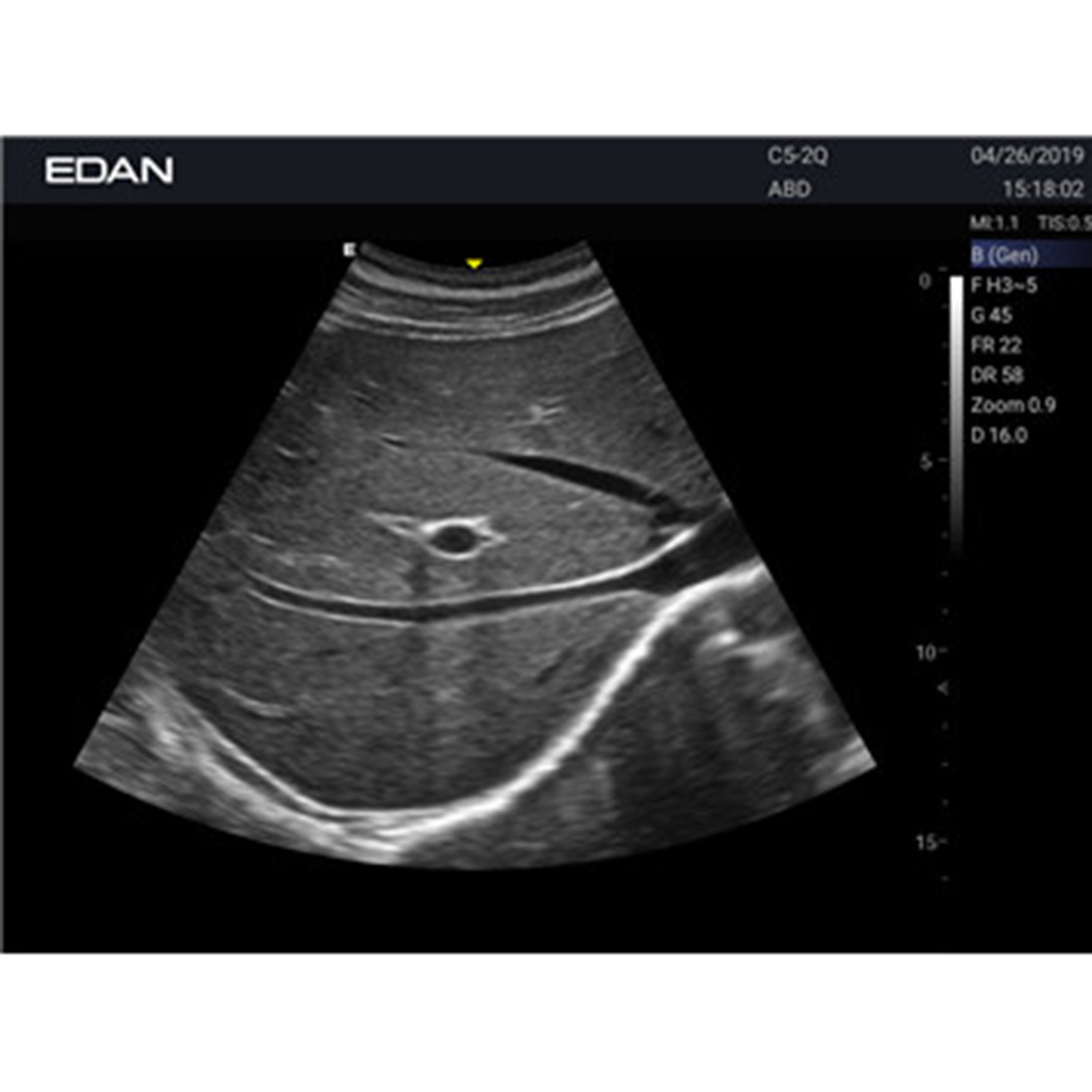

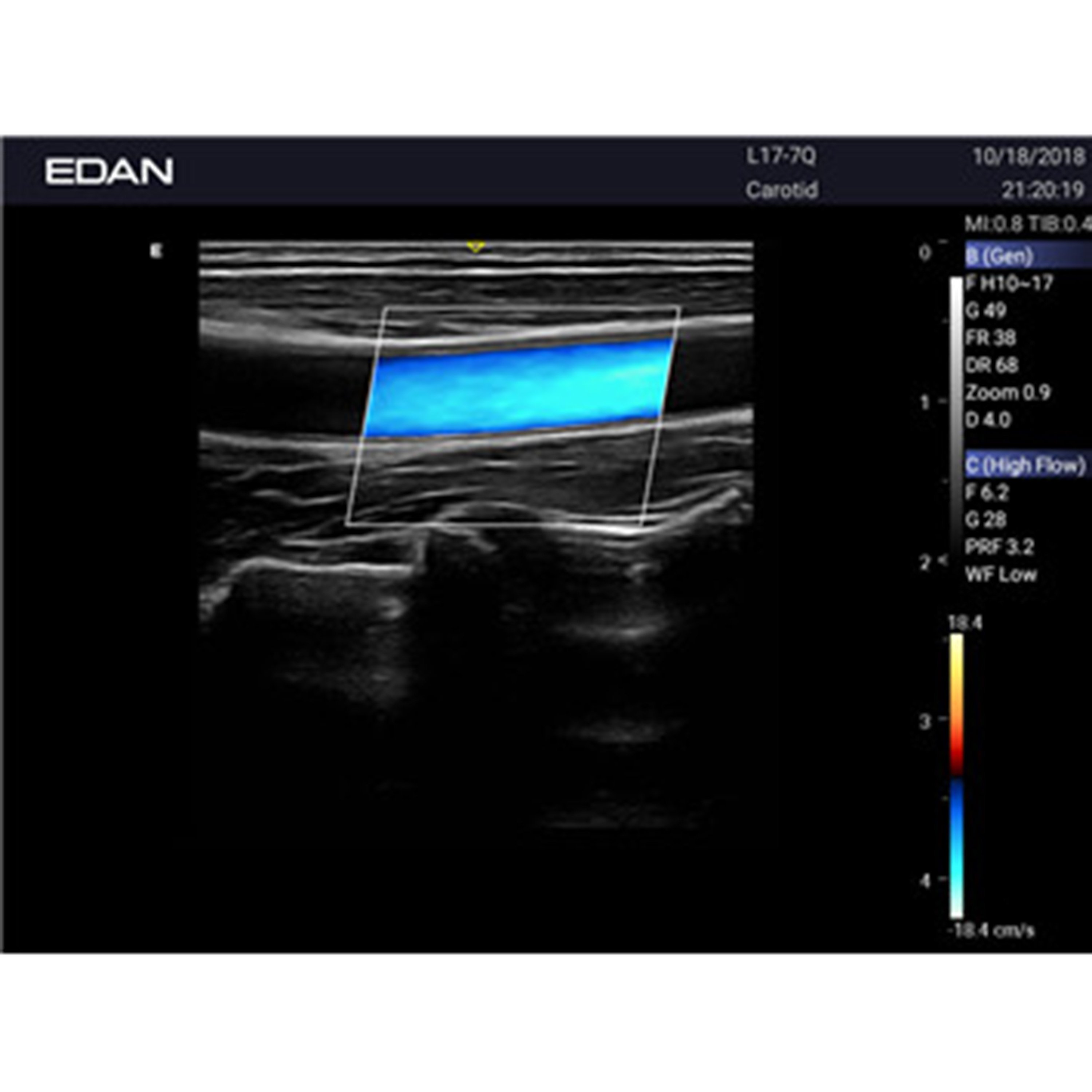

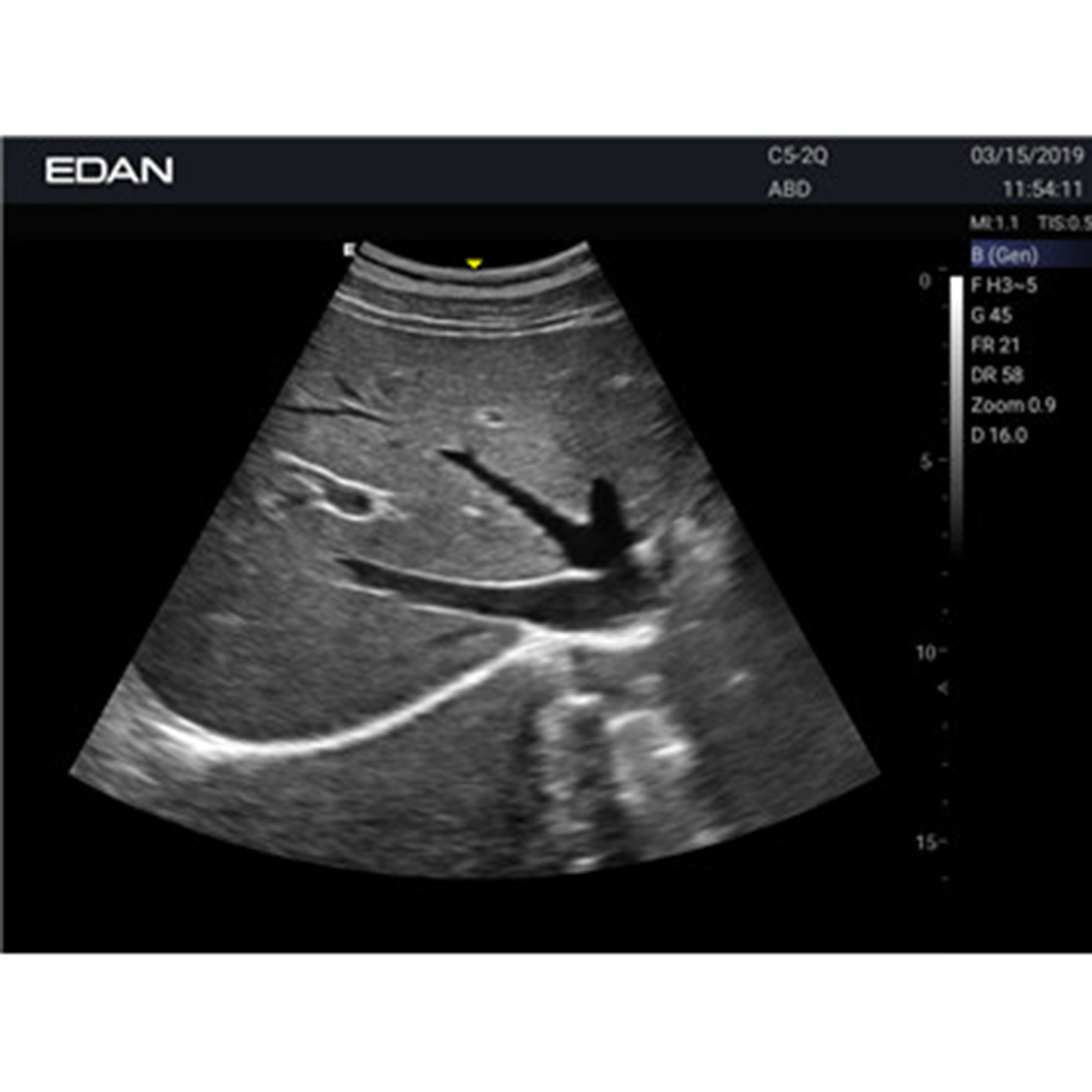

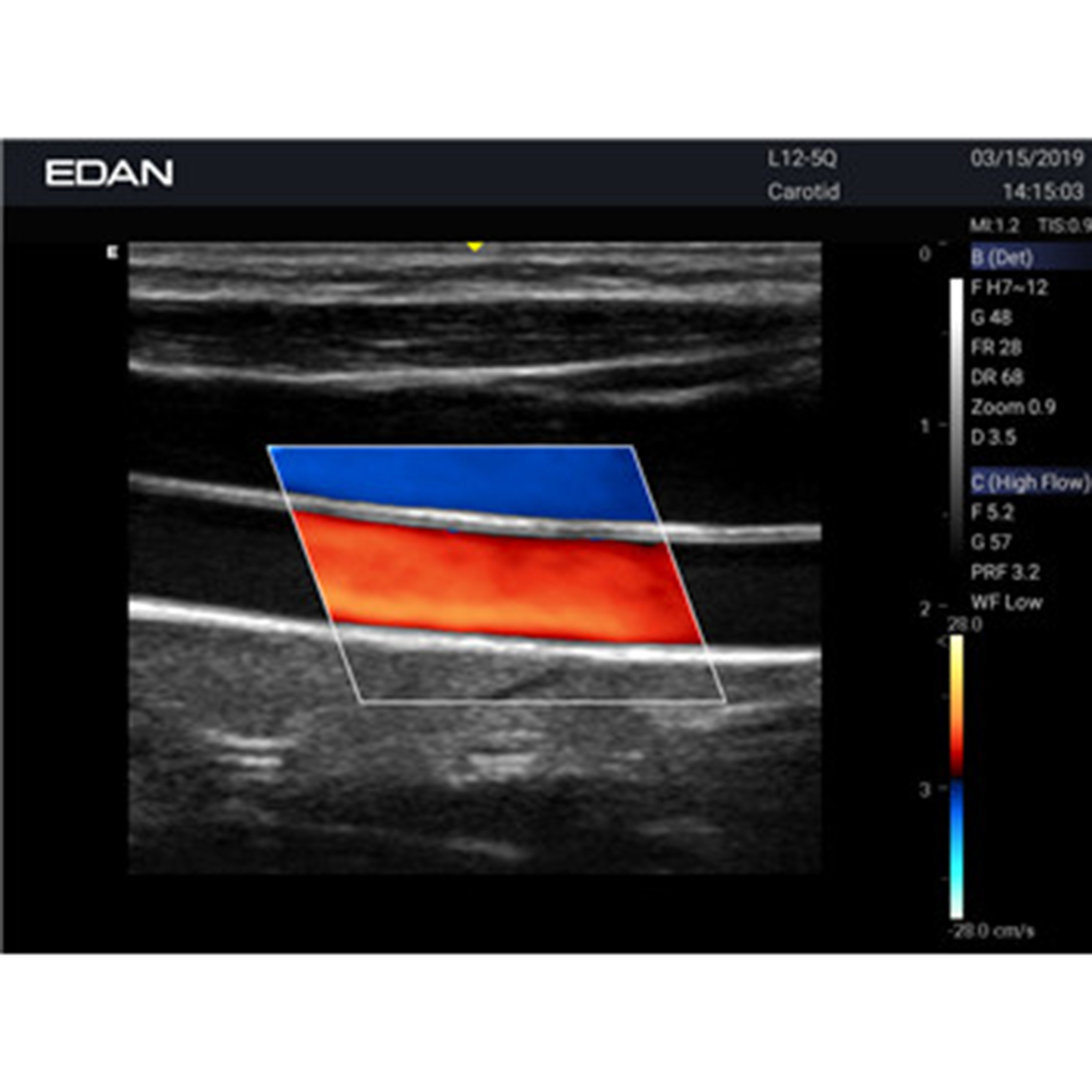

  • Applications: Abdomen, Obstetrics, Gynecology, Small Parts, Musculoskeletal, Cardiology, Peripheral Vascular, and Urology
  • Accessories Included:
    • User manual

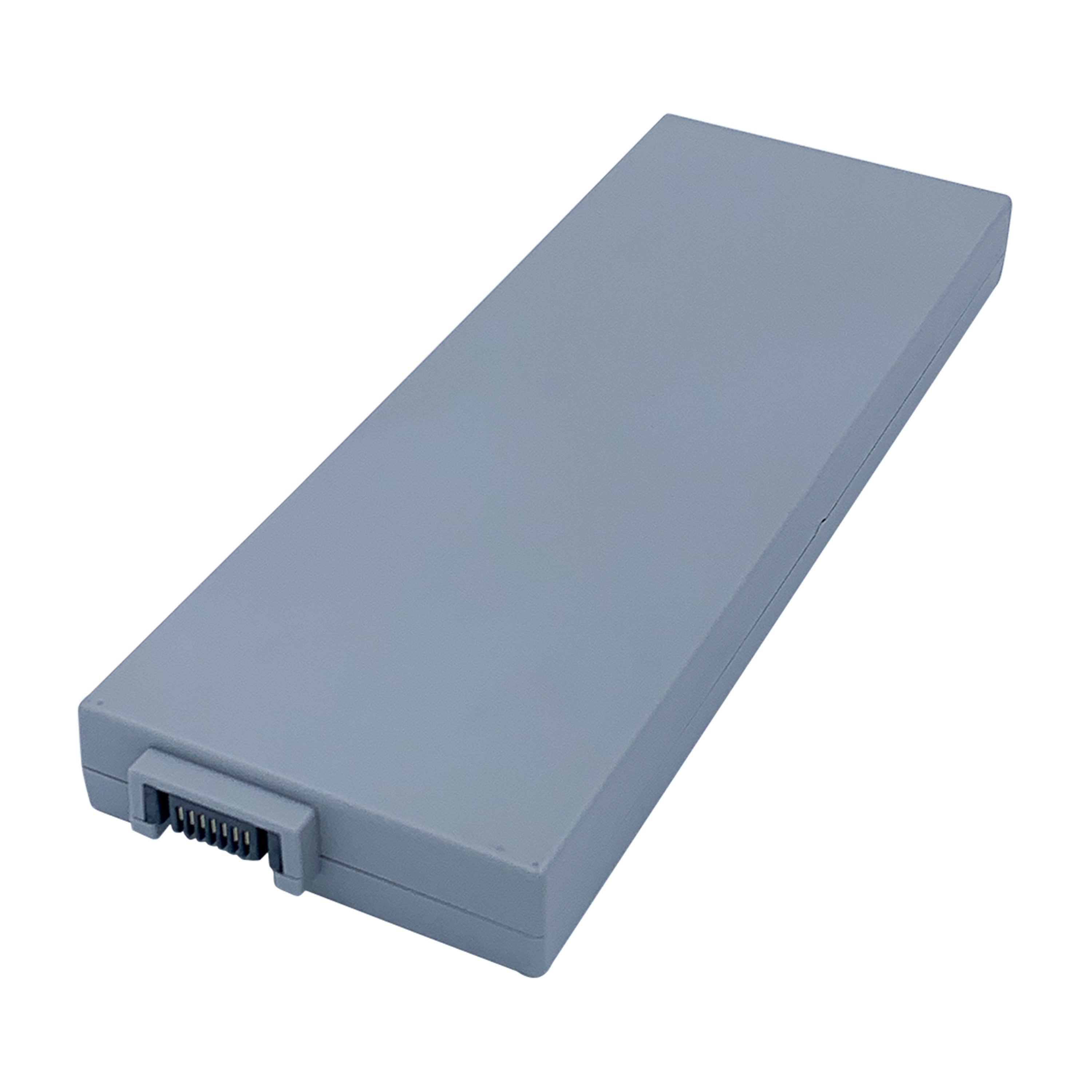

    • Rechargeable lithium-ion battery (14.8 V, 5000 mAh)
    • Grounding cable
    • Power cord (USA standard)
    • Transducer holder

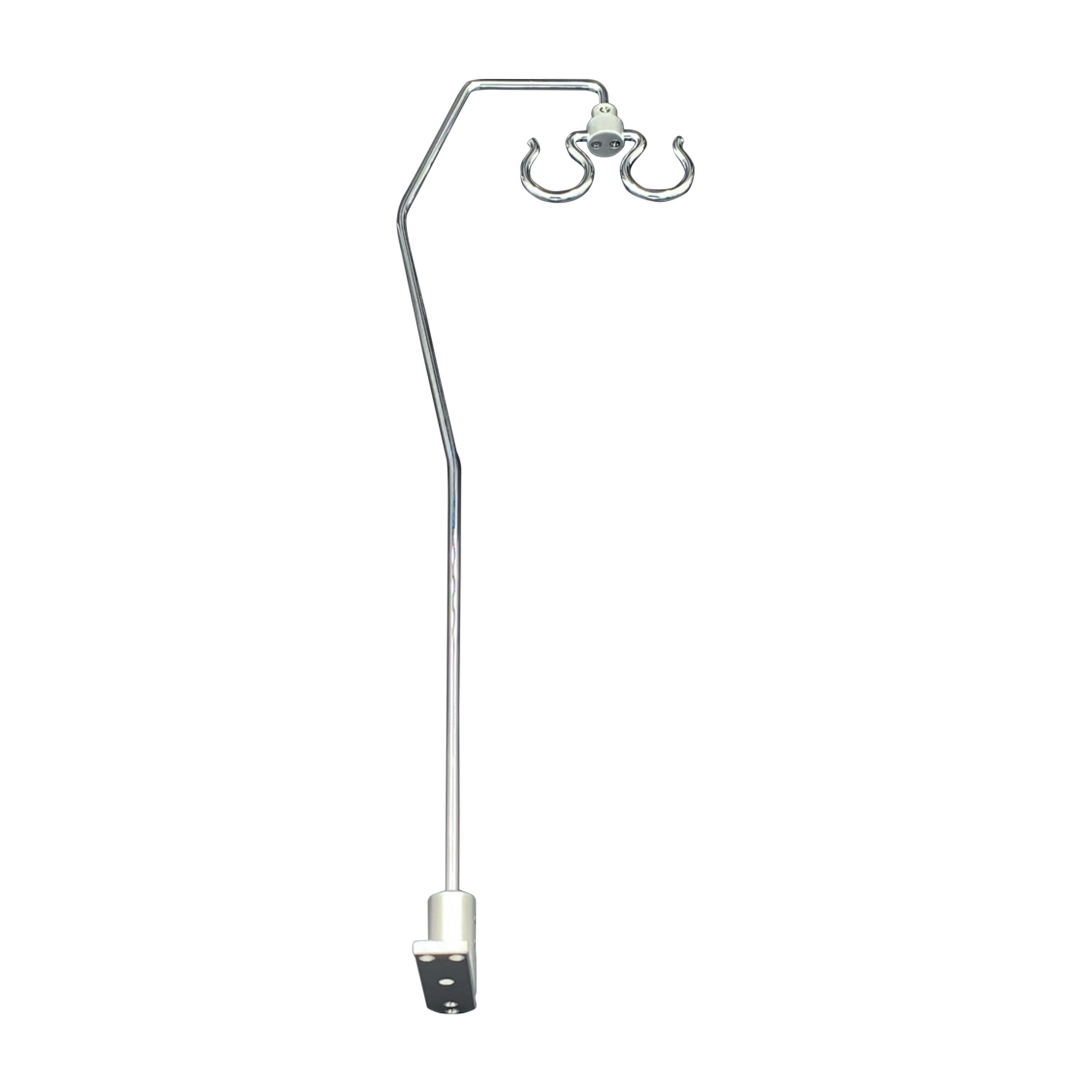

    • Transducer cable holder

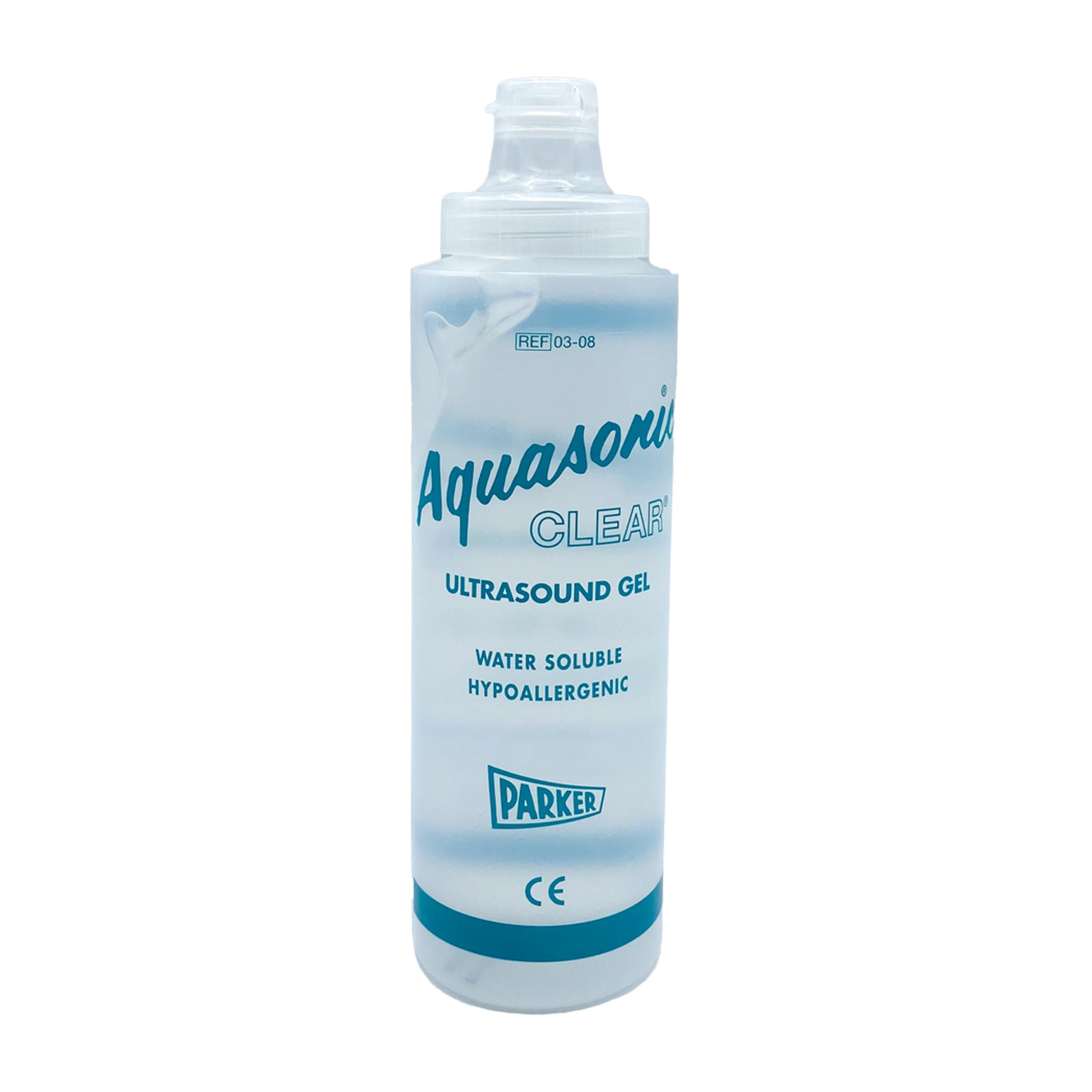

    • Ultrasound gel (250 g)
    • Carrying case

Technical Specifications:

  • Warranty: 2 Years
  • Overall Dimensions: 12.99" D x 8.66" W x 12.60" H
  • Actual Product Weight: 15.65 lbs

DISPLAY

  • Monitor: 12.1’’ TFT-LCD
  • Resolution: 1024 x 768 pixels
  • Imaging Field Size: 640 x 512
  • Video Out Size: 1024 x 680
  • Capture Size: BMP, JPG, AVI, DCM 1024 x 768; FRM, CIN 640 x 512

BATTERY

  • Rechargeable lithium-ion battery
  • Capacity: 5000 mAh
  • Battery Life: 60 minutes
  • Maximum Charging Time: 8 hours

IMAGING STORAGE

  • 504 MB for data storage
  • 320 GB hard drive
  • Storage: 224 static images in BMP format (memory)
  • Hard Drive Storage: 145,635 static images in BMP format
  • Maximum Clip:
    • B mode: 256 frames
    • M mode: 23 seconds
    • PW Doppler mode: 10 seconds

CINE REVIEW

  • Frame-by-frame manual review
  • Auto playback
  • The start frame and end frame are selectable for cine loop review
  • Maximum cine memory is up to:
    • B mode: 256 frames
    • M mode: 23 seconds
    • PW Doppler mode: 10 seconds



ELECTRICAL POWER

  • Voltage: 110 V – 240 VAC
  • Frequency: 50/60 Hz
  • Power: 74.4 W
IMAGING PARAMETERS

B-Mode

  • Image Type: Detail/Soft/HContrast/Penetration
  • Zoom (7 Levels):
    • x1.44, 96, x2.56, x4.00, x5.76, x9.00, x16.00 (available on live state)
    • x1.31, x1.78, x2.56, x4.00, x7.11, x10.24, x16.00 (available on freeze state)
  • Depth: 1.9 cm – 32.4 cm
  • Frequency: 2.0 MHz – 15.0 MHz
  • eSRI: 0 – 8
  • Rejection: 0 – 7
  • Scan Angle : 0 – 3
  • Gain: 0 – 13, 0 dB, 2 dB/step
  • TGC: 8 segments
  • Dynamic Range: 30 dB – 150 dB, 4 dB/step
  • Scan Mode: Hiden/HiFR
  • Maximum Frame Rate: 244 f/s
  • Map : 0 – 14
  • Frame Persist: 0 – 7
  • Focus Position: 0 – 15
  • Focus Number: 1 – 4
  • Pseudo Color: 6 types
  • H Reverse: On/Off
  • V Reverse: On/Off
  • 90° Rotation: 0/1/2/3
  • B/W Invert: On/Off
  • Spatial Compounding: On/Off (maximum 3 angles)
  • Display Format: Single (B), Dual (B + B), Quad 4B (B, 2B, 4B)

Pulsed Wave Doppler

  • Flow Type: H Flow/M Flow/L Flow
  • High Pulse Repetition Frequency: On/Off
  • Duplex and triplex displays
  • Frequency: 2.5 MHz – 8.0 MHz
  • Pulse Repetition Frequency: 16 levels, 1 kHz – 15 kHz
  • Gain: 1 dB – 80 dB, 1 dB/step
  • Dynamic Range: 30 dB – 90 dB, 2 dB/step
  • Wall Filter: 0 – 3
  • Sweep Speed: 0 (10.3 seconds), 1 (7.95 seconds), 2 (5.19 seconds), 3 (3.97 seconds), 4 (2.75 seconds), 5 (1.53 seconds)
  • Baseline: 0 – 6
  • Correct Angle: -79°, 1°/step
  • Quick Angle: -79°/-60°/-30°/0°/30°/60°/79°
  • Steer: 0°, ±10°
  • Invert: On/Off
  • Volume: 0 – 7
  • Pseudo Color: 6 types
  • Sample Volume: 16 levels, 0.5 mm – 20 mm



















M-Mode

  • Sweep Speed: 0 – 3
  • Line Average: 0 – 7
  • Gray Map: 0 – 14
  • Pseudo Color: 6 types
  • Gain: 0 – 13, 0 dB, 2 dB/step
  • Frequency: 2.0 MHz – 15.0 MHz (3 fundamental and 2 harmonic frequencies)
  • Dynamic Range: 30 dB – 150 dB step, 4 dB/step
  • B/M Display: Up/Down, Left/Right

*Please Note: The transducers are sold separately.
