Product Description

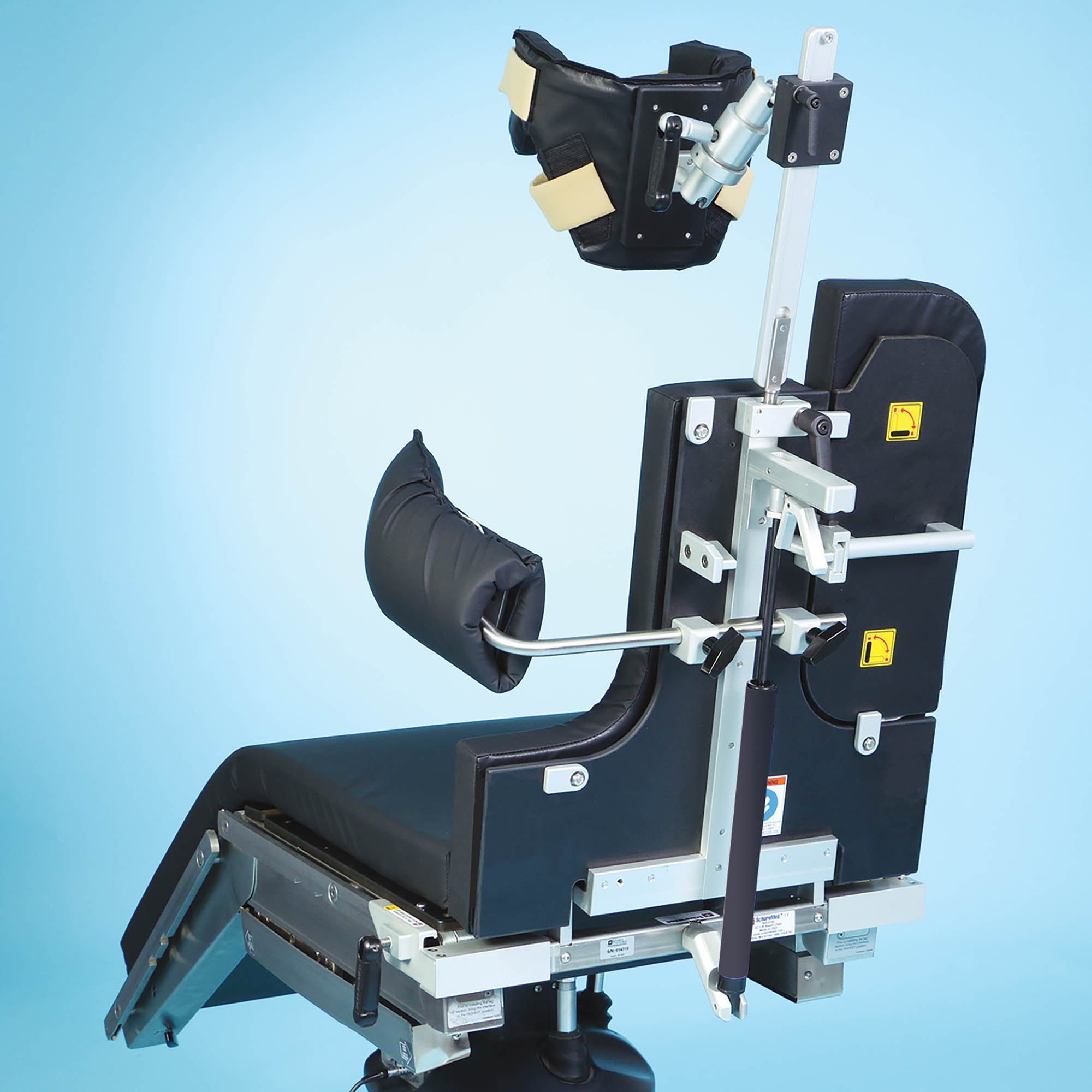

Position patients for shoulder surgery with this lightweight and cost-effective surgical beach chair that adjusts from 0-90° with a powerful piston system that assists O.R. staff when lifting the patient into position. A safe and secure option for our fully-powered shoulder surgery chair system.

Features:

  • Significantly reduces effort by O.R. staff when lifting patients over other manual systems
  • 500 lb. surgical patient weight capacity
  • Articulation range 0-90°
  • Sliding headrest conforms to every patient
  • Lateral brace included
  • Double-ball joint head system safely secures patient’s head
  • Five-piece Deluxe pad set included

Required Disposable Face Masks or Disposable Head & Chin Straps sold separately.

General Specifications: Device Dimensions (maximum)

  • Height: 37" +/- 0.5" collapsed , 44" +/- 0.5" extended
  • Width: 24" +/- 0.5" Rail clamp to rail clamp outside dimension extended, 21.5" +/- 0.5" Rail clamp to rail clamp outside dimension contracted
  • Depth/Thickness: 13.25" +/- 0.5" base
  • Net weight: 30.5 +/- 0.5 lbs.
  • Gross Weight: 46 +/- 0.5 lbs.
  • Range of Motion/Table: horizontal to vertical positioning
  • Range of Motion/Headrest: 10" Vertical Travel, 360° of rotation of both ball joints
  • Maximum Patient Height: 76"
  • Minimum Patient Height: 58"
  • Operates on Leg or Back sections of surgical table
  • Single person installation
  • Removable panels (15.125" +/- 0.005" x 6.625" +/-0.005")
  • Reusable/Disposable padding
  • Compensating double ball joint head rest
  • Required Restraint straps (Head = 22" L+/- 0.5" x 2" W, Chin = 22" L +/- 0.5" x 2”W)
  • Contains a lateral brace that provides counter–traction

About this Brand

Specifications

Specifications
Manufacturer SchureMed
Latex Free Yes
Weight Capacity 500 lbs
Country of Manufacture United States
Item Ships From Massachusetts

Literature

pdf
(Size: 4.1 MB)

Returns

Customers wishing to return this product must contact Customer Service to obtain a valid return authorization number within 30 days of receipt. Returned Products must be in original packaging in unused, resalable condition. A restocking fee may be deducted at the discretion of the manufacturer. All shipping charges remain payable by the purchaser.
