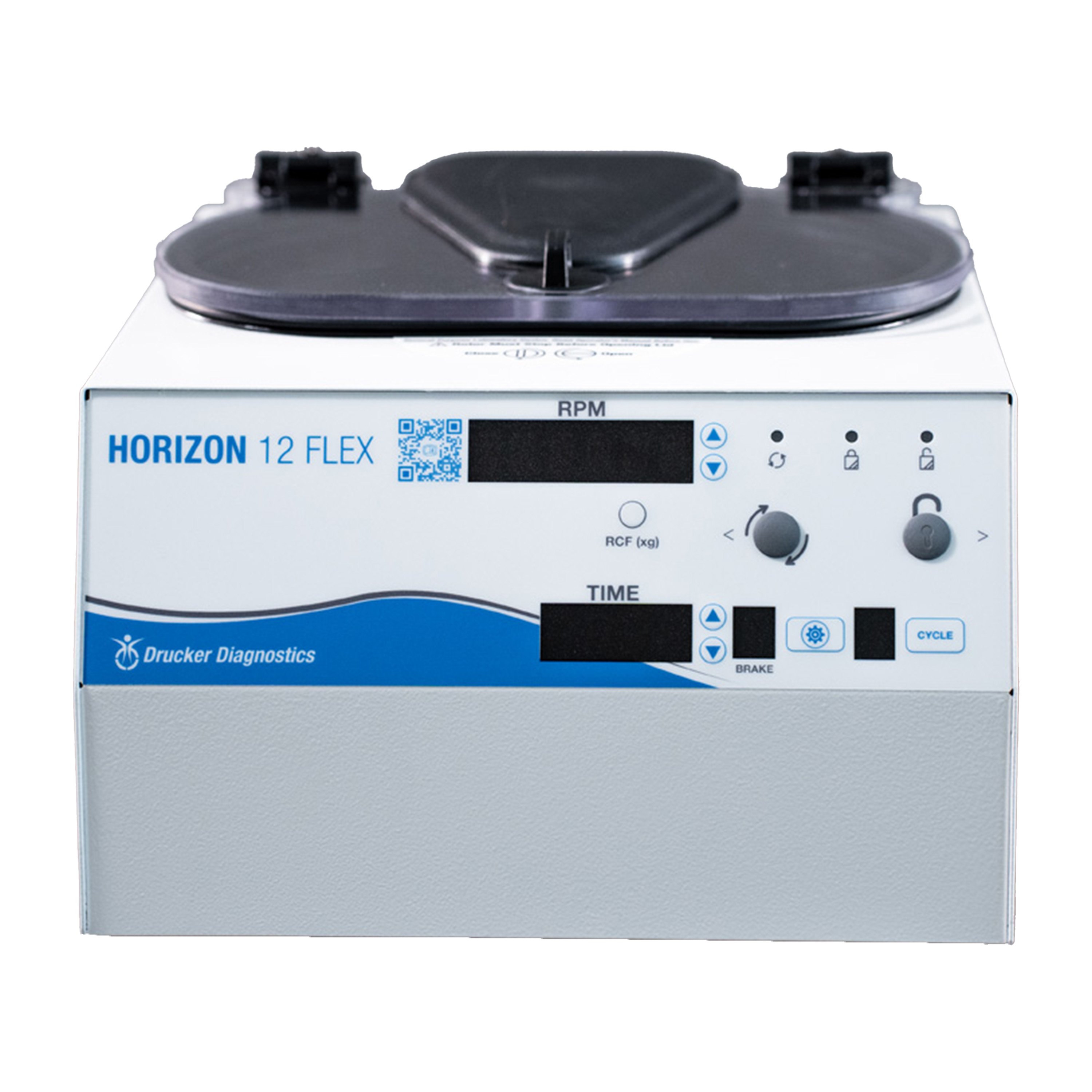

Drucker HORIZON 12 Flex Routine Centrifuge

The Drucker HORIZON 12 Flex Routine Centrifuge combines space-saving design with customizable performance.

Features:

• Mid-Size Capacity - Offers mid-size capacity with a space-saving design
• Diverse Routine Processing - Satisfies the most diverse routine processing requirements
• Default Presets - Use default presets for chemistry, coag, and urine, or program your validate cycles
• Easy to Use - The fully digital display makes it easy to customize cycle parameters on the fly, or set and select one of the 10 programmable cycles. You can store up to 10 custom cycles using the digital display
• Easy to Monitor - Monitor RPM and time remaining down to the very last second on the digital display. LED lid lighting is off when the centrifuge is ready, on when running, and flashing at the end of the cycle
• Built to Last - No routine maintenance. Brushless motor, engineered composite components
• Engineered for Safety - Protect your lab with imbalance detection and a shatterproof lid that can only be opened when the rotor is stopped, even if the unit loses power
• Compact Size - Fits easily in tight lab spaces
• Swing-Out Horizontal - Patented swing-out horizontal rotor design incorporates a unique test tube holder that produces ideal horizontally separated samples
• Positive Lid Latching - Firm mechanical latching of the lid prevents the escape of debris
• Clear Shattered Proof Lid - Allows for safe sample observation and optical calibrations
• Reinforced Guard Bowl - Provides maximum safety and durability
• QR Code - For easy access to support videos, manuals, and more
• Designed, built, and supported in the USA
• Certified to USA, Canadian, and European safety regulations and standards
• Comes Standard with:
  • (1) Horizontal rotor
  • (12) 16 x 100 mm blue carrier (7713079)

Technical Specifications:

• Maximum Capacity: 12 samples up to 10 mL
• Tube Sizes:
  • Up to 16 x 100 mm or 10 mL
  • Up to 10 x 46 mm or 2 mL (with adapter sold separately)
• Maximum RPM: 3,700 RPM
• Maximum G-Force: 2,000 xg
• Centrifuge Motor: 1/2 H.P. Brushless
• Sound Level: 56 dBA
• Factory Settings Range: 1 to 30 minutes (±1%)
• Supply Voltage: 100 - 240 (±10%) VAC
• Supply Frequency: 50/60 Hz
• Current Consumption: 3.6 A at 115 VAC
• Environmental Conditions:
  • Set-Up Site: Indoor Use Only
  • Altitude: Up to 2,000 meters from sea level
  • Ambient Temperature: 5°C to 40°C
  • Humidity: Maximum relative humidity 80% for temperatures up to 31°C, decreasing linearly to 50% relative humidity at 40°C
  • Overvoltage Category: II
  • Pollution Degree: 2
• Standard Preset Cycles:
  • Cycle 1 (Chemistry): 10 minutes / 3,500 RPM / 1,800 xg
  • Cycle 2 (Coag, PPP): 15 minutes / 3,200 RPM / 1,500 xg
  • Cycle 3 (Urine): 5 minutes / 1,800 RPM / 500 xg
• Applications: Blood chemistry and pediatric samples
• Tubes Most Often Used: Lithium heparin (with gel), lithium or sodium heparin (without gel), serum (without gel), serum separator (with gel), sodium citrate
• Warranty: 2 Years (Extended warranty options are available)
• Overall Dimensions: 15" D x 13" W x 9" H
• Actual Product Weight: 30 lbs

*Please Note: Tubes are sold separately.
