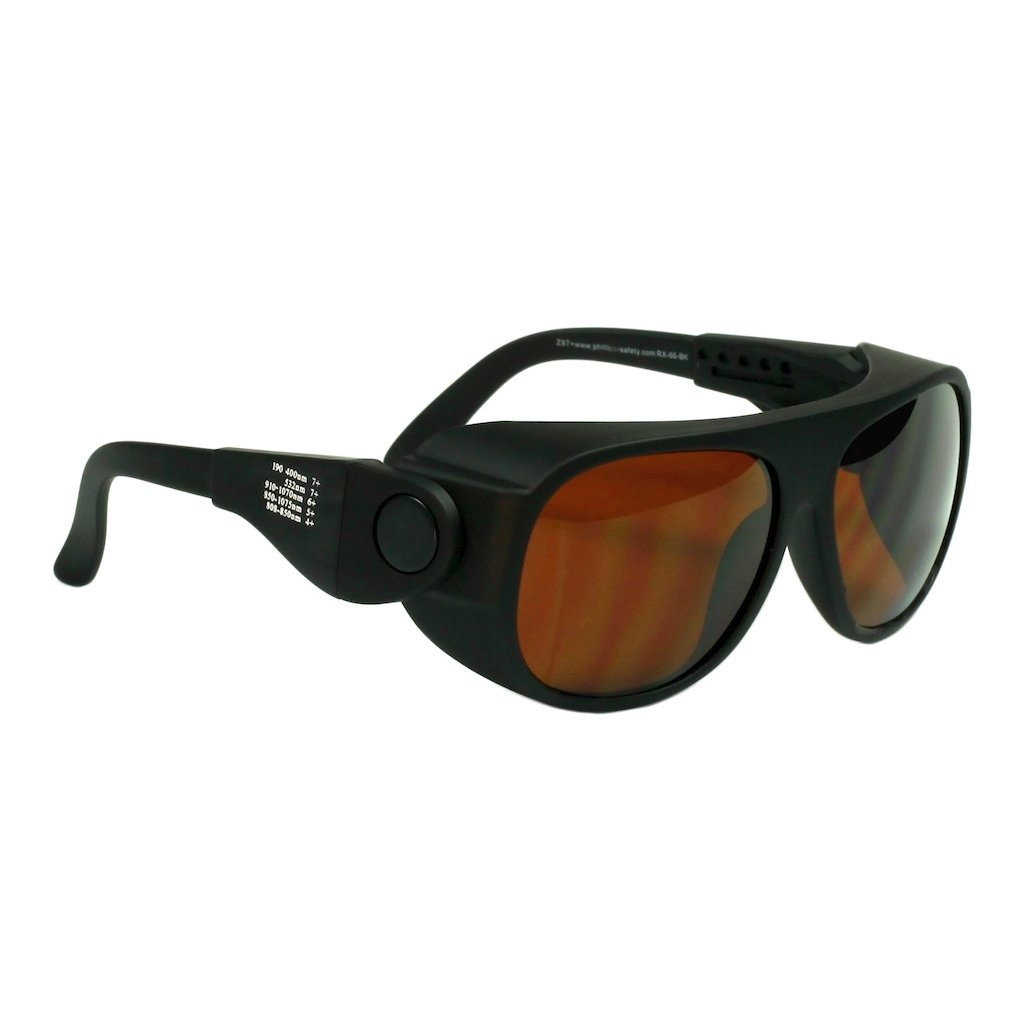

Product Description

The LS-DH83-66 laser glasses are designed to provide laser protection in an adjustable and sturdy frame. The polycarbonate lenses are lightweight and have exceptional optical clarity for long periods of wear.



  • Lens Type: DH83
  • Filter Type: Polycarbonate
  • Wavelength Ranges and corresponding Optical Density information is printed on the frame of the eyewear
  • Our laser glasses meet or exceed ANSI Z136.1 requirements for use with laser systems
  • Our laser glasses meet or exceed ANSI Z87.1 standards for protective eyewear (non-impact)
  • Temple bars are fully adjustable, ratcheting up and down and telescoping for a perfect fit
  • Large viewing area
  • Ships with case, adjustable strap & microfiber pouch
  • Dimensions - Overall Width: 130 mm, Overall Vertical Size: 52 mm, Eye Size: 60 mm, Bridge Size: 16 mm, Temple Size: Adjustable, from Hinge 115-120 mm
  • These laser glasses will keep your eyes protected at the below wavelength ranges



WavelengthOptical DensityColorVisible Light Transmission
190-400nm
7+
Brown
33%
532nm
7+
Brown
33%
910-1070nm
6+
Brown
33%
850-1075nm
5+
Brown
33%
808-850nm
4+
Brown
33%

About this Brand

Specifications

Specifications
Manufacturer Phillips Safety Products
Laser Type Excimer, KTP, Nd: Yag
Filter Material Polycarbonate
Certifications ANSI Z136.1, ANSI Z87.1
Item Ships From New Jersey
GSA Contract Number V797D-40002

Literature 1

pdf
(Size: 221.7 KB)
Laser Safety Specifications DH83

Product Video



Instructions

Storage:

  • Eyewear should be stored in clean and sanitary "ready for use" condition in an area away from dust, dirt and other contaminants.

Cleaning:

  • If the eyewear needs to be cleaned, generally, a mild soap solution is fine for eyewear and dry with a dry cloth free of abrasives and all chemicals.

Warranty:

  1. All Phillips Safety products are fully guaranteed against manufacturer defects (material and workmanship) for 6 months from the date of purchase. This does not cover negligent use of the product (including scratched lenses). Phillips-Safety will repair or replace any defective merchandise at no charge. All shipping charges remain payable by the purchaser.

Returns

Customers wishing to return this product must contact Customer Service to obtain a valid return authorization number within 14 days of receipt. A restocking fee may be deducted at the discretion of the manufacturer.

Reviews

Ask a Question (2)

Customer Questions
Will these KTP glasses fit over prescription glasses?

These will not fit over existing eye wear. However, item # LS-DH83-33 is a fit over style.

Are these glasses adequate for operating a laser with the following specs - Max output 150W; Wavelength 1053, 527; Laser medium Nd:YLF?

The optical density protection is as follows: 1053: 6+ 527: 7+ Please review the optical density requirements for your laser to confirm that the above optical density ratings meet or exceed those requirements. If they do, these glasses may be a solution for you.
