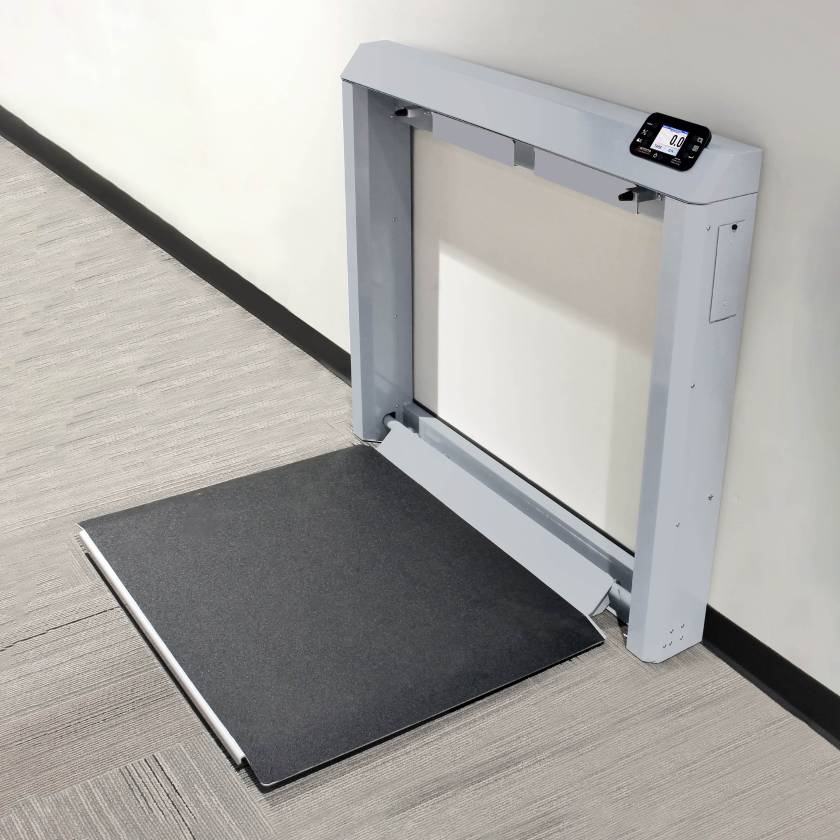

DETECTO Wall Mount Fold-Down Platform Digital Wheelchair Scale

DETECTO’s Wall-Mount Fold-Up Wheelchair Scale offers space-saving convenience and easy installation in high-traffic areas. Its fold-up platform allows weighing in open areas while preserving floor space and accommodating most wheelchairs, making it an efficient and discreet solution for any environment.

Features:

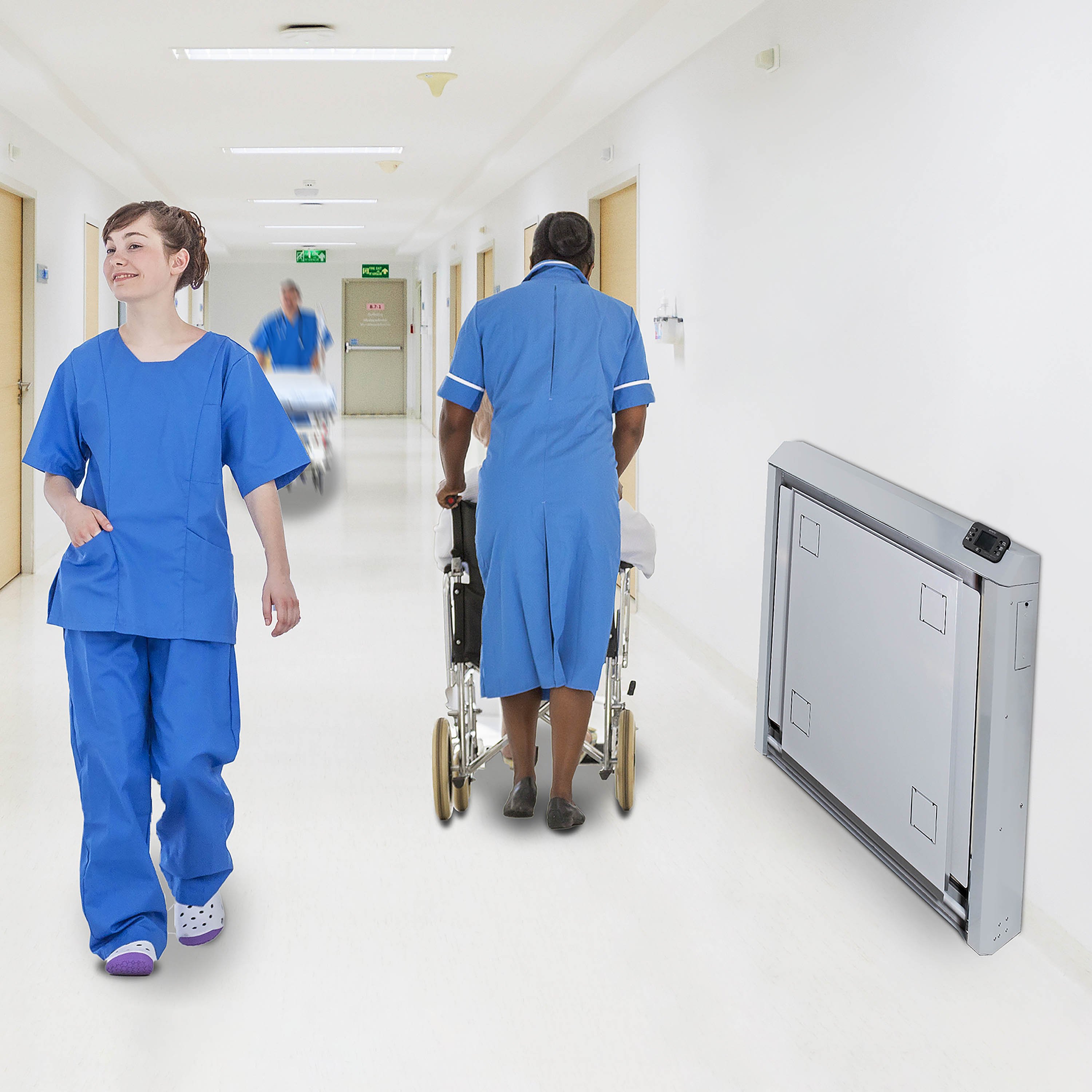

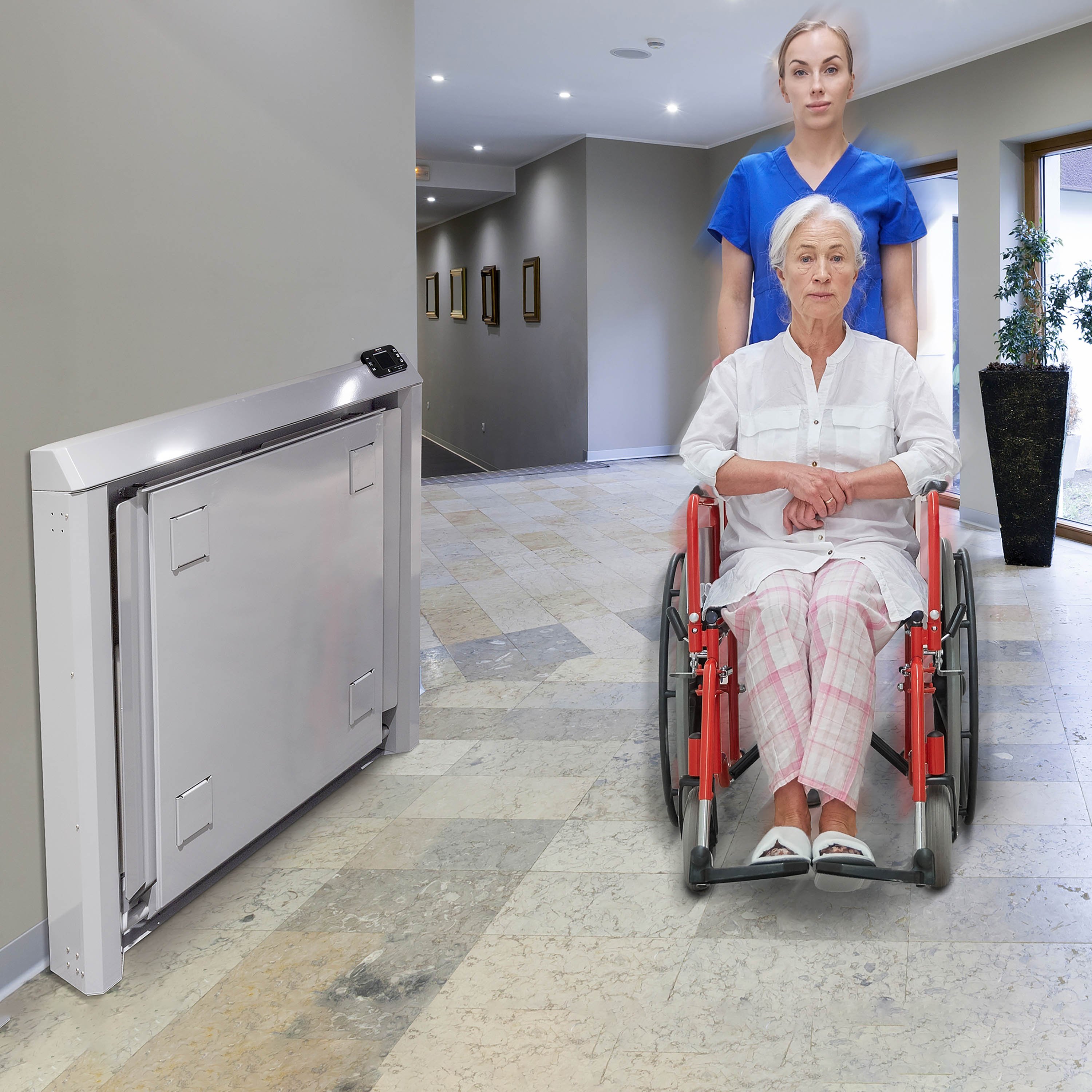

• Slim 7" / 18 cm profile takes up minimal space when installed in a medical facility hallway, clinical office, or patient room

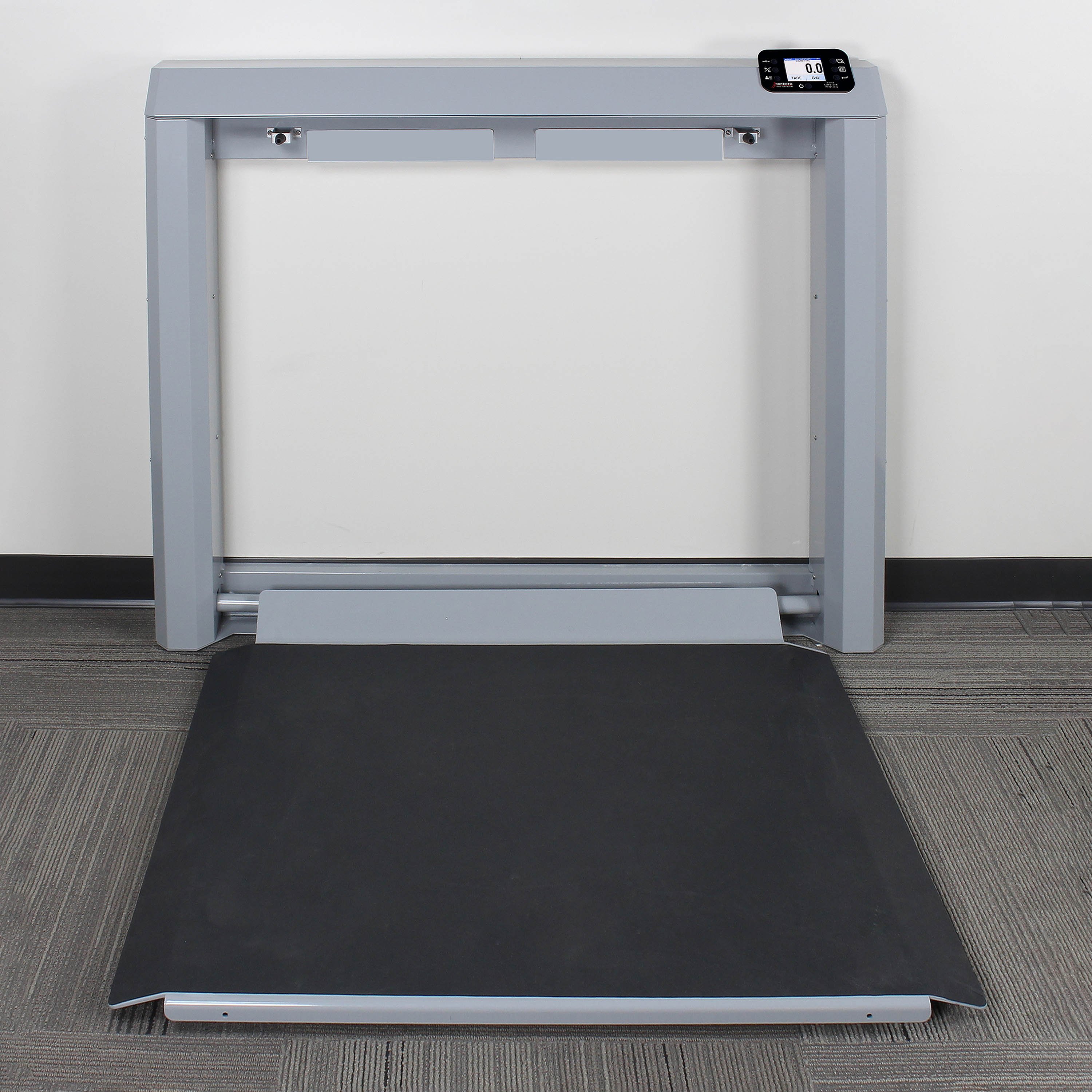

• 36" W x 32" D weighing platform provides ample room and can accommodate some sizes of power wheelchairs
• 1.5" high, low platform enables easy patient access and effortless rolling on or off the scale
• Two-way easy access ramps
• Gas spring platform lifting mechanism
• Textured non-skid mat on ramp and platform
• Bluetooth 5.0 / Wi-Fi included standard for wireless connectivity with EMR/EHR systems
• 3.2" (diagonal) full-color TFT display with 320 x 240 resolution provides easy-to-read text explanations of various functions and large, vivid weight readouts

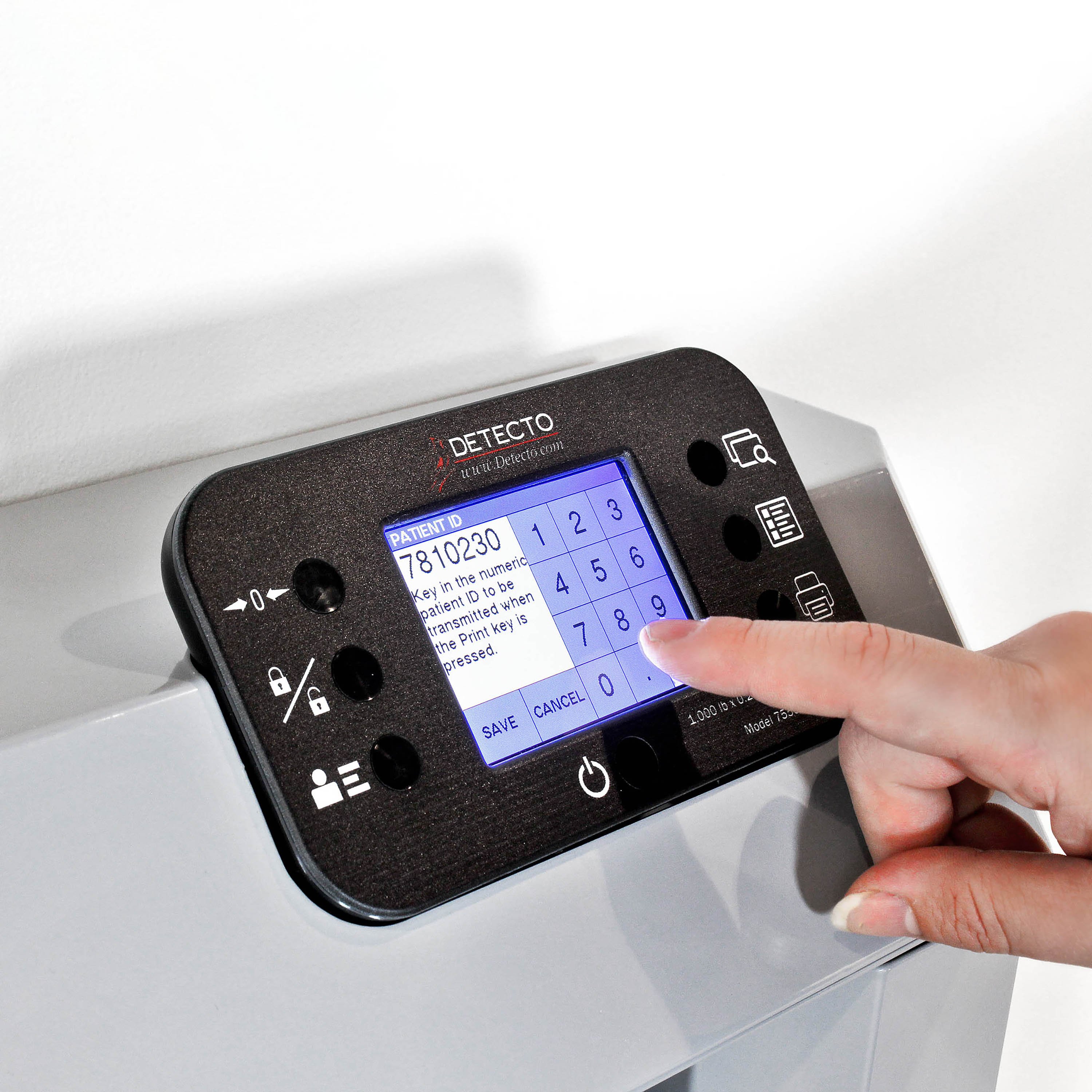

• iPhone-like touchscreen LCD that allows you to enter up to 8-digit patient IDs that can be sent along with patient weight data to EMR systems via Wi-Fi or Bluetooth 5.0
• Integrated full-color, touchscreen LCD offers wheelchair tare weight mode to remove wheelchair weights and factor patient weight
• Wheelchair tare entry can be done before or after the patient is on the scale
• Pushbutton and keypad tare for wheelchair weights
• Body Mass Index calculation
• Units locking into LB or KG
• Auto weight lock feature
• StableSENSE adjustable filtering
• Connects with DS smart® via Bluetooth

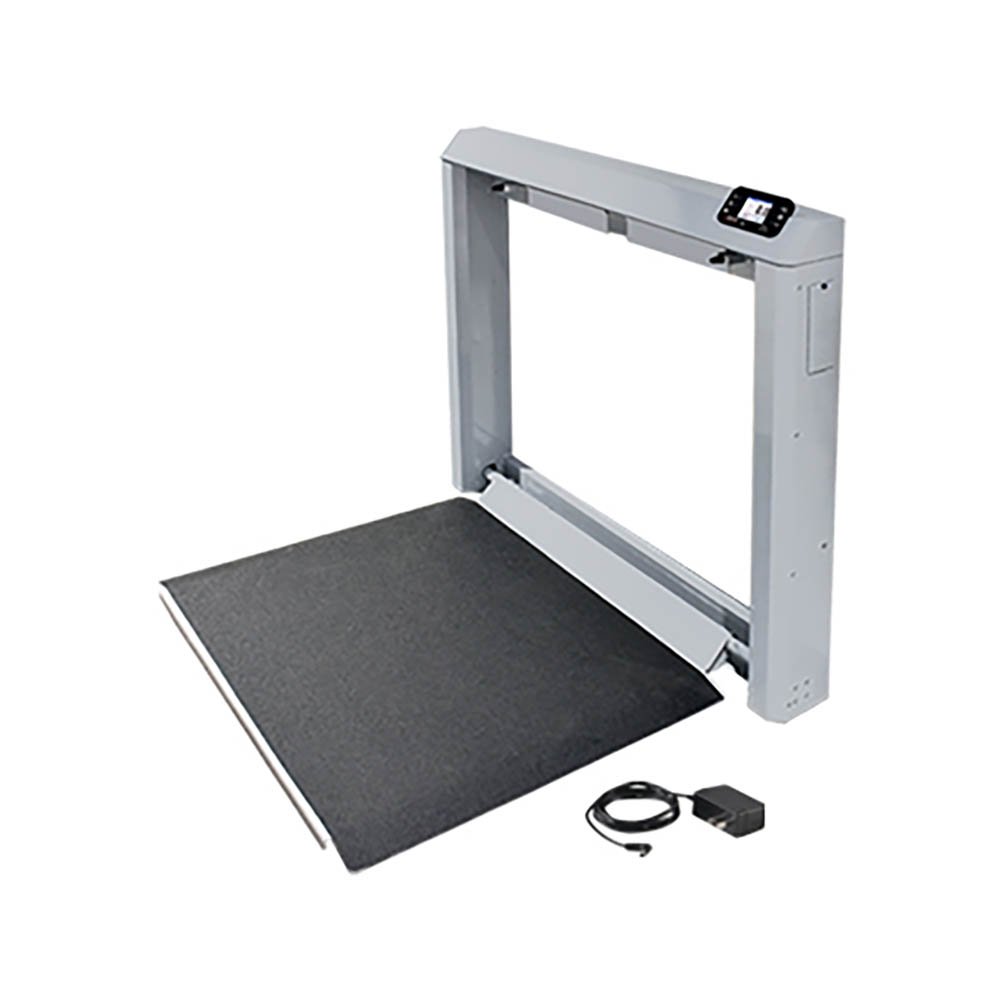

• Powered by 6 C batteries (not included) or an AC adapter (included on 7550-AC model)
• Sturdy steel construction for long-lasting durability over a lifetime of use
• Stylish gray color allows the 7550 scale to integrate into any healthcare environment

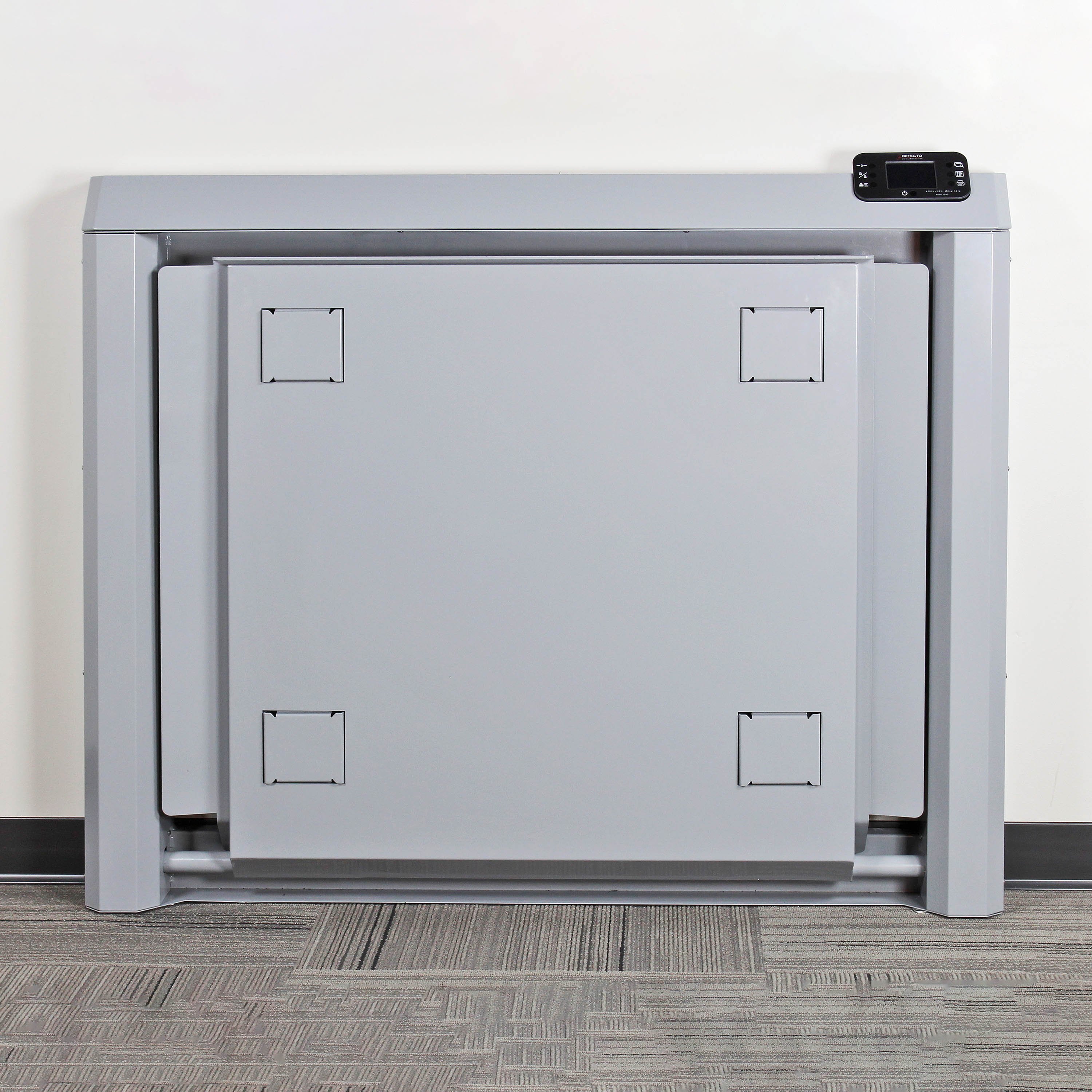

• Vertical fold-up platform and non-weighing mode allow the wall-mount scale store easily out of the way, conserving valuable space even in high-traffic areas
• May be used on carpet or hard floor surfaces
• TAA Compliant
• 2-year warranty

Specifications:

• Weight Capacity: 1,000 lbs x 0.2 lb / 450 kg x 0.1 kg
• Display Type: 3.2" (diagonal) full color TFT display
• Resolution: 320 x 240 pixel resolution
• Number of Characters:
  • Weight: 5 digits, 0.8" high
  • Height: 4 digits, 0.35" high
  • BMI: 3 digits, 0.35" high
• Touchscreen: Resistive touch panel covering the display
• Keys: Mechanical switch type, Power, Zero, Lock/Release, ID, Cycle Display Mode, Menu, Print
• Power Requirements:
  • 6 C size Alkaline, Ni-Cad, or NiMH batteries (not included)
  • Optional 100 to 240V AC 50/60Hz 12V DC 1A wall plug-in UL/CSA listed AC power adapter (SKU 6800-1045; Sold Separately)
• Operating Temperature: 14ºF to 104ºF (-10ºC to +40ºC)
• Operating Humidity: 0 to 90% non-condensing
• Construction: Steel
• Weighing Mechanism: Electronic load cells
• Lifting Mechanism: Gas springs
• Communication Interfaces: Wi-Fi and Bluetooth 5.0
• Platform Size (Flat Portion): 36" W x 32" D x 1.5" H
• Overall Dimensions: 50.3" W x 44" H
• Overall Depth: 39.3" with platform extended (7.3" without platform extended)
• Product Weight:
  • Model 7550: 180 lbs
  • Model 7550-AC: 181 lbs

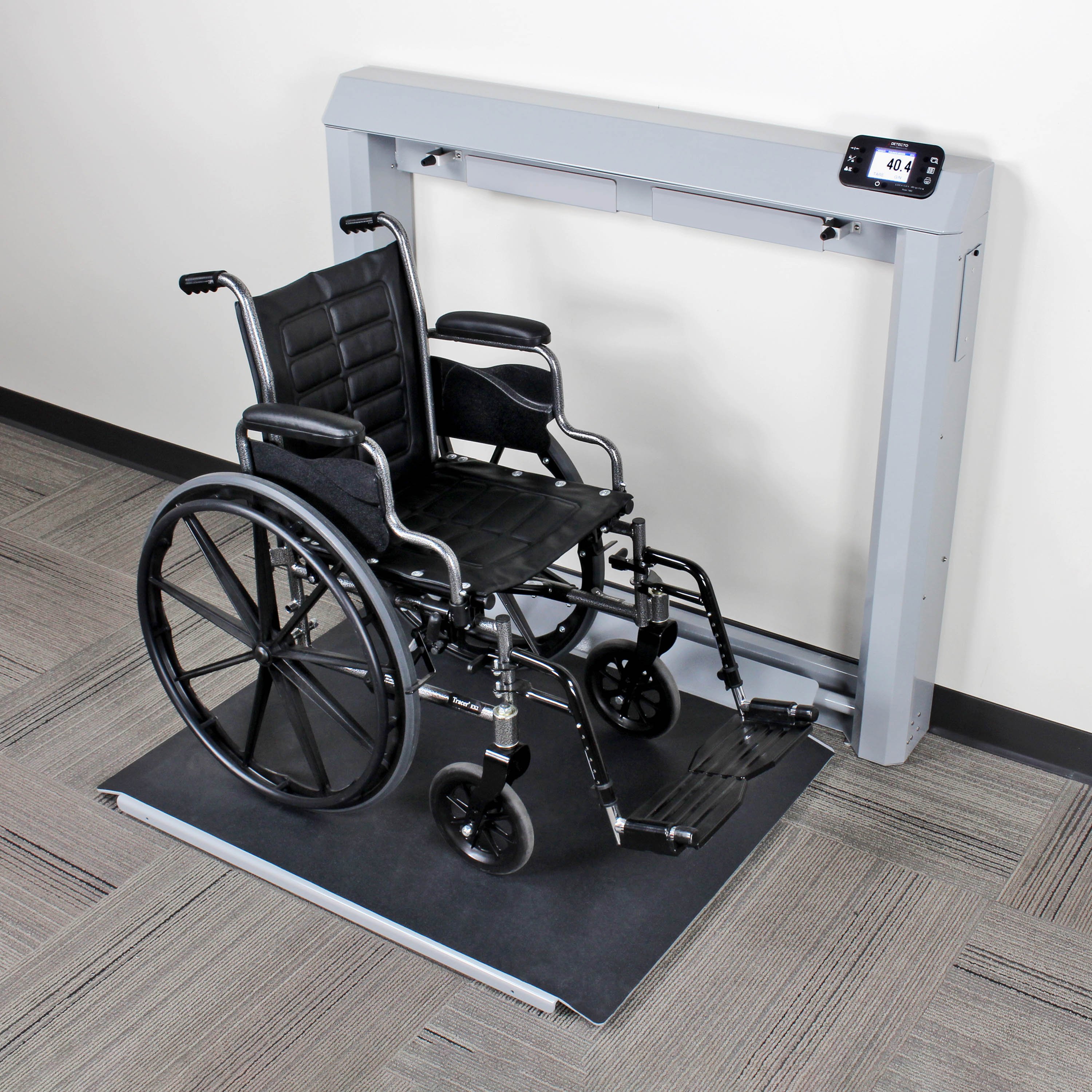

Please Note: Wheelchair shown in photo is not included.
