Product Description

​DETECTO’s innovative and highly customizable MobileCare Medical Carts offer the most advanced security level features available in the medical cart market. Nearly unlimited configuration possibilities are available.

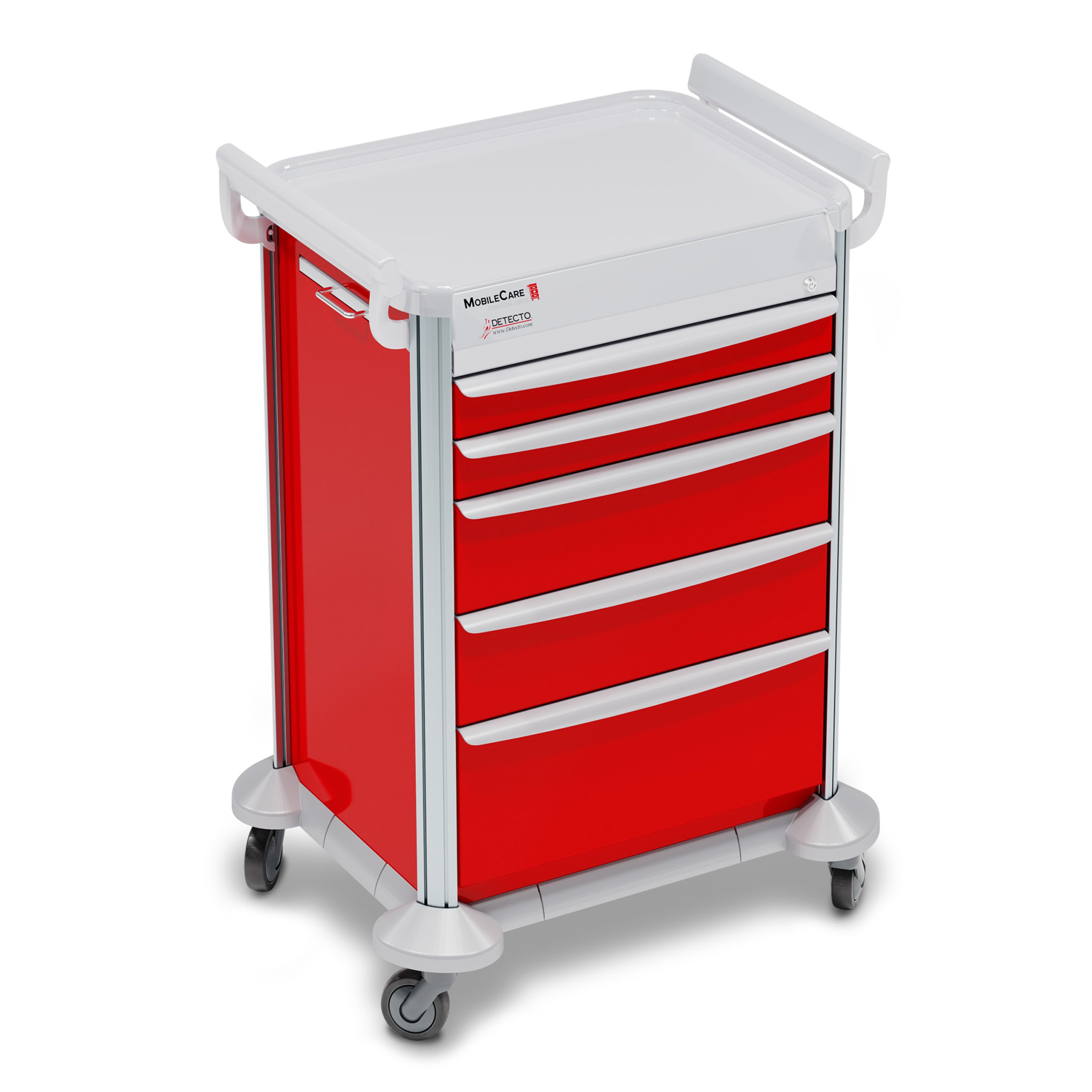

The DETECTO MobileCare 23" Wide Drawers Red Medical Carts are available with electronic (RFID with 3 different frequencies available and full-color touchscreen pincode), quick release, and keyed locks.


  • ABS thermoplastic countertop with molded edges is all one continuous piece for optimal hygienic clean-up

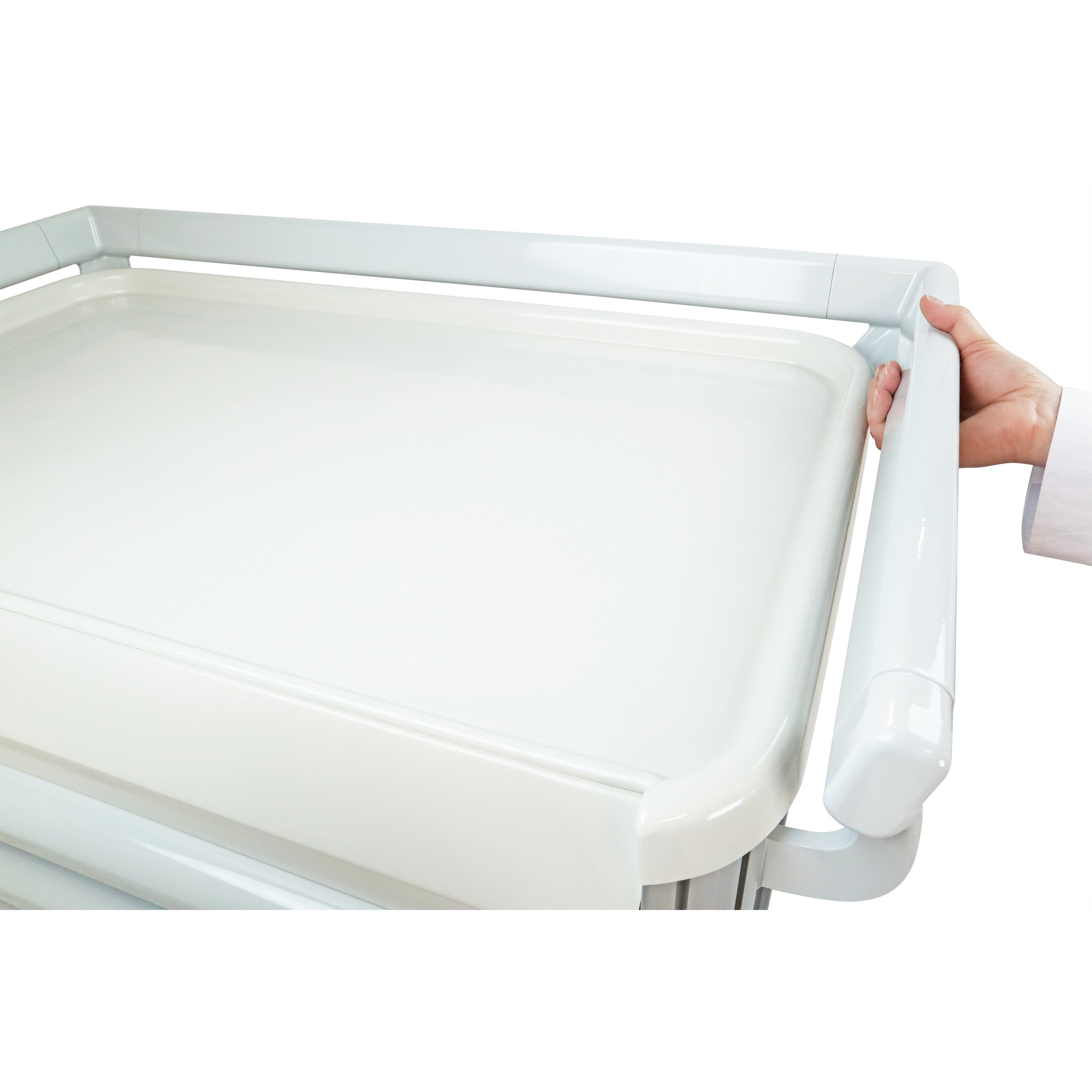

  • Depending on the model, the cart is equipped with one, two, or three handrails that are easy to grip and height-adjustable

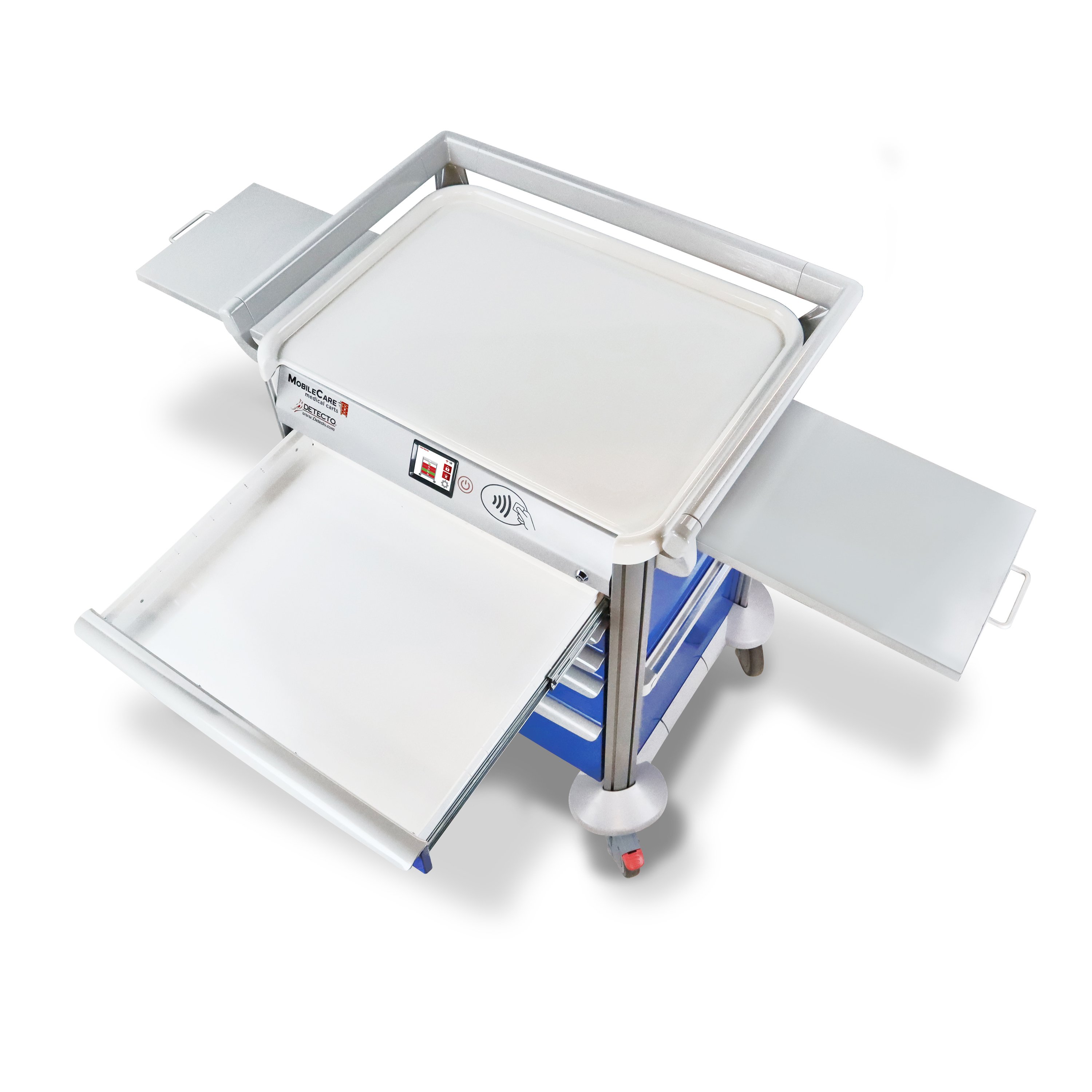

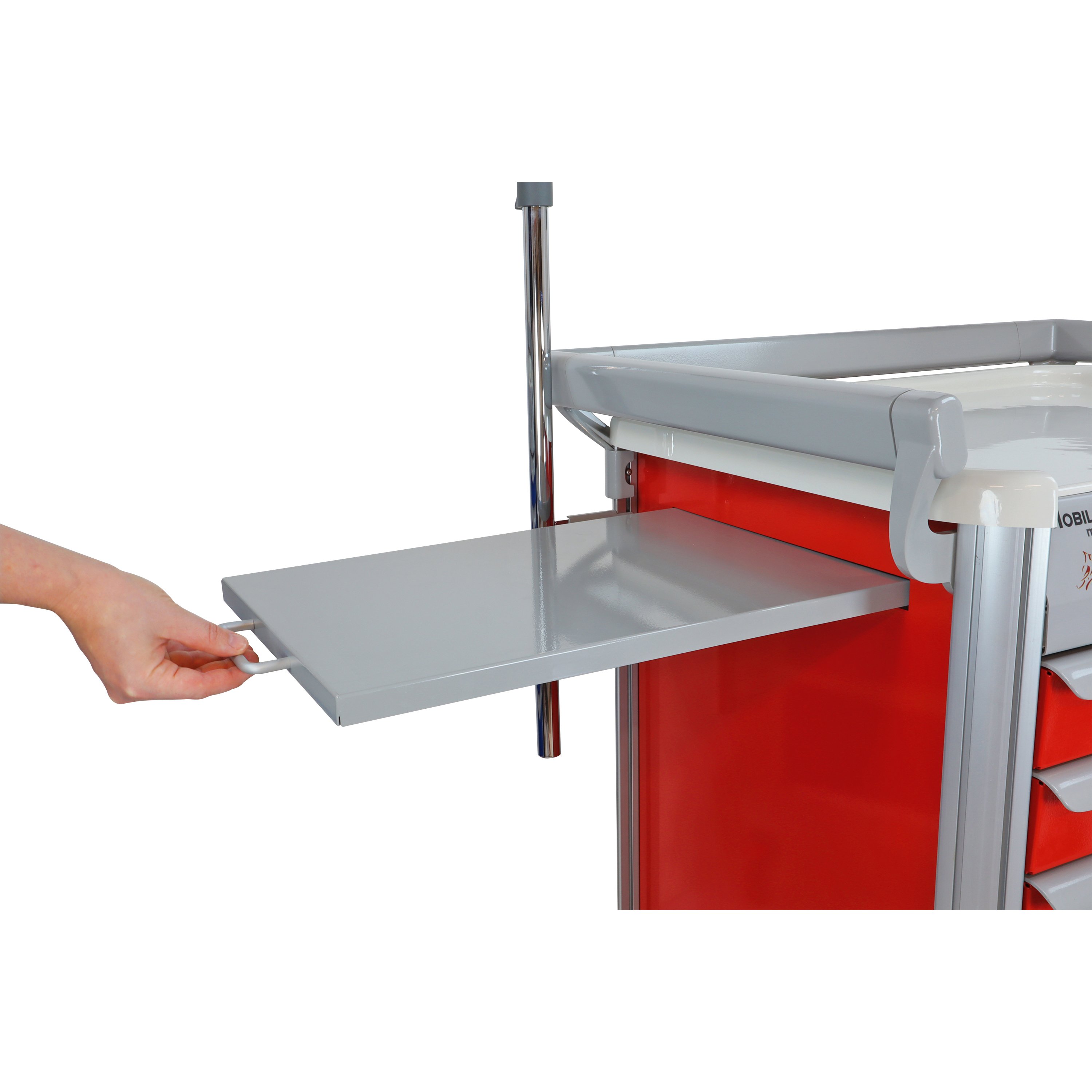

  • Two self-closing side extension trays included standard for additional counter space

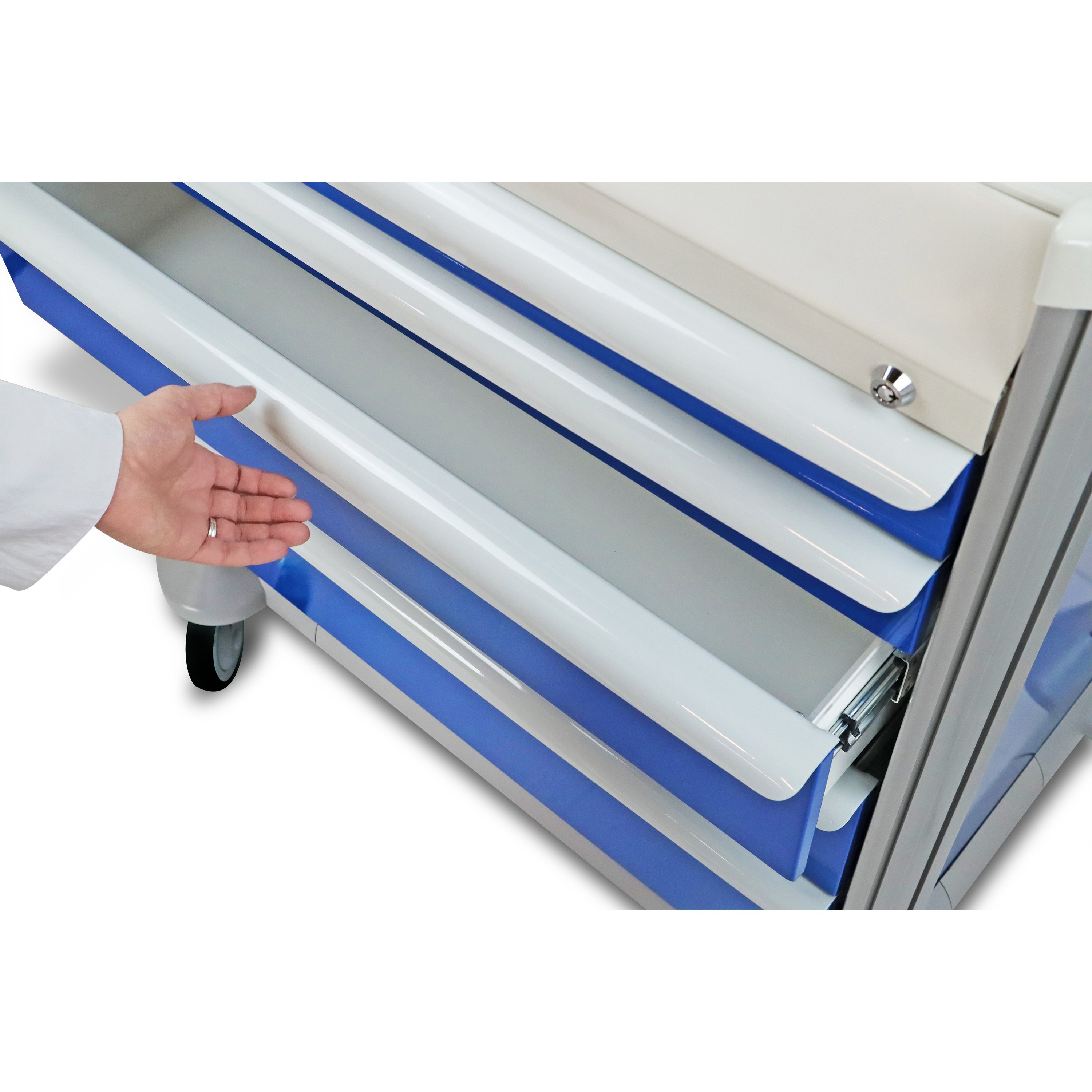

  • Spacious soft-close drawers elegantly glide shut for convenience
  • Aluminum cart body and standard full wrap-around high-impact plastic bumper trim, which extends beyond the handrails for complete protection

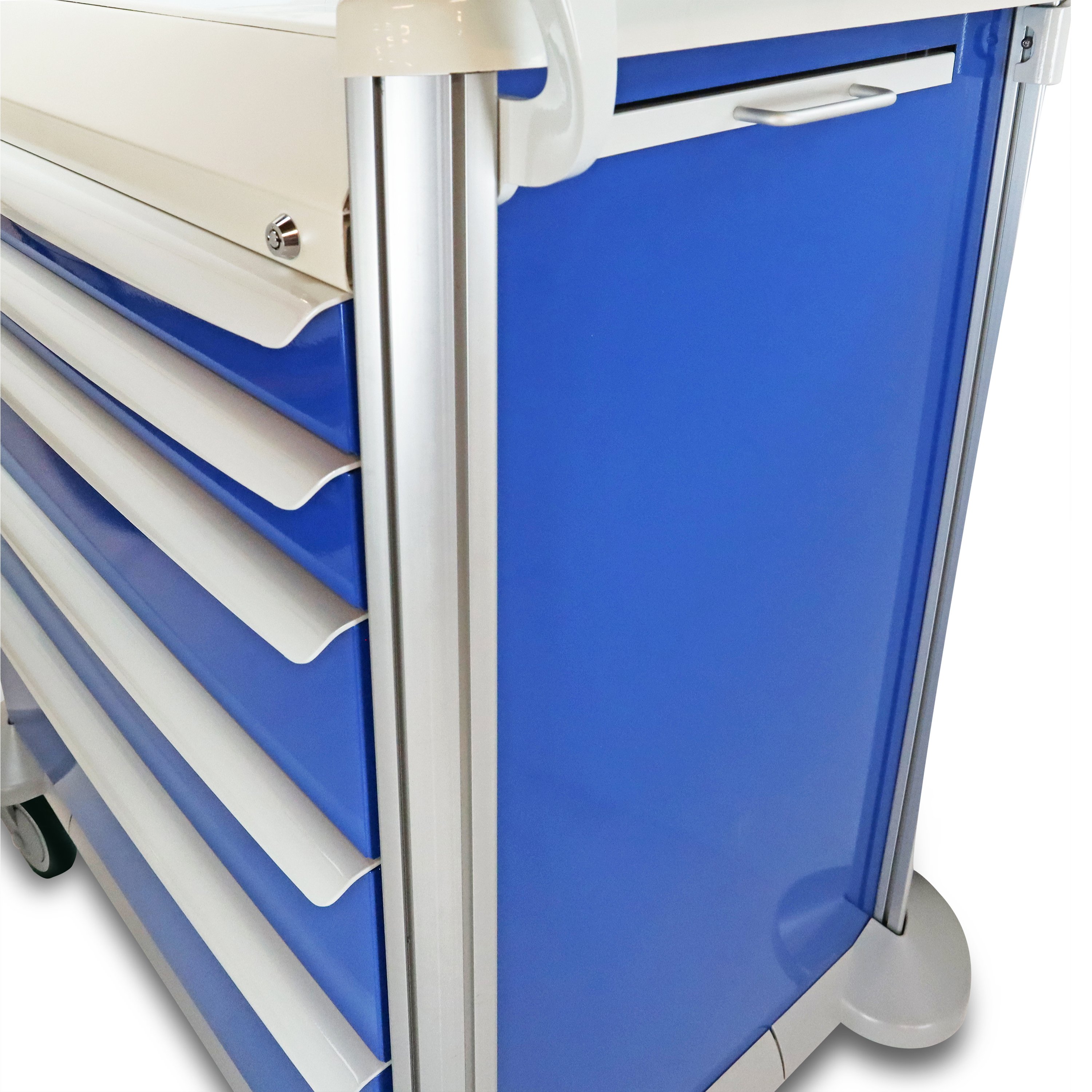

  • Seamless shell body without any exposed holes for flush, clean lines and more aesthetically pleasing appearance
  • Versatile corner extrusion mounting for easy optional accessory attachment with customized locations

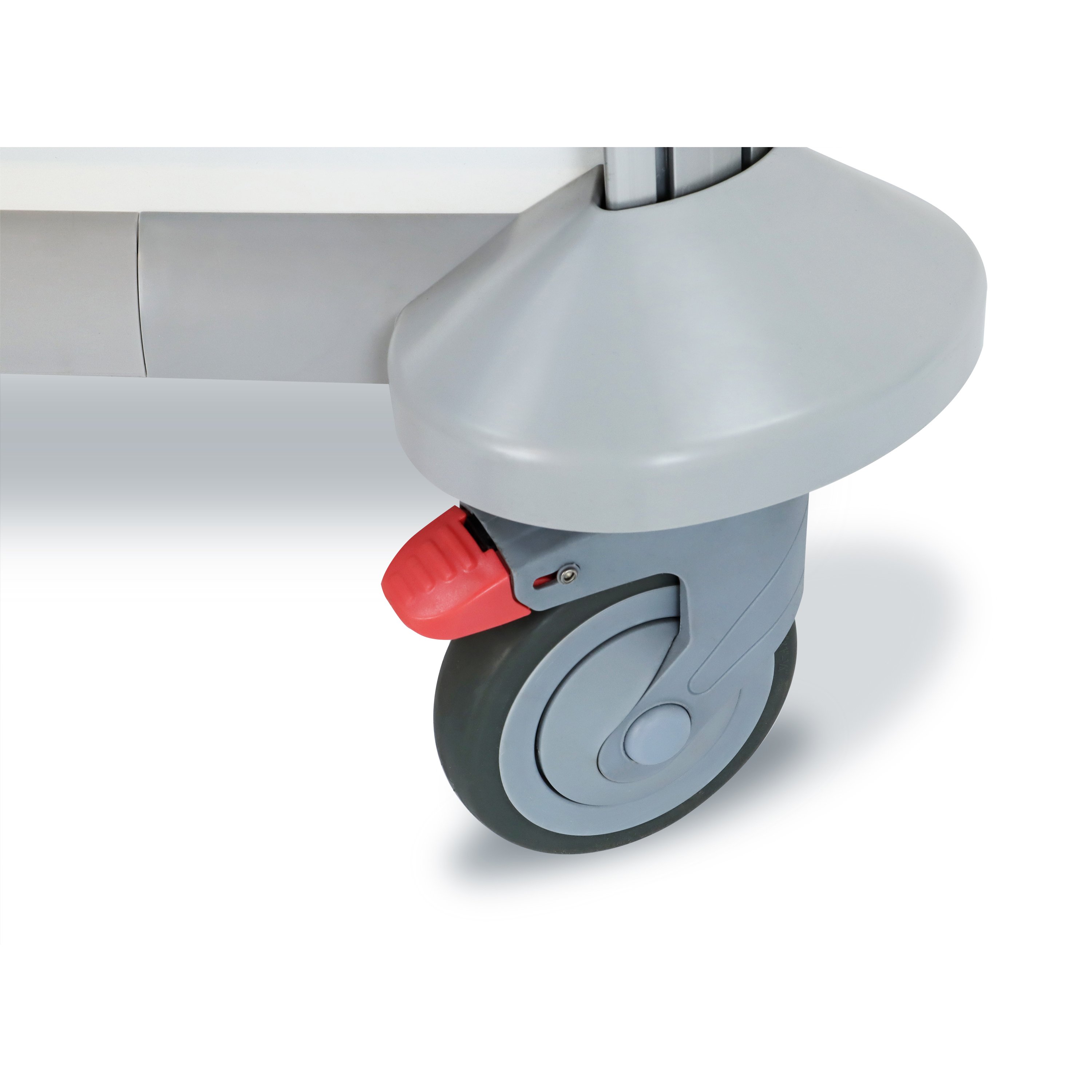

  • Each of the four casters - two locking and two non-locking - has a single wheel and measures 5" in diameter

Additional Features for Electronic Carts:

  • Windows software, along with the proprietary onboard and PC software developed by DETECTO, provides a centralized point for all employee cart access and security settings, pushed via secure Wi-Fi or Bluetooth for instant updates
  • The included PC software allows you to setup or update individual users, carts, locations, buildings, and departments; facilitates tasks such as printing, downloading, and exporting detailed history reports (holds up to 50,000 records)
  • Tracking to check accountability of individual drawer inventory
  • Detailed audit employee tracking to mitigate narcotics theft

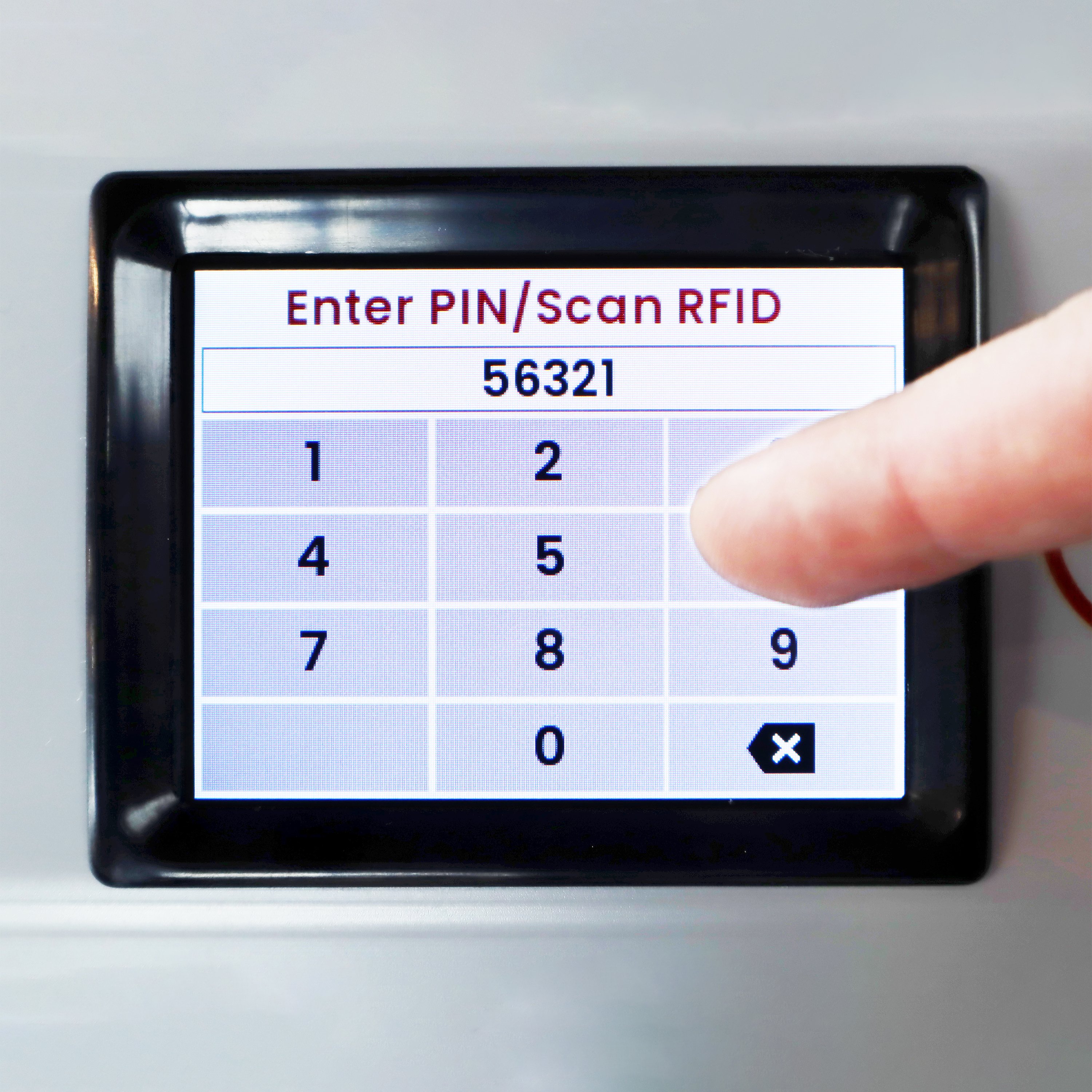

  • Full-color touchscreen LCD allows you to enter pincodes for unlocking (up to 5,000 users per cart)

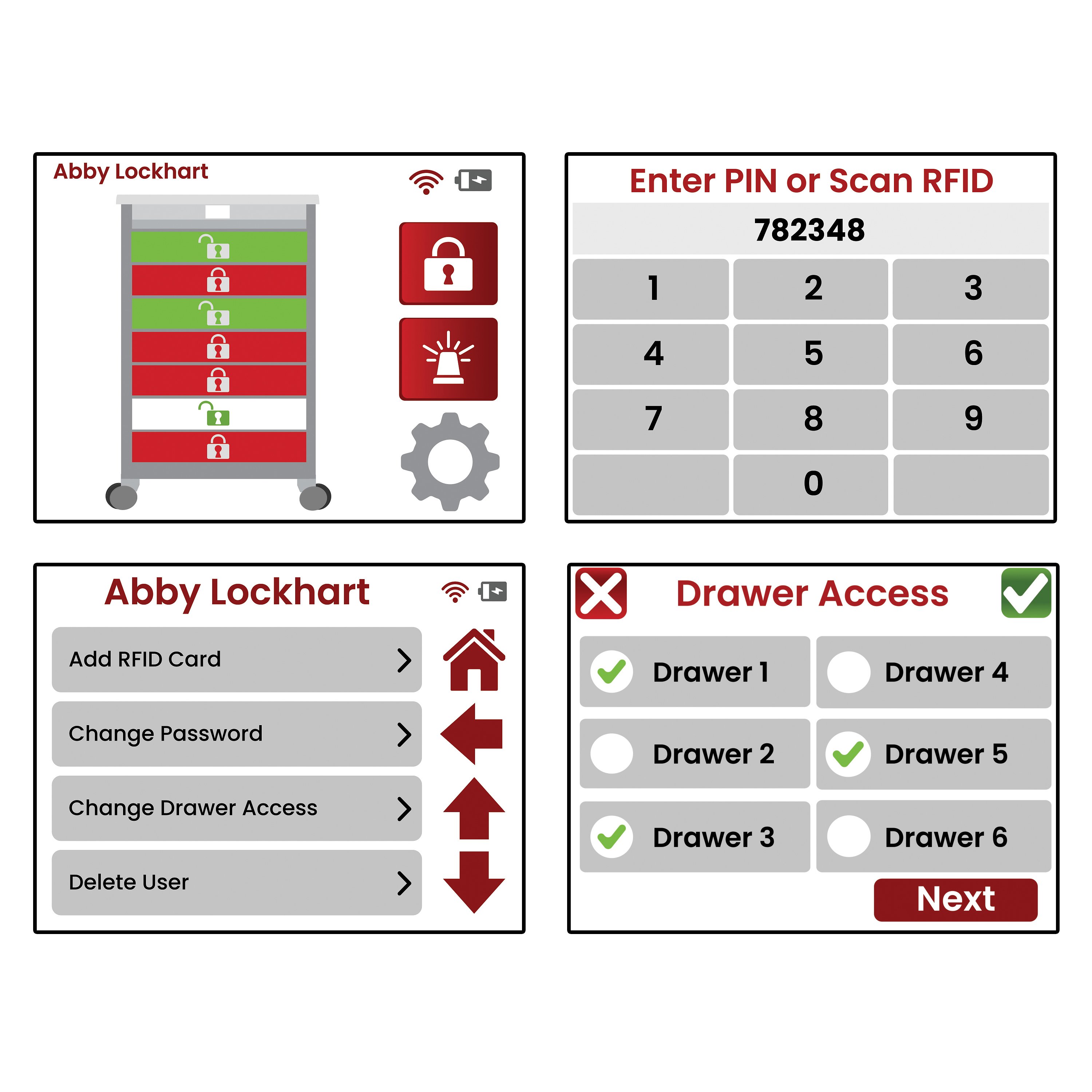

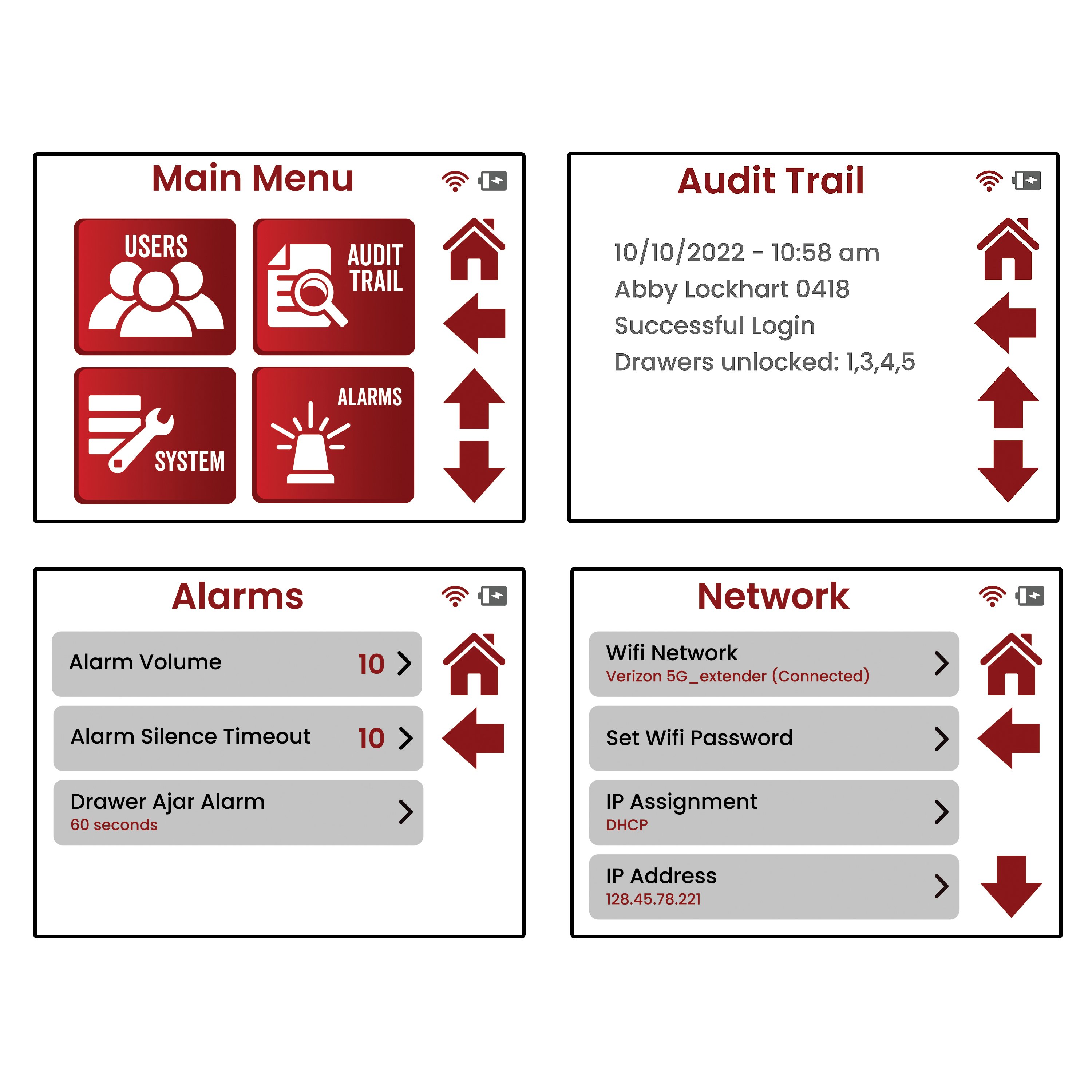

  • Intuitive graphical menus provide easy navigation and controls for complete cart administration via the full-color touchscreen LCD's onboard software
  • Dual authentication for optimal security: RFID and pin code touchscreen entry
  • Alarms: audible alert (with timing settings) and e-mail/text notifications (up to 3 admins each)

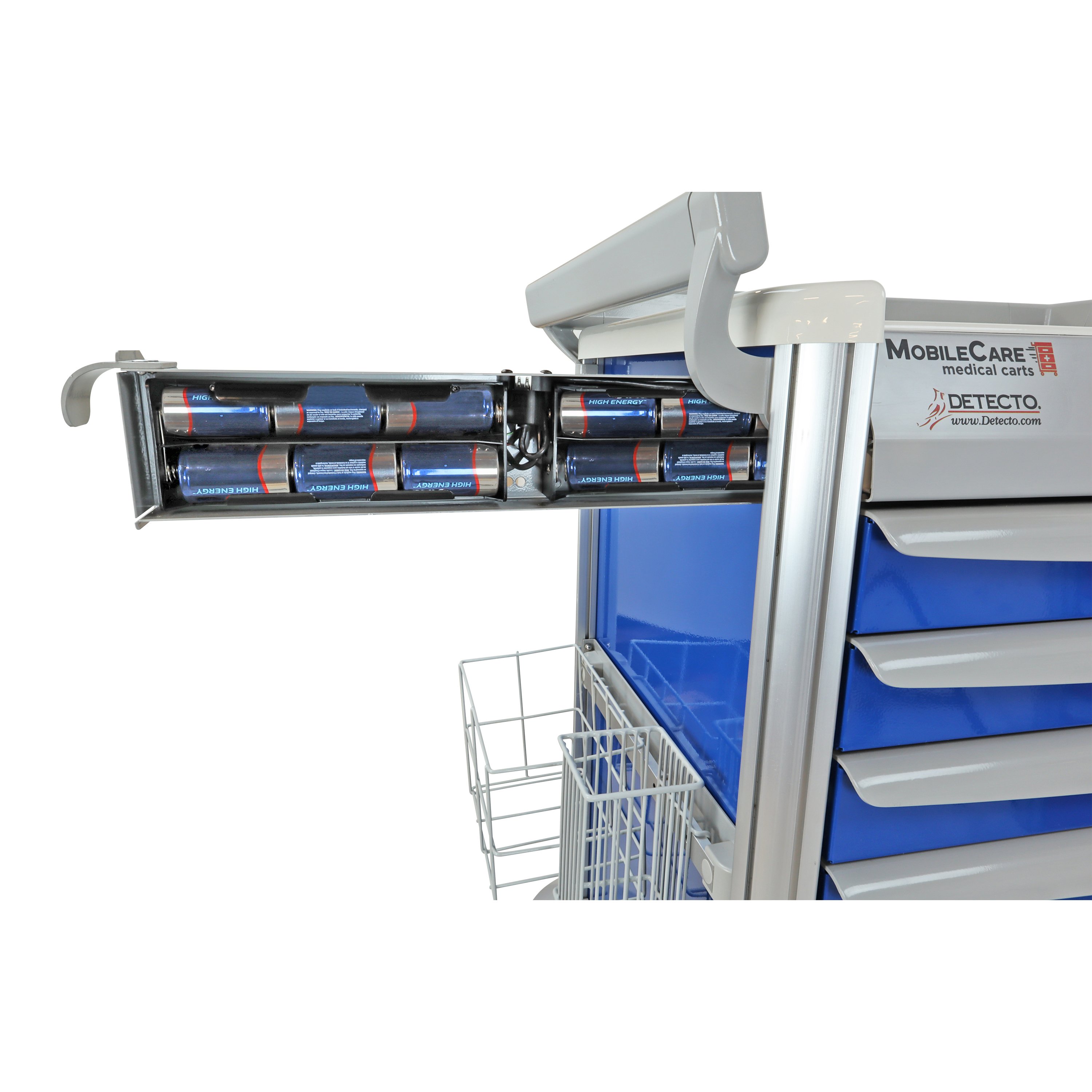

  • Power by 12 off-the-shelf Alkaline or rechargeable D batteries (not included)
  • Slideout USB port allows field software updates for the onboard electronics


  • Drawer Configuration (Drawer Height):

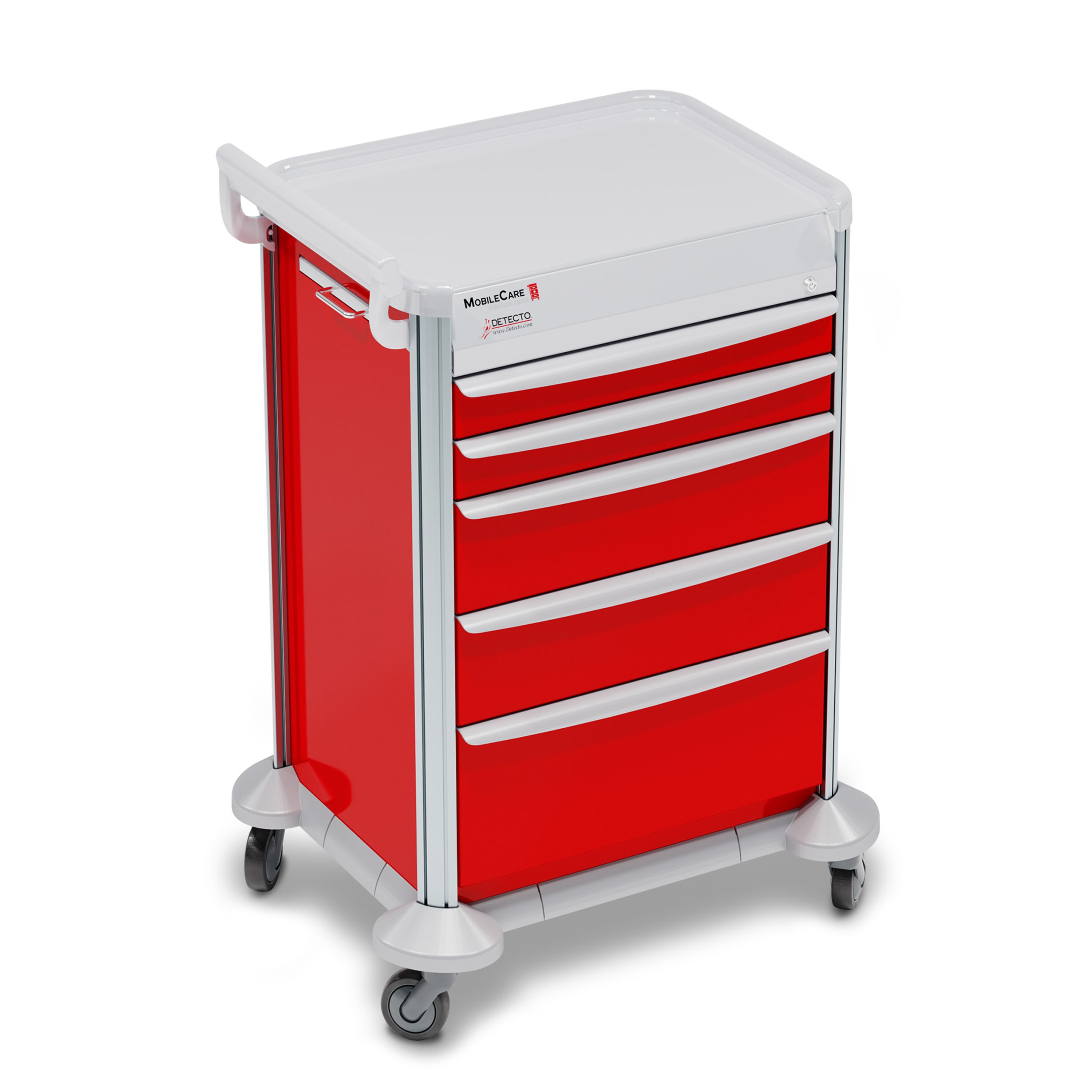

    • Five Drawers: 3", 3", 6", 6", 9"

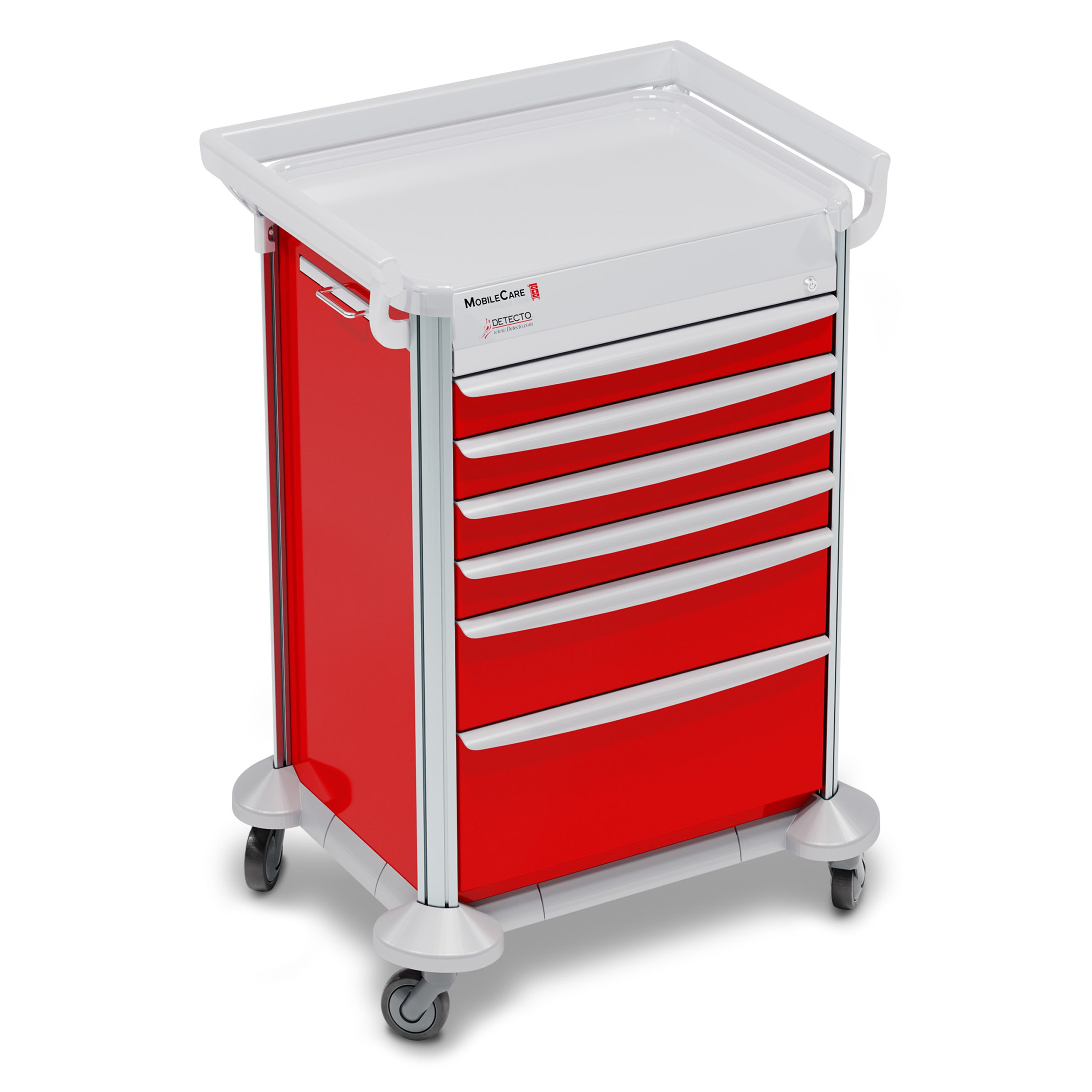

    • Six Drawers: 3", 3", 3", 3", 6", 9"

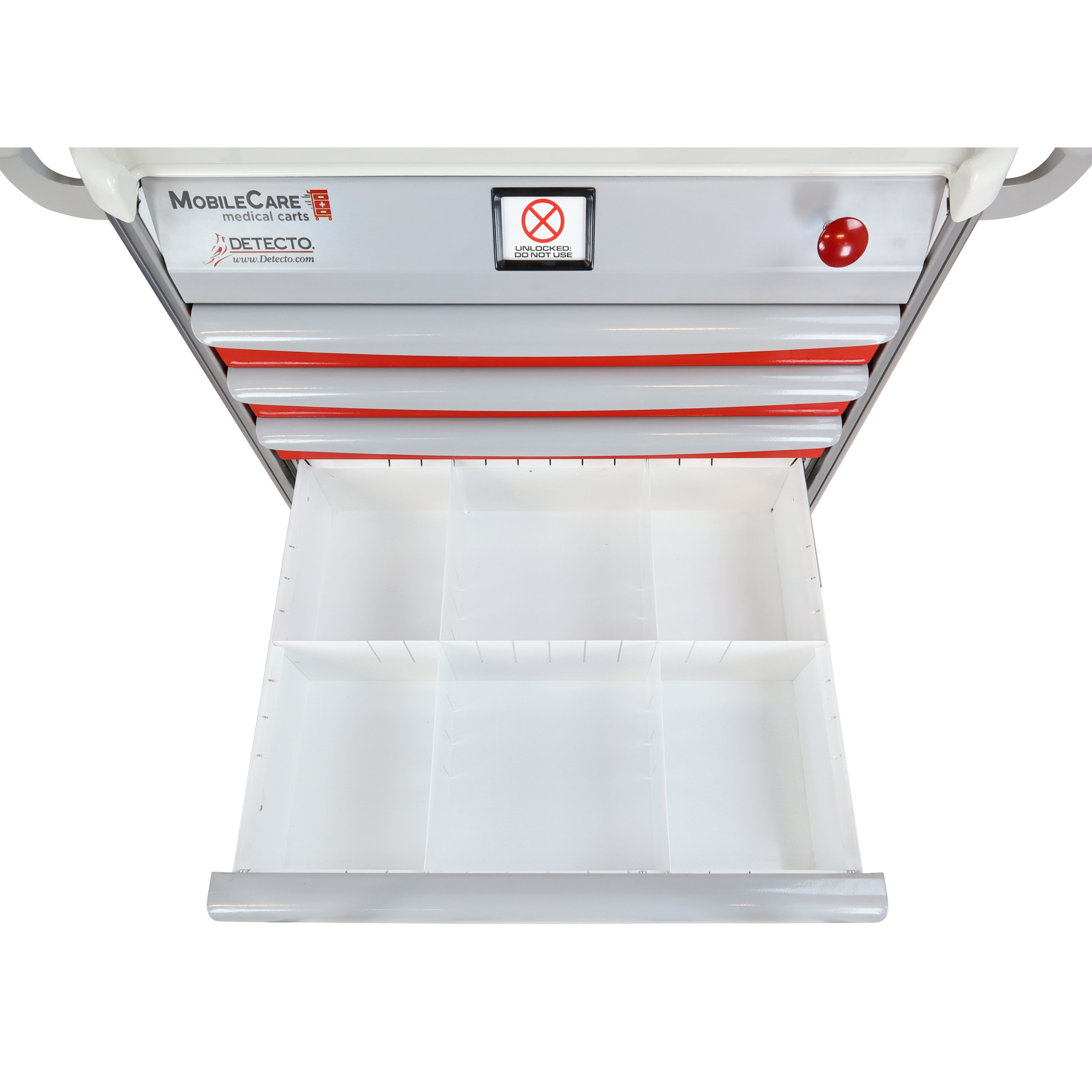

  • Drawer Internal Width x Depth: 22.9" x 17.9"
  • Drawer Internal Height:

    • 3" Drawers: 2.6"
    • 6" Drawers: 5.6"
    • 9" Drawers: 8.6"

  • Drawer Weight Capacity: 50 lbs
  • Cart Overall Dimensions: 43.9" H x 33.5" W x 26.7" D (Height includes handrail; width and depth are to edge of bumpers)
  • Box Dimensions: 27" H x 23" W x 18" D
  • Top Work Surface Dimensions: 27.1" W x 19" D
  • Construction:

    • Cart Body: Aluminum (Cart top, bottom, sidewalls, drawer fronts and slides, corner extrusions, and 2 work trays)
    • Countertop: One-piece ABS thermoplastic with molded edges
    • Bumpers: Wrap around high-impact ABS thermoplastic

  • Handrails:

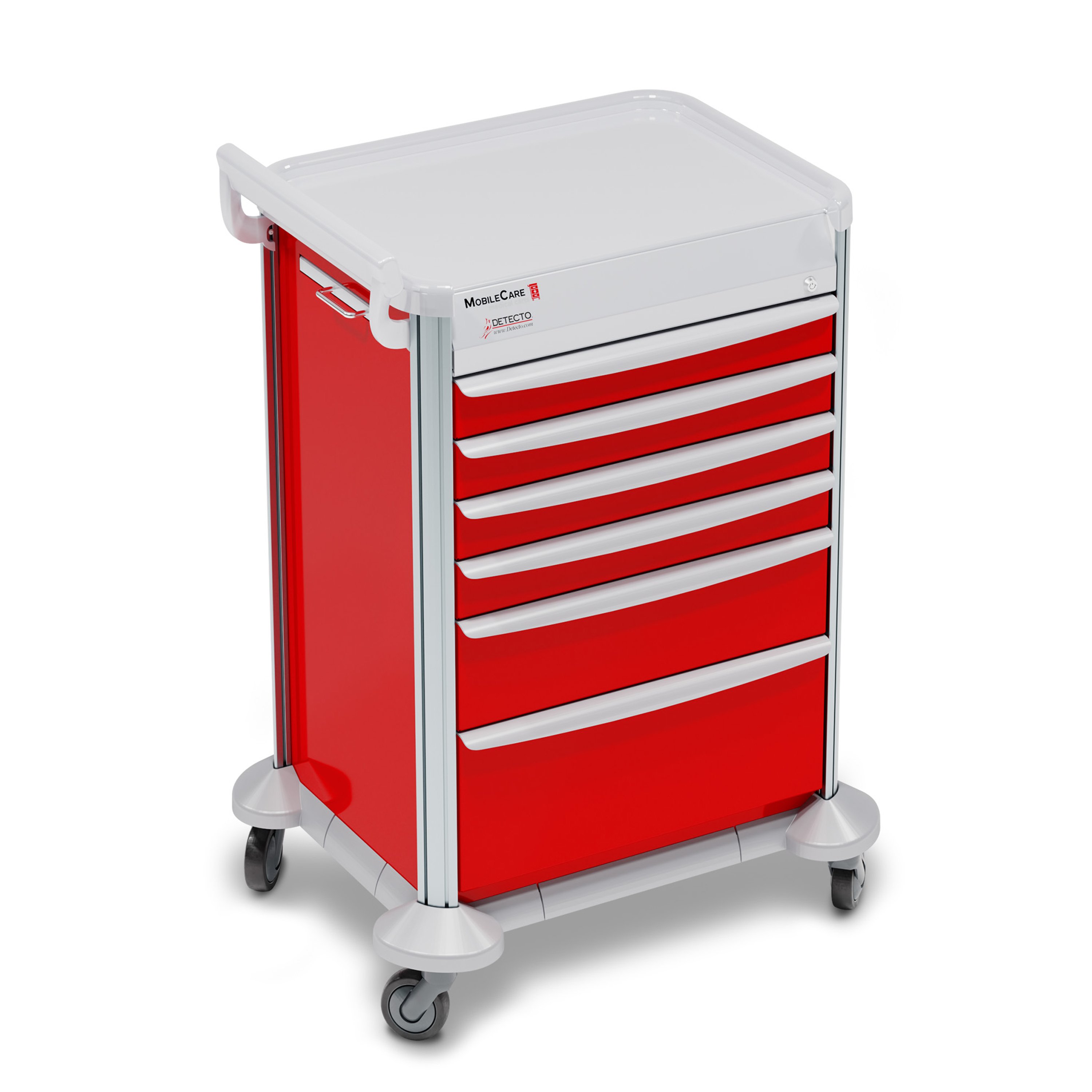

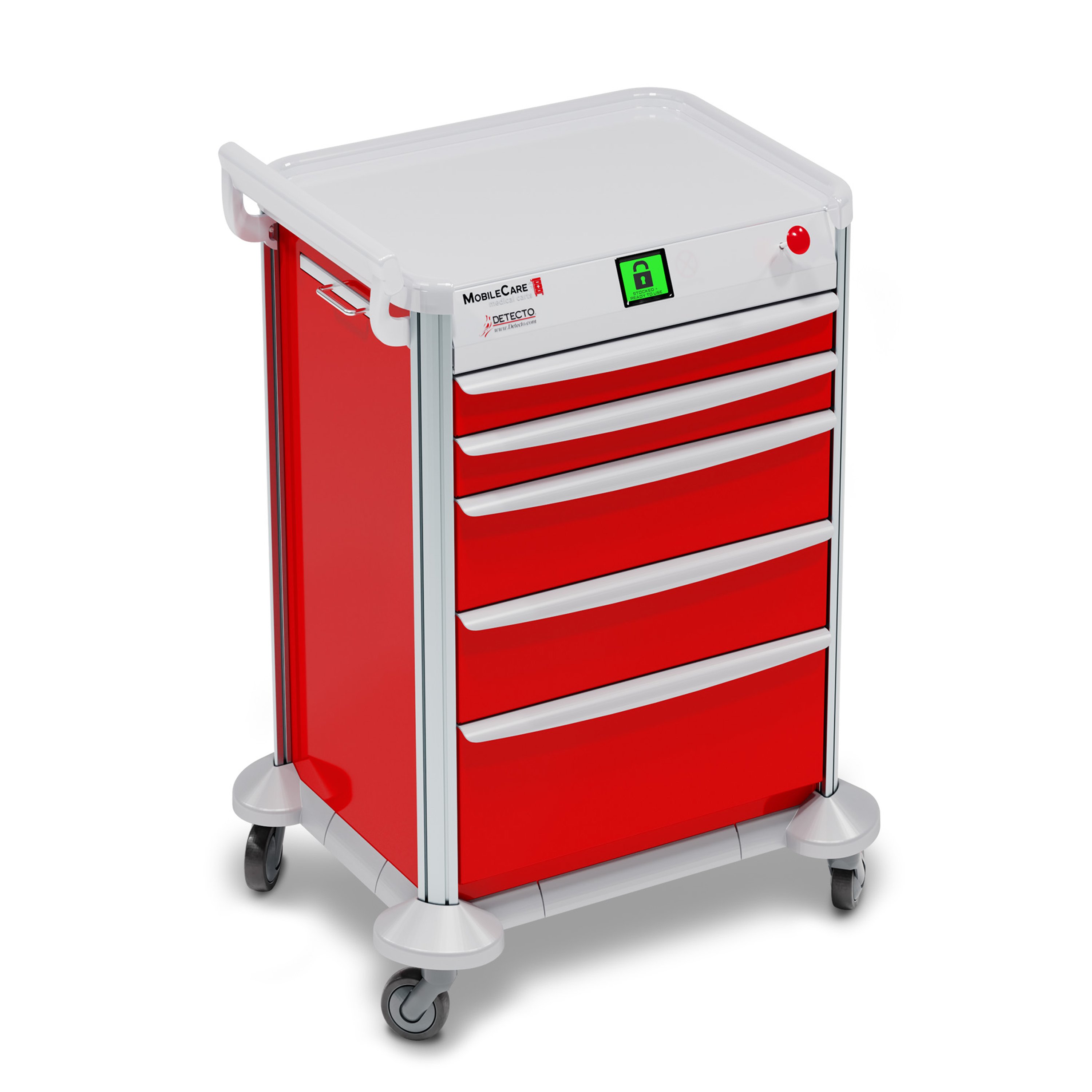

    • 1 Handrail: right side (facing the front of the cart)

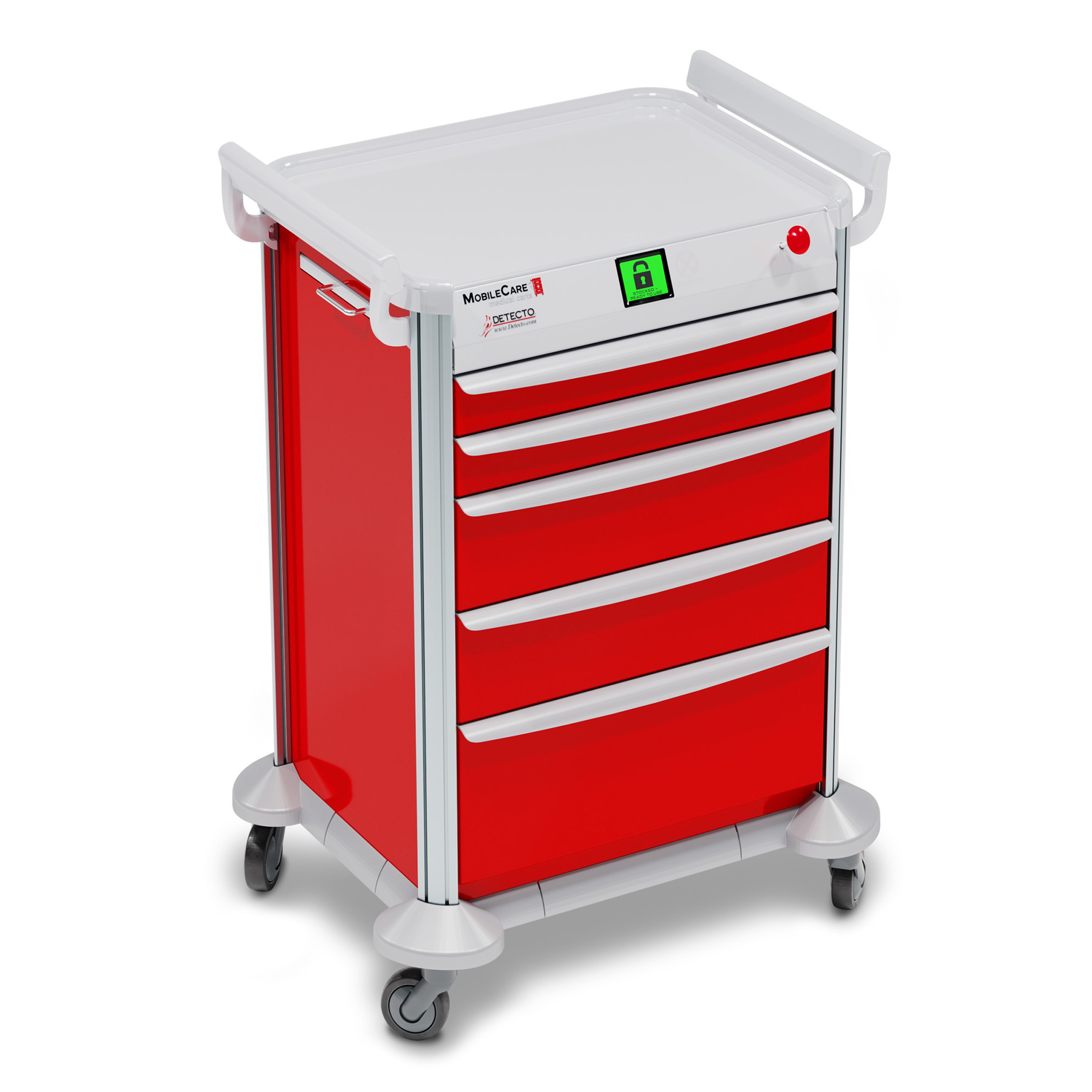

    • 2 Handrails: left and right sides, opposite each other

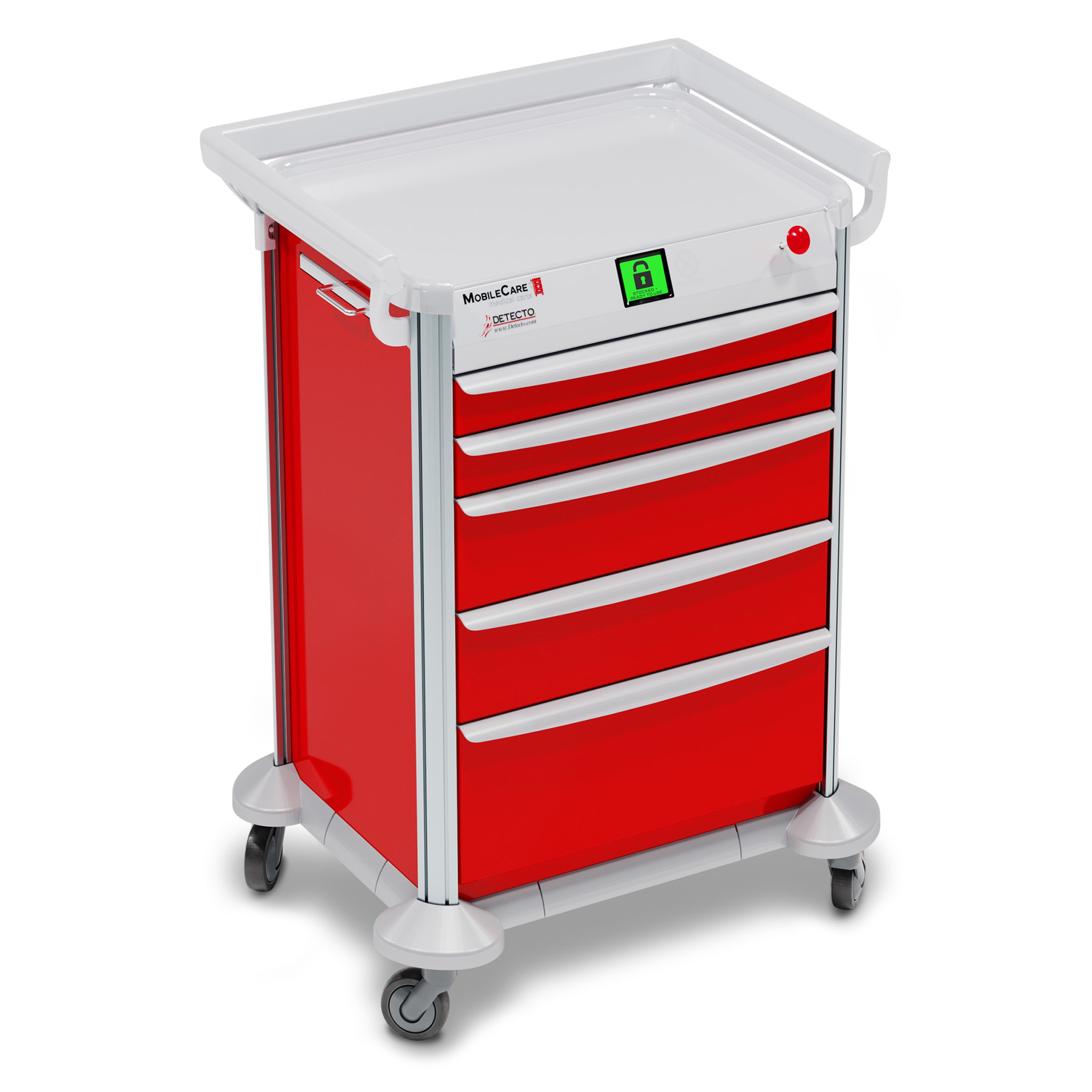

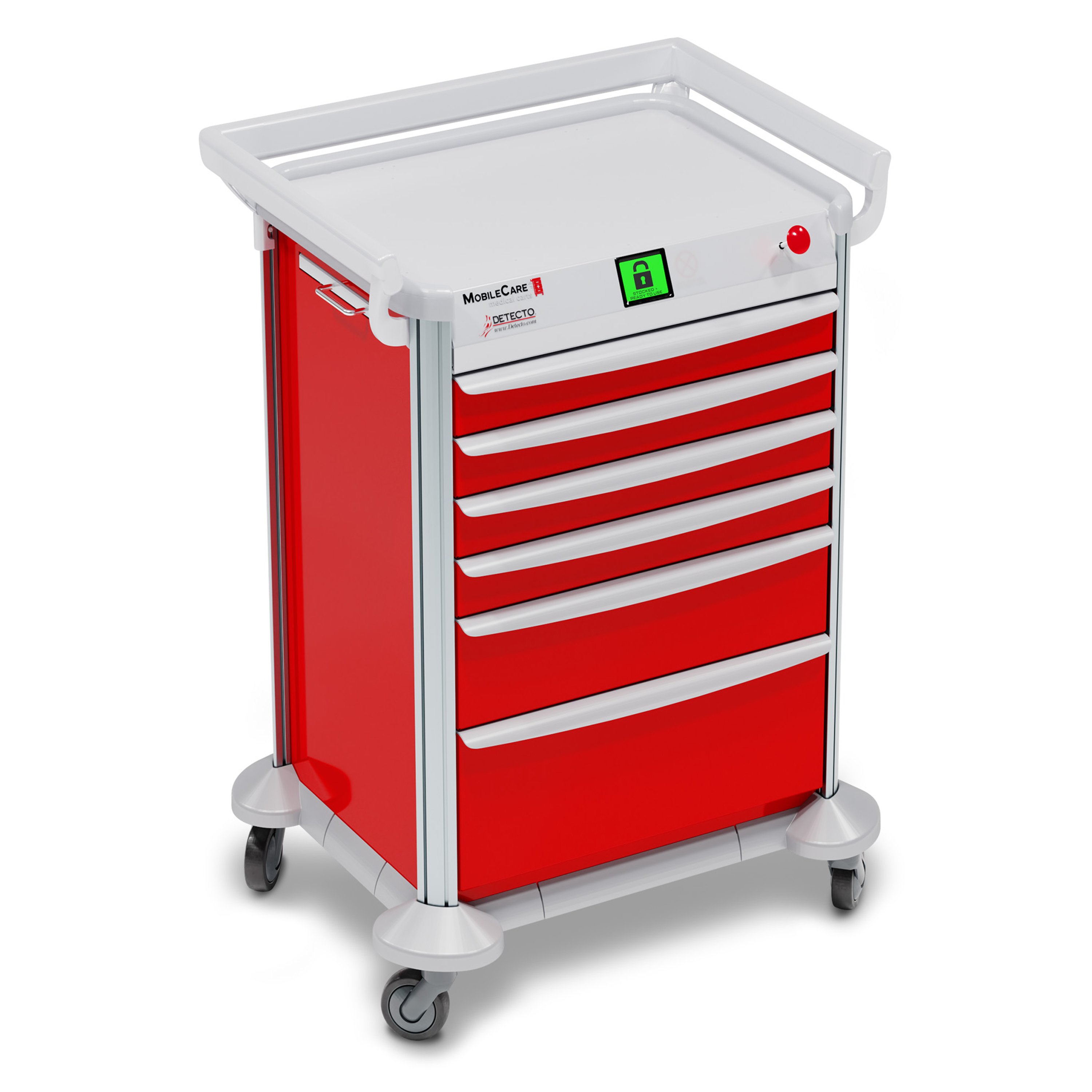

    • 3 Handrails: left, right, and back sides

  • Wheel: Four 5" diameter casters with 1-wheel casters with lock
  • Lock Types Available:

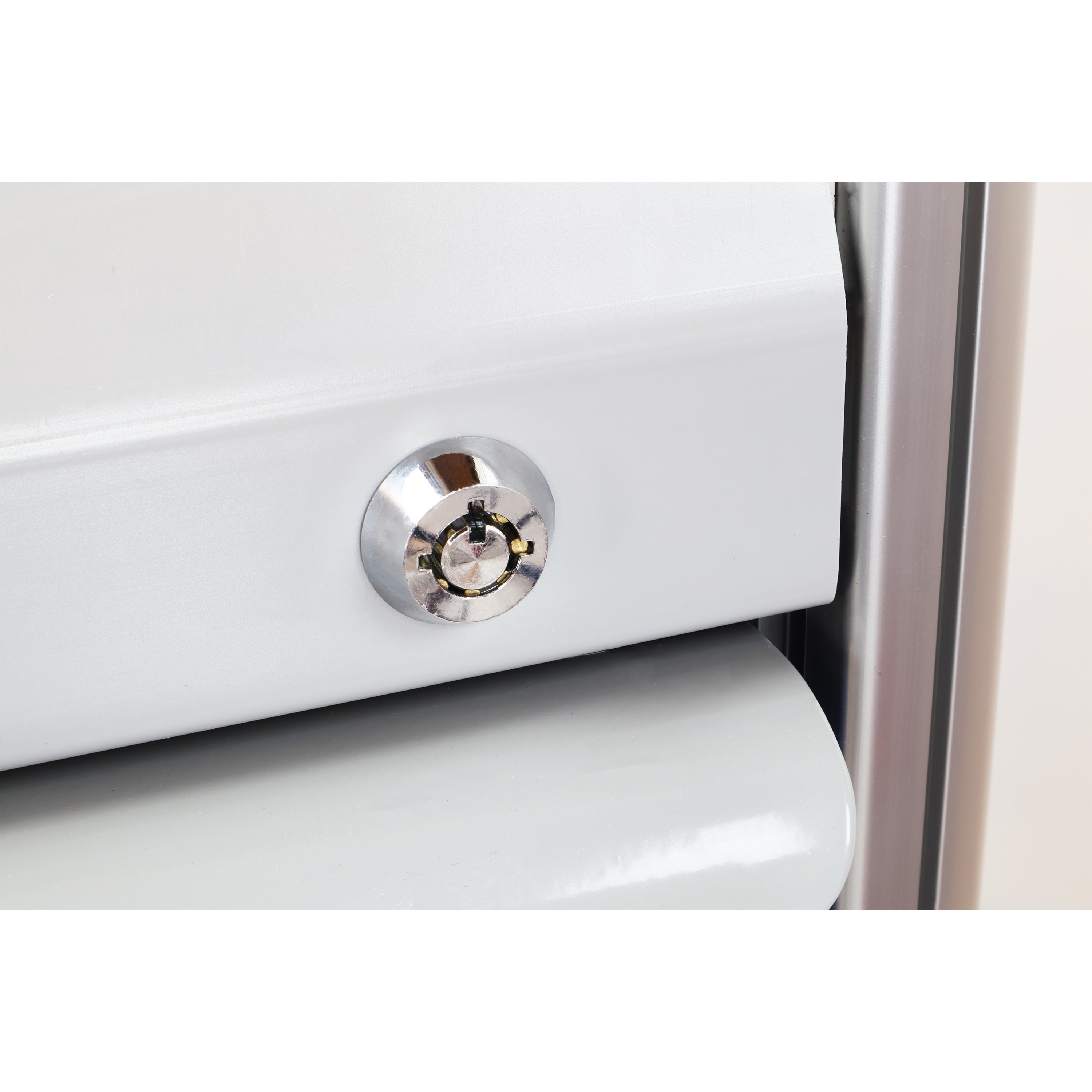

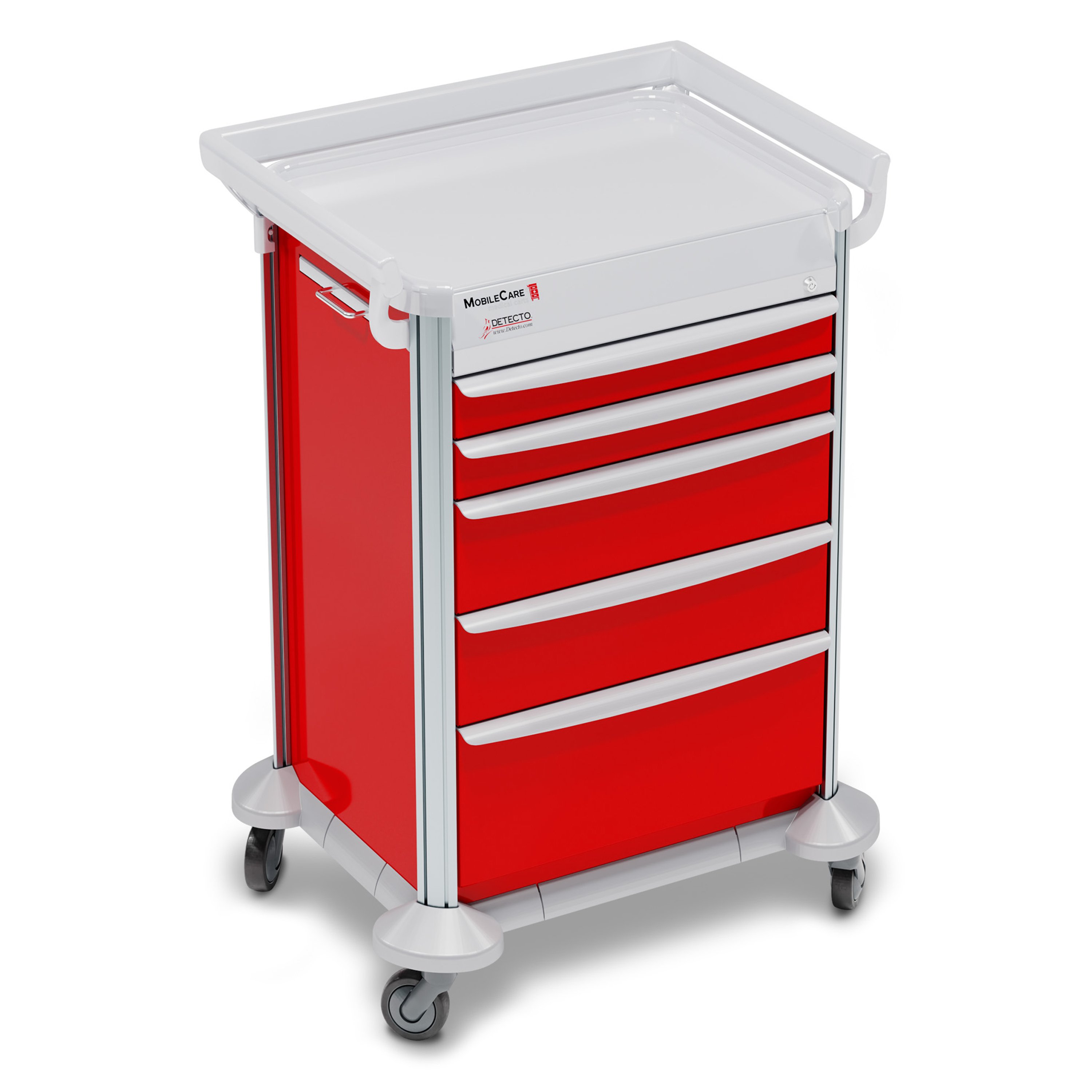

    • Keyed Lock

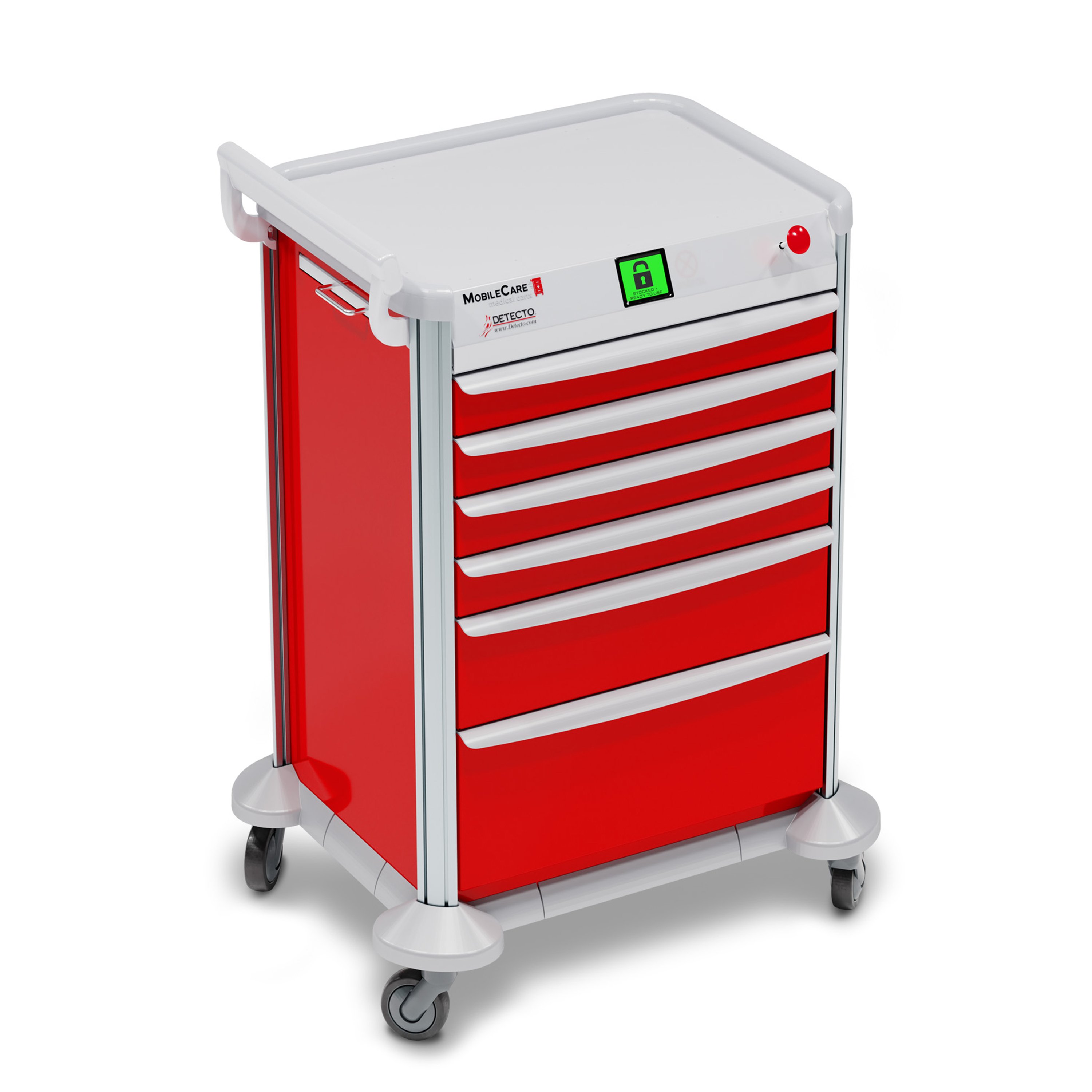

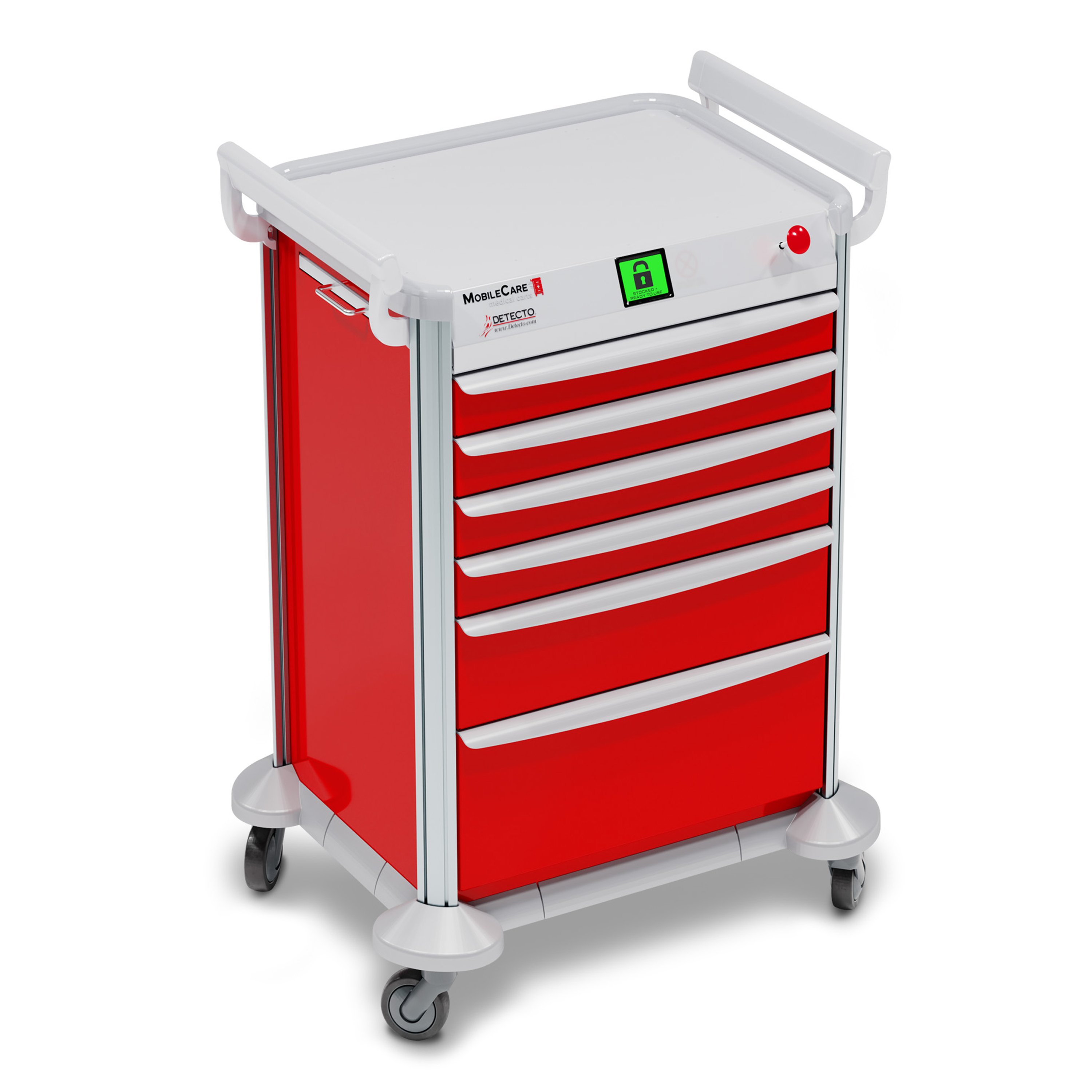

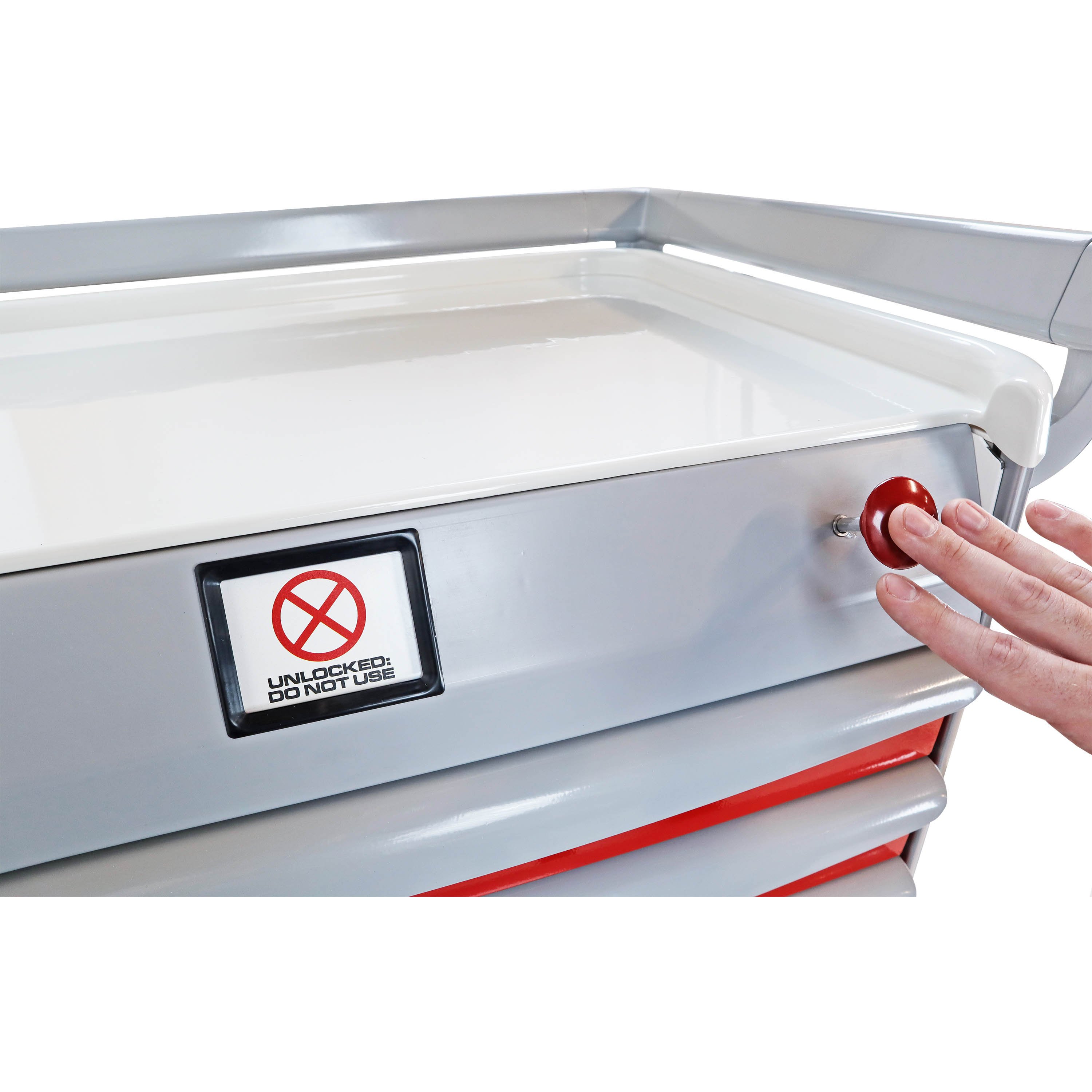

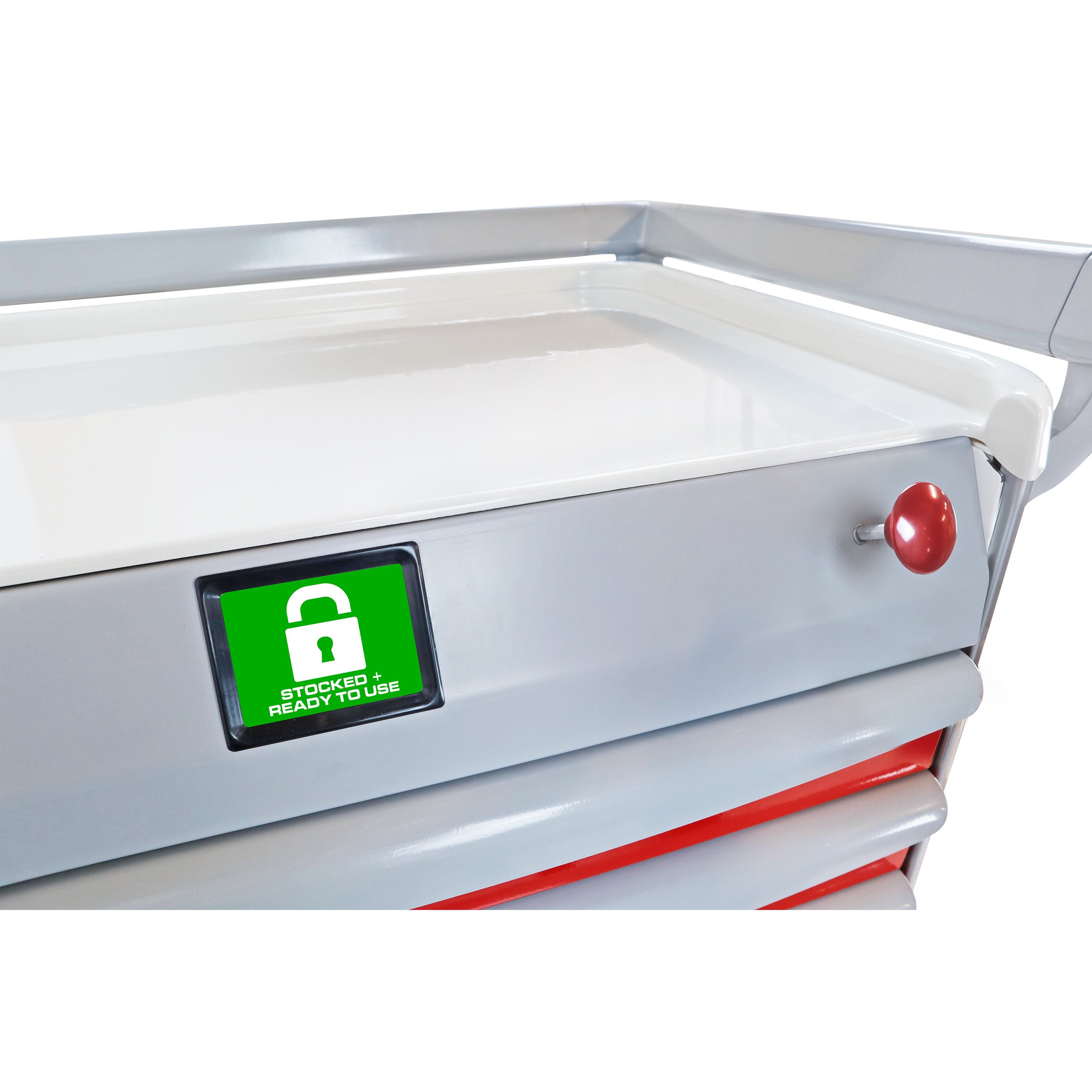

    • Quick Release: The unique Quick Release plunger and red/green flag can save lives when a patient codes. Pressing the plunger instantly unlocks all drawers. It can be reset easily by biomed afterward. The green flag on the top panel indicates that the cart is stocked, locked, and ready to use. Pressing the 1.5" diameter Quick Release red button on the right side instantly unlocks all drawers and the flag changes to red.
    • Electronic, Standard Lock: unlocking with simply one lock
    • Electronic, Standard Lock with Drawer Sensors: unlocking with one lock and individual drawer sensors
    • Electronic, Individual Drawer Lock with Drawer Sensor: unlocking with individual drawer locks and individual drawer sensors

  • RFID Types:

    • 125kHz ("LF" HID compatible and EM4001 cards)
    • 13.56 MHz ("HF" Proximity Cards, ISO/IEC 14443 A/B)
    • 13.56 MHz (HF) Vicinity Cards and Tags, ISO/IEC 15693

  • Display Type: 3.2-inch diagonal, full-color TFT display, 320 x 240 resolution
  • Touch Screen: Resistive touch panel covering the display
  • Communication Interfaces: Wi-Fi and Bluetooth
  • Alarm Duration: Continuous until Snooze is pressed or battery is depleted
  • PC Software Requirements: Windows 10 or greater, Windows Server 2016 or greater, and SQL Express
  • PC Hardware Requirements (SQL Express Requirements):

    • Hard Disk: Minimum 6 GB
    • Memory: 1 GB Recommended
    • Processor: 2.0 GHz or faster recommended
    • Monitor: Super-VGA (800x600) or higher resolution
    • Internet: for Internet functionality (fees may apply)

  • Cart Users Available: 5,000
  • PC Software Records Available: 50,000 records in audit trail
  • Power Requirements: 100 to 240V AC universal switching power supply or 12 "D" cell Alkaline, Ni-Cad, or NiMH batteries (not included)
  • Battery Runtime: based on 20 unlock/lock cycles per day and 5 minutes of active time per hour

    • Alkaline: 45 days
    • NiMh (10,000mAh): 30 days per charge

  • Battery Recharge Time: 40 hours to recharge fully depleted 10,000mAh batteries
  • Operating Environment:

    • Temperature: 14 to 104 ºF
    • Humidity: 0 to 90% non-condensing

  • Storage Environment:

    • Temperature: -4 to 176°F
    • Humidity: 0 to 95%

  • Product Weight: 163 lbs (3 handrail models, no accessories)
  • Country of Origin: Made in the USA of American and foreign components and TAA compliant


Manufacturer Detecto Scales
Overall Height 43.9"
Overall Width 33.5"
Overall Length 26.7"
Material Aluminum & Plastic
Country of Manufacture United States
Item Ships From Missouri


(Size: 1.1 MB)
(Size: 9.4 MB)


Warranty: Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows:

  • Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of twelve (12) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • During the first ninety (90) days Detecto may choose to replace the product at no charge to the buyer upon inspection of the returned item.
  • After the first ninety (90) days, upon inspection of the returned item, Detecto will repair or replace it with a remanufactured product. The customer is responsible for paying for the freight both ways.


Products must be returned in unused, resalable condition with the original packaging. Please contact Customer Service for a valid return authorization within 30 days of receipt of purchase. A minimum restocking fee of 25% of the purchase price will be deducted from the refund. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.

Custom made products are non returnable and non exchangeable.
