Product Description

Features:

  • Homogenize most samples in under 30 seconds
  • For volumes from 100µl to 250ml
  • Supplied with both 5mm & 7mm generator probes

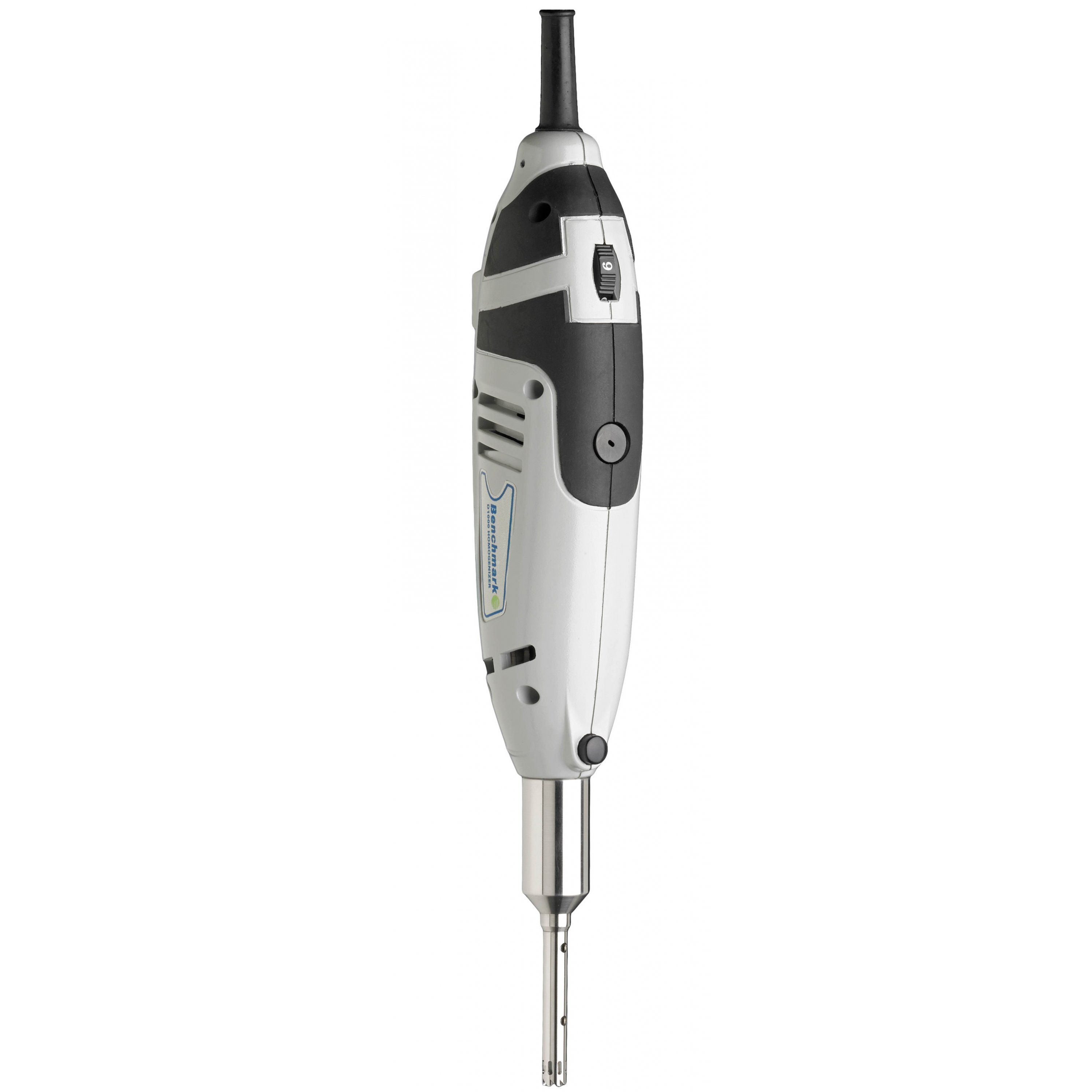

Benchmark's new handheld homogenizer, the D1000, is designed to rapidly homogenize, emulsify, suspend and disrupt biological samples. Ideal for use with microtubes, the homogenizer works well with samples from 0.1ml to 250ml (depending upon the generator probe used).

The D1000 is a rotor stator homogenizer, and works by drawing the sample, in liquid, into the generator probe with the variable speed rotor, and then forcing it out through the slots in the stator. This achieves mechanical shearing of the sample. As the sample is repeatedly drawn up and forced through the stator, additional shearing takes place.

Most samples are completely homogenized in 30 seconds or less. A powerful, 130W motor drives the rotor at speeds from 8,500 to 30,000 rpm. Speed is adjustable in six steps to meet sample processing needs. A separate on/off switch allows the homogenizer to be left at the appropriate setting.

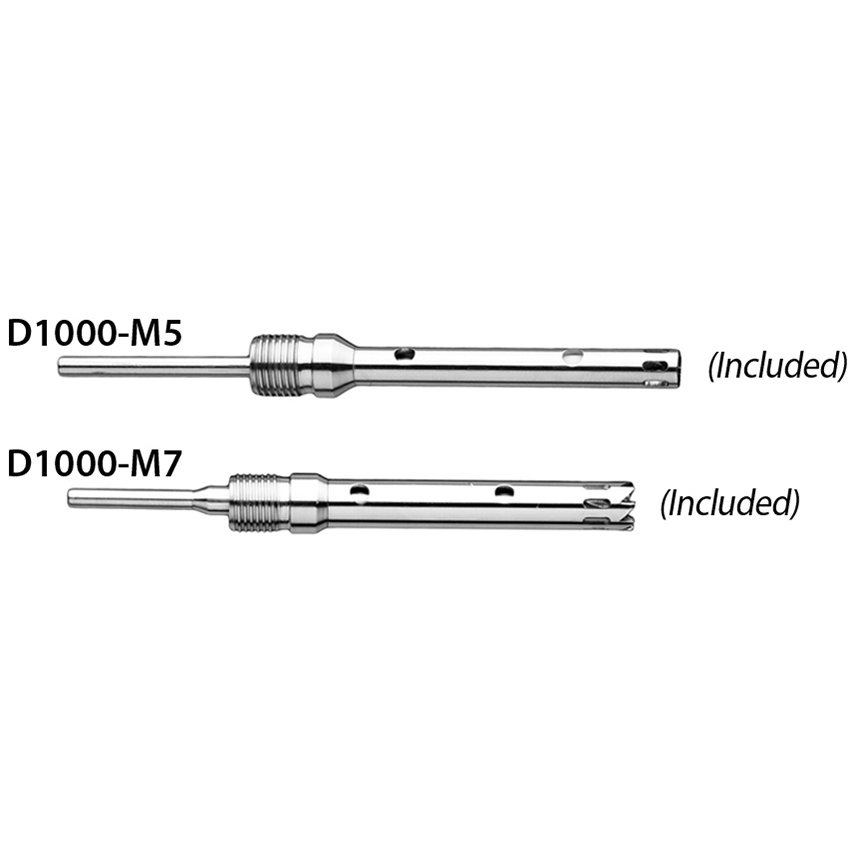

Generator probes are available in four sizes. The included 5mm and 7mm diameter have a 50mm length for use with samples in microtubes. The Optional 10mm x 115mm is ideal for use with 15 and 50ml tubes and 14mm x 130 mm, for 50ml tubes and vessels up to 250ml. All the generator probes are made of stainless steel and can be sterilized by autoclaving. Please see "Related Products" above for the optional generator probes.

The unit is supplied with one each of the 5mm and 7mm generator probes.

Technical Data:

  • Speed Range: 8500 to 30,000rpm
  • Capacity: 0.1 to 250ml
  • Noise Level: <70 db
  • Operating Temp. Range: +4° to 65°C
  • Dimensions (Without Generator): 1.89" x 2.3" x 9"
  • Weight: 1.35 lbs
  • Electrical: 115V, 60Hz
  • Warranty: 2 Years

Specifications

Specifications
Manufacturer Benchmark Scientific
Item Ships From New Jersey

Returns

Request for return must be submitted to Customer Service Within 30 days of product shipment. All returns must be in pristine, brand-new, re-sellable condition and in their original packaging. A 15% restocking fee may be deducted at the discretion of the manufacturer. The manufacturer reserves the right to refuse all returns that are not complete with their original packaging. If an item has been used and is permanently marked and/or damaged in any way, return will not be accepted. All shipping charges remain payable by the purchaser.
