Product Description

As healthcare processes change, Blickman works with customers to design the products they need. With growing demand for off-site sterile processing, Blickman reengineered its case cart lineup by adding a new series of carts dedicated to meet its customers' new and more demanding transport requirements.

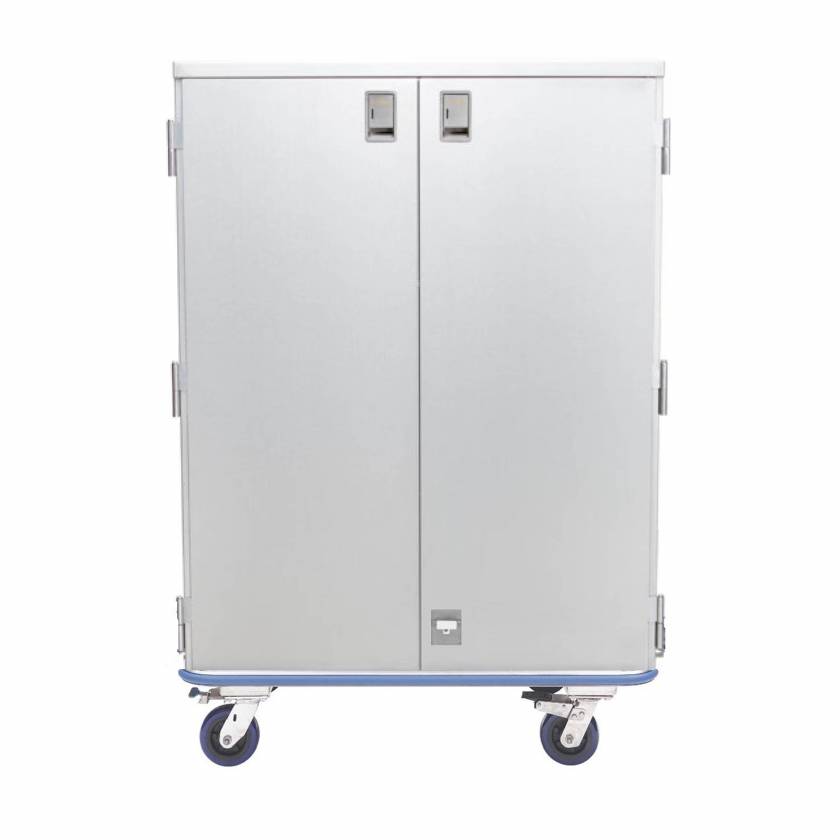

The Ultra Space Saver Over The Road Case Cart comes with reinforced, robust casters to absorb bumps during transport, a second lock at the base of the cart and doors sealed with gasketing material to ensure items remain secure and protected from the environment. OTR case carts can also be used for standard transport functions within the healthcare facility. This Ultra Space Saver Case Cart OTR Model OTR5 with Double Solid Door is designed to give a greater capacity while using the same floor space as the Multipurpose case cart. It comes standard with two heavy-duty roll-out wire shelves.

Features

  • Overall Dimensions: 43" W x 56.75" H x 29" D
  • Two sturdy, heavy duty, wire roll-out shelves
  • Easy-to-clean stainless steel
  • Doors:
    • Double stainless steel doors
    • Double-walled, channel-enforced, welded, triple-hinged stainless steel doors that swing 270 degrees
    • In fully opened position, positive spring acting clips at the cart ends capture doors for cart washing or operating room use
    • Paddle latches to open doors include a built-in clasp to accommodate for tamper-evident locks
    • Doors sealed with gasketing material to prevent dust/dirt
    • Additional bottom latch for a tighter seal
  • Body:
    • One piece top and one piece body
    • Sound deadening channel in the center back and sound deadening angle welded underneath the top
    • A pan-shaped and step down bottom sloped to facilitate draining
    • Horizontal intersections filled with heat resistant silicone
    • The body shell is bolted to the chassis
    • Two recessed handles on both ends
    • Protective, encircling rubber bumper set in a stainless steel channel
  • Casters:
    • Heavy-duty, high temperature rated, 6" casters with a polyurethane wheel on a polypropylene core
    • Two swivel locking and two total locking casters
    • Reinforced, robust casters to absorb bumps during transport
    • Easy to clean, not recommended for autoclave

Construction Specifications:

  • Material: 304 stainless steel, non-magnetic
  • Gauge:
    • Body & Doors: 18GA
    • Top & Chassis: 16GA
    • Bumper Channel: 14GA
  • Welding: All welding by heliarc method and exposed welds are ground smooth
  • Finish: Exposed surfaces are free from pit marks, weld seams, scale and are polished with #4 polish to a satin finish.

Also available are Maxi OTR Case Cart, Multipurpose OTR Case Cart, Mini OTR Case Cart, and Space Saving OTR Case Cart. These Case Carts will meet a variety of different surgery needs, from neurosurgery, to general surgery, to outpatient surgery and labor and delivery.

Please Note:

  • This item is not able to be returned. Production of the item will begin immediately upon order receipt, orders for this item can not be cancelled once the order has been processed.

About this Brand

Specifications

Specifications
Manufacturer Blickman
Latex Free Yes
Actual Product Weight 241 lbs
Overall Height 56.75"
Overall Width 43"
Overall Length 29"
Country of Manufacture United States
Item Ships From New Jersey

Literature

pdf
(Size: 158.7 KB)
pdf
(Size: 1.4 MB)

Instructions

Warranty: Blickman warrants to the original purchaser that its Proprietary Products will be free from defects in workmanship or materials under normal use and service for the life of the product, so long as owned by the original purchaser, according to the limitations set forth below. Defective products shall be repaired or replaced at Blickman's option at no cost to the original purchaser provided: 1. The customer must obtain a written return authorization supplied by Universal Medical 2. The customer must pre-pay freight charges to and from Blickman and must ship merchandise in the original packaging.

This warranty does not apply to products, which have been subject to abuse, misuse, accident, modification, alteration, tampering, negligence, lack of routine maintenance or misapplication; or products that have been repaired by other than Blickman or its authorized representatives. This warranty does not apply to glass, fabrics, vinyl, seat coverings, cushions, padding or their stitching, gluing or installation. Component parts not manufactured by Blickman, such as casters, caster inserts, any components made from rubber or plastic, circuit boards, fan heaters, plumbing parts, electrical switches and components are also excluded. For these component parts, Blickman will pass on the original manufacturer's warranty to Blickman equipment original purchasers. Please consult factory for questions regarding the warranties of these component parts. This warranty does not apply to custom fabricated products. Consult factory.

Unless expressly set forth in this warranty, there are no other warranties, whether express or implied, of fitness and/or merchantability or any other warranty implied by custom, usage or course of dealing. Liability of Blickman under this warranty is limited to the repair and / or replacement of any products. Blickman specifically excludes and disclaims any responsibility for any incidental or consequential damages claimed to have arisen from any defect in workmanship or materials. No representative has any authority to change or enlarge the above warranty or Blickman liability. This document supersedes all previous warranty provisions.

Freight Shipping

Please Note: This item ships via motor freight carrier. Shipping fees often have to be re-quoted when purchasing this item. Our website estimates freight charges based on delivery to a location with a truck height dock. Examples of additional services include liftgate service, inside delivery, call ahead service, or limited access. If you would like to know the total delivery charges in advance of placing an order, we recommend requesting a quote for this item prior to placing your order. At quote or order submission, please make note of your receiving hours and specific delivery needs. Customer Service will reach out to you if additional details are needed. If you have questions about the motor freight delivery process please contact Customer Service.

Returns

This item is not able to be returned. Production of the item will begin immediately upon order receipt, orders for this item can not be cancelled once the order has been processed.
