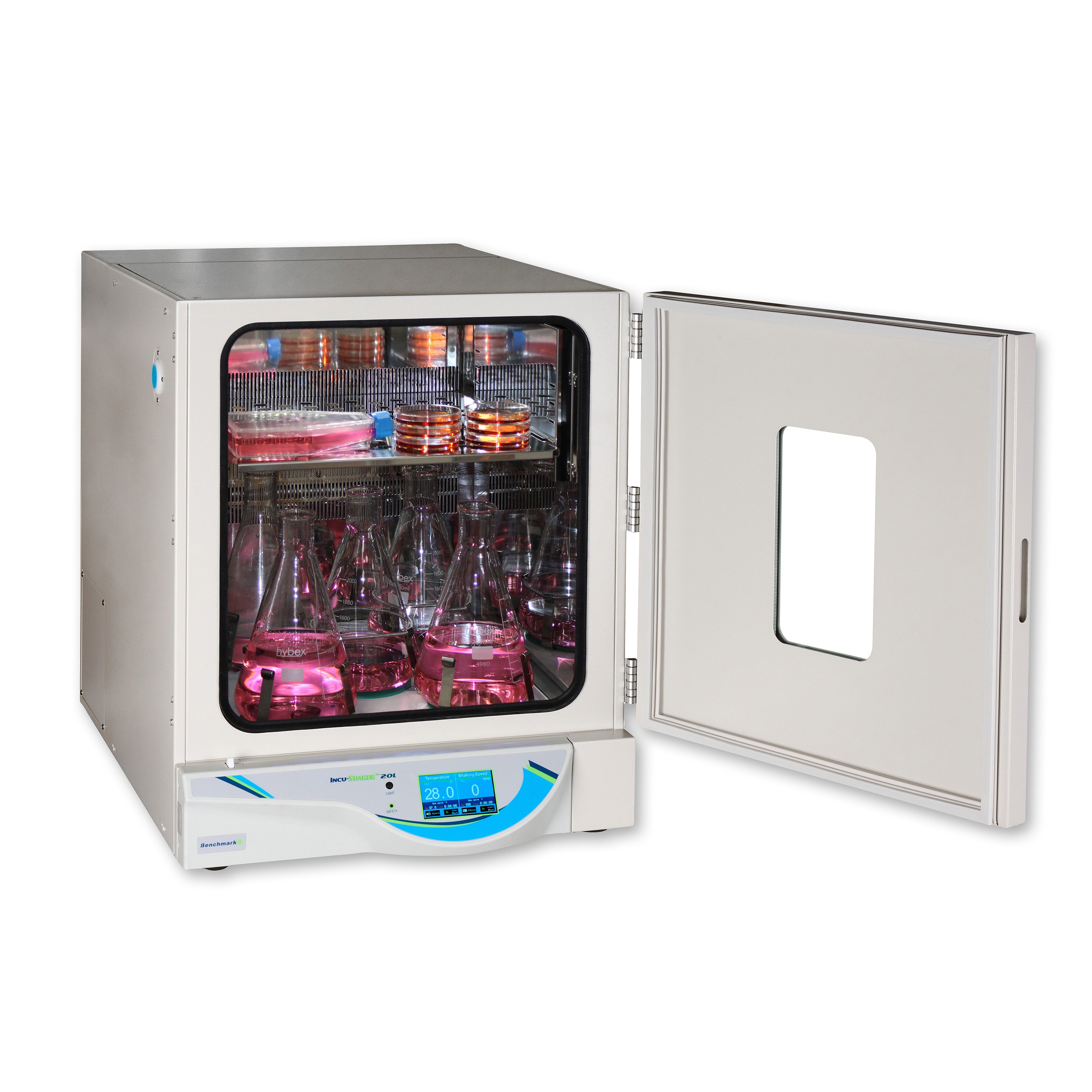

Benchmark Incu-Shaker™ Stackable 20L with Non-Slip Rubber Mat
Product Description
The new Benchmark Incu-Shaker™ 20L Stackable Shaking Incubators offer the highest capacity in the Incu-Shaker line. With a large shaking platform and a +22-inch chamber height, they are capable of high-throughput culture growth in flask sizes up to 5/6 liters.
Features:
- Temperature Control - From 5°C above ambient temperatures up to 60°C
- Space-saving Stacking - The included stacking brackets provide secure and easy mounting for stacking up to two units high. This increases capacity and makes the most of floor space in the laboratory without compromising on reliability or temperature performance
- Stainless Steel Chamber - The inner chambers are made of high-quality stainless steel (304). When paired with Benchmark's exclusive heat distribution technology, this ensures precise temperature maintenance across the chamber
- Reliable, Maintenance-free Incu-Shaker™ Motor Drive System - The powerful brushless induction motor drive is designed for years of trouble-free service, even under continuous use conditions with heavy loads. Noise and vibration are minimized by an advanced, computer-designed motor isolation system that results in minimal vibration at all speed levels
- Touchscreen Controls - Temperature, shaking speed, and run-time are showcased on the vibrant touchscreen panel located on the front side of the unit. The software also allows for more complicated programming, such as adjusting settings, managing alarms, and connecting programs
- Access Port - A convenient access port is included on the left side of the unit, allowing for external temperature monitoring or power cables to run into the chamber without compromising the integrity of the environment
- Adjustable Shelf - An included pull-out, stainless steel shelf allows for static incubation in addition to shaking incubation. Perfect for Petri dishes and other cell culture plates, the shelf can be adjusted for height as needed for additional capacity of flask height clearance
- Rubber Mat Platform - Equipped with a standard, non-slip rubber mat that is ideal for securely holding tissue culture flasks, Petri dishes, staining trays, and other flat vessels
- MAGic Clamp™ Platform Capability - Can be used with Benchmark's MAGic Clamp™ universal magnetic platform (sold separately). Magnetic flask attachment accessories (sold separately) can then be used, allowing for easy, toolless addition and removal of flasks from the shaker. Flask clamps of most sizes, tube racks, and other magnetic vessel holders are available and can be purchased separately
Technical Data:
| Temperature Range: | Ambient +5°C to 60°C |
| Temperature Accuracy: | ±0.1°C |
| Temperature Uniformity: | ±1.0°C |
| Temperature Increment: | 0.1°C |
| Speed Range: | Variable, 30 to 300 pm |
| Speed Increment: | 1 rpm |
| Mixing Orbit: | 19mm (3/4") |
| Time Range: | 1 min. to 48 hours (or continuous) |
| Chamber Volume: | 149 L |
| Chamber Material: | Stainless Steel, 304 |
| Chamber Dimensions: | 20" W x 19.9" D x 22.7" H |
| Platform Dimensions: | 18" W x 18" D |
| Exterior Dimensions: | 23.6" W x 34.3" D x 28.7" H |
| Electrical: | 120V, 50-60Hz, 480 W |
| Product Weight: | 268 lbs |
| Warranty: | 2 Years |
Maximum Capacity Chart:
| 125 mL Flasks | 250 mL Flasks | 500 mL Flasks | 1000 mL Flasks | 5000 mL Flasks | 2.8 L Fernbach Flask | 3000 mL Flasks | 5000 mL Flasks |
| 36 | 25 | 16 | 9 | 5 | 5 | 4 | 4 |
Also available is the Incu-Shaker™ Stackable 20LR with Non-Slip Rubber Mat (H3022).
Specifications
| Manufacturer | Benchmark Scientific |
|---|---|
| Latex Free | Yes |
| Actual Product Weight | 268 lbs. |
| Overall Height | 28.7" |
| Overall Width | 23.6" |
| Overall Depth | 34.3" |
| Weight Capacity | 65 lbs. |
| Country of Manufacture | South Korea |
| Item Ships From | New Jersey |
