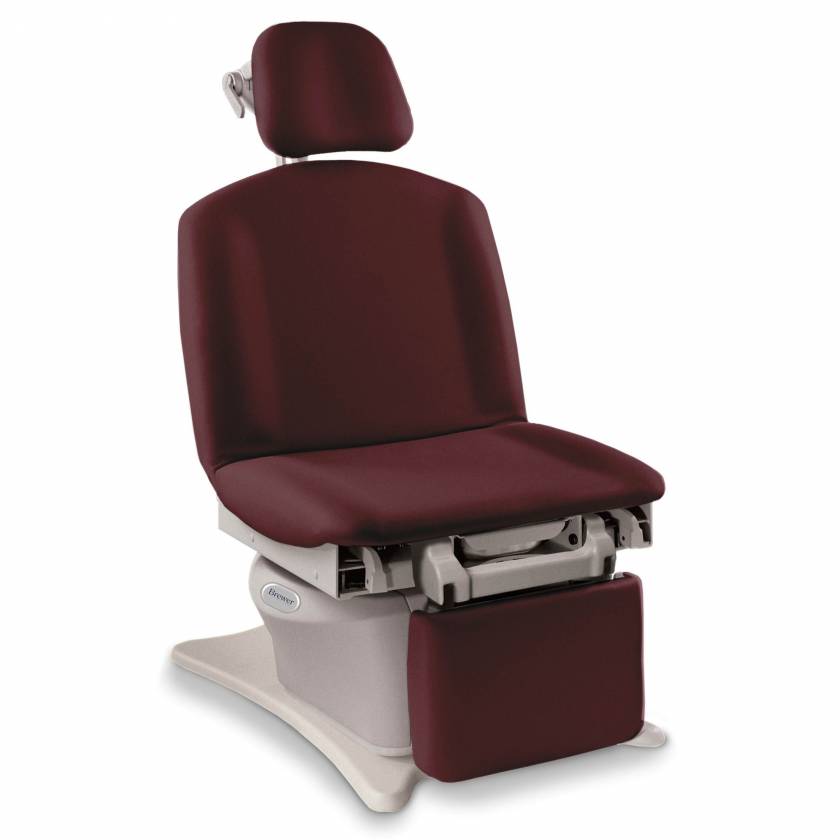

Assist Power Procedure Table
Product Description
The Brewer Assist Power Procedure Tables are clearly the: most technologically advanced, lowest for lateral patient transfer, greatest weight bearing, most adaptable, extendable, user-friendly, patient-friendly, and best warrantied table in the industry.
Advanced Safety:
- Safety release actuators
- Safe extra-low voltage actuators
- 19" (48.3 cm) low height
- 40" (101.6 cm) maximum height

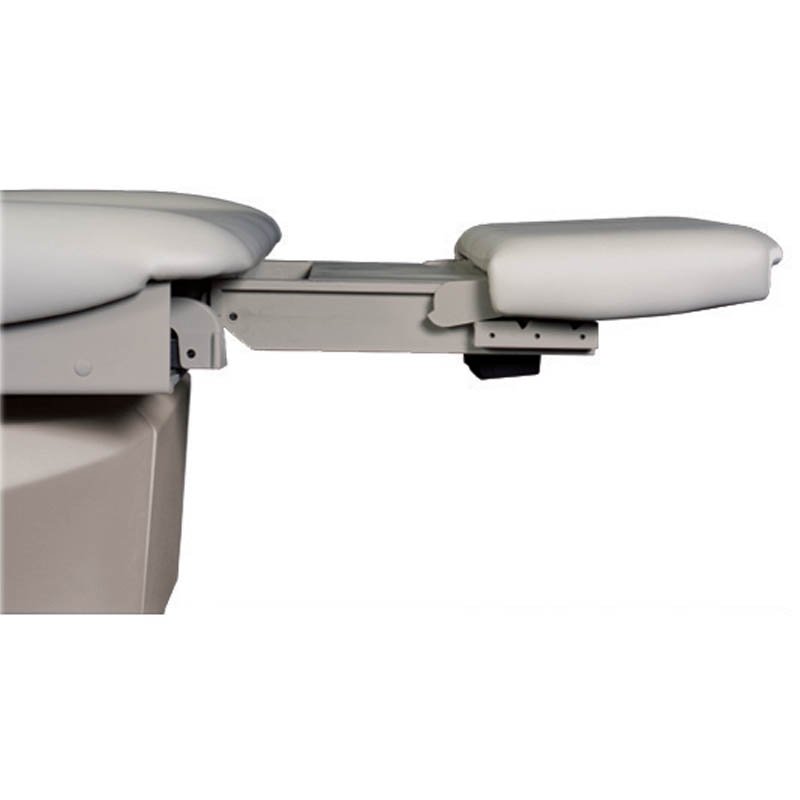

- Leg rest extends an additional 5" (12.7 cm)

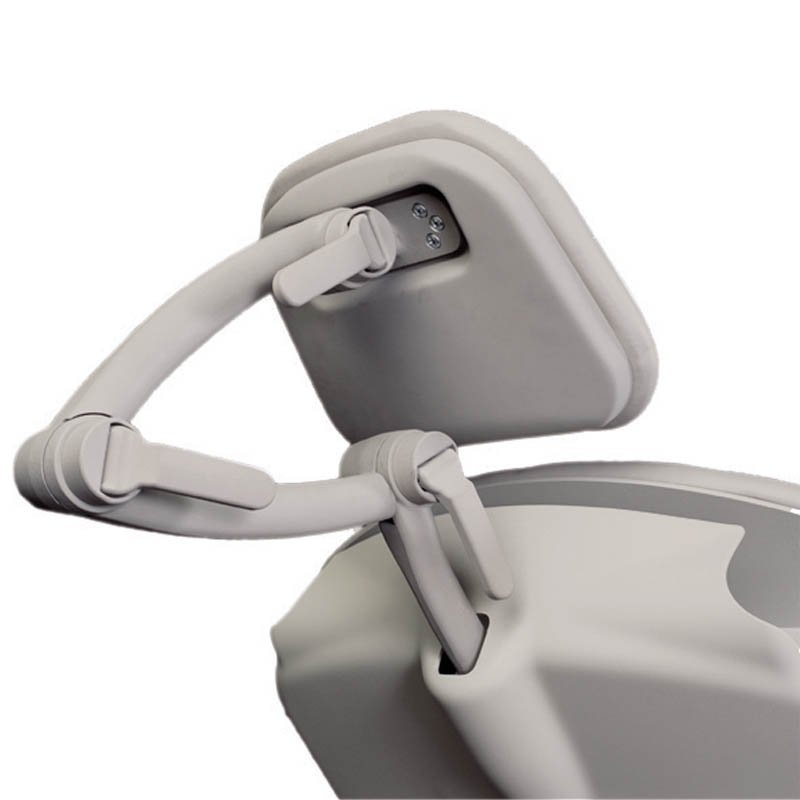

- Adjustable three-point pivot headrest
- Easy-to-clean seamless upholstery

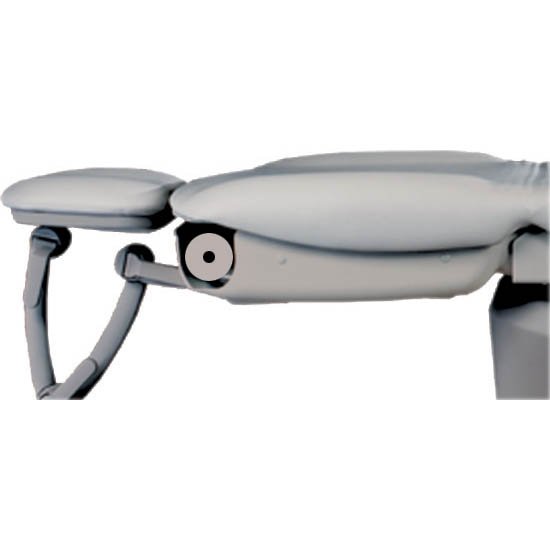

- 18" (45.7 cm) or 21" (53.3 cm) paper dispenser
Patient Comfort:
- Easy lateral wheelchair transfers
- Infinitely adjustable headrest
- Extendable leg rest
- Multi-density, bolstered support upholstery
Table Specifications:
- 450 lb (204 kg) weight capacity
- Standard three-year warranty
- Standard adjustable stirrups

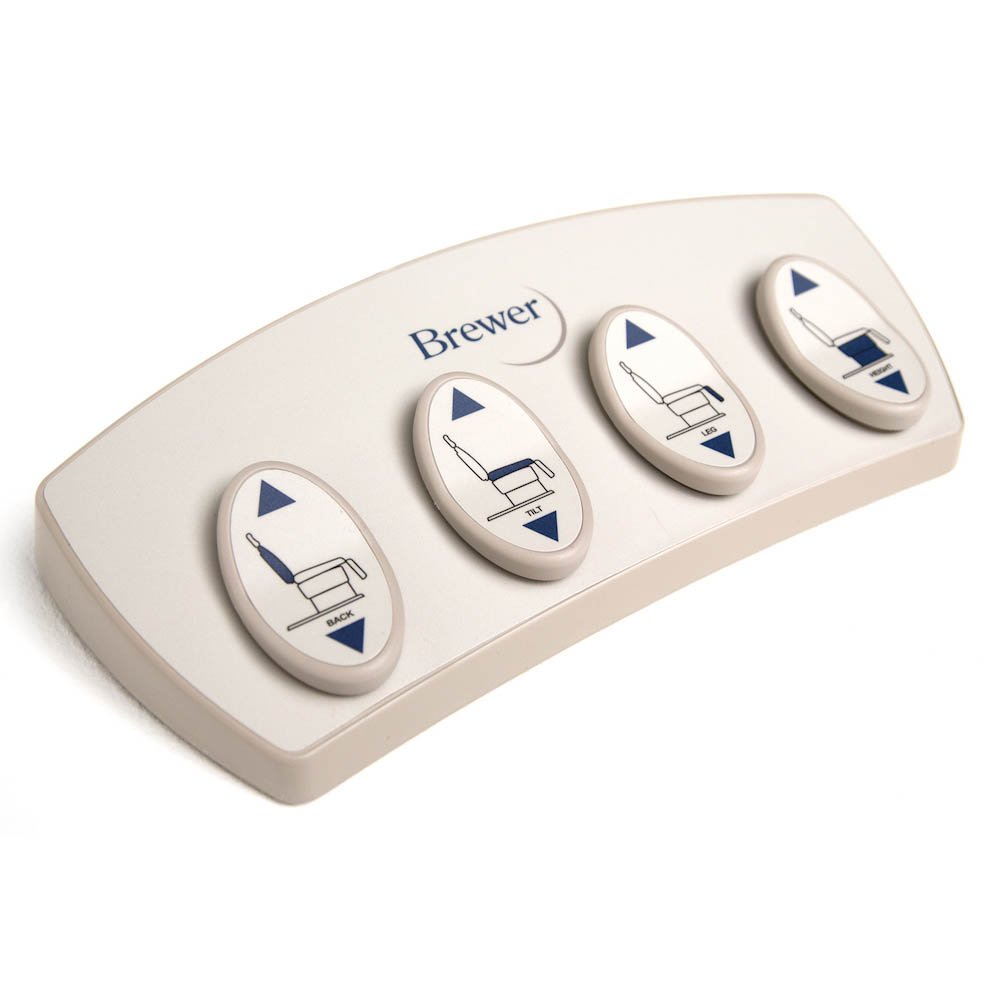

- Standard foot control (optional Hand pendant available)
- Height: 19" – 40" (48.3 cm – 101.6 cm)
- Length when flat: 69" (175.3 cm)
- Length with headrest & leg rest extended: 80" (203.2 cm)
- Length in upright position: 40" (101.6 cm)
- Width: 28" (71.1 cm)
- Leg rest: 16.6" x 11.25" (42.2 cm x 27.9 cm)
- Headrest: 13" x 11" (33 cm x 27.9 cm)

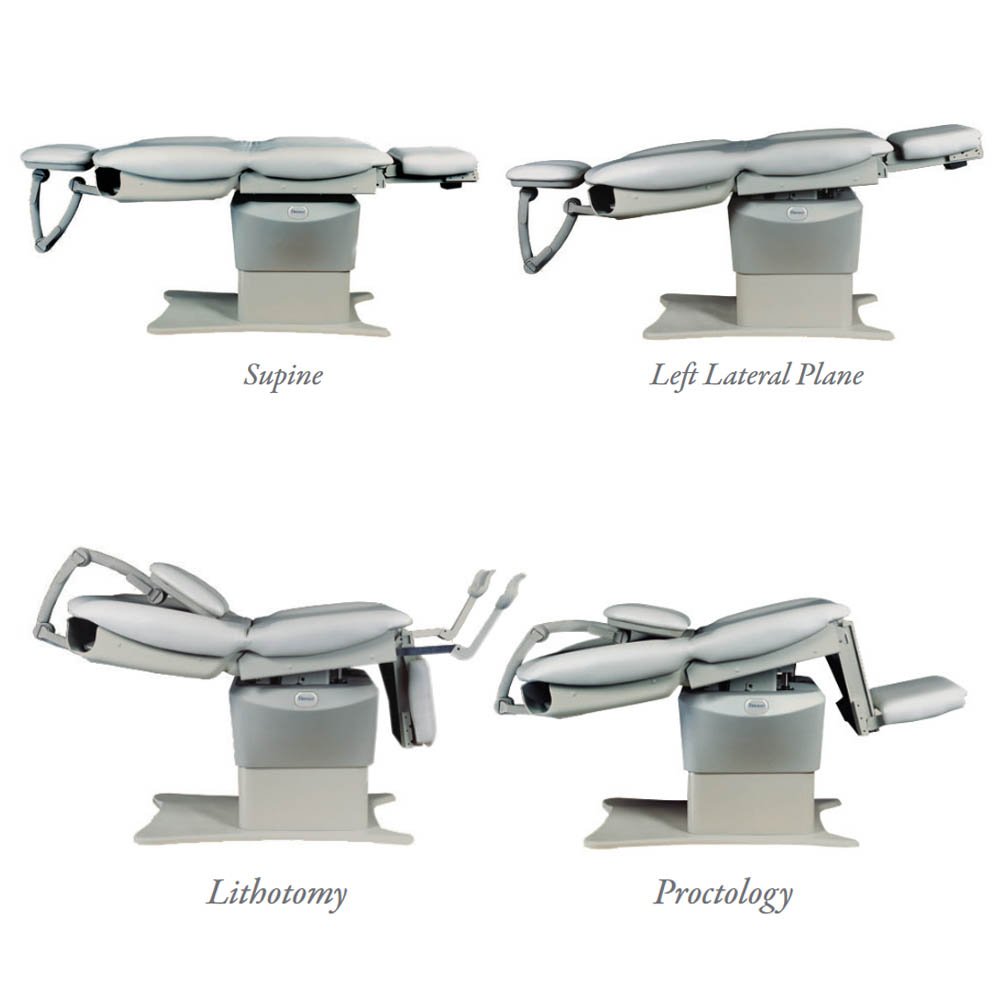

- Tilt range / Trendelenburg: to 30º
- Base: 24" W x 36" L (61 cm x 91.4 cm)
- Power cord: 70" (177.8 cm)
- 115 VAC, 60 Hz
Certification: conform to US and Canadian electrical and medical industry codes and regulations and meet or exceed industry requirements.
- UL 60601-1 compliant
Shipping: This item ships motor freight carrier. During the checkout process you will be required to indicate whether your facility requires liftgate or inside delivery services. (These services are described on our shipping information page.) In the order comments please include a name & phone number for the delivery point of contact. Please also include receiving hours and any other delivery requirements or instructions. If additional services necessitate an additional fee, you will be contacted by Customer Service. If you have questions about the motor freight delivery process please contact Customer Service prior to placing your order.
Note: When purchasing accessory # B-99503 in conjunction with B-7500 or B-7000, you must also order 2 Accessory Clamps (B-99502) and a set of Side Seat Rails (B-99501).
Specifications
| Manufacturer | The Brewer Company |
|---|---|
| Country of Manufacture | United States |
| Item Ships From | Wisconsin |
Instructions
Warranty: Brewer shall manufacture the Products in accordance with the requirements of all applicable law, including without limitations, the regulations promulgated by and for the Federal Food and Drug Administration and industry standards. Brewer warrants its Products to be free from defects in parts and workmanship under normal use and service for a period of 3 years from the date of delivery to original end user. Brewer will not be responsible for any Product failure due to abuse, modification or improper use, or for any use which exceeds the published capacity of the Product. Do not discard parts before contacting Brewer for warranty service, as Brewer may require the customer to send in defective parts for examination to determine the applicability of these warranty provisions. If this occurs, the customer will be invoiced against a new purchase order for the replacement part. If the part is found to our satisfaction to have been defective under the terms of the warranty, the customer will be credited the amount of the replacement part and outbound shipping costs. If the part is found not to be defective under the terms of this warranty, the customer is liable for the cost of the replacement part, shipping, and/or any repair costs.
