Product Description

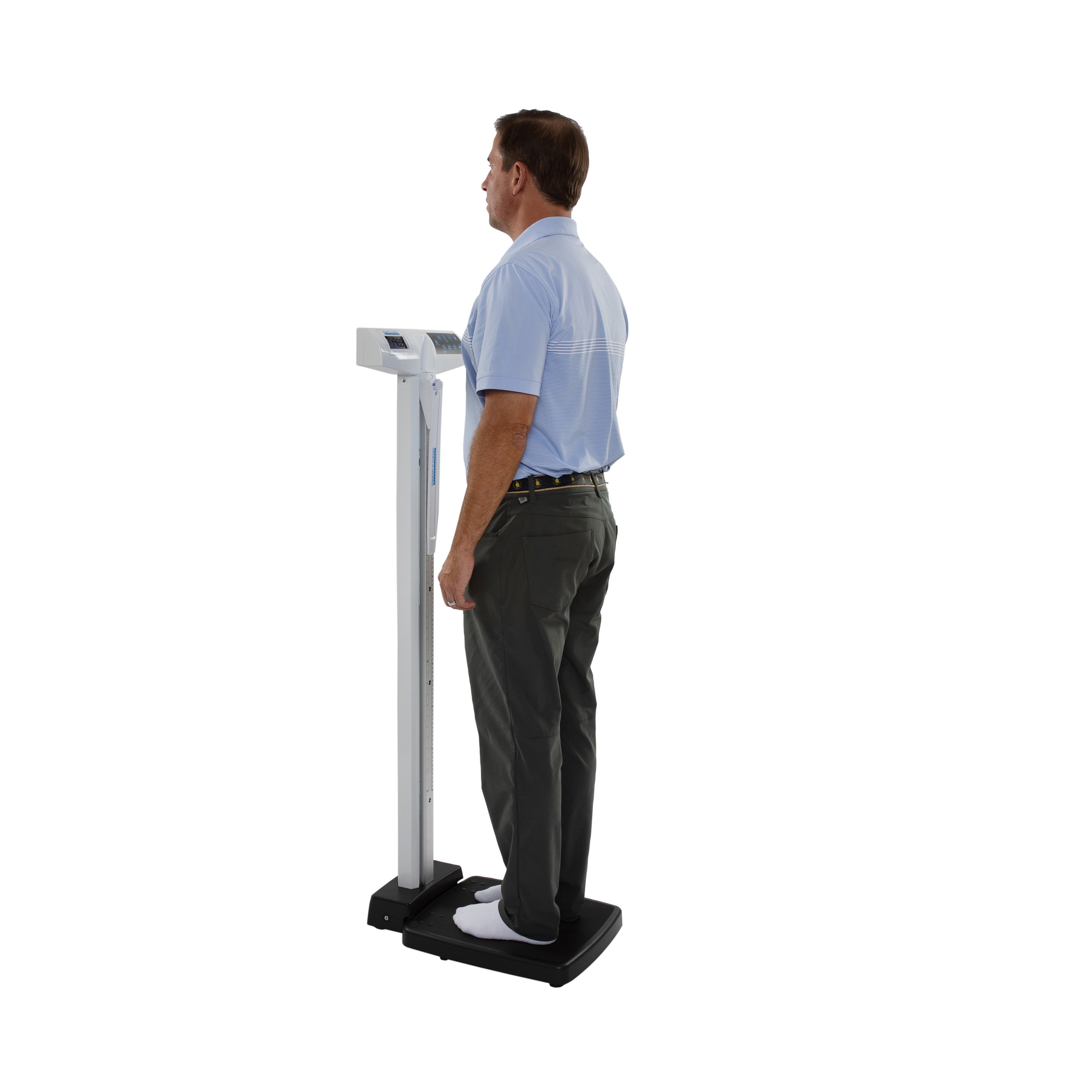

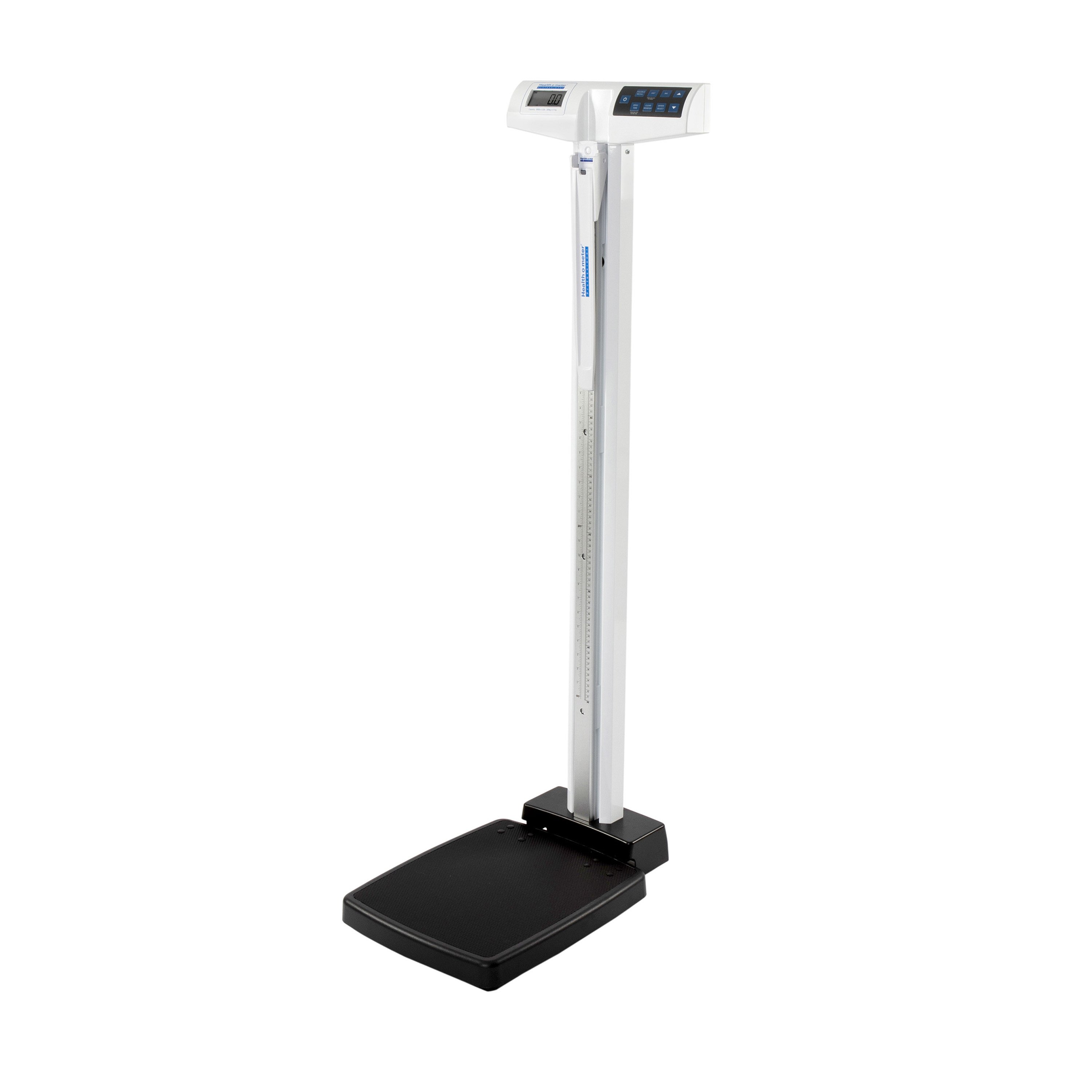

The 502 Series features a fully integrated digital height rod, which provides the optimum quality, reliability, and ease of use. The scale showcases a market-leading built-in digital height rod, a large non-skid platform, a reinforced base for added stability, and wheels that enable portability. The scale offers providers and patients an eye-level weight indicator, accommodating patients weighing up to 660 pounds.


  • EMR Connectivity - The scale can interface with a computer, EMR software, or other electronic devices via optional Pelstar® wireless technology

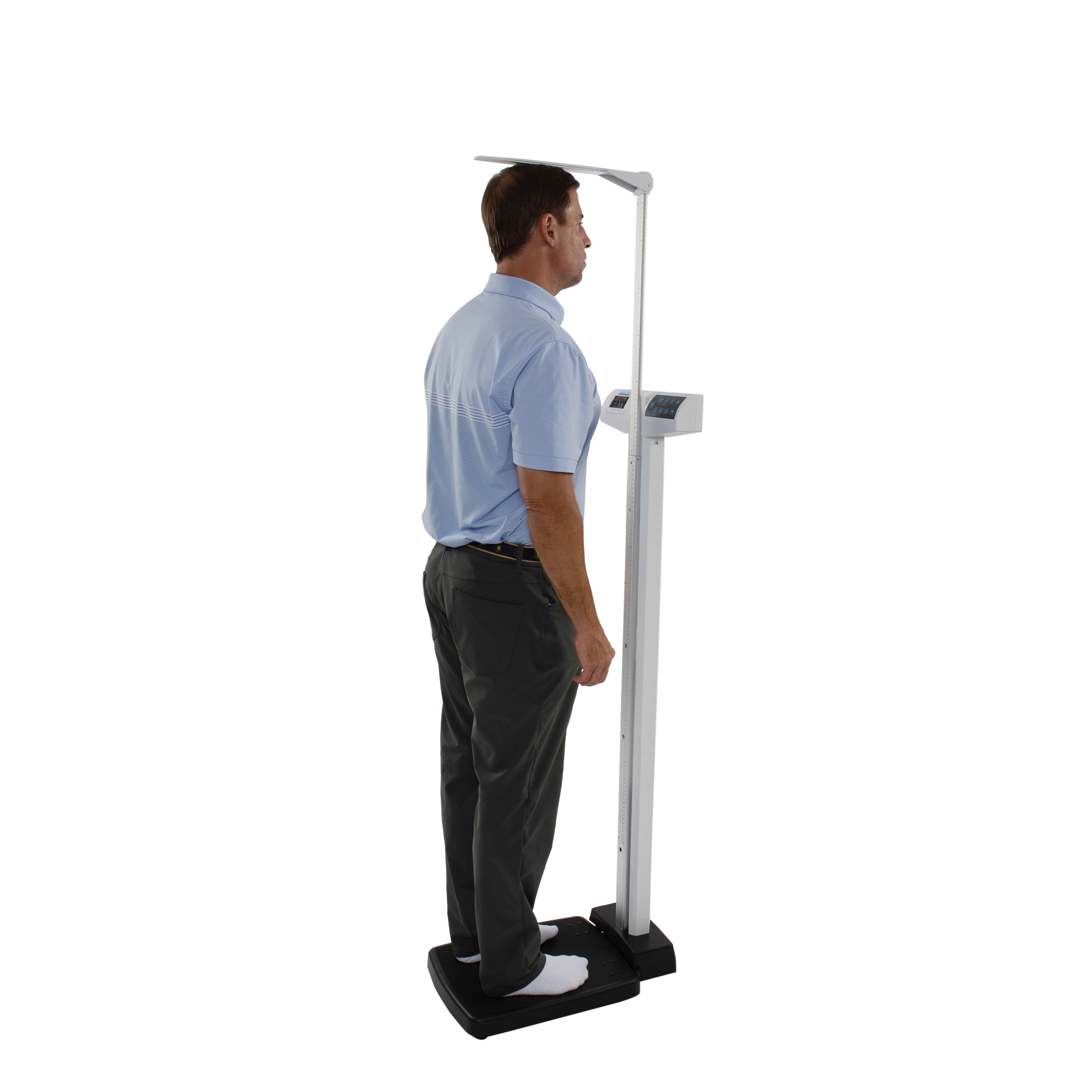

  • State-of-the-art Height Rod - The market-leading height rod provides the most accurate height measurement in its class. It comes with a digital height rod and also has mechanical functionality with a measuring range that starts lower
  • Dent/Rust Proof Low Profile Platform - Low platform height requires only a minimal step up, offering a patient a more comfortable and stable weighing experience
  • Easy integration and seamless communication with today's EMR applications
  • The exclusive Everlock® function allows the measuring unit (LB or KG) to be permanently locked on the scale
  • Optional “Live” Wrap-Around Handlebars: The accessory 500HB provides the stability that many patients need without affecting the accuracy of the weight reading


  • LB/KG conversion
  • LB/KG lockout
  • BMI
  • Zero
  • Tare
  • Pre-tare
  • Hold/Release
  • Auto Zero
  • Auto-Off
  • Reweigh
  • Recall
  • Parent/Child weighing function
  • Everlock®

Technical Specifications:

  • Weight Capacity: 660 lbs / 300 kg
  • EMR Connectivity: Via optional Pelstar® wireless technology
  • Resolution: 0.2 lbs / 0.1 kg
  • Display: 1" LCD Display
  • Power Source: 6 AA batteries included, optional 120V power adapter (ADPT31)
  • Wheels: (2) 8" wide wheelbase for ease of movement
  • Height Rods:
    • Digital Measuring Range: 47 1/5" - 79 1/2" / 120 cm - 202 cm
    • Resolution: 0.1" / 1mm
    • Mechanical Measuring Range: 11 3/4" - 79 1/2" / 30 cm - 202 cm
    • Graduation: 1/16" / 1mm
  • Platform Size: 13 3/4" W x 16 1/2" D x 2 3/8" H
  • Overall Product Dimension: 14 3/8" W x 21 1/8" D x 53 5/8" H
  • Actual Product Weight: 21 lbs

The Pelstar Wireless Technology allows facilities to wirelessly transmit measurements directly to a myriad of devices to increase workflow efficiency and reduce the risk of error from manual data entry. Once the data reaches the device, it can be conveniently displayed, reviewed, and smoothly transferred into EMR systems.

SKU Measurement System Pelstar Wireless Technology
502KL Kilograms & Pounds Purchased Separately
502KL-BT Kilograms & Pounds Built-in
502KG Kilograms Only Purchased Separately
502KG-BT Kilograms Only Built-in

About this Brand


Manufacturer Pelstar LLC
Actual Product Weight 21 lbs
Overall Height 53 5/8"
Overall Width 14 3/8"
Overall Depth 21 1/8"
Weight Capacity 660 lbs / 300 kg
Country of Manufacture China
Item Ships From Illinois


(Size: 111.7 KB)
(Size: 844.1 KB)
(Size: 1.4 MB)


Warranty: Health o meter® Professional scales are warranted from the date of purchase against defects of materials or in workmanship for a period of time (see product instruction manual for the warranty period). Your warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, abuse including tampering, damage in transit, or unauthorized repair or alternations. If the manufacturer determines that a defect of material or workmanship exists, a customer’s sole remedy will be the replacement of scale at no charge. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, a replacement may be made with a similar product of equal or greater value. All parts including replaced parts are covered only for the original warranty period.


Products must be returned in unused, unopened, resalable condition with the original packaging. To return this item you must contact Customer Service within 30 days of receipt to obtain a valid Return Authorization Number. Restocking fees may apply at the discretion of the manufacturer. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
