Product Description

DETECTO's new apex® eye-level digital clinical scales are the pinnacle of patient measurement efficiency and stylish design. The sonar digital height sensor is unique in the clinical scale industry and extremely reliable for accurate, repeatable height readouts. The sonar height sensor provides the ultimate in time-savings in labor and hygienic operations for infection control.

  • Touchless sonar height rods and an extra-wide, flat platform 17" W x 17" D x 2.75" H
  • Automatically captures patient weight and height readings and displays both onscreen without pushing a single button.
  • 600 lbs / 300 kg capacity
  • 0.75-inch-high LCD weight readouts
  • 6 Easy-to-use buttons
  • Units locking into Pounds or Kilograms
  • BMI calculation
  • Mother/Baby function factors the weight of infants and toddlers held by an adult
  • AC or battery power (AC adapter included on some models)
  • 1 RS232 serial ports and 1 micro USB-B port
  • Wi-Fi / Bluetooth Models Available for Wireless EMR/EHR
  • Welch Allyn Connectivity Available for Electronic Medical Records
  • HL7 IEEE 11073 compliant (standard)
  • Dual wheels for transport
  • Sturdy column construction, integral bubble level
  • Assembles quickly right out of the box in just a few easy seconds (no tools required)

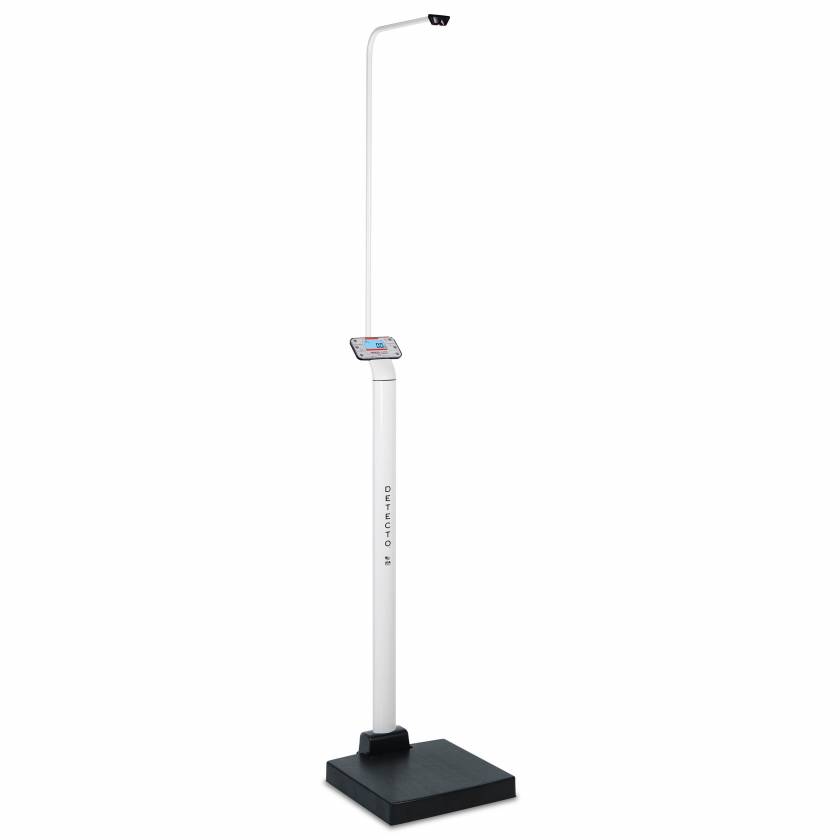

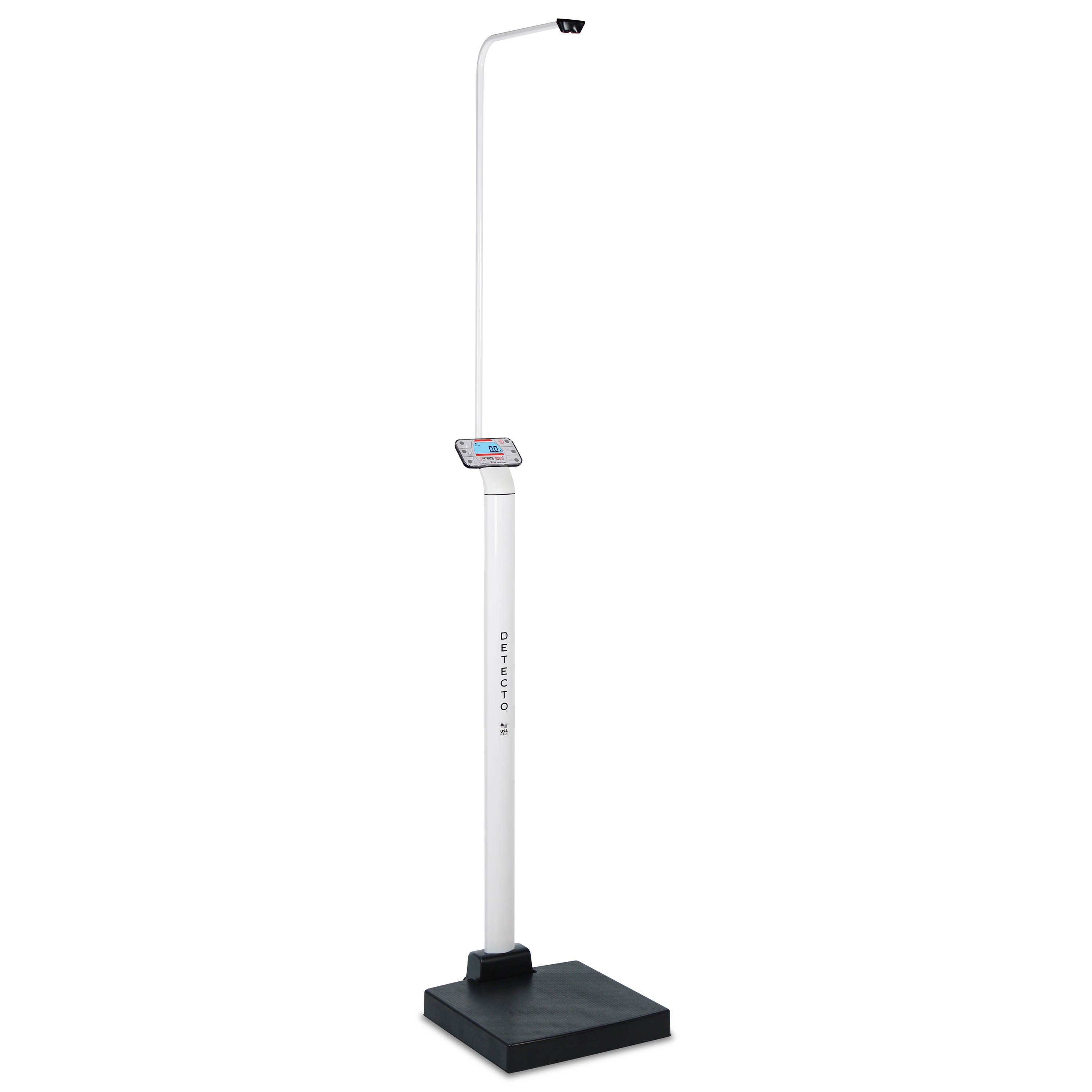

  apex Digital Sclale with Sonar Height Rod
Capacity
600 lb x 0.2 lb / 300 kg x 0.1 kg (lb or kg selected upon initialization at start-up)
Platform Size
17" W x 17" D x 2.75" H / 43.2 cm W x 43.2 cm D x 7 cm H
Weight/Height Units
Pounds/Inch (lb, in) or Kilograms/Centimeters (kg, cm)
Power Requirements

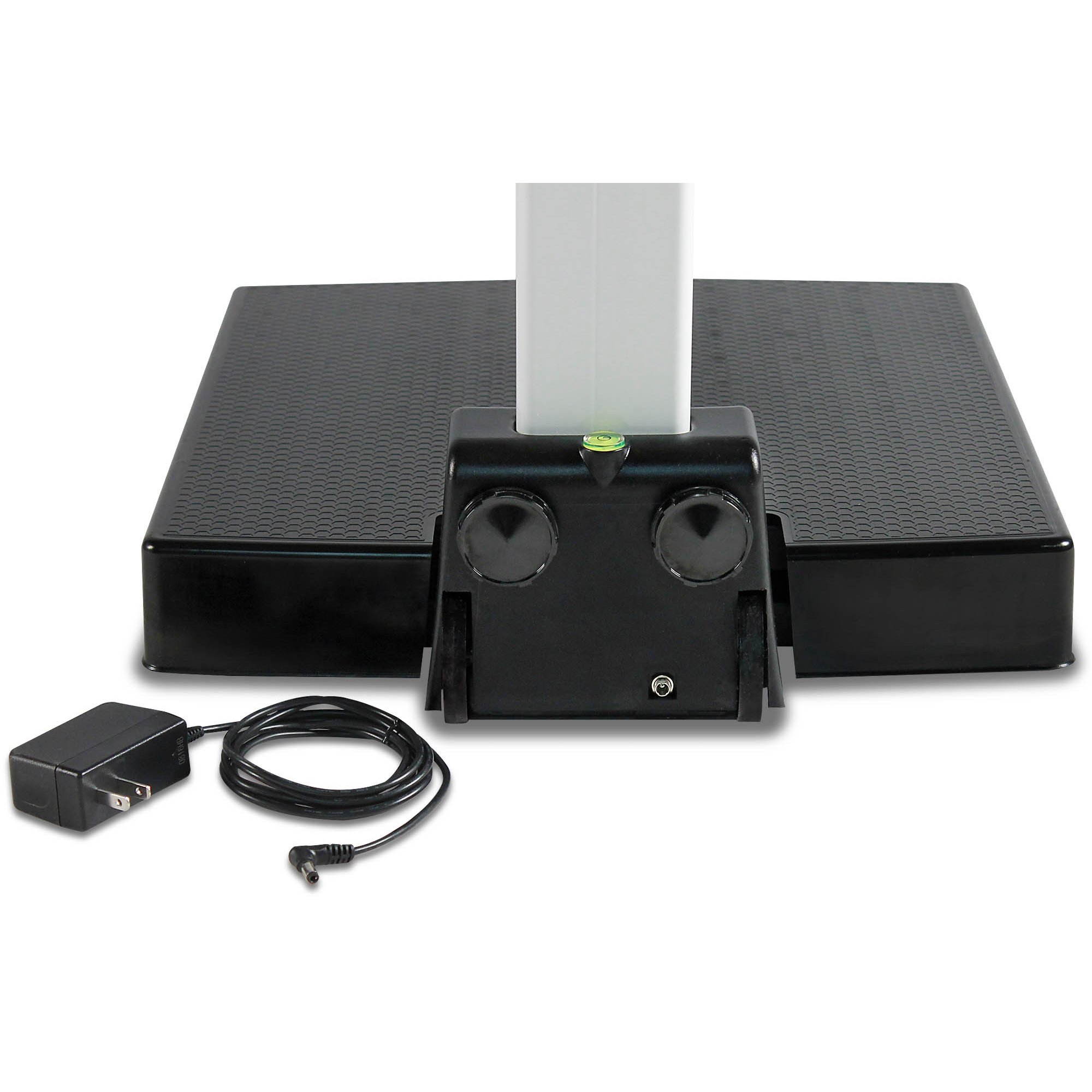

12 AA batteries (not included) or AC adapter (included with -AC models)
Height Rod Type

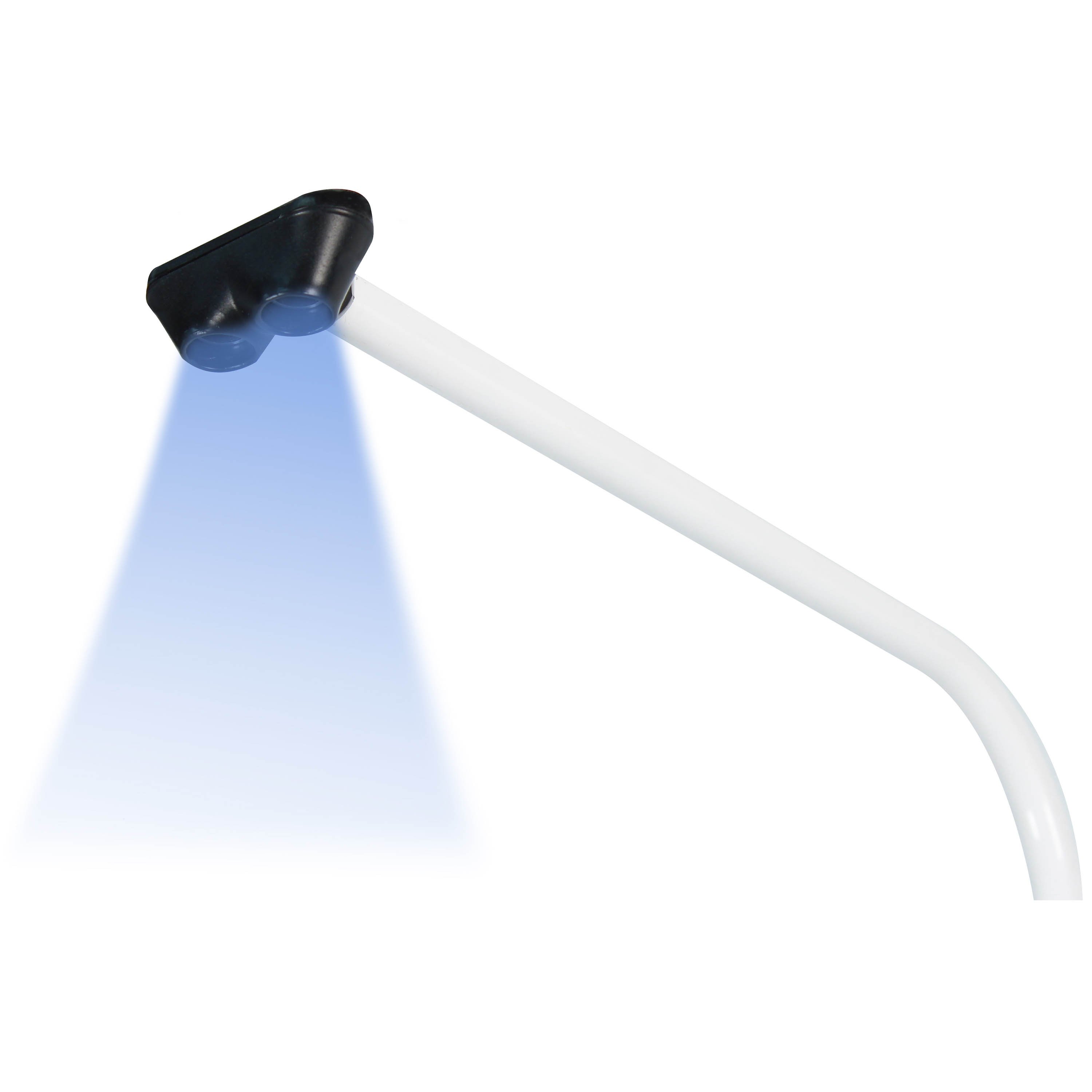

Sonar touchless height rod
Height Rod Measures
24" (2') - 86" (7'2") x 0.2" / 60 cm - 218 cm x 0.5 cm
Overall Dimensions 17" W x 19.5" D x 89.5" H / 43 cm W x 49.5 cm D x 227.3 cm H
Ports
1 RS232 serial ports and 1 micro USB-B port
Device Connectivity

HL7 IEEE 11073 compliant (standard)

Welch Allyn® device connectivity available on some models (CVSM, CSM, and LXI)

Wi-Fi/Bluetooth models also available for wireless EMR/EHR

Net Weight 32 lb / 14 kg
Shipping Weight
41 lb / 19 kg
Shipping Dimensions 58" x 20" x 6" / 147 cm x 51 cm x 15 cm
Key Pad 6 buttons (Power, Lock/Release, Zero, BMI, Up Arrow, Down Arrow)
Country of Origin USA
Display Type Dual-row, seven-segment, clinical-blue LCD
Number of Characters

Weight: 5 digit, 0.75" (19 mm) high

Height/BMI: 4 digit, 0.4" (10 mm) high

Operating Environment

Operated Temperature Range: 14 to 104°F (-10 to +40°C)

Humidity: 0 to 90% non-condensing

Digital Filtering StableSENSE® Adjustable Filtering
Construction

Column - aluminum white power coated

Base - steel

Indicator Enclosure - ABS

Specifications

Specifications
Manufacturer Detecto Scales
Latex Free Yes
Weight Capacity 600 lbs / 300 kg
Country of Manufacture United States
Item Ships From Missouri

Literature

pdf
(Size: 3.2 MB)
pdf
(Size: 4.7 MB)

Instructions

Warranty:

Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows:

  • Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • During the first ninety (90) days Detecto may choose to replace the product at no charge to the buyer upon inspection of the returned item.
  • After the first ninety (90) days, upon inspection of the returned item, Detecto will repair or replace it with a remanufactured product. The customer is responsible for paying for the freight both ways.

Returns

A valid return authorization number must be obtained within 30 days of item receipt. Returned merchandise must be in new, undamaged condition and all return shipments must be prepaid. A minimum 25% restocking fee will be deducted.
