Product Description

DETECTO's new apex® eye-level digital clinical scales are the pinnacle of patient measurement efficiency and stylish design.

  • Inline mechanical height rods and an extra-wide, flat platform 17" W x 17" D x 2.75" H
  • 600 lbs / 300 kg capacity
  • 0.75-inch-high clinical-blue LCD weight readouts
  • 6 Easy-to-use buttons
  • Units locking into Pounds or Kilograms
  • BMI calculation
  • Mother/Baby function factors the weight of infants and toddlers held by an adult

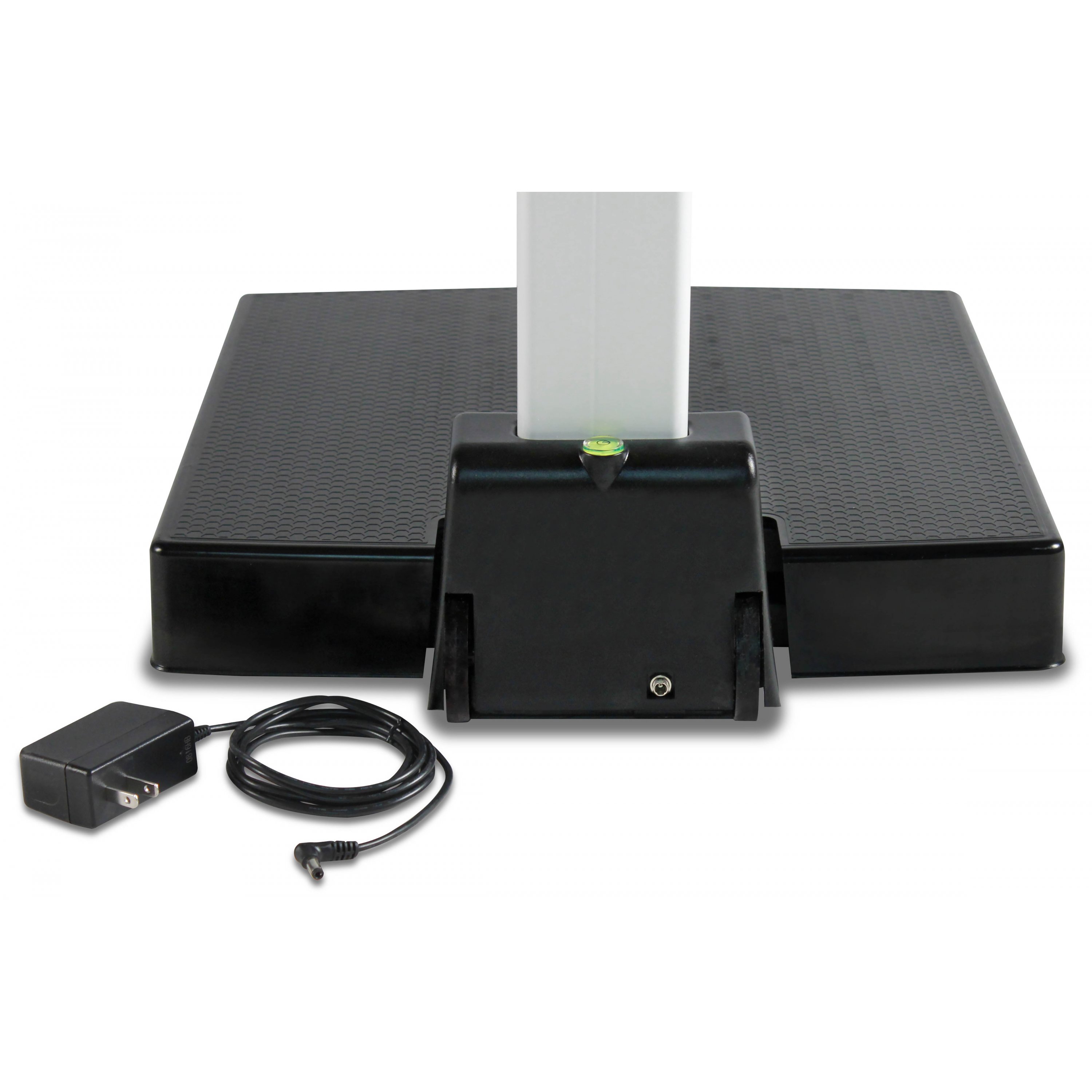

  • AC or battery power (AC adapter included on some models)

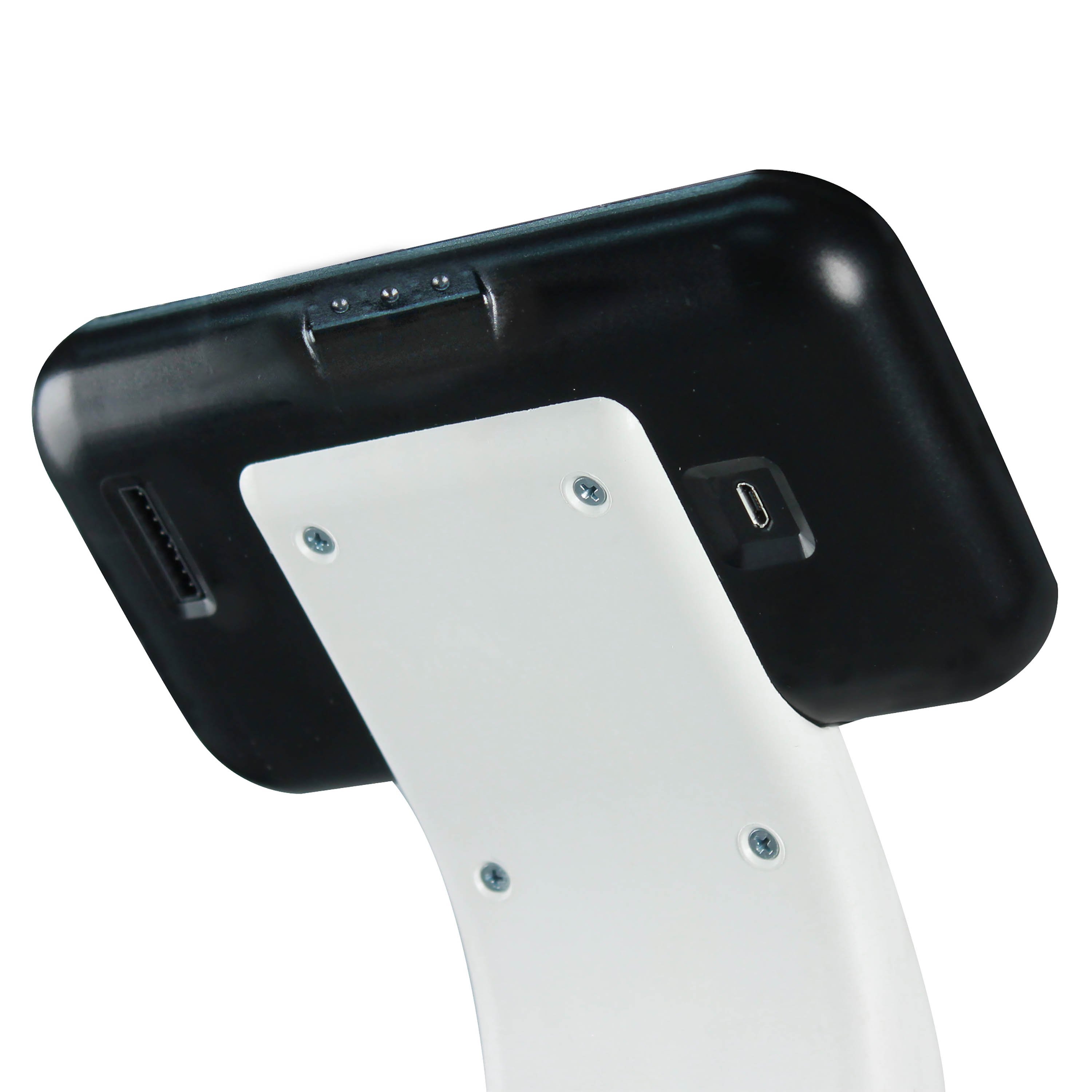

  • 1 RS232 serial ports and 1 micro USB-B port
  • Wi-Fi / Bluetooth Models Available for Wireless EMR/EHR
  • Welch Allyn Connectivity Available for Electronic Medical Records
  • HL7 IEEE 11073 compliant (standard)

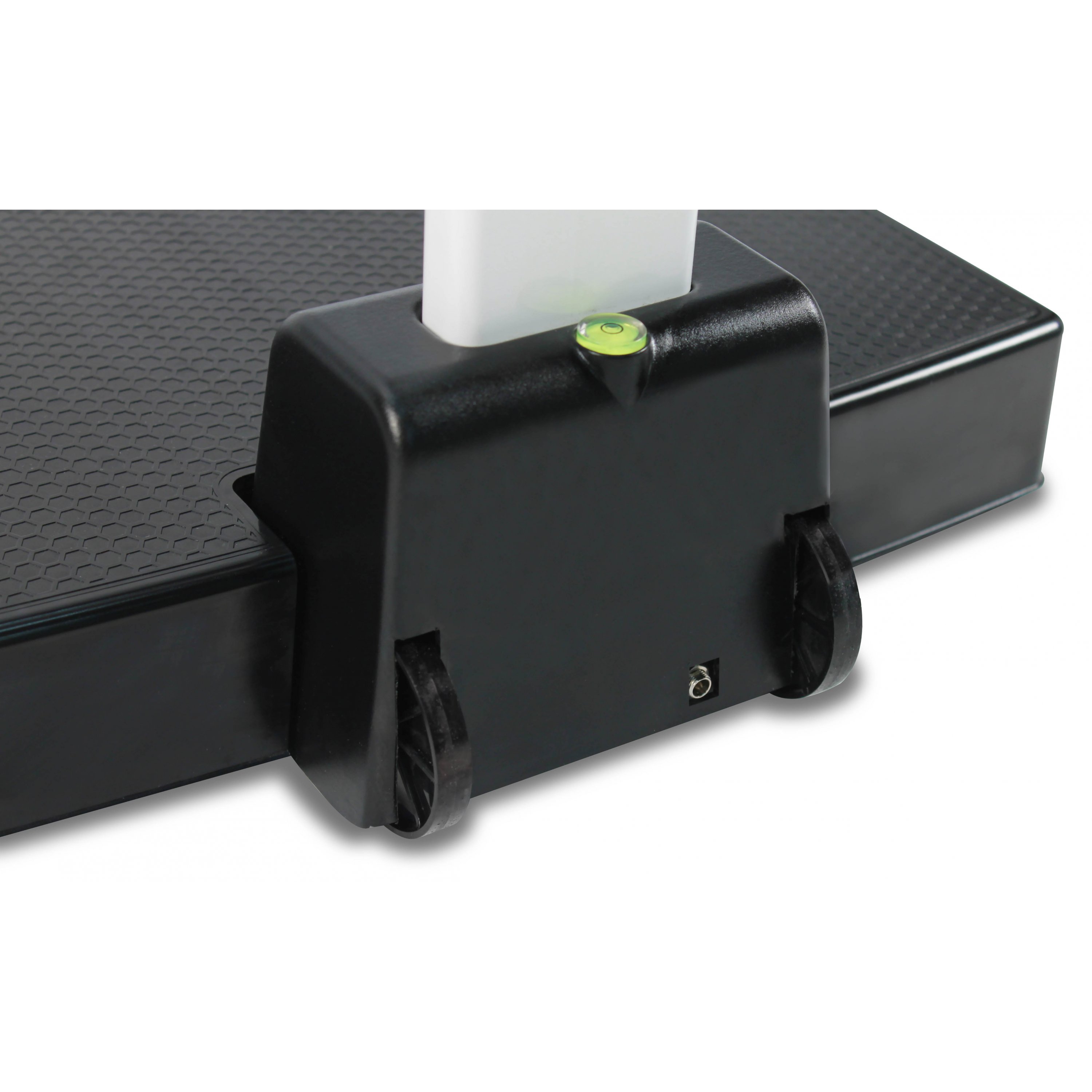

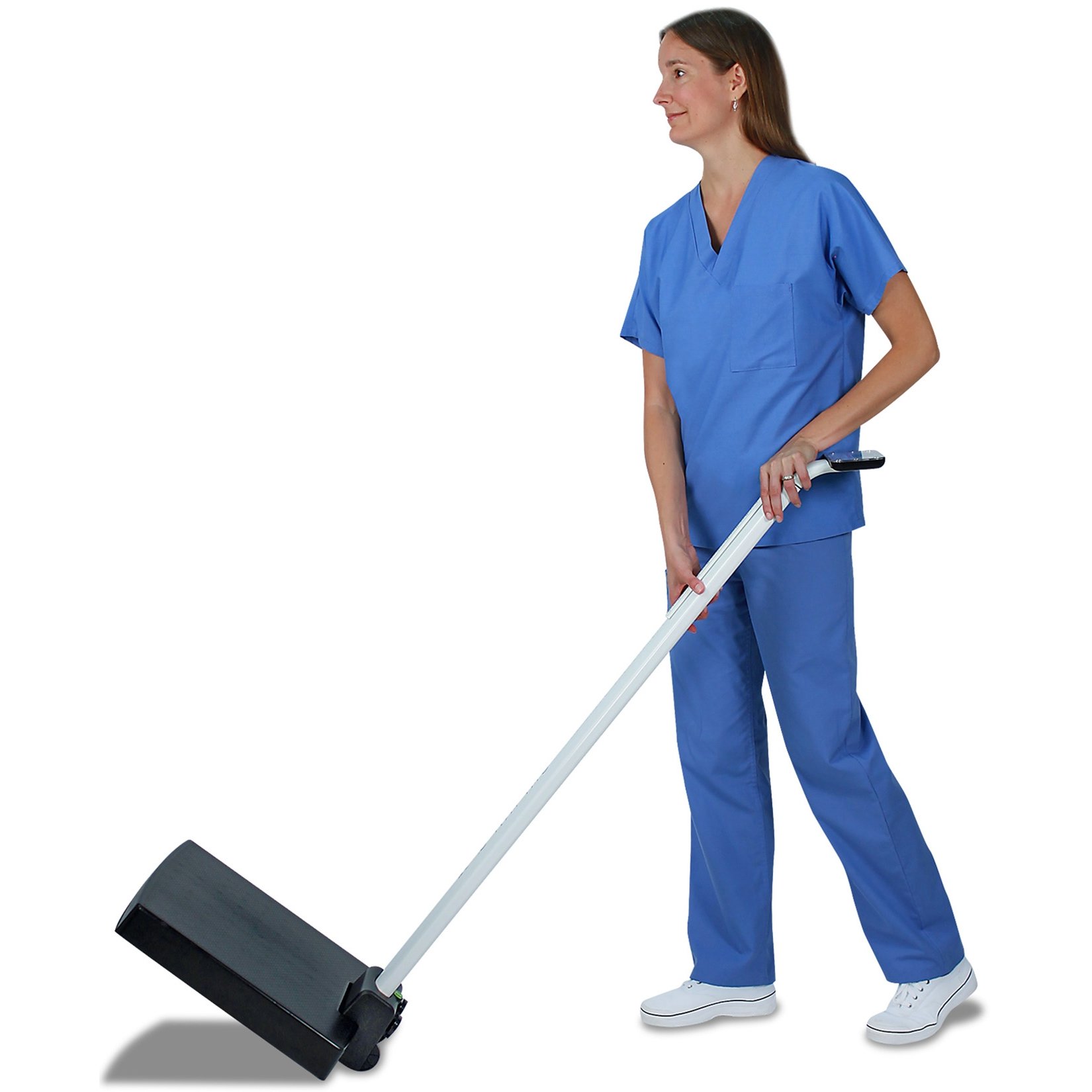

  • Dual wheels for transport

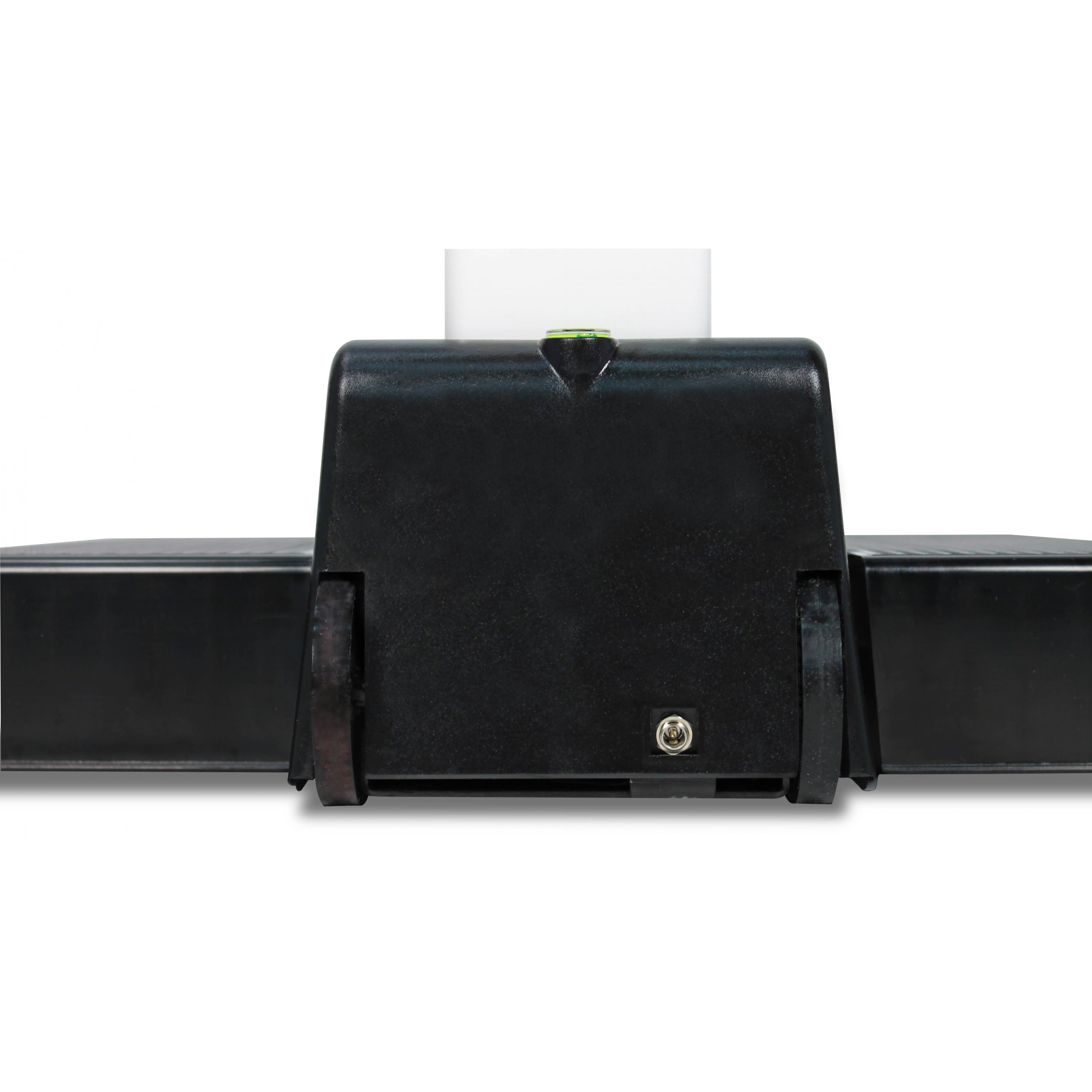

  • Sturdy column construction, integral bubble level
  • Assembles quickly right out of the box in just a few easy seconds (no tools required)

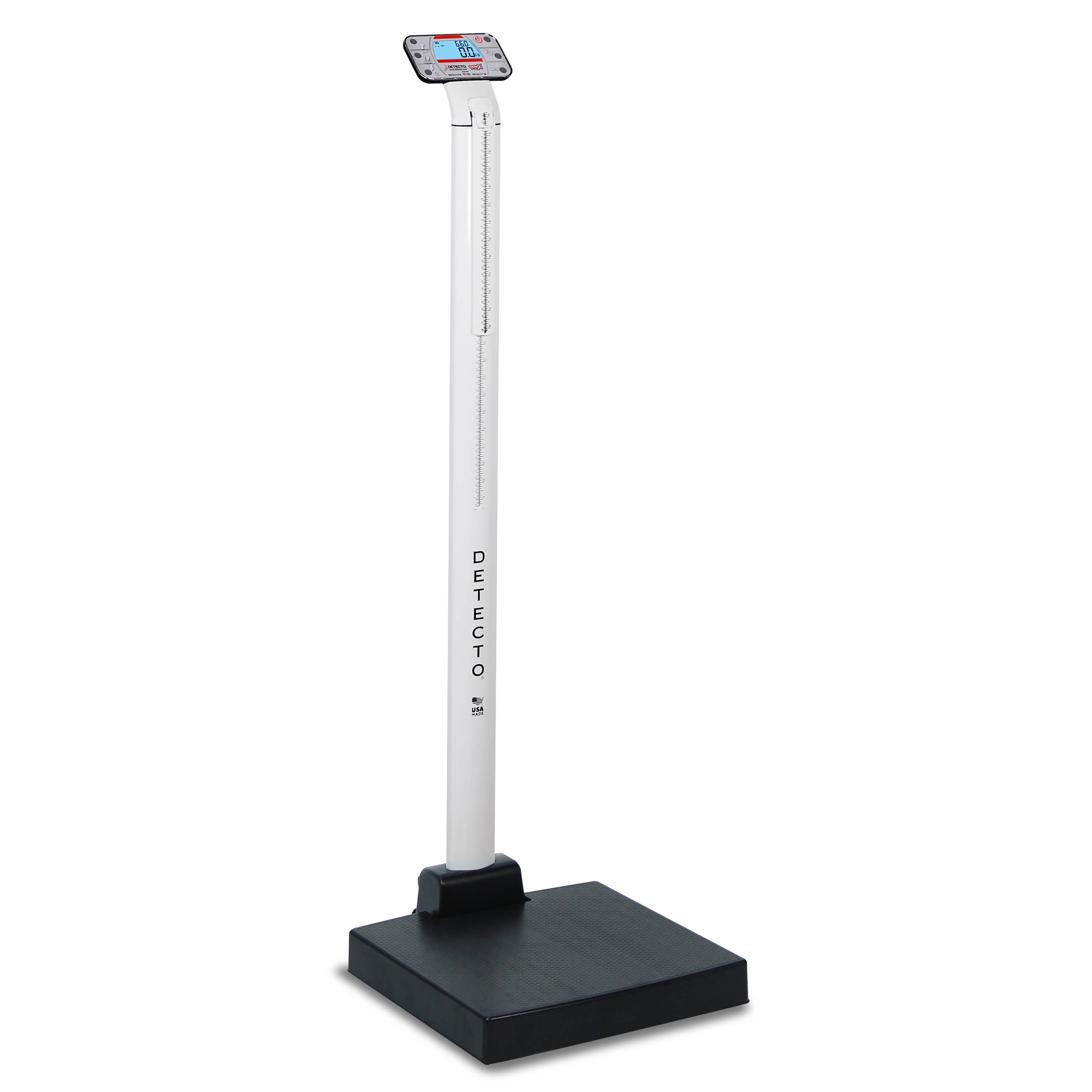

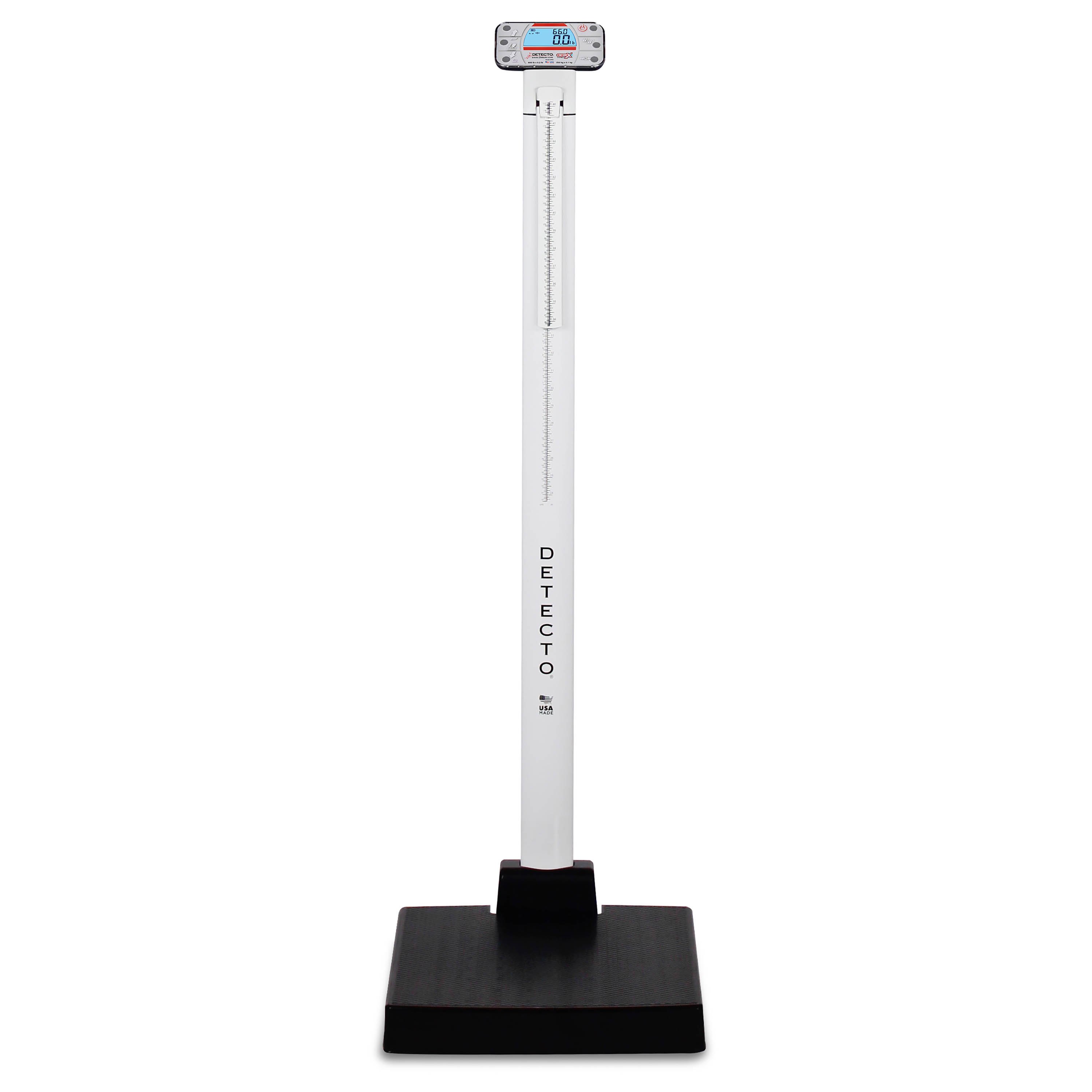

  apex Digital Clinical Scale with Mechanical Height Rod
600 lb x 0.2 lb / 300 kg x 0.1 kg (lb or kg selected upon initialization at start-up)
Platform Size
17" W x 17" D x 2.75" H / 43.2 cm W x 43.2 cm D x 7 cm H
Weight/Height Units
Pounds/Inch (lb, in) or Kilograms/Centimeters (kg, cm)
Power Requirements

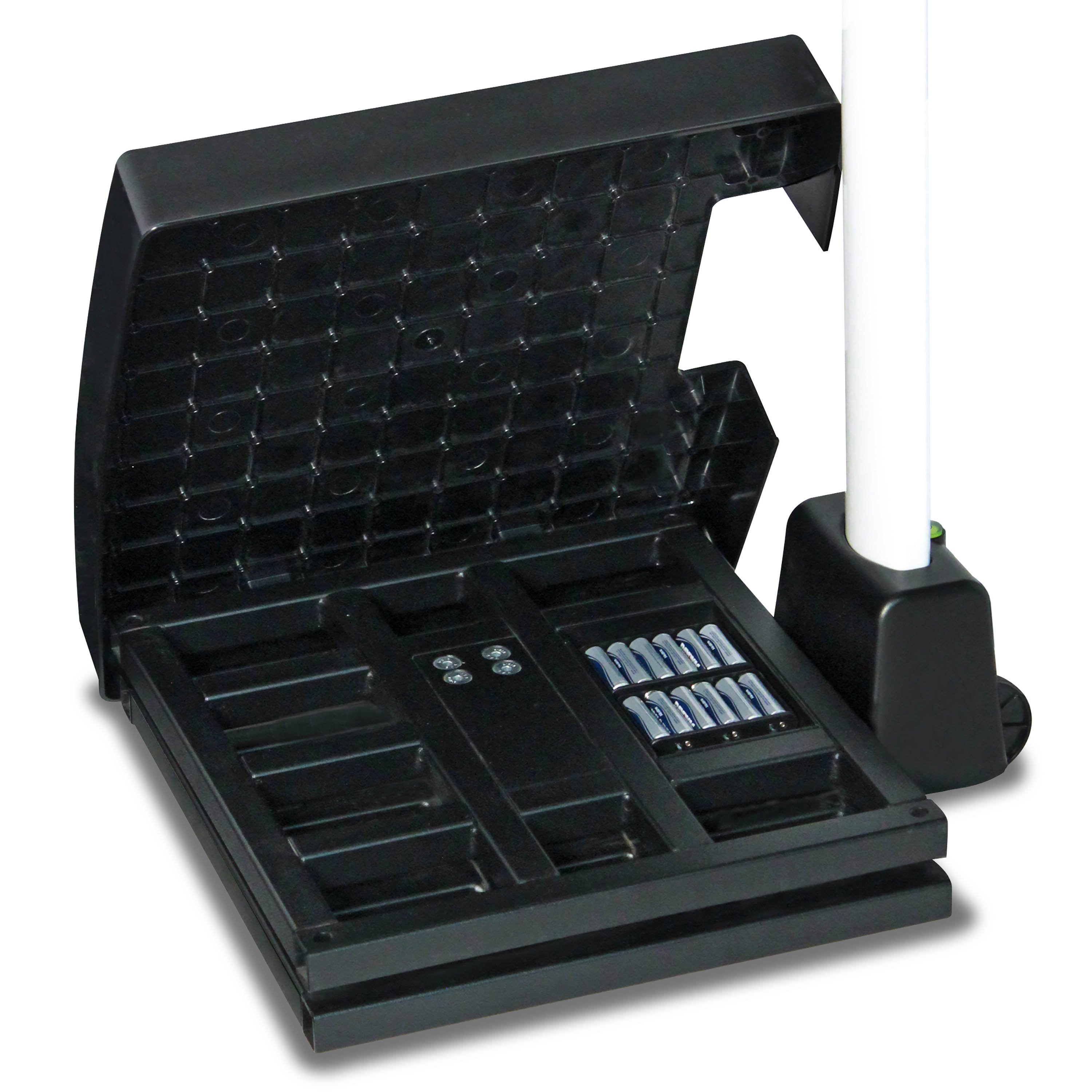

12 AA batteries (not included) or AC adapter (included with -AC models)
Height Rod Type

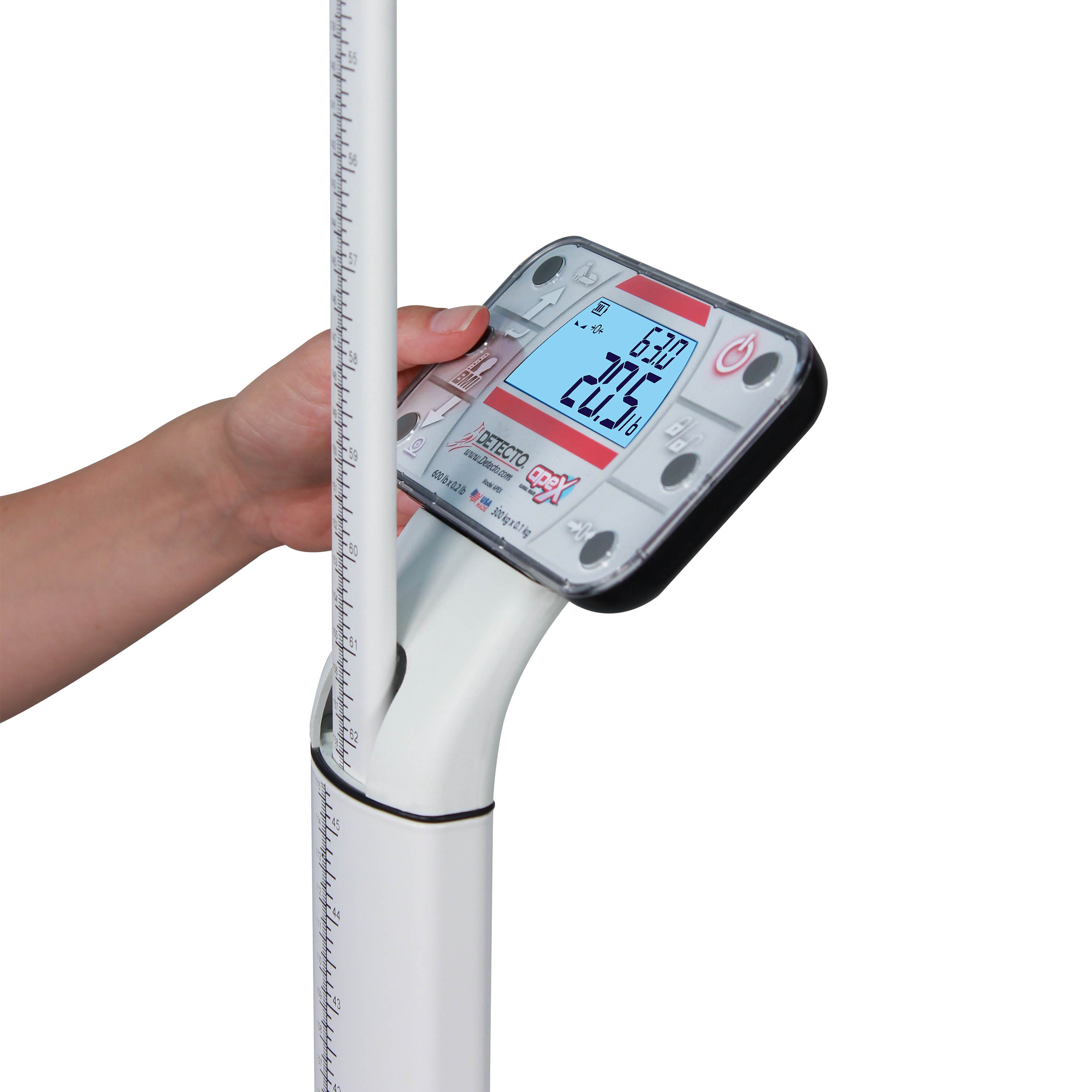

Mechanical inline height rod
Height Rod Measures
24" (2') - 86" (7'2") x 0.125" / 60 cm - 218 cm x 0.1 cm
Overall Dimensions 17" W x 19.5" D x 53.3" H / 43 cm W x 49.5 cm D x 135.3 cm H
1 RS232 serial ports and 1 micro USB-B port
Device Connectivity

HL7 IEEE 11073 compliant (standard)

Welch Allyn® device connectivity available on some models (CVSM, CSM, and LXI)

Wi-Fi/Bluetooth models also available for wireless EMR/EHR

Net Weight 31 lb / 14 kg
Shipping Weight
40 lb / 18 kg
Shipping Dimensions 58" x 20" x 6" / 147 cm x 51 cm x 15 cm
Key Pad 6 buttons (Power, Lock/Release, Zero, BMI, Up Arrow, Down Arrow)
Country of Origin USA

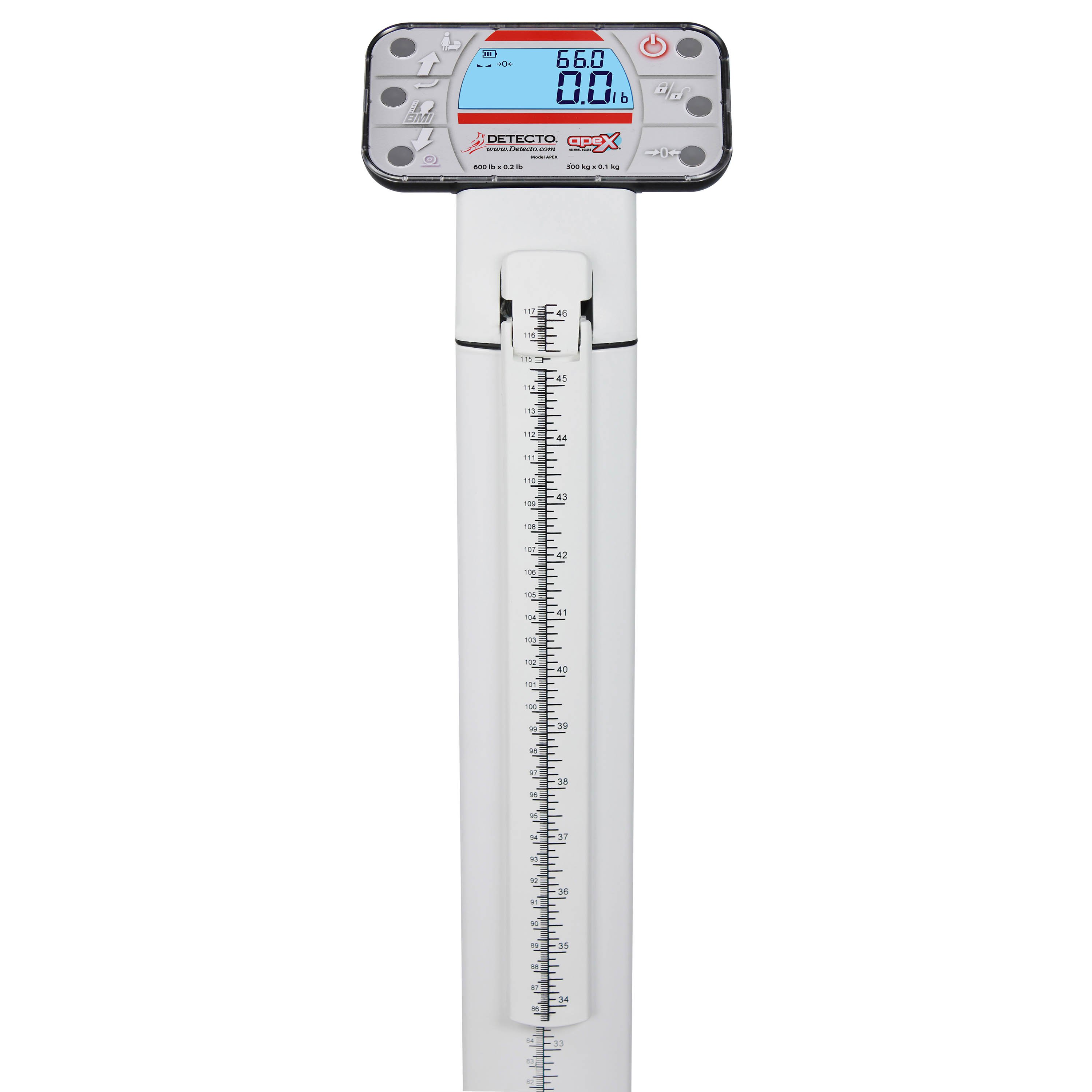

Display Type Dual-row, seven-segment, clinical-blue LCD
Number of Characters

Weight: 5 digit, 0.75" (19 mm) high

Height/BMI: 4 digit, 0.4" (10 mm) high

Operating Environment

Operated Temperature Range: 14 to 104°F (-10 to +40°C)

Humidity: 0 to 90% non-condensing

Digital Filtering StableSENSE® Adjustable Filtering

Column - aluminum white power coated

Base - steel Indicator

Enclosure - ABS


Manufacturer Detecto Scales
Latex Free Yes
Weight Capacity 600 lbs / 300 kg
Country of Manufacture United States
Item Ships From Missouri


(Size: 3.2 MB)
(Size: 4.7 MB)



Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows:

  • Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • During the first ninety (90) days Detecto may choose to replace the product at no charge to the buyer upon inspection of the returned item.
  • After the first ninety (90) days, upon inspection of the returned item, Detecto will repair or replace it with a remanufactured product. The customer is responsible for paying for the freight both ways.


A valid return authorization number must be obtained within 30 days of item receipt. Returned merchandise must be in new, undamaged condition and all return shipments must be prepaid. A minimum 25% restocking fee will be deducted.
