ADC Diagnostix™ 788 Palm Aneroid Sphyg with Adcuff™
Usually Ships in 3-5 Business Days
In stock
Only %1 left
You May Also Need
Product Description
The ADC Diagnostix™ 788 Palm Aneroid Sphyg with Adcuff™ is a versatile palm-style aneroid sphygmomanometer boasting precision-crafted performance, rugged durability, and an oversized, color-matched case.
788 Features:
- Revolutionary palm-style manometer with integral bulb
- Ambidextrous, infinite-control, trigger-style air release valve for one-hand convenience

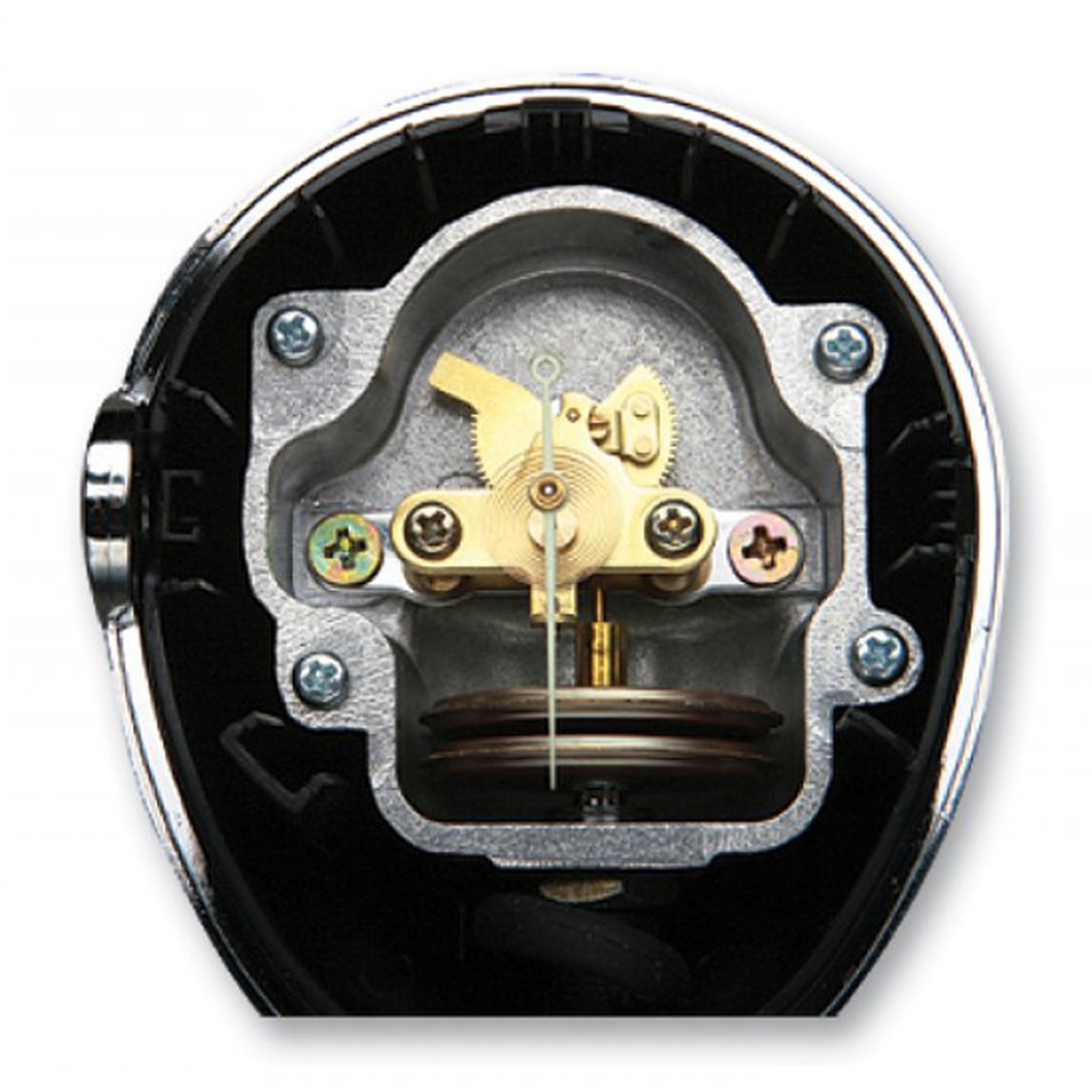

- Precision-crafted 300 mmHg Japanese-engineered manometer, housed in a zinc cage that suspends within the polymer housing for enhanced shock resistance
- Built with a metal bayonet-style connector
- Comes standard with an oversized, color-matched carrying case
- Made without phthalates or natural rubber latex
- Assembled, inspected, and packaged in the U.S.A. from foreign components
- Meets or exceeds ANSI/AAMI/ISO 81060-1
Traditional Adcuff Features:
- Two-piece cuff and bladder
- Durable 210 denier nylon construction
- An integral flap that secures the bladder and prevents bulging
- ADC’s proprietary Size Guide™ Marking System prevents miscuffing
- Longer limb ranges for improved patient coverage
- Gauge hang tab (on most sizes), bladder flap, and “property of” tag
- Hook-and-loop adhesive rated to a minimum of 30,000 open/close cycles
Technical Specifications:
- Sphyg Type: Palm Sphyg
- Spyhg Accuracy: ±3 mmHg @ 50°F (10°C) - 104°F (40°C)
- Sphyg Accuracy at Extended Temperature Range: ±3 mmHg or 2% whichever is greater @ <50°F (10°C) and >104°F (40°C)
- Storage Temperature: -4°F (-20°C) - 131°F (55°C)
- Valve Type: Integral
- Manometer Type: Palm aneroid
- Number of Tubes: 1 Tube
- Cuff Type: ADCUFF
- Cuff Size: Adult
- Limb Range: 9.0" - 15.7"
- Warranty:
- Inflation System Components: 3 Years
- Gauge/Calibration: Lifetime
About this Brand
For over 40 years, American Diagnostic Corporation (ADC) has been a leading manufacturer of diagnostic medical products, personal instruments, and accessories for the healthcare industry. The company is ISO 13485:2016 certified for quality management under the Medical Device Single Audit Program (MDSAP). With a focus on producing durable products at a value price, their product line features stethoscopes, blood pressure instruments, thermometry, and other core diagnostic products including: ophthalmoscopes, otoscopes, dermascopes, laryngoscopes, and pulse oximeters.
Specifications
| Manufacturer | American Diagnostic Corporation (ADC) |
|---|---|
| Latex Free | Yes |
| Country of Manufacture | Indonesia |
| Item Ships From | New York |
Literature
Instructions
Warranty: American Diagnostic Corporation (ADC®) warrants its products to the original end user against defects in materials and workmanship under normal use and service, effective from the date of purchase. This warranty excludes damage resulting from improper handling, misuse, accidents, or unauthorized modifications made by third parties.
For details on specific warranty issues, please refer to the warranty statement included in the Instructions for Use literature.
Returns
Products must be returned in unused, unopened, resalable condition with the original packaging. To return this item you must contact Customer Service within 30 days of receipt to obtain a valid Return Authorization Number. Restocking fees may apply at the discretion of the manufacturer. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
