ADC System 5™ Portable 5 Cuff Sphyg with Adcuff+
Usually Ships in 2-3 Business Days
In stock
You May Also Need
Checked products are added to the cart with this item.
Product Description
The ADC System 5™ Portable 5 Cuff Sphyg with Adcuff+ is the most compact, ergonomically designed, and affordably priced portable blood pressure system on the market.
740 Features:

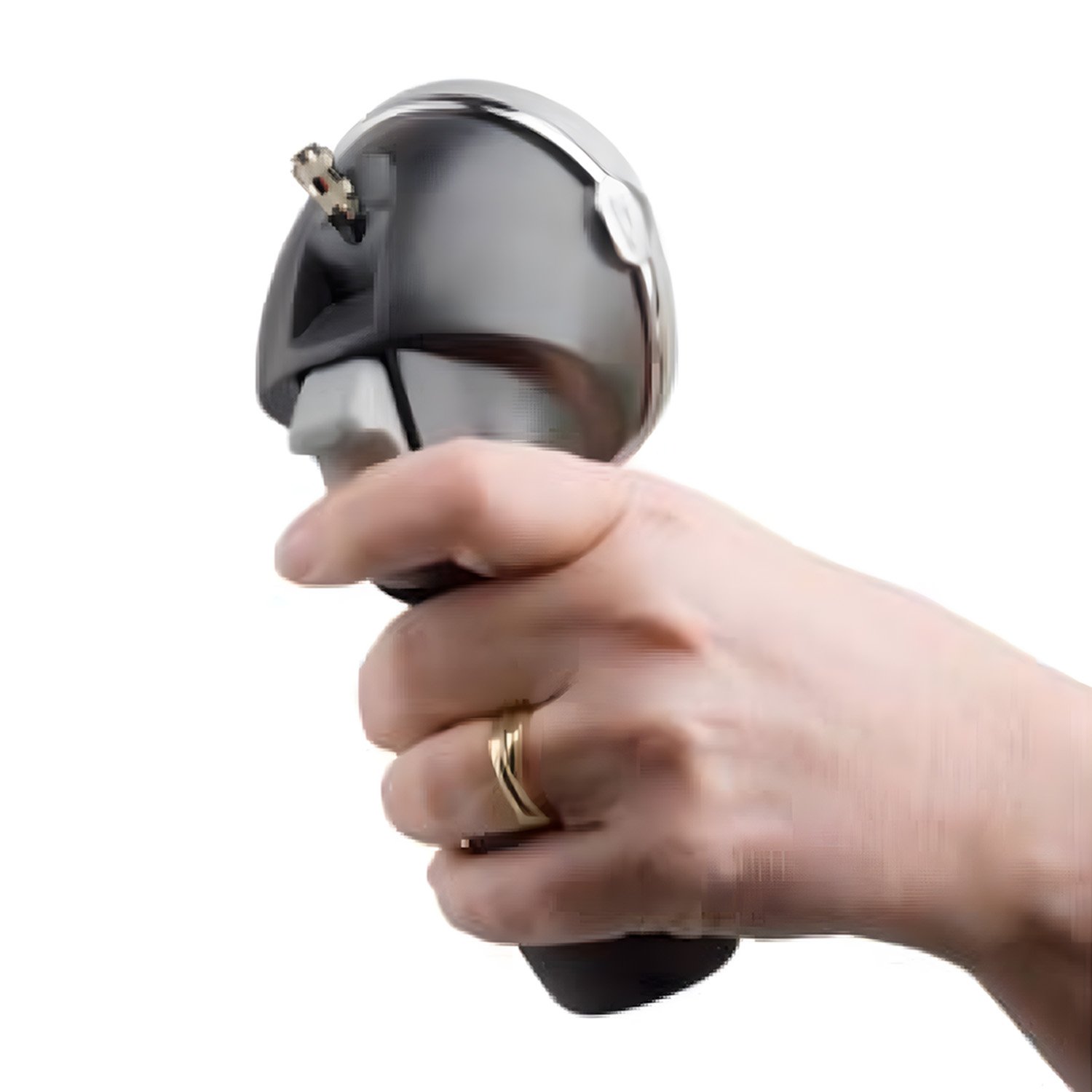

- Revolutionary palm-style manometer with integral bulb
- Ambidextrous, infinite-control, trigger-style air release valve for one-hand convenience

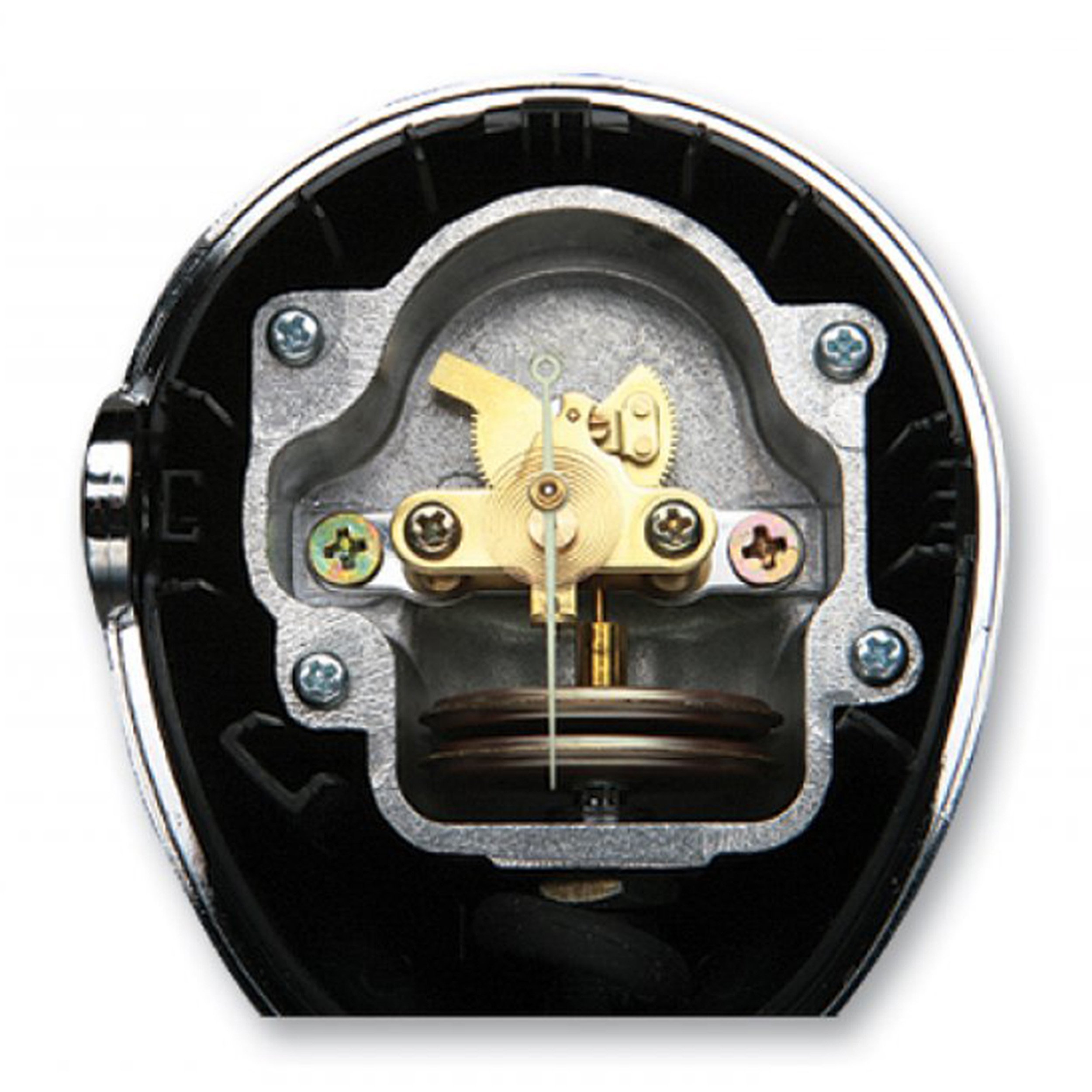

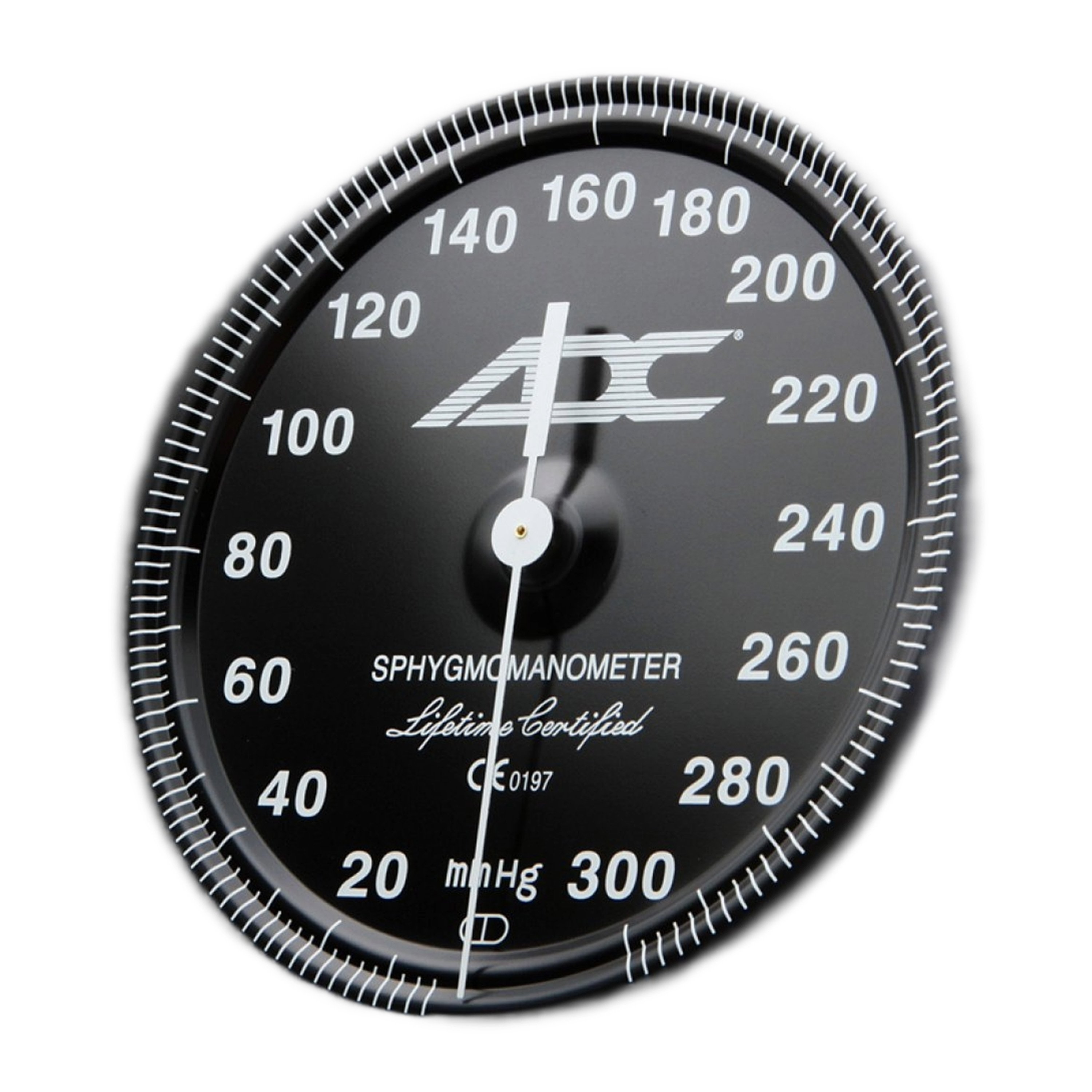

- Precision-crafted 300 mmHg Japanese-engineered manometer, housed in a zinc cage that suspends within the polymer housing for enhanced shock resistance
- Built with metal bayonet-style connectors for rapid selection of the appropriate cuff
- Comes Standard With:
- 1 Palm aneroid sphygmomanometer
- 5 Cuff Sizes: Child, Small adult, Adult, Large adult, and Thigh

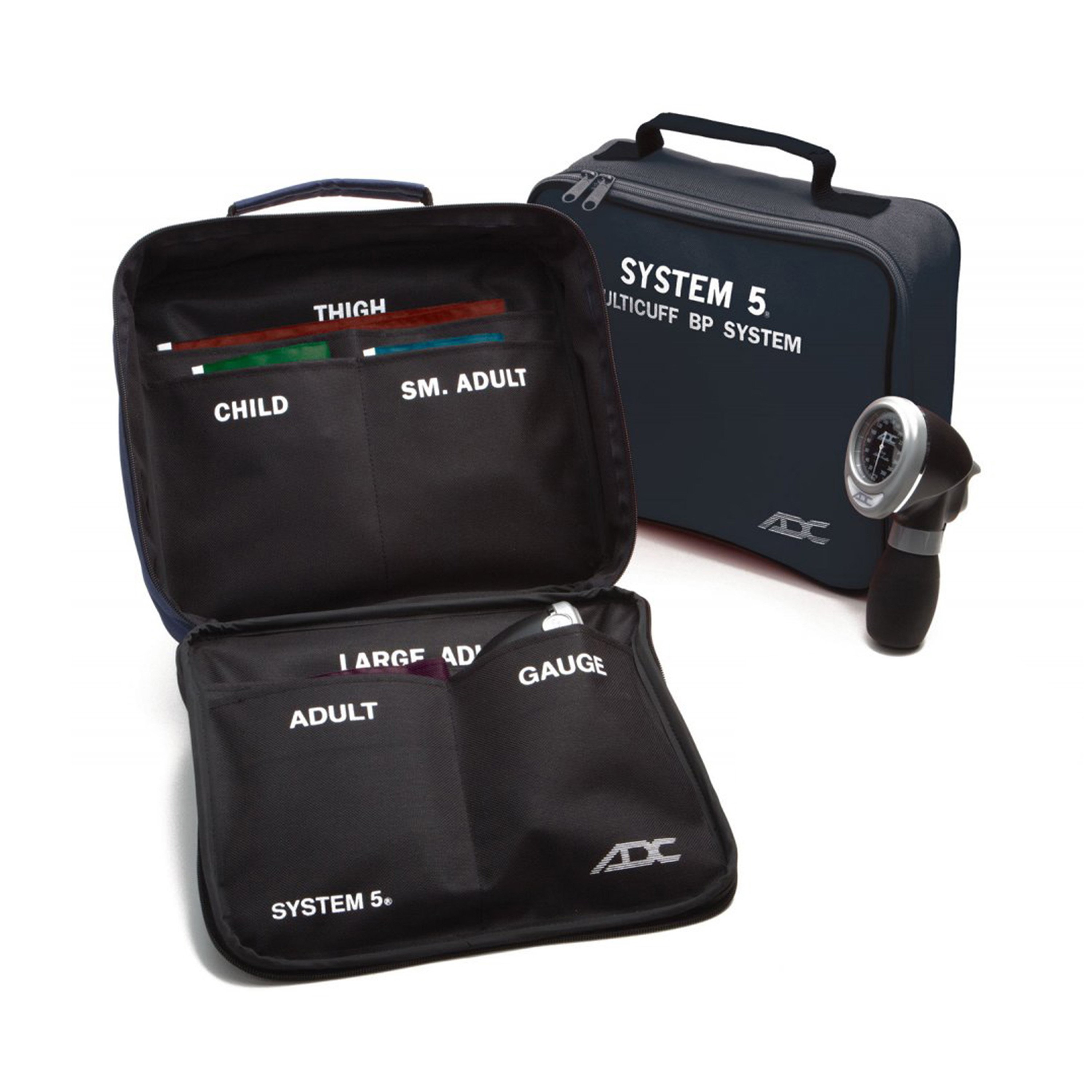

- 1 Multi-Pocketed, Heavy-Duty 600D Polyester Attaché Style Case
- Keeps each component securely in place, yet instantly accessible
- Fits in most emergency boxes and trauma kits
- Reinforced handle allows for wall mounting in the open position
- Dual zipper closure for rapid access and protection against environmental elements
- Made without phthalates or natural rubber latex
- Assembled, inspected, and packaged in the USA from foreign components
- Meets or exceeds ANSI/AAMI/ISO 81060-1
Adcuff+ Features:
- All-new, one-piece reusable nylon blood pressure cuff
- Bladderless construction from TPU-coated, 70 denier nylon that is simple to use and easy to clean
- Surface-mounted tube ports for a more uniform fit around the patient's limb
- ADC’s proprietary Size Guide marking system, which helps prevent mis-cuffing
- Longer limb ranges for improved patient coverage
- Hang tab (on most sizes) fits conventional pocket gauges
- Hook-and-loop adhesive rated for tens of thousands of cycles
Technical Specifications:
- Sphyg Type: Multicuff
- Sphyg Accuracy: ±3 mmHg @ 10°C - 40°C
- Sphyg Accuracy at Extended Temperature Range: ±3 mmHg or 2% whichever is greater @ <10°C and >40°C
- Storage Temperature: -20°C to 55°C
- Valve Type: Integral
- Manometer Type: Palm aneroid
- Number of Tubes: 1 Tube
- Cuff Type: ADCUFF+
- Case Color: Navy
- Case Dimensions: 10" L x 9" W x 4" H
- Case Weight: 2.5 lbs
- Warranty:
- Inflation System Components (Cuff, Bladder, Tubing, Valves, and Connectors): 3 Years
- Manometer/Calibration: Lifetime
| Size | Color | Cuff ID | Limb Range |

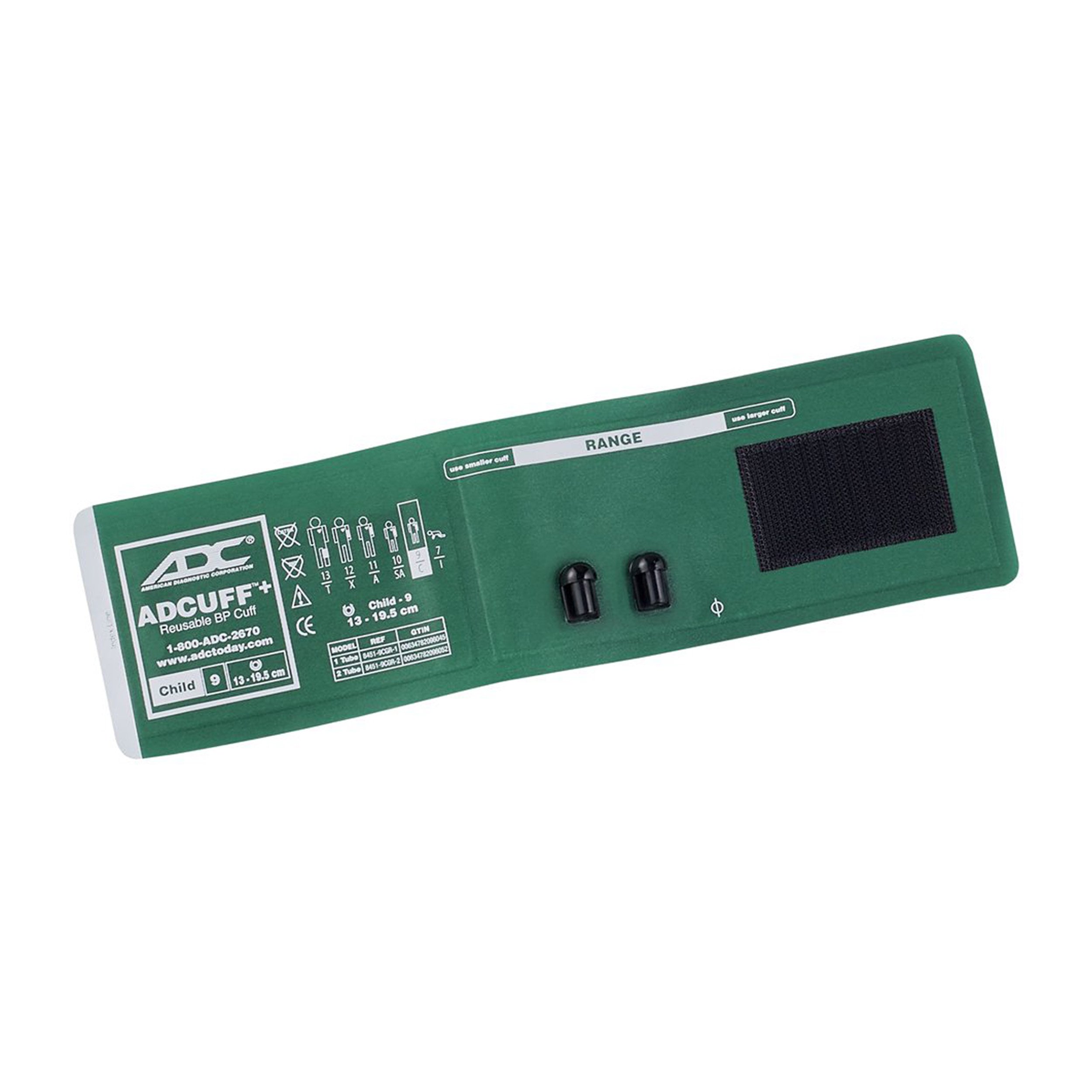

| Child | Green | 9 | 5.1" - 7.6" |

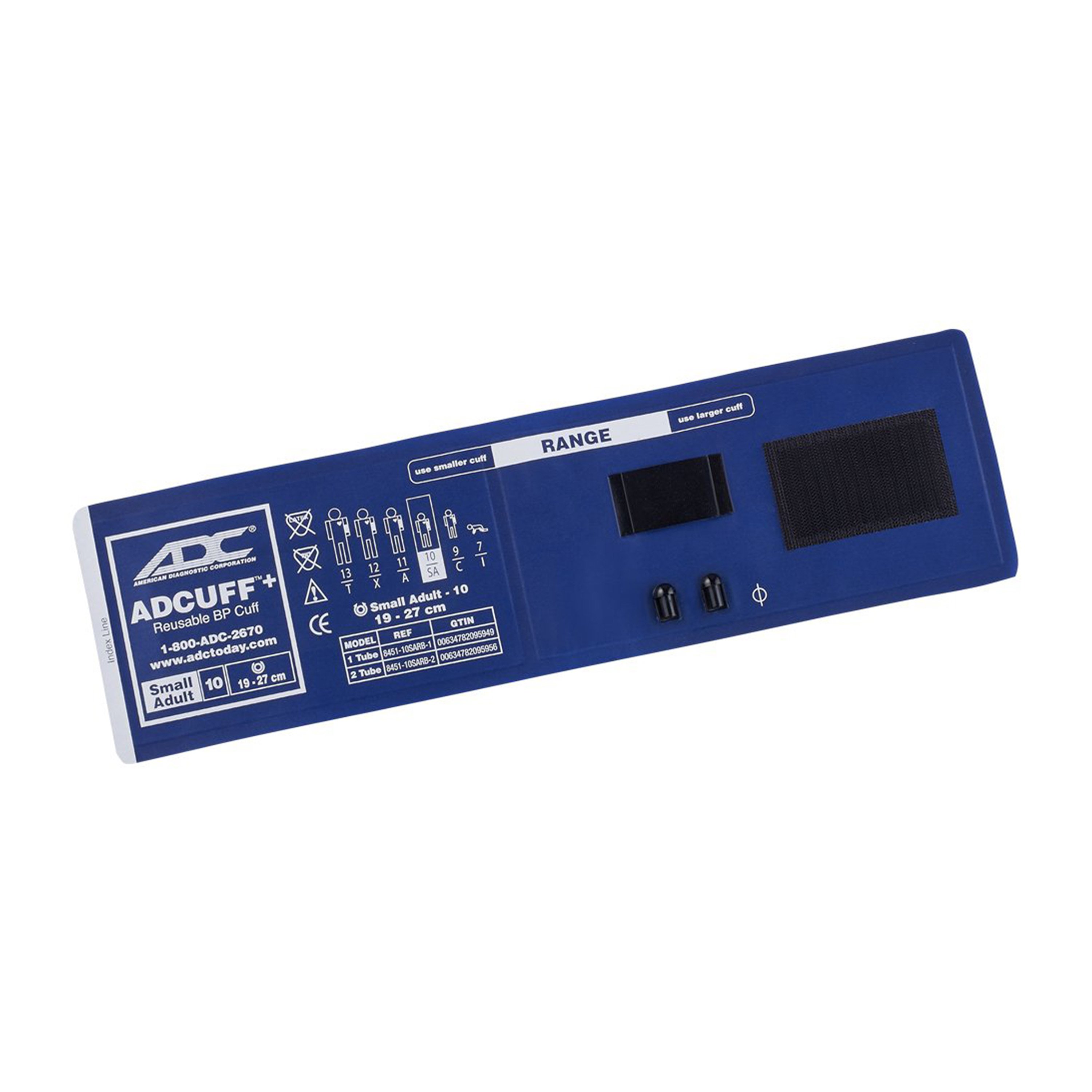

| Small Adult | Royal Blue | 10 | 7.4" - 10.6" |
| Adult | Navy | 11 | 9.0" - 15.7" |

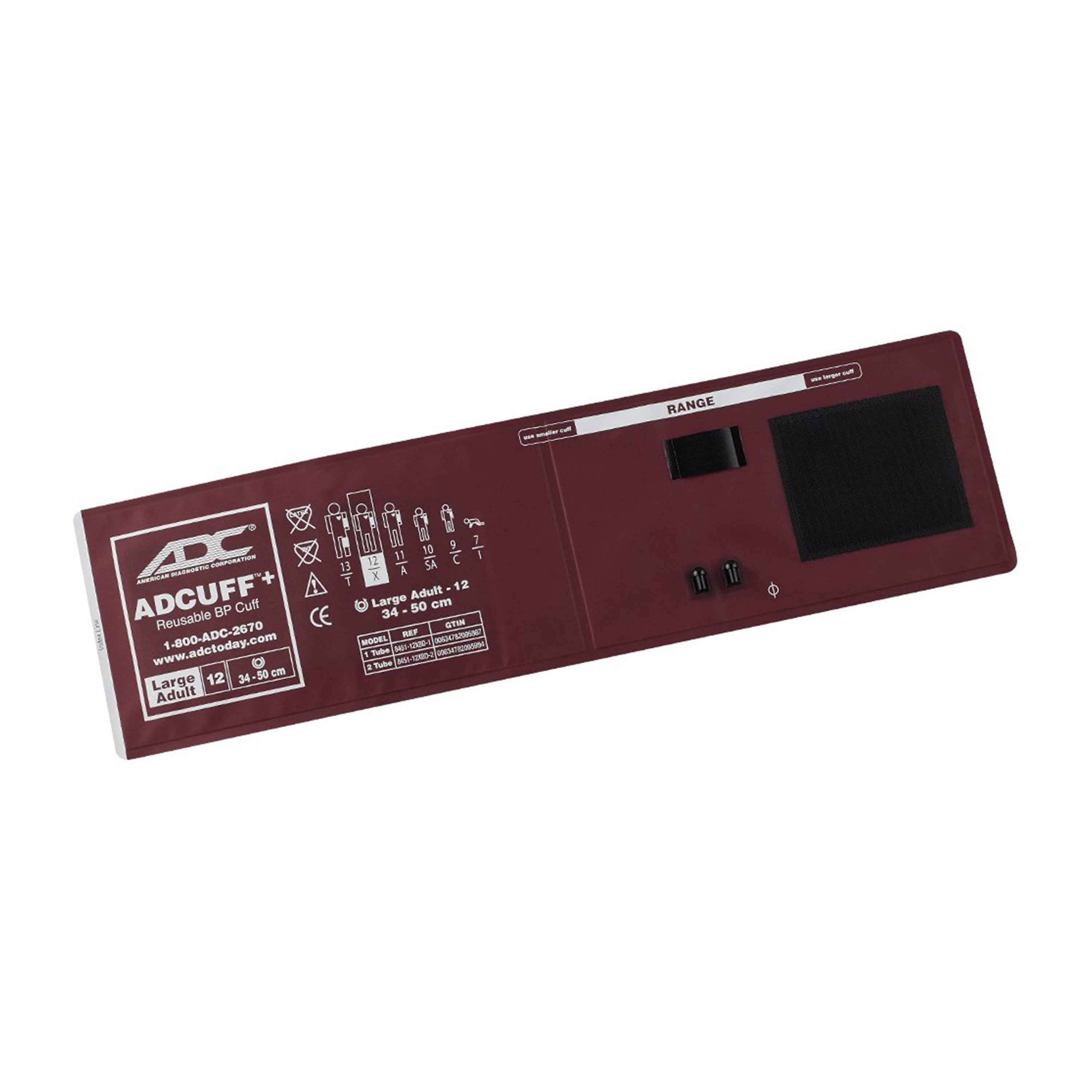

| Large Adult | Burgundy | 12 | 13.3" - 19.6" |
| Thigh | Brown | 13 | 15.7" - 25.9" |
About this Brand
For over 40 years, American Diagnostic Corporation (ADC) has been a leading manufacturer of diagnostic medical products, personal instruments, and accessories for the healthcare industry. The company is ISO 13485:2016 certified for quality management under the Medical Device Single Audit Program (MDSAP). With a focus on producing durable products at a value price, their product line features stethoscopes, blood pressure instruments, thermometry, and other core diagnostic products including: ophthalmoscopes, otoscopes, dermascopes, laryngoscopes, and pulse oximeters.
Specifications
| Manufacturer | American Diagnostic Corporation (ADC) |
|---|---|
| Latex Free | Yes |
| Country of Manufacture | India |
| Item Ships From | New York |
Literature
Instructions
Warranty: American Diagnostic Corporation (ADC®) warrants its products to the original end user against defects in materials and workmanship under normal use and service, effective from the date of purchase. This warranty excludes damage resulting from improper handling, misuse, accidents, or unauthorized modifications made by third parties.
For details on specific warranty issues, please refer to the warranty statement included in the Instructions for Use literature.
Returns
Products must be returned in unused, unopened, resalable condition with the original packaging. To return this item you must contact Customer Service within 30 days of receipt to obtain a valid Return Authorization Number. Restocking fees may apply at the discretion of the manufacturer. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
