Acrylic Draw Station UM3178 will keep phlebotomy supplies organized, safely stored and separated.
Constructed of durable clear acrylic

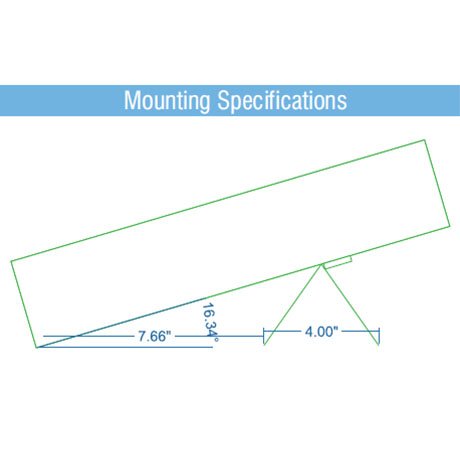

Comes with tilting stand, making supplies easily accessible
One removable 13mm Tube Rack (holds 90 tubes)
One removable 16mm tube Rack (holds 60 tubes)
Overall Dimensions: 13" W x 3.25" H x 15.875" D
Outside Dimensions of Tube Racks:
10.56" W x 3.125" H x 4.375" D
10.17" W x 3.125" H x 4.125" D
4 Pockets: 3" W x 2.75" D x 3" H
2 Pockets: 6.177" W 2.88" D x 3" H
1 Pocket: 2" W x 4.4" D x 3" H
90 Tube openings are 0.5625" x 0.5625"
60 Tube openings are 0.75" x 0.75"
Product Weight: 8.3 lbs
Max. Temperature: 70°C, Min. Temperature: -60°C
Universal Medical Inc.
Actual Product Weight
Country of Manufacture
Item Ships From
GSA Contract Number
Warranty: RI Plastics warrants their products to be free from defects in materials (naturally occurring blemish in plastic etc) and workmanship (glue joints etc) for the life of the product, when used for the intended purpose it was made for, and properly maintained according to specifications. Proper care should be taken to ensure that the correct cleaning materials/chemicals are used as suggested. The improper use of cleaning materials may result in crazing, which is not covered by warranty. The warranty does not cover scratches due to normal wear and tear, breakage due to the product being dropped or other misuse/abuse. All warranty claims are at the discretion of the manufacturer.
Washing Acrylic with a Mild Detergent is sufficient for most general applications. Be sure to rinse with tap water and then rinse again with distilled water. Do not use abrasive cleaners or scouring pads.
Ultrasonic Cleaners can be used as long as the acrylic item does not rest on the bottom of the tank. Use a cleaning basket for best results.
Do not use this product with Labware Washing Machines, Autoclaving, or Dry Heat
Removing Grease and Oils: Washing with mild detergent will remove grease and oils in many situations.
Removing Organic Matter: Soaking acrylic in a chromic acid solution will remove organic matter, but since it is strong oxidizing agent, it will eventually embrittle the acrylic. To minimize embrittlement, soak for no more than 4 hours. Sodium hypochlorite solutions (bleaches) are also effective at removing organic matter. Use at room temperature.
Gas Sterilization: Acrylic may gas sterilized (ethylene oxide, formaldehyde). Allow an appropriate aeration time suited to the particular application before using the item.
Chemical Disinfectants: Acrylic may be cleaned with most commonly used disinfectants (formalin, iodophors, quatemary ammonium compounds, benzalkonium chloride). There may be some surface attack (crazing) when using a more chemically aggressive disinfectant for a prolonged time.
In order to return this item a valid Return Authorization number must be obtained from the Customer Service department within 14 days of receipt of the item. A restocking fee may be deducted at the discretion of the manufacturer. Custom items are not able to be returned. Customer is responsible for all shipping fees.
