Product Description

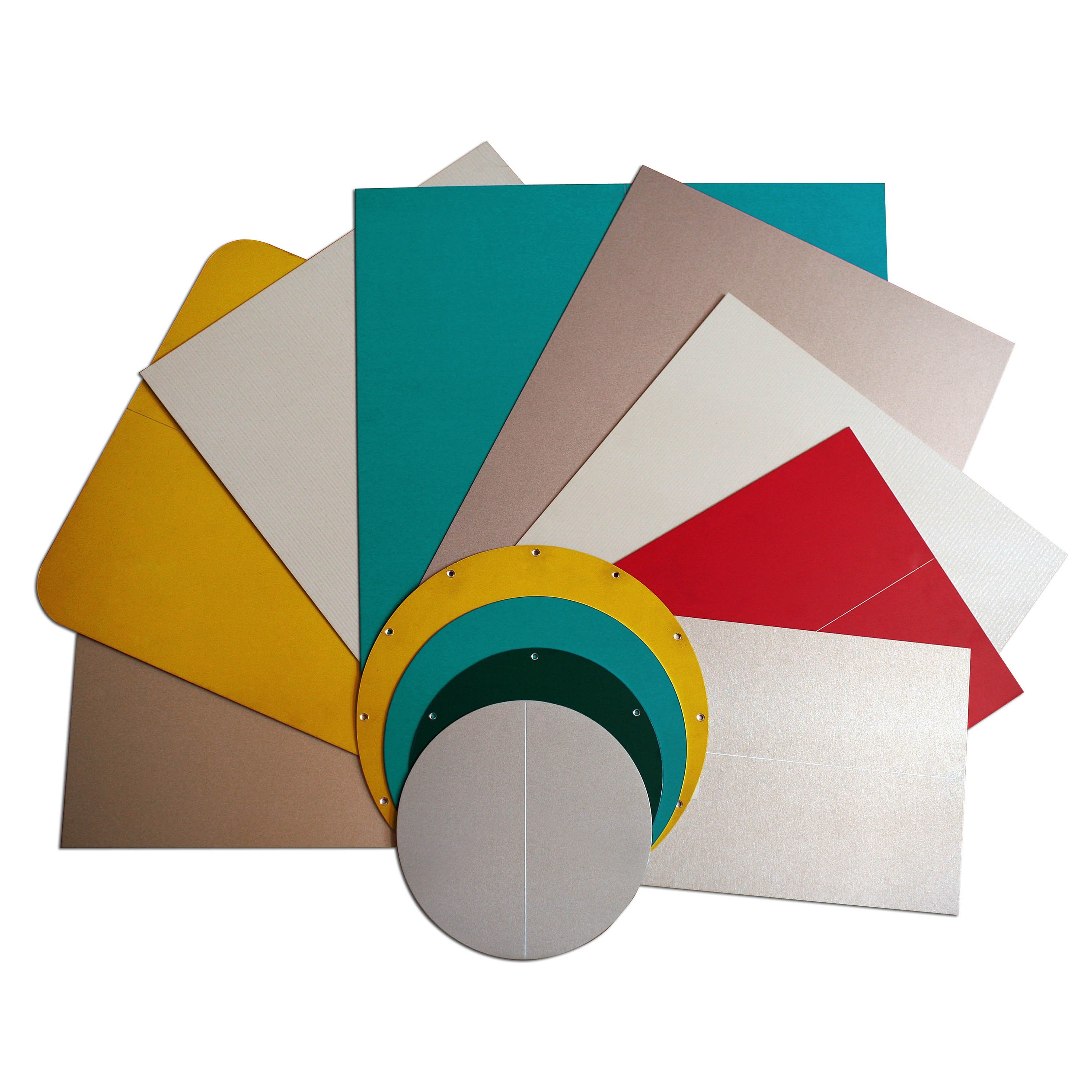

The 17 ¼" x 18 ⅞" X-ray Grids provide clearer radiograph images by trapping scattered radiation, the biggest contributing factor to poor diagnostic quality. Introducing an x-ray grid between the x-ray beam and the film or plate will provide a clearer and more detailed image.

Choosing the Right Grid

Cleanup Ratio/Type Positioning Latitude Recommended Up To Remarks
SUPERLATIVE 8:1 criss-cross Distance fair; centering and leveling sight 120 KVP Not recommended for tilted tube technique
EXCELLENT 12:1 linear Very slight 110 KVP (Suitable for higher KV) Extra care required for proper alignment; usually used in fixed amount
EXCELLENT 6:1 criss-cross Good 100 KVP Tube tilt limited to five degrees
GOOD 8:1 linear Distance fair; centering and leveling-slight 100 KVP For general stationary grid use
GOOD (CR) 4:1, 6:1 Good 120 KVP CR Grid
MODERATE 6:1 linear Good 80 KVP Least expensive of stationary grids


Anatomy Lines Per Inch Ratio Distance
SKULL 103 10:1 36-40"
CHEST 103-150 10:1-12:1 60-72"
CR CHEST 150, 178 4:1, 6:1 Parallel
ABDOMINAL 103 8:1 34-44"
CR ABDOMINAL 150, 178 4:1, 6:1 Parallel
SCOLIOSIS STUDIES 85-103 8:1 48-72"
Special Procedures
MOST STUDIES 103 10:1 36-40"
BI-PLANE 103 criss-cross 10:1 36-40"
Surgical Room
ORTHOPEDICS 85 8:1 34-44"
CHOLANGIOGRAMS VENOUS STUDIES 103 8:1, 10:1 34-44, 36-40"
Emergency Room
TRANS LATERAL SKULL, SPINES, HIPS 85-103 6:1-8:1 34-44"
