Product Description

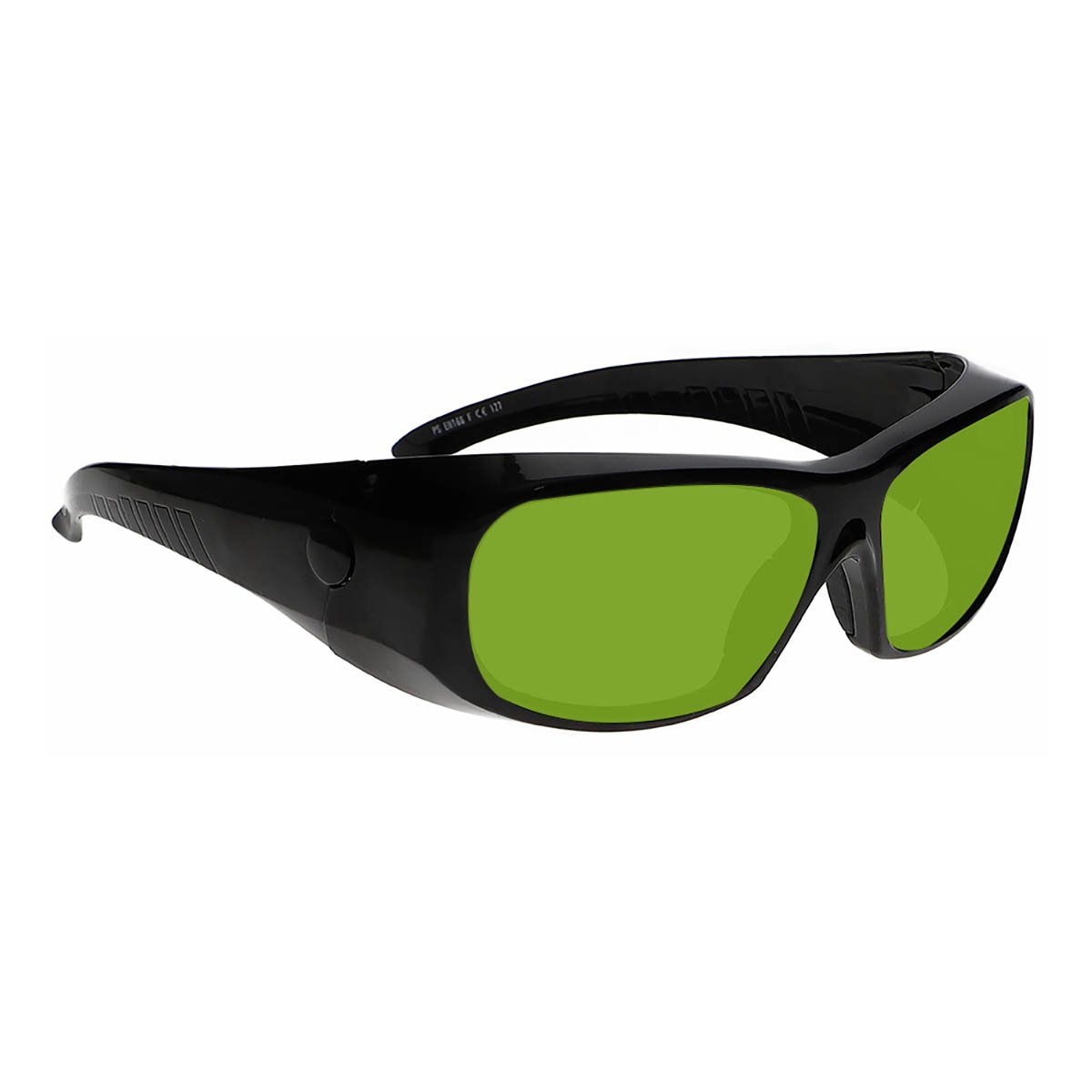

The YAG Filter is a laser safety lens made of a YAG green polycarbonate lens. It is cut and mounted into the 1375 black frame. The frames head hugging temple design gives excellent splash and side protection. ANSI Z87-2003 Approved.

  • Lens Type: YAG
  • Filter Type: Polycarbonate
  • Lens Color: Green
  • Visible Light Transmission: 54%
  • Protection Specifications:
    • OD>7+ from 190-390nm
    • OD>7+ from 1064nm
    • OD>5+ from 835-1095nm
  • CE Certified
  • CE Laser Rating:
    • 190-315 D LB7 + IR LB3
    • 315-380 DIR LB5 + MLB5Y
    • 840-900 DIR LB3
    • >900 - 950 DIR LB4 + M LB4Y
    • >950 -1065 DIR LB5 + M LB5Y
  • Meets or exceed ANSI Z87.1 standards for protective eyewear (non-impact)
  • Meets or exceed ANSI Z136.1 requirements for use with laser systems
  • Ships with case, adjustable strap & microfiber pouch
  • Frame Dimensions - Bridge Size: 17 mm, Frame Width: 131 mm, Temple Size: 127 mm, Lens Width: 57 mm, Lens Height: 35 mm

About this Brand

Specifications

Specifications
Manufacturer Phillips Safety Products
Laser Type Nd: Yag
Filter Material Polycarbonate
Certifications ANSI Z136.1, ANSI Z87.1, CE Certified
Item Ships From New Jersey

Literature

pdf
(Size: 323.8 KB)
CE Certificate YAG
pdf
(Size: 232.7 KB)
Laser Safety Specifications YAG

Instructions

Warranty: Phillips Safety products are covered by a 1-year warranty against manufacturing defects (material and workmanship) from the date of purchase. This warranty does not cover negligent use of the product (including scratched lenses). Coating issues caused by cleaning lenses in a manner not listed in the Care & Cleaning Guide will void the warranty. Phillips Safety, at their discretion, will repair or replace any defective merchandise at no charge. All shipping charges remain payable by the purchaser.

Returns

Customers wishing to return this product must contact Customer Service to request a valid return authorization number within 14 days of receipt. A restocking fee (up to 25%) may be deducted for all returns. Please note, frames with prescription lenses cannot be returned. Frames with custom imprints cannot be returned. All return shipping charges remain payable by the purchaser.
