Product Description

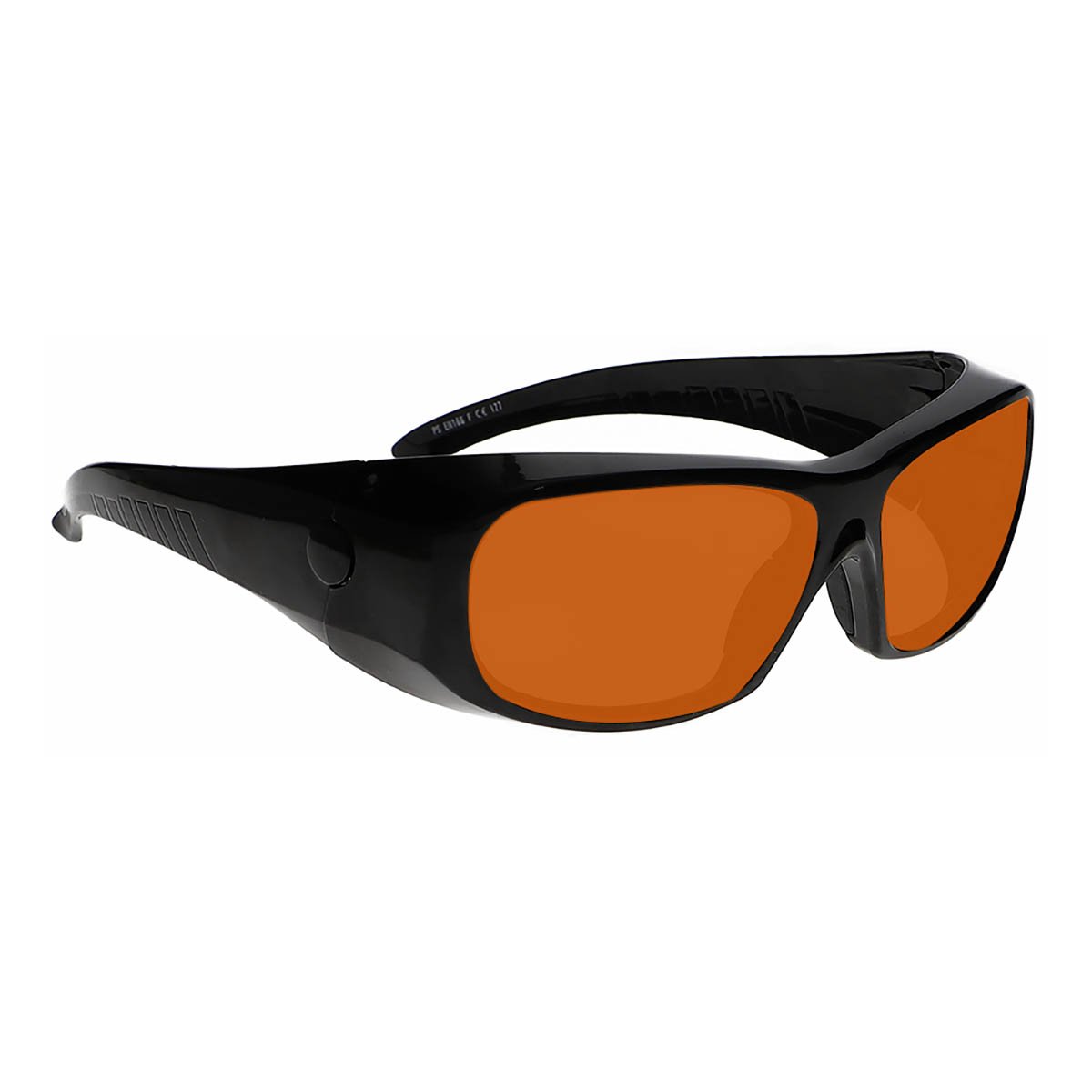

The YAG Double Harmonics is a laser safety lens made of a YAGD brown polycarbonate lens. It is cut and mounted into the 1375 black frame. The frames head hugging temple design gives excellent splash and side protection. ANSI Z87-2003 Approved.

  • Lens Type: YAGD
  • Filter Type: Polycarbonate
  • Lens Color: Brown
  • Visible Light Transmission: 26.2%
  • Protection Specifications:
    • OD>7+ from 190-534nm
    • OD>6+ from 910-1070nm
  • CE Certified
  • CE Laser Rating:
    • 190-315 D LB7 + IR LB3
    • >315 - 534 D LB5 + IR LB6 + M LB6Y
    • 900-940 DIR LB5 + LB5Y
    • 940 - 970 DIR LB6 + M LB6Y
    • >970 -1070 D LB6 + IR LB7 + M LB7Y
  • Meets or exceed ANSI Z87.1 standards for protective eyewear (non-impact)
  • Meets or exceed ANSI Z136.1 requirements for use with laser systems
  • Ships with case, adjustable strap & microfiber pouch
  • Frame Dimensions - Bridge Size: 17 mm, Frame Width: 131 mm, Temple Size: 127 mm, Lens Width: 57 mm, Lens Height: 35 mm

About this Brand

Specifications

Specifications
Manufacturer Phillips Safety Products
Laser Type Nd: Yag
Filter Material Polycarbonate
Certifications ANSI Z136.1, ANSI Z87.1, CE Certified
Item Ships From New Jersey

Literature

pdf
(Size: 327.9 KB)
CE Certificate YAGD
pdf
(Size: 218.7 KB)
Laser Safety Specifications YAGD

Instructions

APPLICATION: Phillips Laser Safety Eyewear offers protection against accidental exposure to stray or diffused reflection of laser beam energy for a maximum exposure of 10 seconds. All Phillips Laser Safety glasses are clearly marked with wavelength (nm) and absorption (OD) protection levels

CAUTION:

  • Never look directly into the path of a laser beam.
  • Filtering glasses are not to be used as impact safety lenses. Impact resistant over-goggles must be used if impact protection is required.
  • Color recognition (of warning lights, etc.) may be affected by tinted lenses.

STORAGE: Glasses should be stored in protective case when not in use. Normal room temperature and low relative humidity is ideal.

CLEANING: Use clear water; mild, non-alkali, non-acidic soap or detergent; and soft, lint-free cloth. !Do not autoclave!

WARRANTY: All Phillips Safety products are fully guaranteed against manufacturer defects (material and workmanship) for 1 year from the date of purchase. This does not cover negligent use of the product (including scratched lenses). Phillips-Safety will repair or replace any defective merchandise at no charge. All shipping charges remain payable by the purchaser.

Returns

Customers wishing to return this product must contact Customer Service to obtain a valid return authorization number within 14 days of receipt. A restocking fee may be deducted at the discretion of the manufacturer. Prescription orders cannot be returned. Frames with custom imprints cannot be returned.
