Product Description

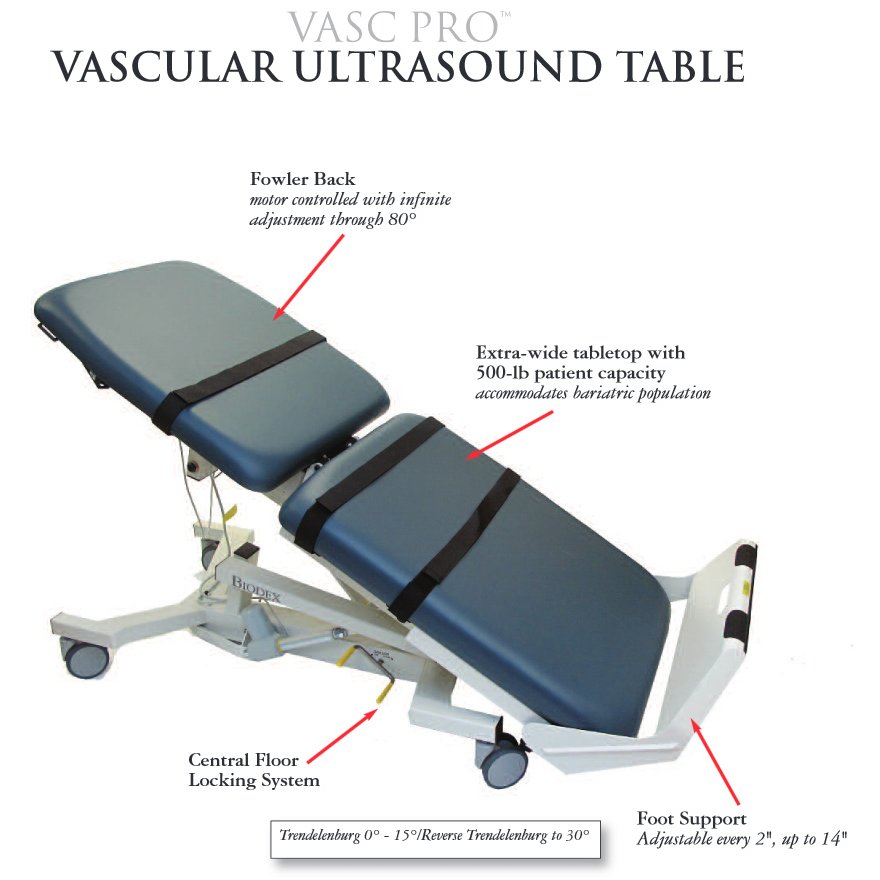

The ergonomic choice for long-leg vascular studies. Accommodates Bariatric patients and patients of various heights.

  • Height range down to 23" accommodates wheelchair transfers and those with ambulatory difficulties
  • Reverse Trendelenburg to 30°

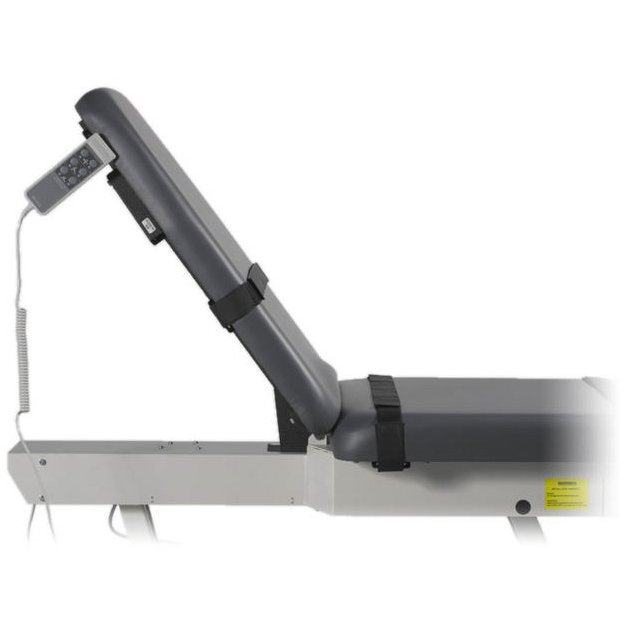

  • Fowler positioning, 0 - 80° redesigned to accommodate natural body extension and sitting position without slide or shift
  • Extra-wide top with 500-lb patient capacity, suitable for bariatric patients. Weight tested to four times the patient load rating
  • Ergonomic design helps prevent musculoskeletal injuries - comfortable shoulder, arm and hand positions when scanning
  • Motorized height, Fowler positioning, Trendelenburg motions and auto-level adjustment

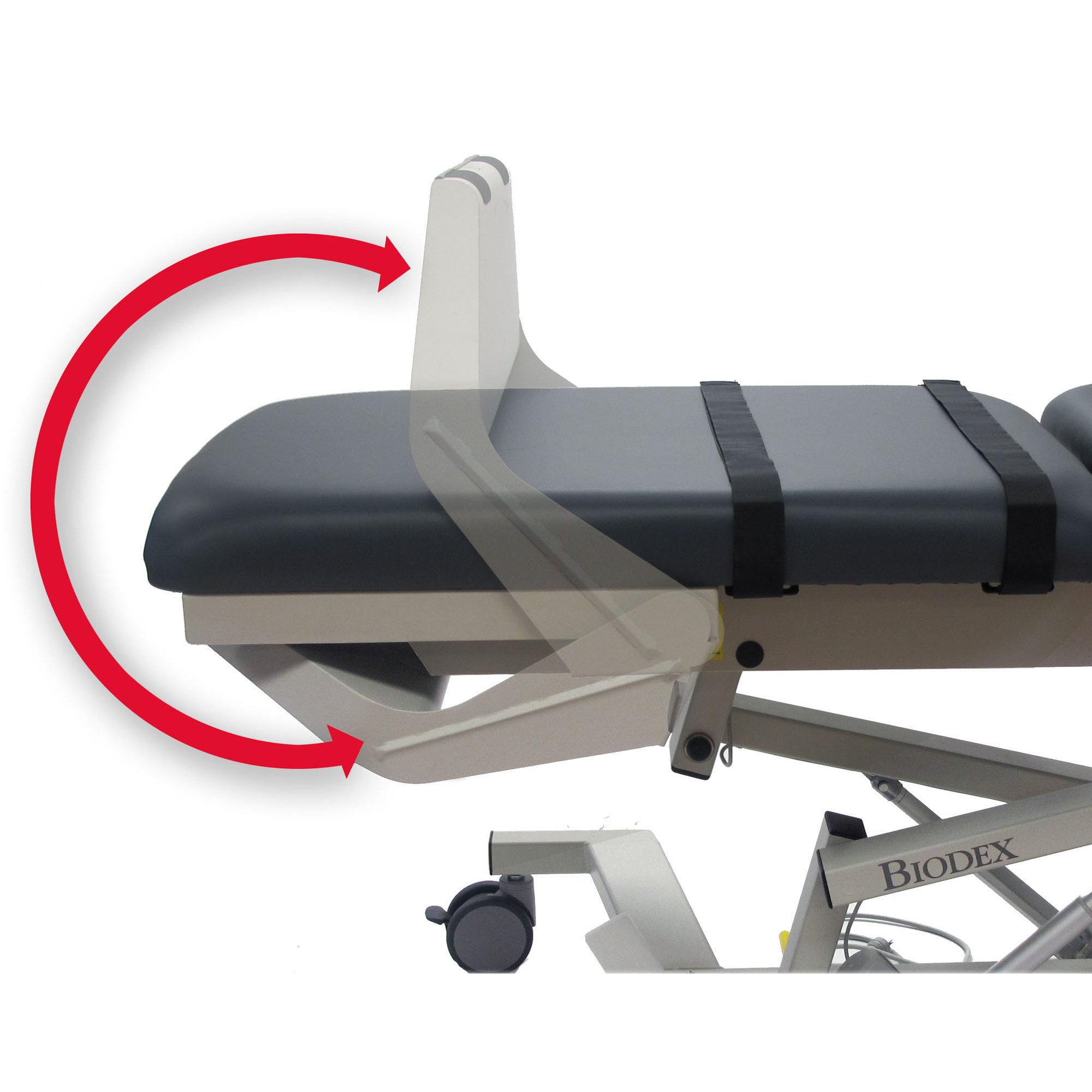

  • Adjustable foot support allows comfortable access to calves without crouching
  • Naugahy de®, antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria
  • Central floor-locking system maintains table stability
  • Allows seated or standing work positions
  • Includes Hand Controller and Foot Support
  • Optional Vascular scanning arm board mounts to either side of table

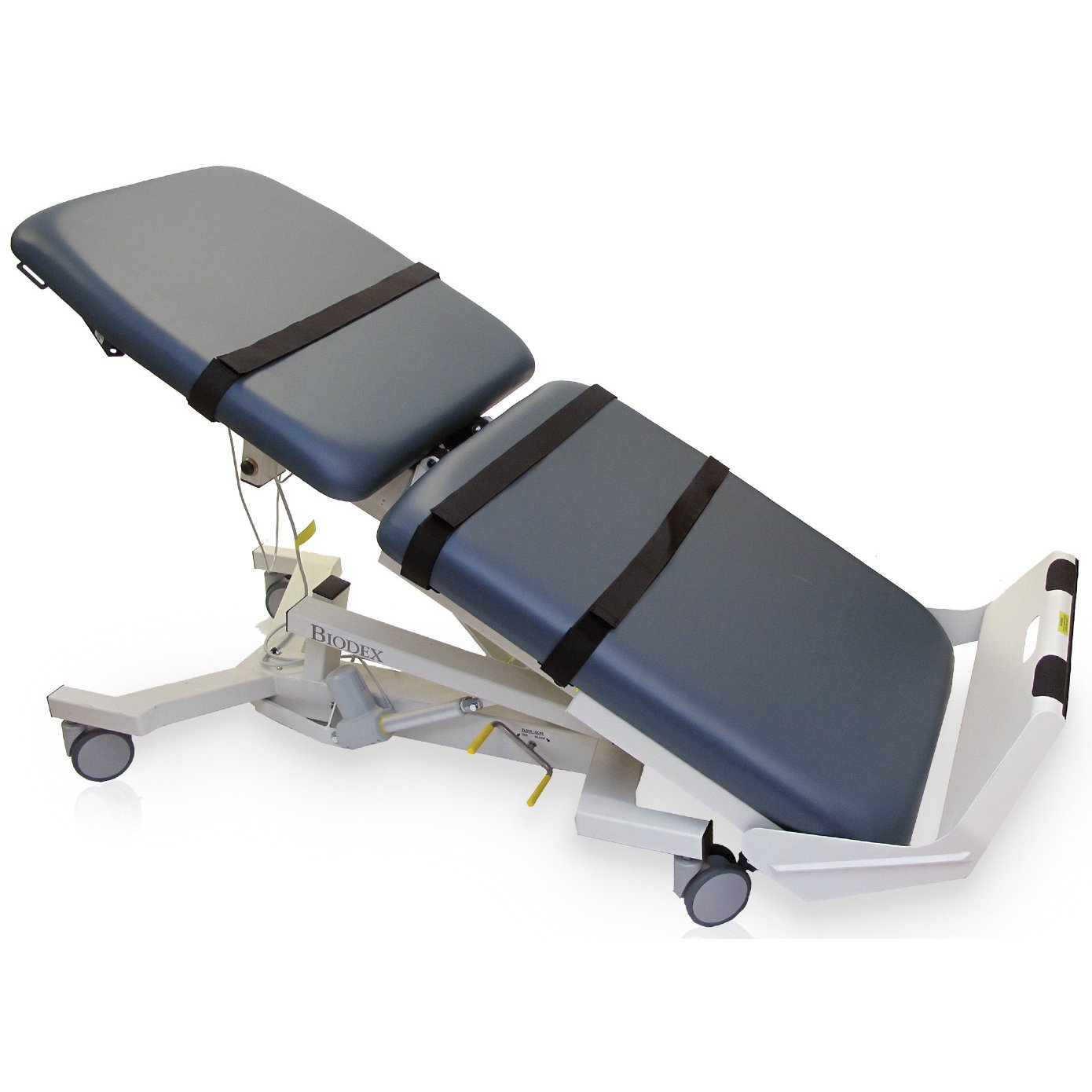

The new Vasc Pro™ Vascular Ultrasound Table is designed with ergonomics in mind.  It addresses sonographer comfort and safety and proper patient positioning, virtually eliminating repetitive-strain injuries from vascular scanning.

Sonographer comfort and safety are accomplished through new features such as the enhanced foot support allowing easier access to the patient calves without crouching and optional side rails that enable closer access to the patient without sonographer contortion.

Fowler positioning to 80 degrees, which accommodates natural body extension and sitting position without slide or shift, an optional Articulating Scanning Arm Board adjustable from 0 to 130-degrees locking every 10 degrees, the thick antimicrobial mattress and table adjustability all create a comfortable imaging experience for the patient.

The table design will help improve images by providing a dramatic 30-degree reverse Trendelenburg. The foot support and body straps stabilize the patient safely throughout the procedure while addressing proper patient positioning and sonographer ergonomics.

The Vasc Pro Vascular Ultrasound Table is equipped with a motor-controlled hand controller to actuate table positions, 2"- and 3"-thick table padding covered in easy-to-clean Naugahyde, three patient restraining straps with hook and loop fasteners, five-inch locking swivel casters and a central locking system, accessible from either side of the table, to secure table position.

Optional table accessories include foot controller (058-741), vascular scanning arm board (058-735), fold away side rails (058-632), IV pole (058-656) and paper dispenser with cutter strap (058-610) are installed by the customer.

Specifications:

  • Dimensions: 73" L x 30" W; 35" W with optional side rails
  • Height Adjustable: 23" to 39"
  • Foot Support: Adjustable every 2", up to 14"
  • Tabletop: Two primary sections: torso section with Fowler positioning, and lower body section remains fixed
  • Mattress: Torso section 2" thick, lower body section 3" thick; durable Naugahyde® antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria
  • Upholstery Color: Graphite
  • Trendelenburg:0° to 15°. Reverse Trendelenburg: 0° to 30°. Fowler Back: 0° to 80° infinitely adjustable
  • Controls: Hand Control (included): Activates height, Trendelenburg motions, Fowler positioning and auto level motions
  • Foot Control (optional): Activates height, Trendelenburg motions, and Fowler positioning
  • Wheels: 5" Individual locking swivel casters; central floor locking system
  • Patient Restraints: Three body straps
  • Finish: Powder coat
  • Patient Capacity: 500 lb.; weight tested to four times the patient load rating.
  • Table Weight: 335 lb.
  • Power: 115 VAC
  • Certifications: ETL and cETL Listed to UL 60601-1 and CAN/CSA C22.2 No. 601.1-M90 and EN 60601-1 standards.
