Product Description

From blood collection tubes to roller bottles, Benchmark TubeRollers are the ideal choice for research, clinical laboratories and doctors' offices.

Features:

  • Gentle rolling motion
  • Smooth +/-5° tilt action
  • For tubes/bottles from 8mm to 200mm diameter (Tubes are not included)

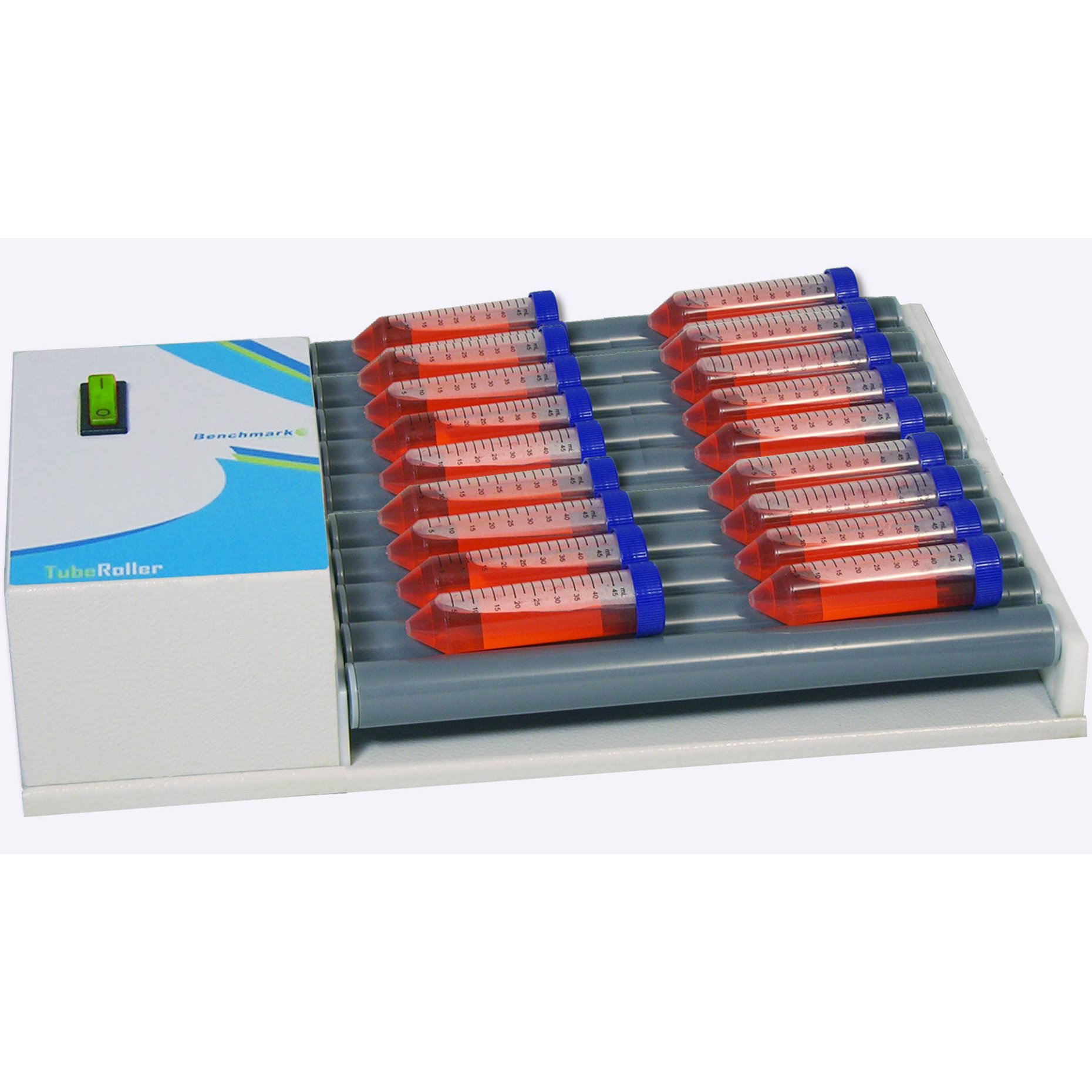

Benchmark TubeRollers are designed for the gentle, thorough mixing of a variety of containers, including Vacutainers™, bottles, test tubes, centrifuge tubes and roller bottles. Operates at a constant 38rpm, chosen as the optimum speed for the broadest range of mixing requirements.

As the roller mechanism rotates through each complete revolution, the right side of each roller is gently elevated about 0.5" (13mm) and returns to the horizontal  starting position. This additional, gentle up/down motion provides a "wave" effect and guarantees that the entire sample is subjected to complete, thorough mixing, end to end. This built in tilt feature provides a level of homogeneous mixing uniformity that can not be matched by any stationary roller apparatus.

Typical Sample Load Capacity:
Vessel:
12 x 75mm tubes: 26
16 x 100m tubes: 18
16 x 125mm tubes: 18
15ml screw cap tubes: 18
50ml screw cap tubes: 18
850cm2 roller bottles: 2

Technical Data:

  • Speed: Fixed, 38 rpm (+/- 10%)
  • Tilt Angle: +/- 5°
  • Motion: Simultaneous roll & tilt
  • Operating Temp. Range: +4 to +40°C
  • Dimensions:18" W x 14" D x 3.5" H
  • Roller Dimensions: 1.2" x 12.5"
  • Roller Spacing: 5mm (rollers are on 35mm centers)
  • Number of Rollers: 10
  • Vessels Accepted: 8mm to 200mm diameter
  • Electrical: 115V, 50-60Hz, US Plug

Specifications

Specifications
Manufacturer Benchmark Scientific
Actual Product Weight 17.6
Overall Height 3.5
Overall Length 14
Overall Width 18
Item Ships From New Jersey
