Product Description

MATERIALS: Stainless Steel, Type 300Series, nickel-bearing, 1/4" thick clear tempered glass
GAUGES:

  • Body, shelves, outer door pan or frame -18 gauge
  • Inner door pan or inserts - 20 gauge
  • Base -16 gauge
  • Leveling gussets -12 gauge

CONSTRUCTION:

  • Single glazed door is double shell design, with a one-piece outer frame, die-formed to receive a rubber gasketed glass panel, held in place by removable insert strips.
  • Hinged doors hung on three semi-concealed stainless steel hinges.
  • Door frames are fitted with die-formed recessed pulls welded in place.

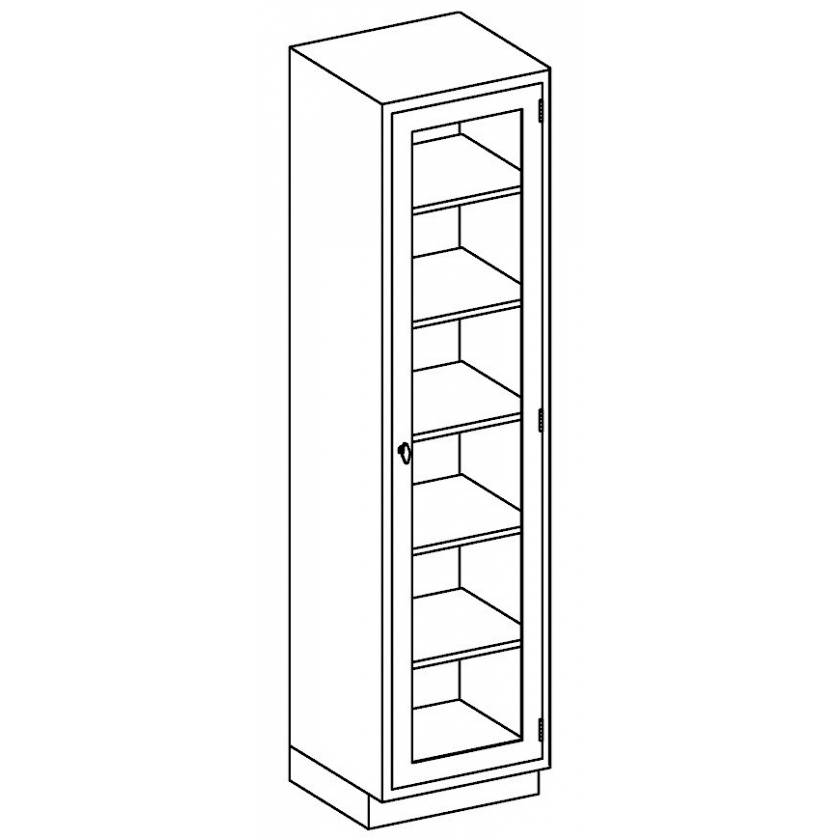

  • Cabinets are constructed as floor and wall supported, individual cases with finished sides, designed to accommodate five adjustable shelves.
  • Shelves are constructed with channel shaped and a flanged edge, adjustable on 1/2" centers the full height of the cabinets.
  • Cabinets are provided with applied channel shaped bases, incorporating toe space recesses approximating 3" deep and 4" high for easy access to cabinet.
  • Gussets with leveling bolts are welded into the corners, accessible through button covered holes punched in the cabinet bottoms.
  • Bases can be omitted when conditions dictate.
  • Recommended that these cabinets be securely anchored to adjacent surfaces.
  • Dimensions: 84" H x 24 3/4" W x 18" D

WELDING: All welding accomplished by heli-arc method. All exposed welds ground smooth
FINISH: All exposed surfaces are free from pit marks, weld seams and scale, and polished to a satin finish

Please Note:

  • This item is not able to be returned. Production of the item will begin immediately upon order receipt, orders for this item can not be cancelled once the order has been processed.

About this Brand

Specifications

Specifications
Manufacturer Blickman
Country of Manufacture United States
Item Ships From New Jersey

Literature

pdf
(Size: 42.4 KB)

Instructions

Warranty:

Blickman warrants to the original purchaser that its Proprietary Products will be free from defects in workmanship or materials under normal use and service for the life of the product, so long as owned by the original purchaser, according to the limitations set forth below. Defective products shall be repaired or replaced at Blickman's option at no cost to the original purchaser provided: 1. The customer must obtain a written return authorization supplied by Universal Medical 2. The customer must pre-pay freight charges to and from Blickman and must ship merchandise in the original packaging.

This warranty does not apply to products, which have been subject to abuse, misuse, accident, modification, alteration, tampering, negligence, lack of routine maintenance or misapplication; or products that have been repaired by other than Blickman or its authorized representatives. This warranty does not apply to glass, fabrics, vinyl, seat coverings, cushions, padding or their stitching, gluing or installation. Component parts not manufactured by Blickman, such as casters, caster inserts, any components made from rubber or plastic, circuit boards, fan heaters, plumbing parts, electrical switches and components are also excluded. For these component parts, Blickman will pass on the original manufacturer's warranty to Blickman equipment original purchasers. Please consult factory for questions regarding the warranties of these component parts. This warranty does not apply to custom fabricated products. Consult factory.

Unless expressly set fortn in this warranty, there are no other warranties, whether express or implied, of fitness and/or merchantability or any other warranty implied by custom, usage or course of dealing. Liability of Blickman under this warranty is limited to the repair and / or replacement of any products. Blickman specifically excludes and disclaims any responsibility for any incidental or consequential damages claimed to have arisen from any defect in workmanship or materials. No representative has any authority to change or enlarge the above warranty or Blickman liability. This document supersedes all previous warranty provisions.

Returns

This item is not able to be returned. Production of the item will begin immediately upon order receipt, orders for this item can not be cancelled once the order has been processed.
