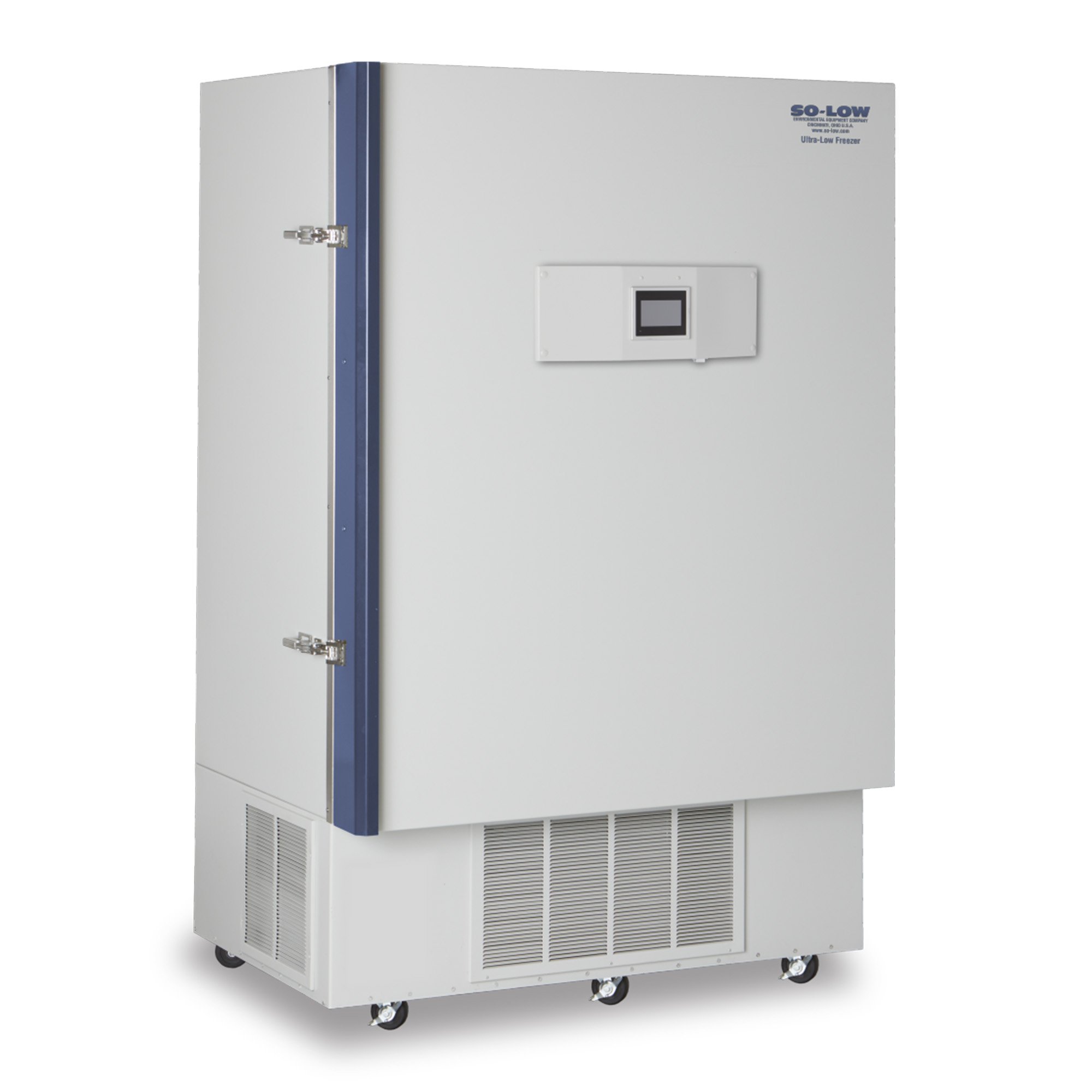

So-Low VSU80-28 Energy Efficient Ultra-Low Temperature Upright Freezer (-80°C) with Digital Data Logger - 28 Cubic Feet

The So-Low VSU80-28 Energy Efficient Ultra-Low Temperature Upright Freezer (-80°C) with Digital Data Logger - 28 Cubic Feet showcases cutting-edge technology that allows for lower energy consumption compared to traditional cold storage equipment, while maintaining stable -80°C performance. Features built-in touchscreen control, with datalogging capabilities, and optional LAN connections for remote viewing, and email or text alerts, making it ideal for research facilities, laboratories, pharmaceuticals, and more.

Features:

• Energy-efficient refrigeration systems
• Lower energy consumption
• With Built-in Data Logger
• Designed for medium and heavy-duty applications
• Interiors are 16-gauge galvanized, non-corrosive steel
• Exterior is a 16-gauge cold-rolled steel
• Upright freezer style allows for easy access and storage
• Advanced Touchscreen Interface
  • 4.3" full color touch screen display
  • Advanced PID control system
  • Temperature recording with downloadable data via USB (CSV format)
  • Embedded SCADA (Supervisory Control and Data Acquisition)
  • LAN connectivity for network integration and monitoring
• Certifications: ETL Listed. Meets UL & CAN/CSA-C22.2 No. 61010-1 Standards

Technical Specifications:

• Capacity: 28 Cubic Feet
• Temperature Range: -40°C to -80°C
• Temperature Control: Touchscreen Dual Display
• Touchscreen: Yes, 4.3" Color Display
• Display Type: Microprocessor, Digital
• Temperature Recorder: Viewable Temperature Graph
• Min/Max Temperature: Yes, Display and Reset
• Data Logging: Yes, Adjustable Intervals
• Data Download: Yes, Via USB or FTP, CSV Format
• Network Connection: Hardwire Ethernet (RJ45)
• Remote Control: Yes, VNC via Local Network*
• Control Security: Multi-Level Security
• Temperature Alarm: Audible High/Low Alarm
• Alarm Notification: Yes, Audible, SMS/Email Notifications*
• Alarm Relay: Yes, Power Failure via Dry Contacts
• Automatic Restart: Yes, Automatically Restarts After a Power Failure
• Refrigeration System: Cascade-Style System
• Compressors: 2, Energy Efficient Variable Speed Hermetic Compressors
• Air Circulation: Gravity Flow
• Defrost Method: Manual
• Refrigerant: HCFC & CFC Free
• Material:
  • Exterior: Powder-Coated Steel
  • Interior: Zinc-Coated Galvanized Steel
  • Insulation: Polyurethane (Ecomate®) Foam
• Opening: 1, Front Door
• Lockable Door: Lockable with Padlock (Not Included)*

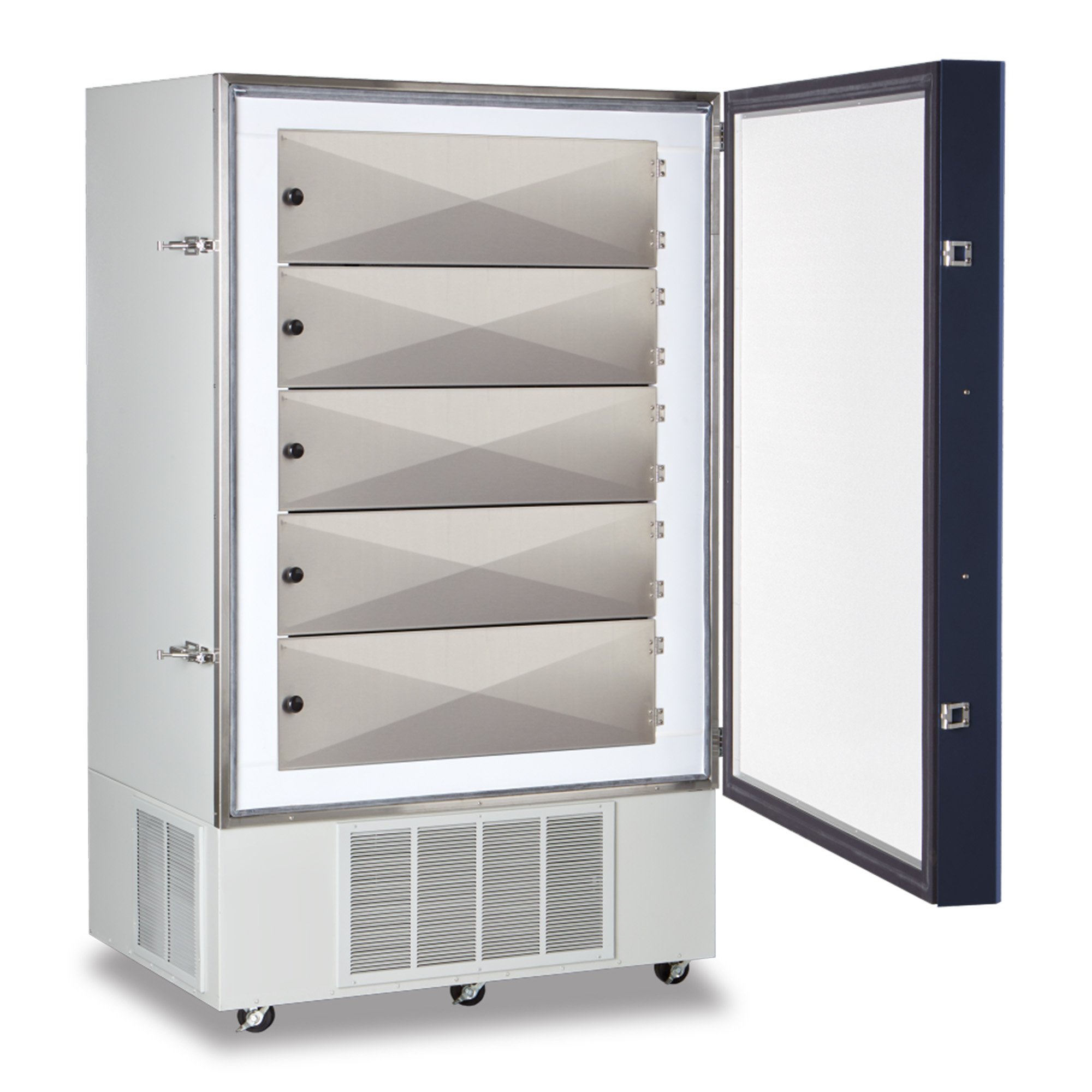

• Inner Doors: 5, Stainless Steel
• Porthole: 1/2"
• Casters: 6, Swivel with Locks
• Storage: 4 Adjustable Shelves, with 1 Base Shelf
• Rack Capacity: 30 Inventory Racks (Not Included)*
• Standard Voltage: 115V / 60Hz / 1 Phase
• Full Load Amperage (FLA): 15A
• Running Amperage (RLA): 7.5A
• Plug Type: NEMA 5-15
• Exterior Dimensions: 54" W x 37" D* x 79.50" H
• Interior Dimensions: 38" W x 25" D x 51.25" H
• Actual Product Weight: 950 lbs
• Warranty: 1 Year Parts and Labor

*Note:  Any alarm, logging, or recording systems installed in (or on) the equipment do not power any external devices required for signal transmission, such as the modem, routers, or switches on your local network connection. Unpowered systems will obstruct alert system functionality during a power outage. To pass through doorways, the door can open a full 180° to reduce the unit's exterior depth to 33". The padlocks and inventory racks are not included.
