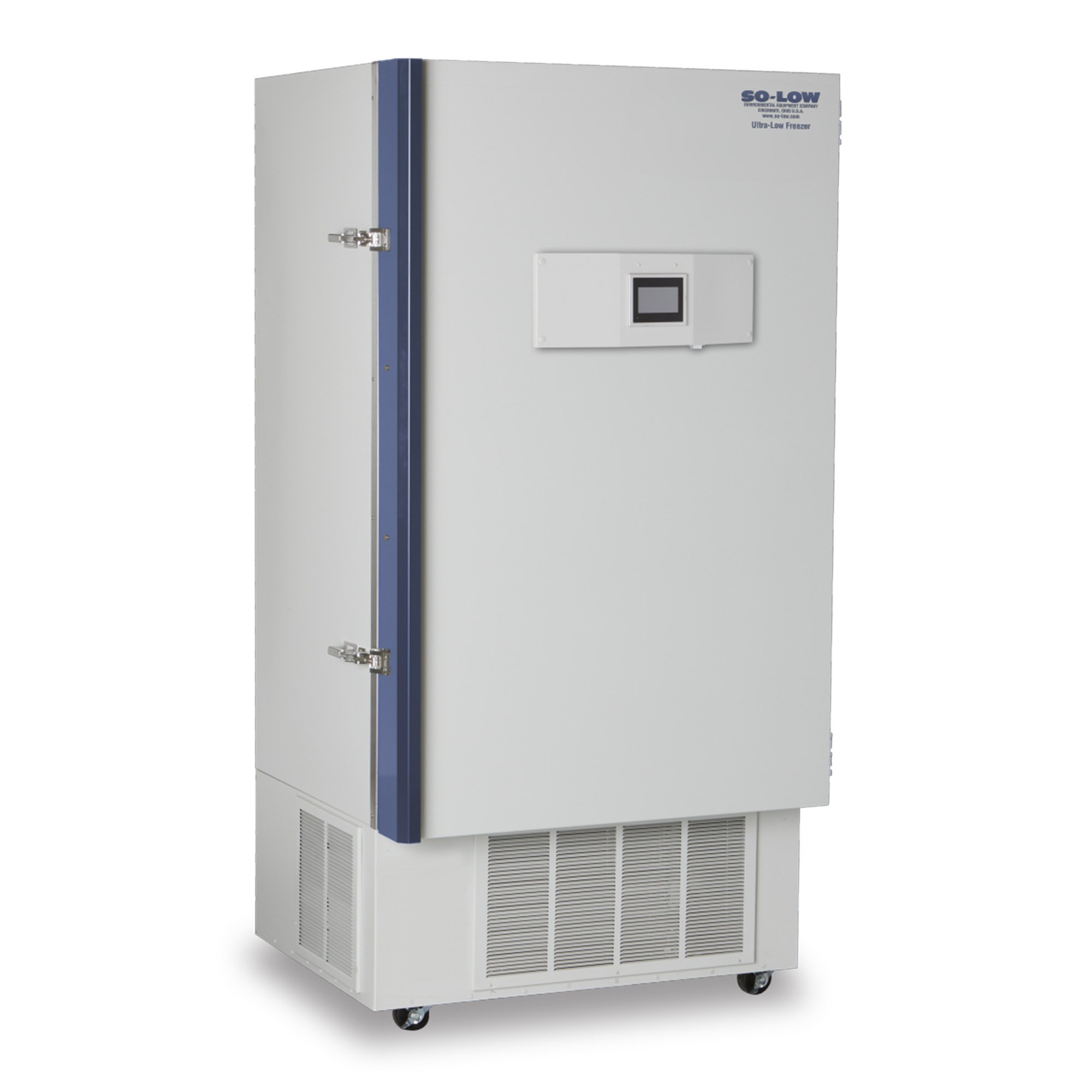

So-Low NU85-18 Ultra-Low Temperature Upright Freezer (-85°C) with Digital Data Logger - 18 Cubic Feet

The So-Low NU85-18 Ultra-Low Temperature Upright Freezer (-85°C) with Digital Data Logger - 18 Cubic Feet features an advanced PID control system with a 4.3" color touchscreen operating interface with embedded SCADA and LAN features. This upright-style Ultra-Low Temperature (ULT) freezer is designed for a variety of uses, including shrink fitting and ultra-cold storage down to -85°C.

Features:

• With Built-in Data Logger
• Designed for medium and heavy-duty applications
• Interiors are 16-gauge galvanized, non-corrosive steel
• Exterior is a 16-gauge cold-rolled steel
• Upright freezer style allows for easy access and storage
• Advanced Touchscreen Interface
  • 4.3" full color touch screen display
  • Advanced PID (Proportional-Integral-Derivative) control system
  • Temperature recording with downloadable data via USB (CSV format)
  • Embedded SCADA (Supervisory Control and Data Acquisition)
  • LAN connectivity for network integration and monitoring
• Certifications: ETL Listed. Meets UL & CAN/CSA-C22.2 No. 61010-1 Standards

Technical Specifications:

• Capacity: 18 Cubic Feet
• Temperature Range: -40°C to -85°C
• Temperature Control: Touchscreen Dual Display
• Touchscreen: Yes, 4.3" Color Display
• Display Type: Microprocessor, Digital
• Temperature Recorder: Viewable Temperature Graph
• Min/Max Temperature: Yes, Display and Reset
• Data Logging: Yes, Adjustable Intervals
• Data Download: Yes, Via USB or FTP, CSV Format
• Network Connection: Hardwire Ethernet (RJ45)
• Remote Control: Yes, VNC via Local Network*
• Control Security: Multi-Level Security
• Temperature Alarm: Audible High/Low Alarm
• Additional Alarm Types: Power Failure, Low Battery
• Alarm Notification: Yes, Audible, SMS/Email Notifications*
• Alarm Relay: Yes, Dry Contacts
• Automatic Restart: Yes, Automatically Restarts After a Power Failure
• Backup Battery: Yes, Only Powers the Alarm and Recorder*
• Refrigeration System: Cascade-Style System
• Compressors: 2, Hermetic Compressors
• Air Circulation: Gravity Flow
• Defrost Method: Manual
• Refrigerant: HCFC & CFC Free
• Material:
  • Exterior: Powder-Coated Steel
  • Interior: Zinc-Coated Galvanized Steel
  • Insulation: Polyurethane (Ecomate®) Foam
• Opening: 1, Front Door
• Lockable Door: Lockable with Padlock (Not Included)*
• Inner Doors: 5, Stainless Steel
• Porthole: 1/2"
• Casters: 4, Swivel with Locks
• Storage: 4 Adjustable Shelves, 1 Base Shelf
• Rack Capacity: 20 Inventory Racks (Not Included)*
• Standard Voltage: 115V / 60Hz / 1 Phase
• Full Load Amperage (FLA): 20A
• Running Amperage (RLA): 15A
• Plug Type: NEMA 5-20
• Exterior Dimensions: 36" W x 36" D* x 79.50" H
• Interior Dimensions: 23" W x 26" D x 51.25" H
• Actual Product Weight: 725 lbs
• Warranty: 1 Year Parts and Labor

*Note: The battery backup on alarm systems, data loggers, or temperature recorders only powers the recording device. If your routers/switches do not have a backup power system, the web alarm system will not be able to access the internet to alert you during a power outage. To pass through doorways, the door can open a full 180° to reduce the unit's exterior depth to 32". The padlocks and inventory racks are not included.
