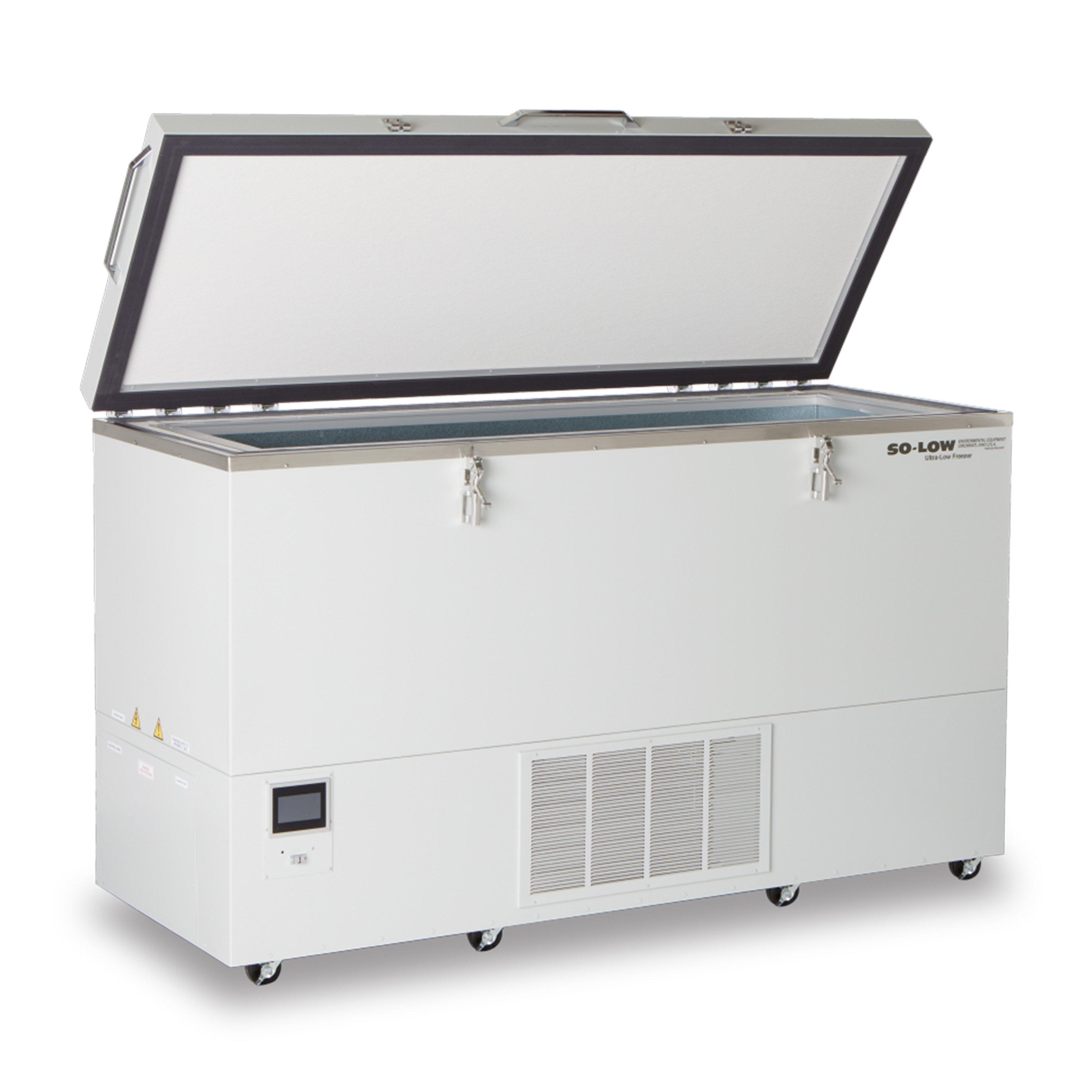

So-Low NC85-14 Ultra-Low Temperature Chest Freezer (-85°C) with Digital Data Logger - 14 Cubic Feet

The So-Low NC85-14 Ultra-Low Temperature Chest Freezer (-85°C) with Digital Data Logger - 14 Cubic Feet features an advanced PID control system with a 4.3" color touchscreen interface and embedded SCADA (Supervisory Control and Data Acquisition) with LAN connectivity for monitoring and control. This chest-style Ultra-Low Temperature (ULT) freezer is designed for demanding applications such as shrink fitting, heavy-duty use, and ultra-cold storage down to -85°C.

Features:

• With Built-in Data Logger
• Designed for medium and heavy-duty applications
• Interiors are 16-gauge galvanized, non-corrosive steel
• Exterior is 16-gauge cold-rolled steel
• Chest freezer style allows for easy access and storage
• Advanced Touchscreen Interface
  • 4.3" full color touch screen display
  • Advanced PID control system
  • Temperature recording with downloadable data via USB (CSV format)
  • Embedded SCADA (Supervisory Control and Data Acquisition)
  • LAN connectivity for network integration and monitoring
• Certifications:
  • ETL Listed. Meets UL & CAN/CSA-C22.2 No. 61010-1 Standards

Technical Specifications:

• Capacity: 14 Cubic Feet
• Temperature Range: -40°C to -85°C
• Temperature Control: Touchscreen Dual Display
• Display Type: Microprocessor, Digital
• Temperature Recorder: Viewable Temperature Graph
• Min / Max Temperature: Yes, Display and Reset
• Data Logging: Yes, Adjustable Intervals
• Data Download: USB, CSV Format
• Network Connection: Hardwire Ethernet (RJ45)
• Remote Control: VNC via Local Network
• Control Security: Multi-Level Security
• Alarm Types: High / Low Temperature, Power Failure, Low Battery
• Alarm Notification: Audible, SMS / Email
• Alarm Relay: Dry Contact
• Backup Battery: Powers Alarm & Recorder Only
• Automatic Restart: After Power Failure
• Refrigeration System: Cascade-Style System
• Compressors: 2 Hermetic Compressors
• Refrigerant: HCFC & CFC Free
• Air Circulation: Gravity Flow
• Defrost Method: Manual
• Exterior Material: Powder Coated Steel
• Interior Material: Zinc Coated Galvanized Steel
• Insulation: Polyurethane (Ecomate®) Foam
• Additional Insulation: Beaded Foam Sub-Lids
• Opening: Top Opening Lid (up to ~75°)
• Lockable Lid / Door: Yes, Padlock Compatible* (Padlock Not Included)
• Porthole: 1/2"
• Storage: Base Shelf
• Rack Capacity: 30 Inventory Racks* (Racks Not Included)
• Casters: 6 Swivel Casters with Locks
• Standard Voltage: 115 Volts, 60 Hertz, 1 Phase
• Amps / Run Amps / Plug: 20A | 15A | NEMA 5-20
• Exterior Dimensions: 72.5" W x 33" D x 47.5" H
• Interior Dimensions: 62" W x 20" D x 20" H
• Actual Product Weight: 725 lbs
• Warranty: 1 Year Parts and Labor

Please note: The battery backup on alarm systems, data loggers, or temperature recorders only powers the recording device.  If your routers/switches do not have a backup power system, the web alarm system will not be able to access the internet to alert you during a power outage. The padlock and inventory racks are not included.
