Product Description

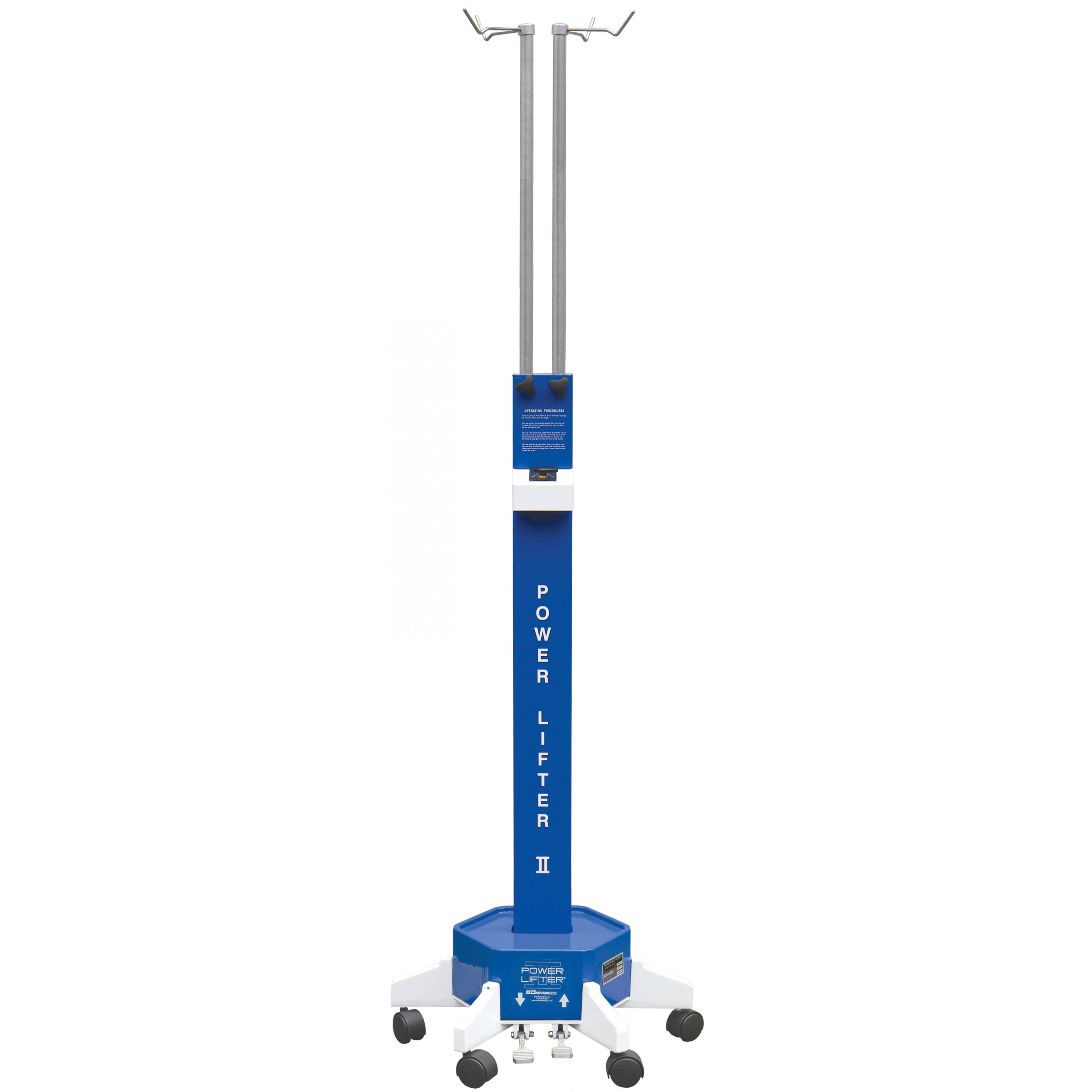

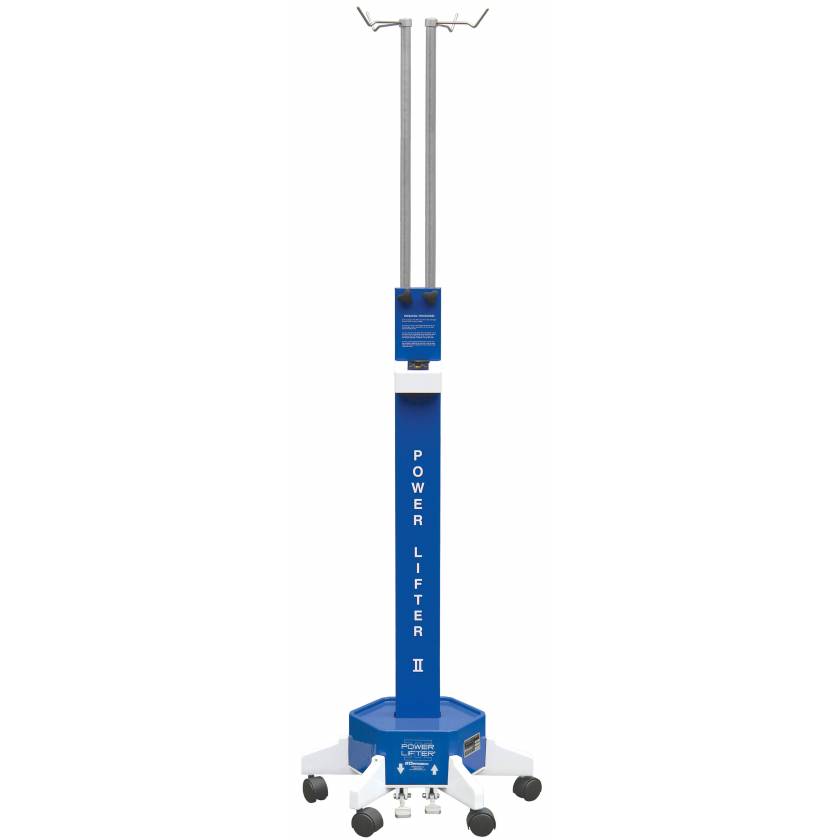

OmniMed Dual Column System Power Lifters are designed to make surgical areas safer. No more lifting of containers, restricted stand placement or tripping hazards. The lifters have foot pedal operated pneumatic columns for easy container changeovers and a rechargeable battery system for cord free operation.

Features:

  • Safe air-operated system featuring an internal, rechargeable 12V battery
  • Easy to operate:

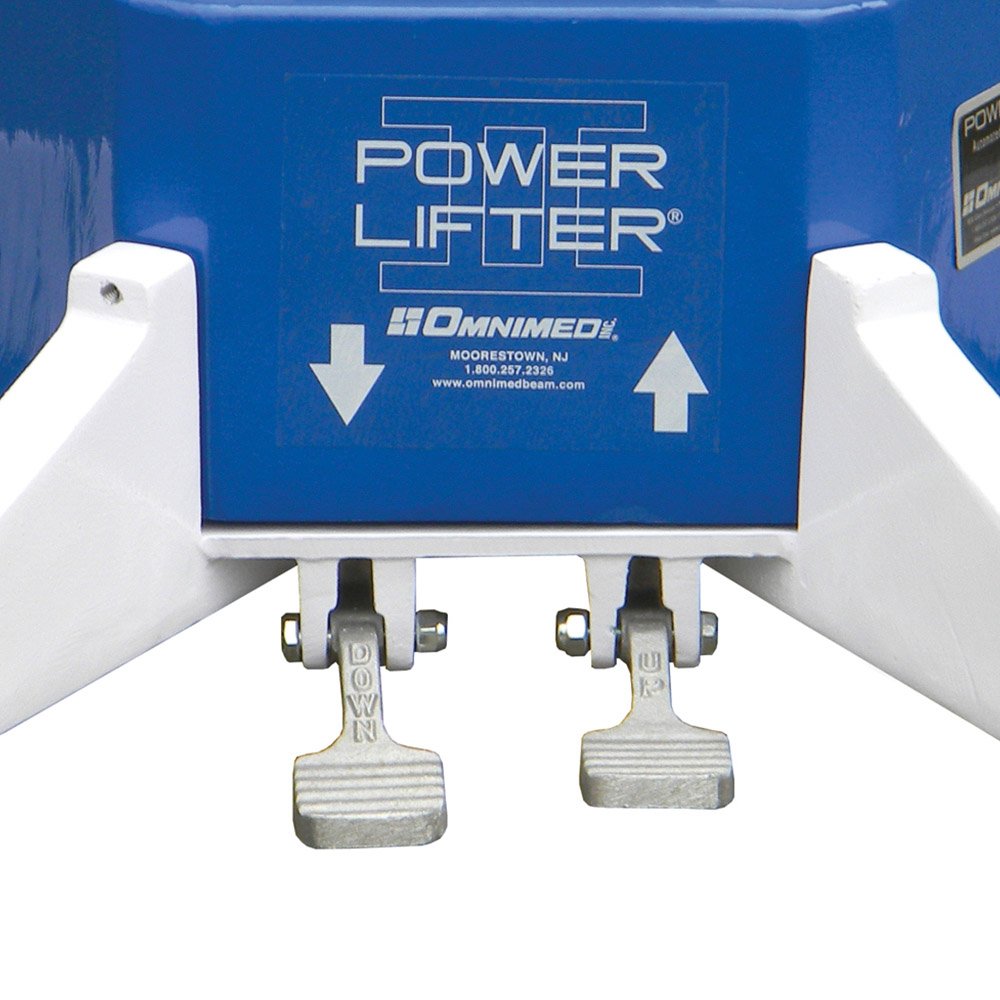

    • Depress the "UP" foot pedal to raise 5,000 cc per hook (total 40 lbs) to a height of 9 feet
    • Depress the "DOWN" foot pedal to smoothly lower solution containers and make changeovers
    • Heavy cast aluminum base provides stability at maximum and minimum capacity
    • 2-column lift system holds a total of two 5,000 cc bags per column
    • Battery operation eliminates hazardous electric cords on O.R. floor



Specifications:

  • Capacity: Up to four 5000 cc containers (one bag per hook)
  • Material:  •Anodized aluminum poles / Stainless steel hanger assembly  •Cast aluminum base 6 non-conductive casters
  • Lift Mechanism: Pneumatic
  • Height: Min. 5' 7" to Max. 9' from floor to top hanger
  • Shipping Weight: Base - 48 lbs / Pole Assembly - 32 lbs
  • Operating Voltage: 12V DC (nom.)

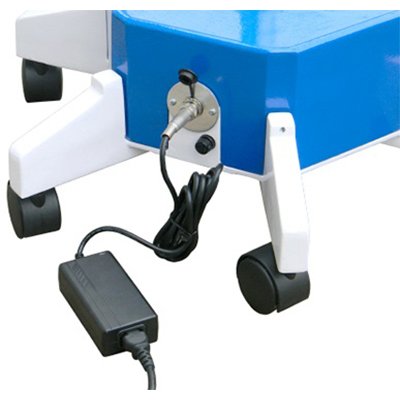

  • Recharge Power: 115V 60Hz / approx. 180MA

About this Brand

Specifications

Specifications
Manufacturer OmniMed Inc
Country of Manufacture United States
Item Ships From New Jersey
GSA Contract Number V797D-40002

Literature 2

pdf
(Size: 946.3 KB)
pdf
(Size: 1.2 MB)

Instructions

Warranty:

Products manufactured by OMNIMED®, Inc. are guaranteed against defects in materials and workmanship for 1 year, provided the specific equipment is used as recommended. This guarantee shall not apply to any equipment which has been damaged, misused, repaired or altered outside our factory without our authorization. Dents, scratches and bent parts are considered normal wear and tear and do not apply.

Returns

Obtain authorization from Customer Service within 30 days of product receipt before returning any product. Product must be returned as received in new, unused condition. Save the carton and packing material for safe return shipping. Failure to comply with this will resort in no credit being issued. All returns are subject to a minimum 15% restocking charge. All parts and custom merchandise are not returnable. Freight collect returns will not be accepted. All shipping charges remain payable by the purchaser.
