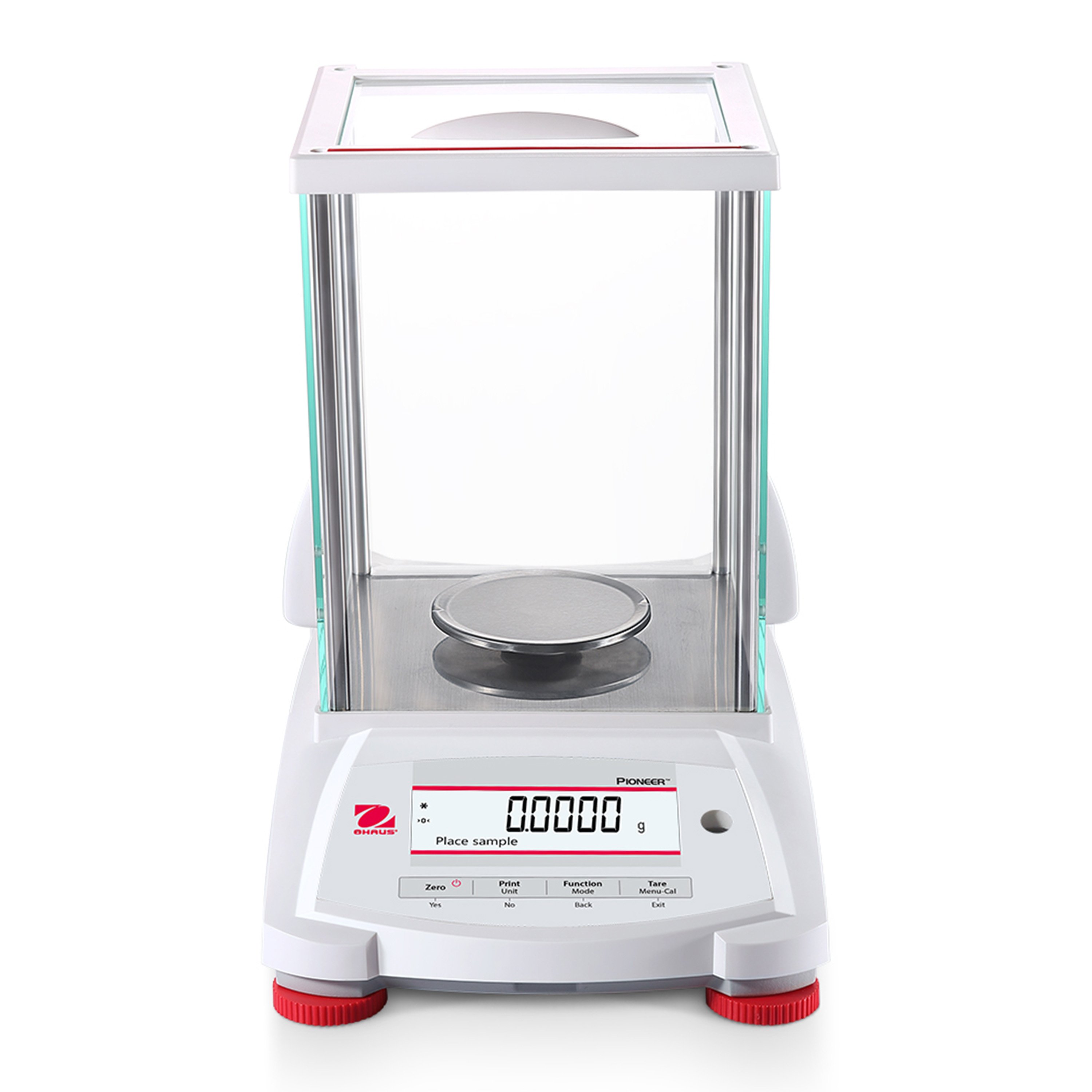

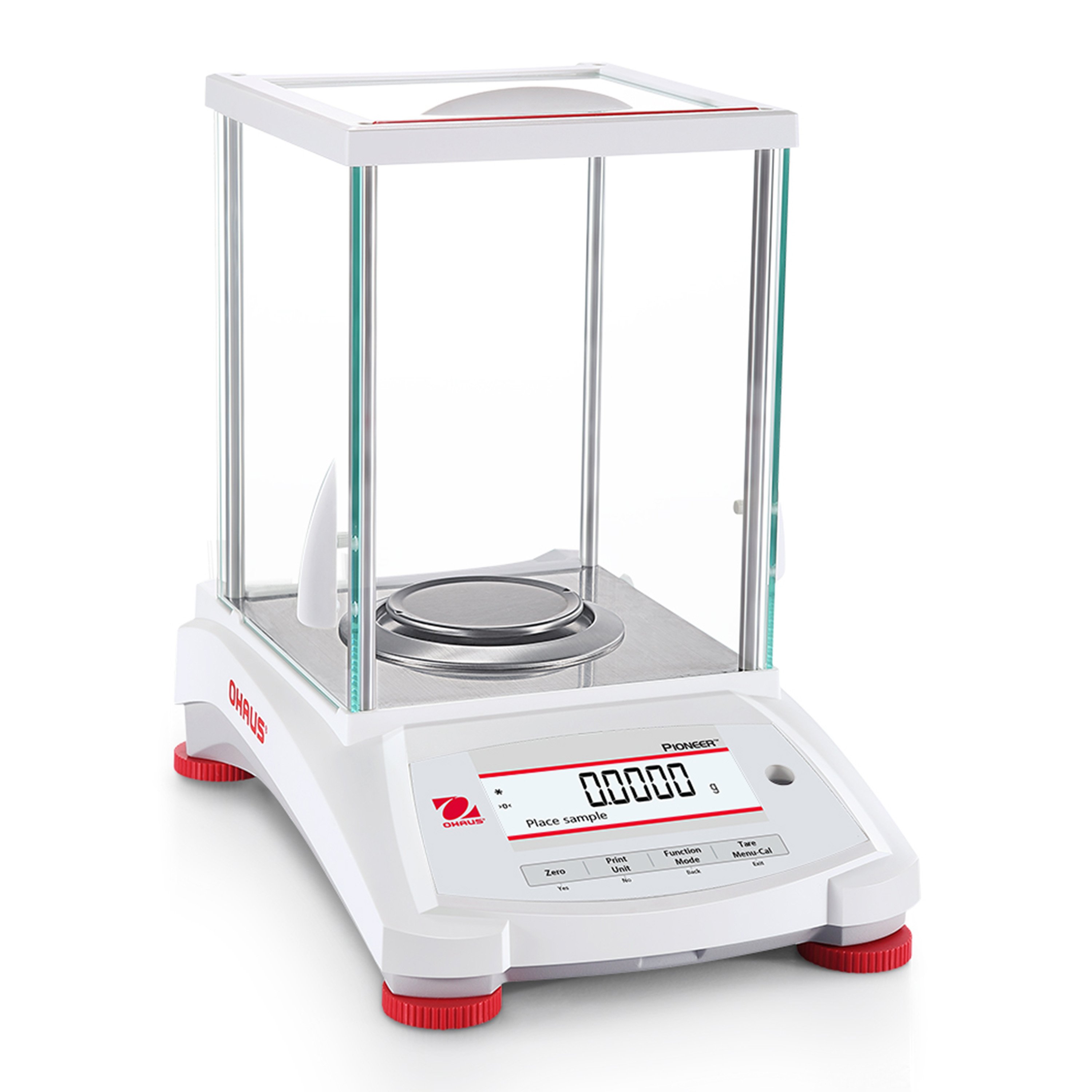

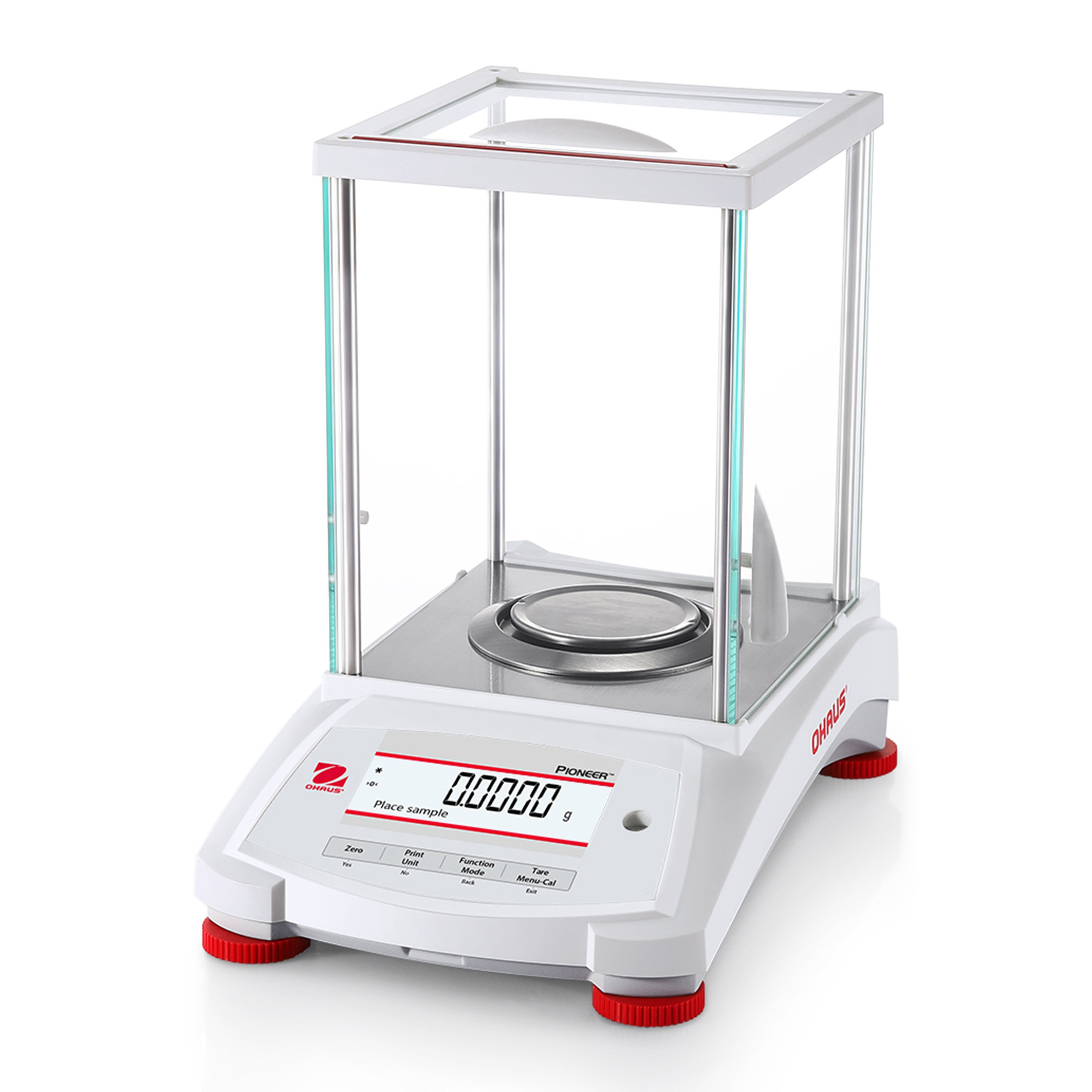

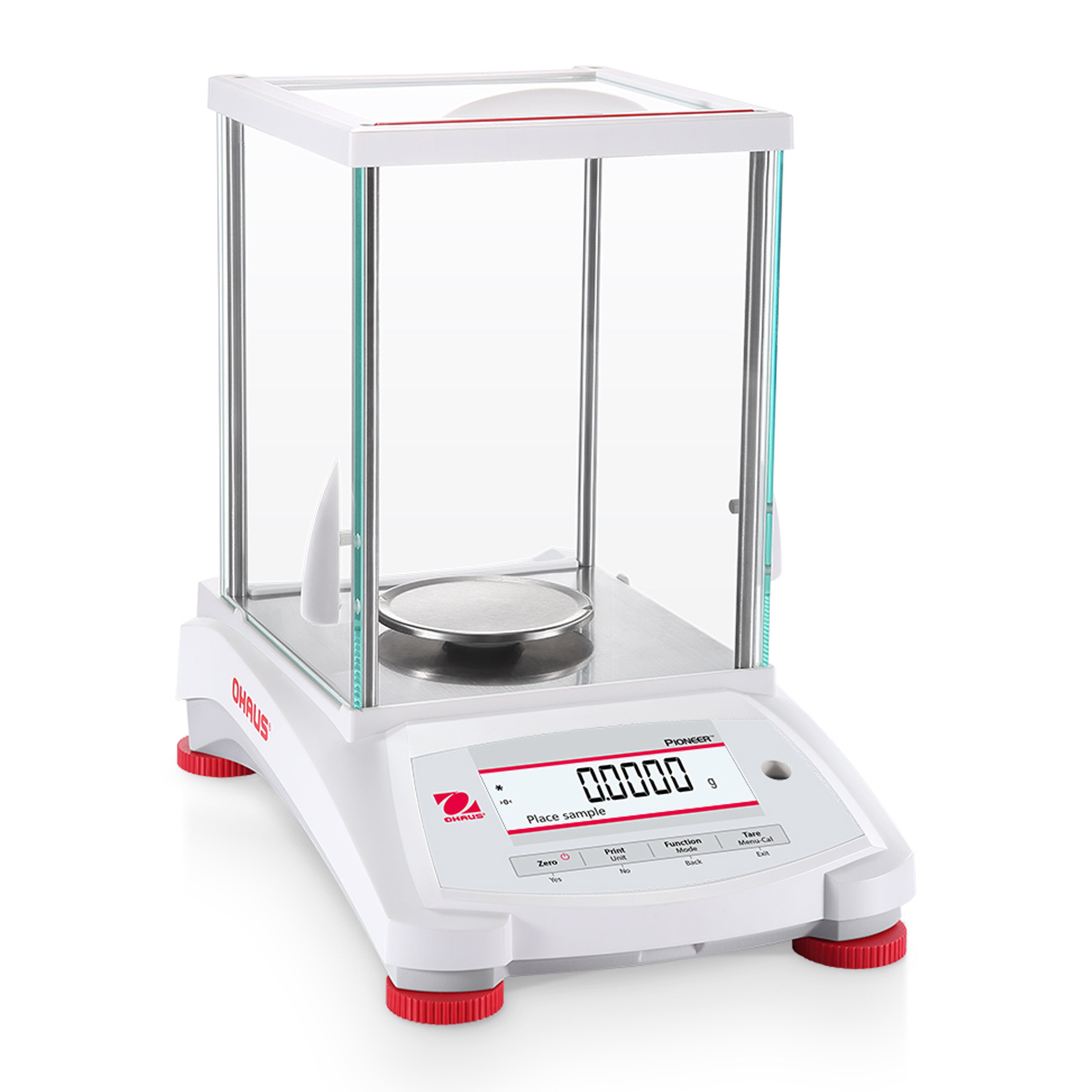

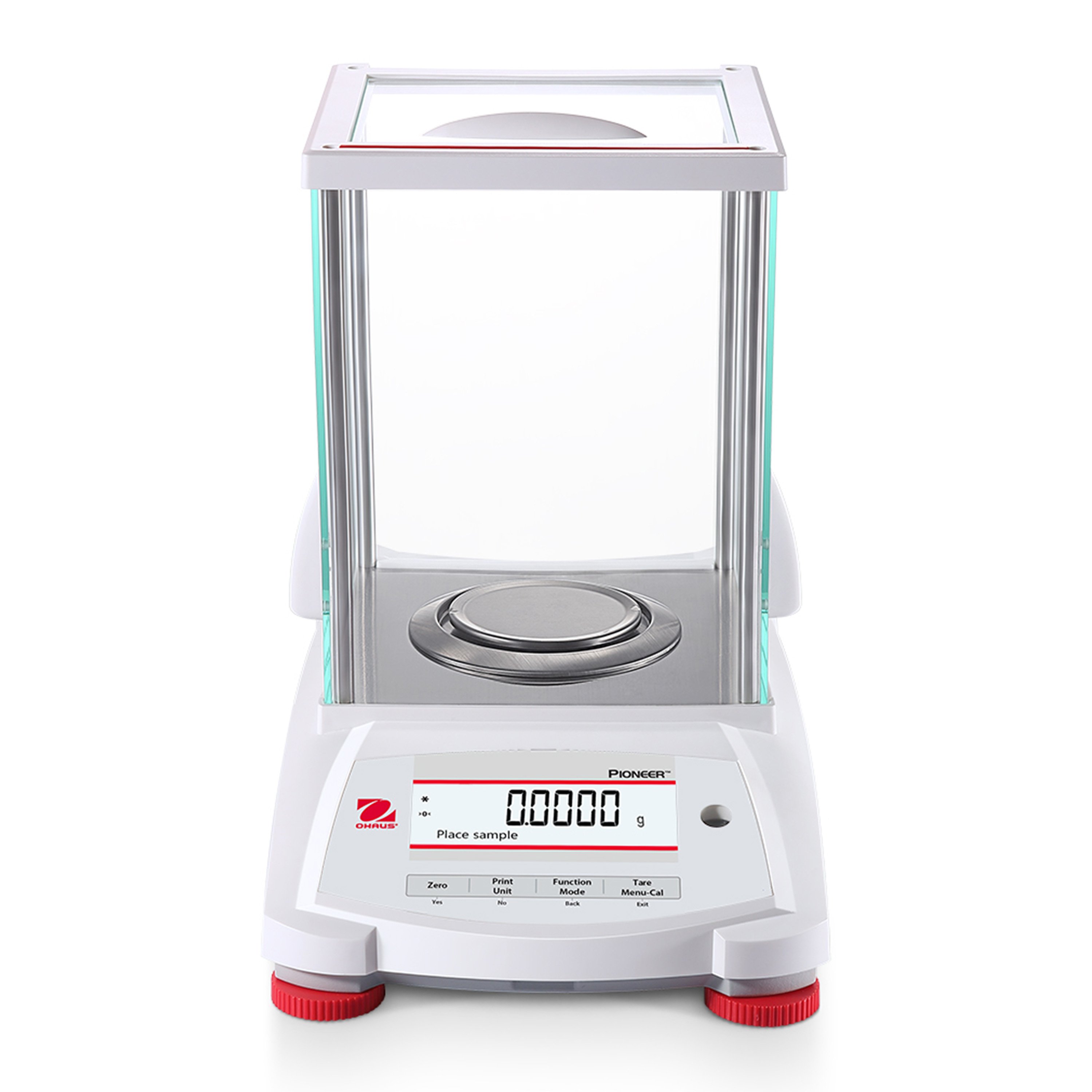

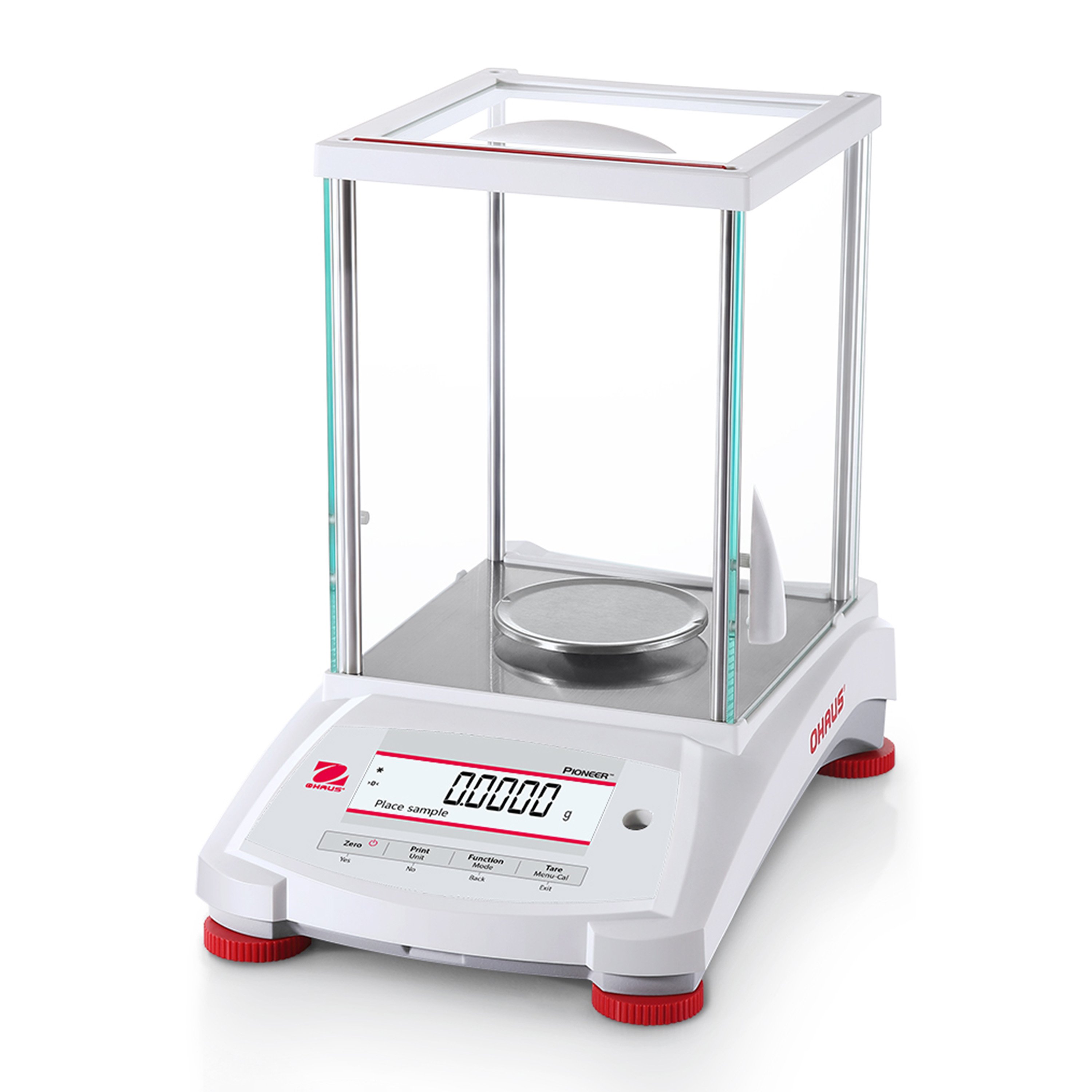

OHAUS Pioneer™ Analytical Balance

The OHAUS Pioneer™ Analytical Balance combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for lab, industrial, and education applications. The PX Series offers an affordable price and an intuitive design for smart operation, including a second-line display for additional information and USB and RS232 connectivity for easy communication.

• High Accuracy and Repeatability - Ensures precise laboratory, industrial, and educational measurements
• Built with a cast metal lower housing, sub-pan, and stainless steel weighing pan for long-term use
• User-Friendly Display - Equipped with a backlit LCD and a second-line display for additional information or guidance
• Specialized Weighing Modes - Provides direct solutions for specialized tasks
• Multiple Connectivity options - Common connectivity options include RS232, USB Host, and USB Device
• Power Saving Functions - It is designed with various power-saving features that help reduce environmental impact. These include auto-off and brightness controls
• Real-Time Clock with GLP/GMP Data - A real-time clock function keeps accurate time even during power loss
• Stabilization Time - Pioneer's fast stabilization time improves productivity in the laboratory
• Calibration
  • InCal™ - A semi-automatic internal calibration that eliminates the need for external weights for calibration, ensuring precision and reliability
  • External Calibration - Traditional calibration in which the operator manually calibrates the balance with their choice of calibration weight value to ensure accuracy available on every model
• Available in 82, 120, and 220 g Capacity

Technical Data:

• Pan Size: ⌀ 3.5"
• Pan Construction: Stainless Steel
• Display: 2-Line LCD with Backlight
• Auxiliary Display Model: Available as an Accessory
• Communication: USB; RS232 (Included); USB Host
• Draftshield: Included
• In-Use Cover: Included
• Power Requirements: AC Adapter included
  • AC Adapter Input: 100-240V ∼ 200mA 50-60Hz 12-18VA
  • AC Adapter Output: 12 VDC 0.5A
• Minimum Weight (Typical) (g) (USP, K=2, U=0.10%): 0.16 g
• Minimum Weight (Optimal) (g) (USP, K=2, U=0.10%, SRP≤0.41d): 0.082 g
• Tare Range: To capacity by subtraction
• Units of Measurement: Singapore Tael, Ounce Troy, Pennyweight, Grain, Tical, Custom, Miligram, Newton, Momme, Taiwan Tael, Baht, Kilogram, Gram, Hong Kong Tael, Pound, Tola, Mesghal, Carat, Ounce
• Temperature Range: Operability guaranteed between 41°F and 104°F;  50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C;  10°C – 30°C, 80%RH, non-condensing)
• Humidity Range: Maximum relative humidity 80 % for temperatures up to 30°C, decreasing linearly to 50% relative humidity at 40°C
• Storage Conditions: -10°C to 60°C, humidity 10% to 90%, without condensation
• Overall Dimensions: 12.6" L x 12.1" H x 8.2" W
• Actual Product Weight: 10 lbs

Models Comparison:
