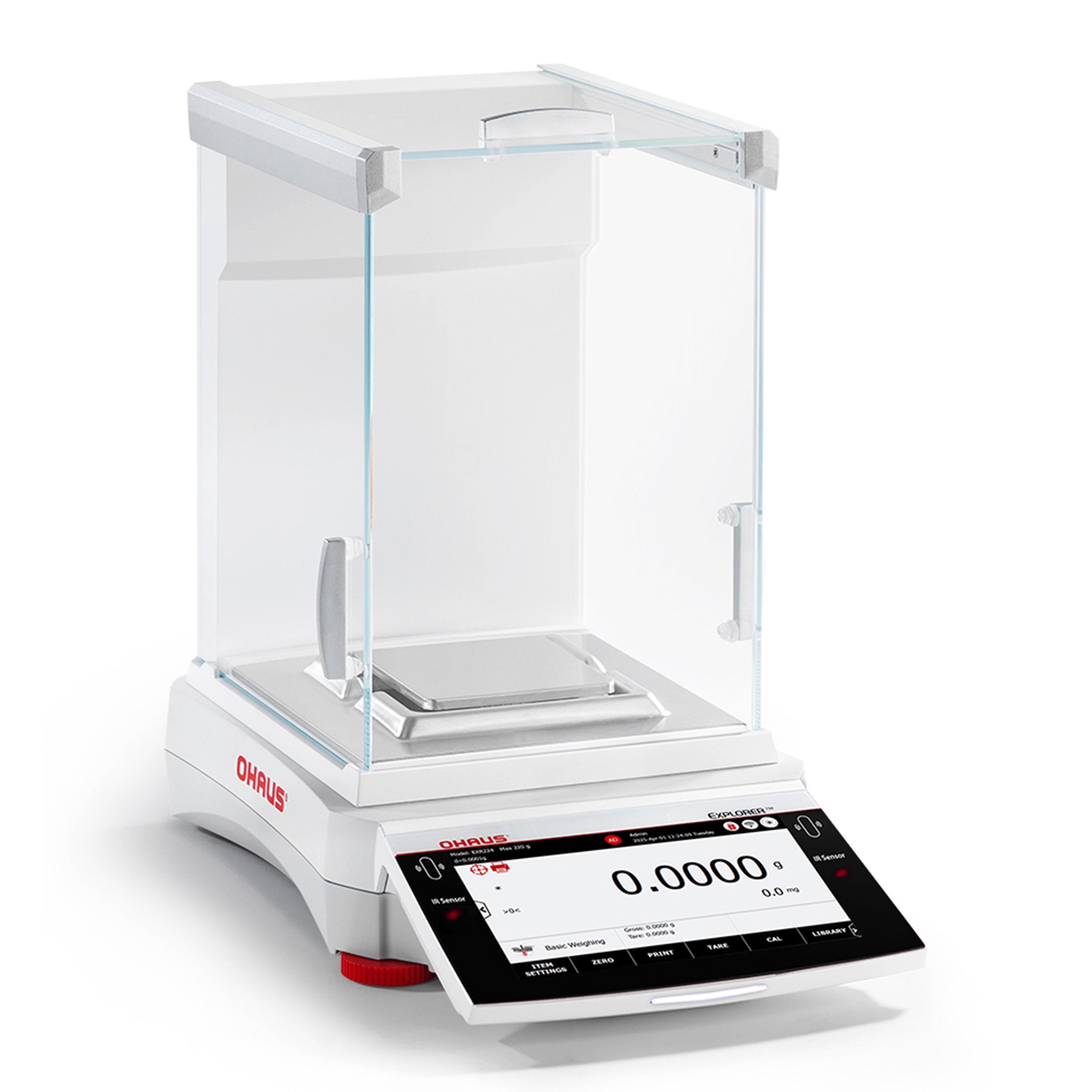

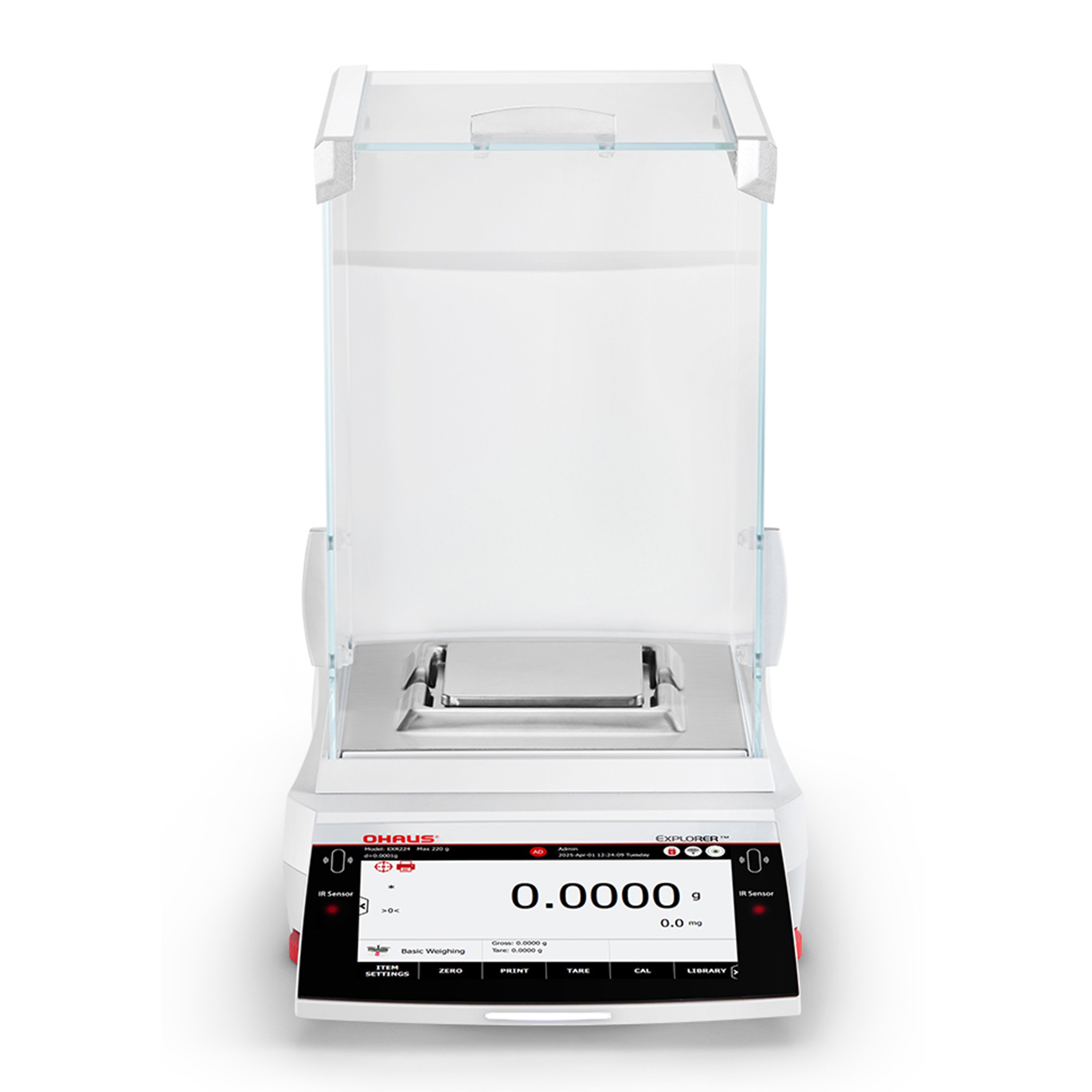

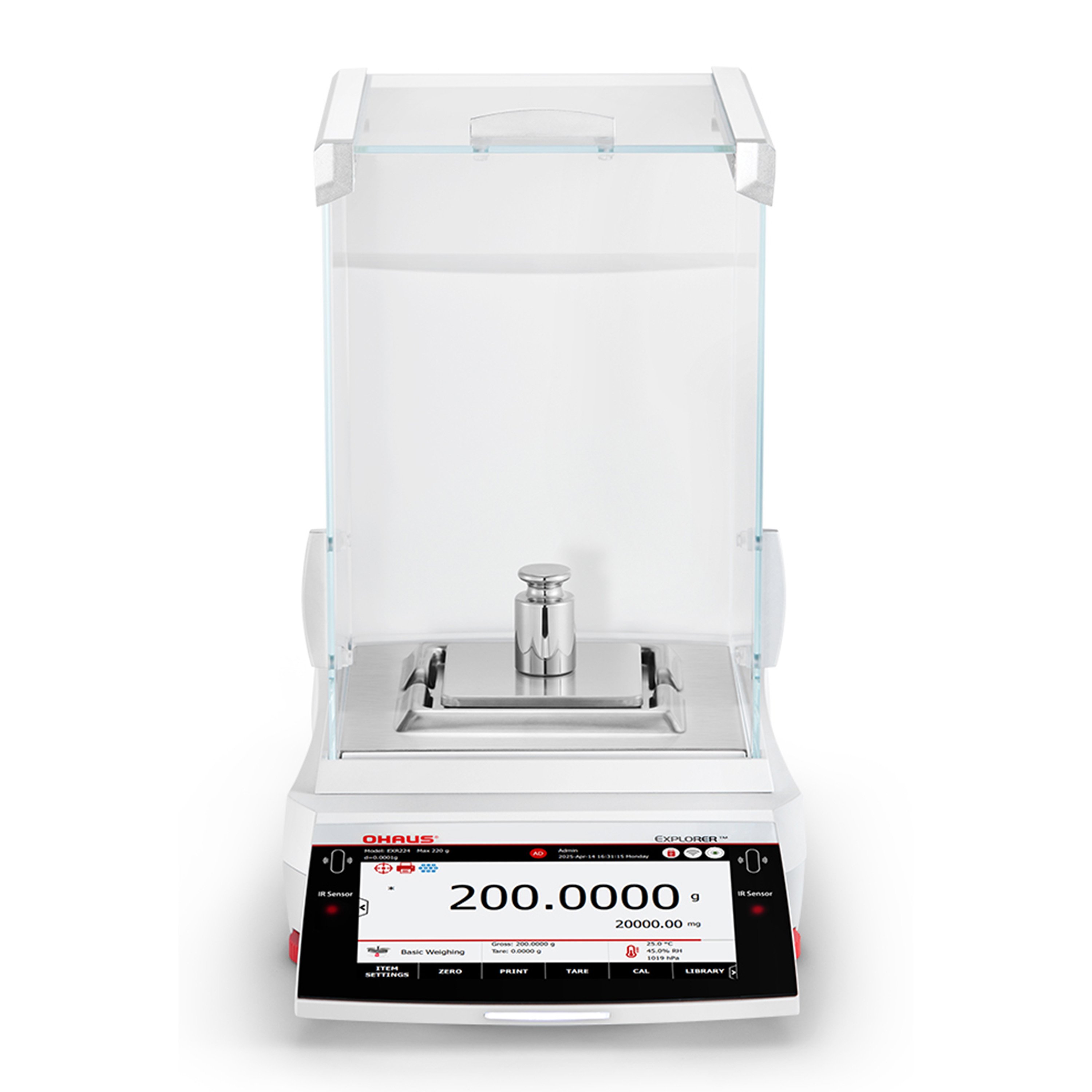

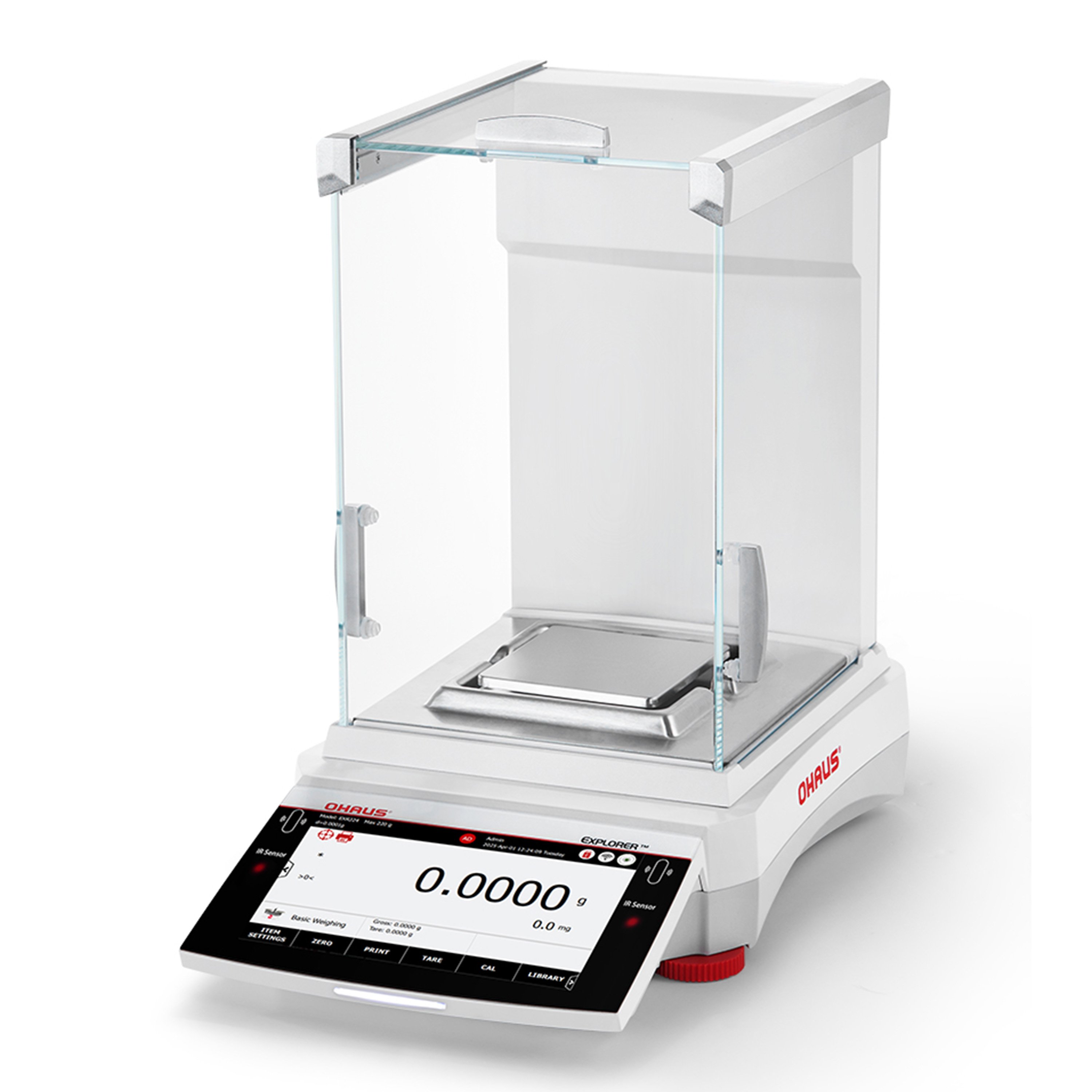

OHAUS Explorer™ Analytical Balance
Usually Ships in 1 Week
In stock
Only %1 left
Product Description
The OHAUS Explorer™ Analytical Balance offers an intuitive interface, outstanding weighing performance, and an environmentally friendly design, establishing the standard for laboratory operations.
Features:
- Intelligent User Experience:

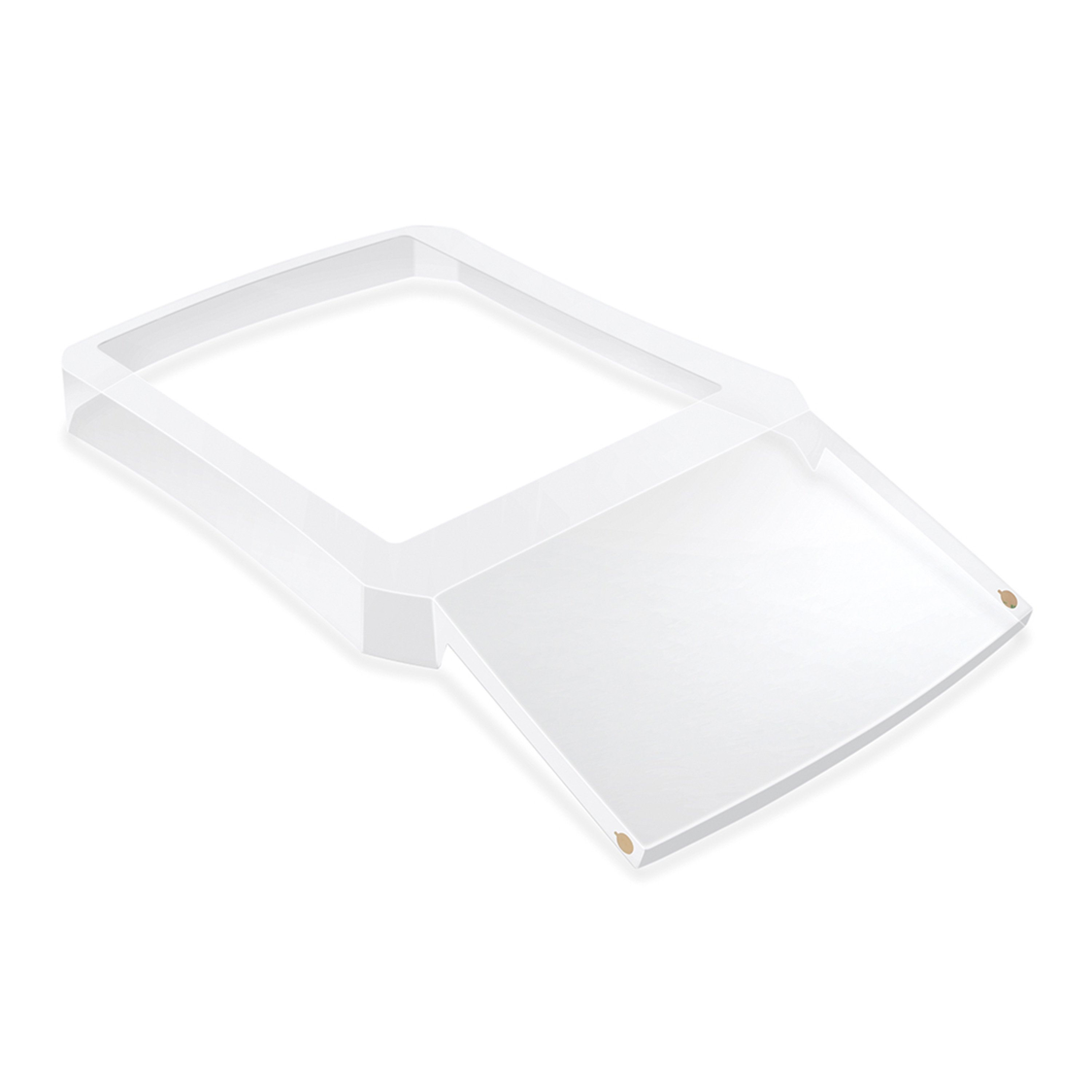

- Seamless setup with a 7" glass touchscreen display, digital-level bubble, top-mounted sliding door, in-use cover, weigh-below hook, touchless sensors, chemical protection, and out-of-box packaging
- Reliable status indicators through customized terminal status lights for immediate feedback
- Outstanding Weighing Performance:

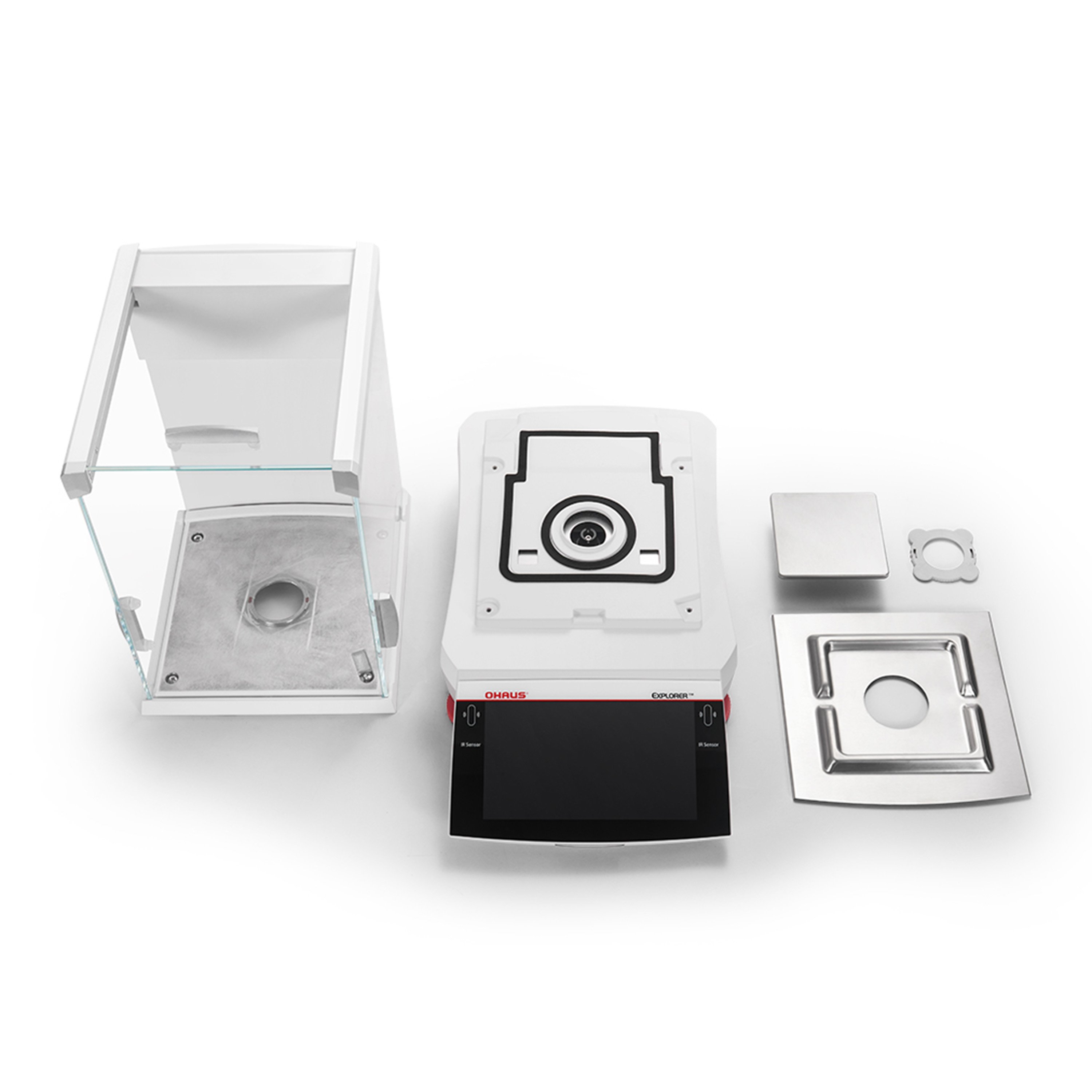

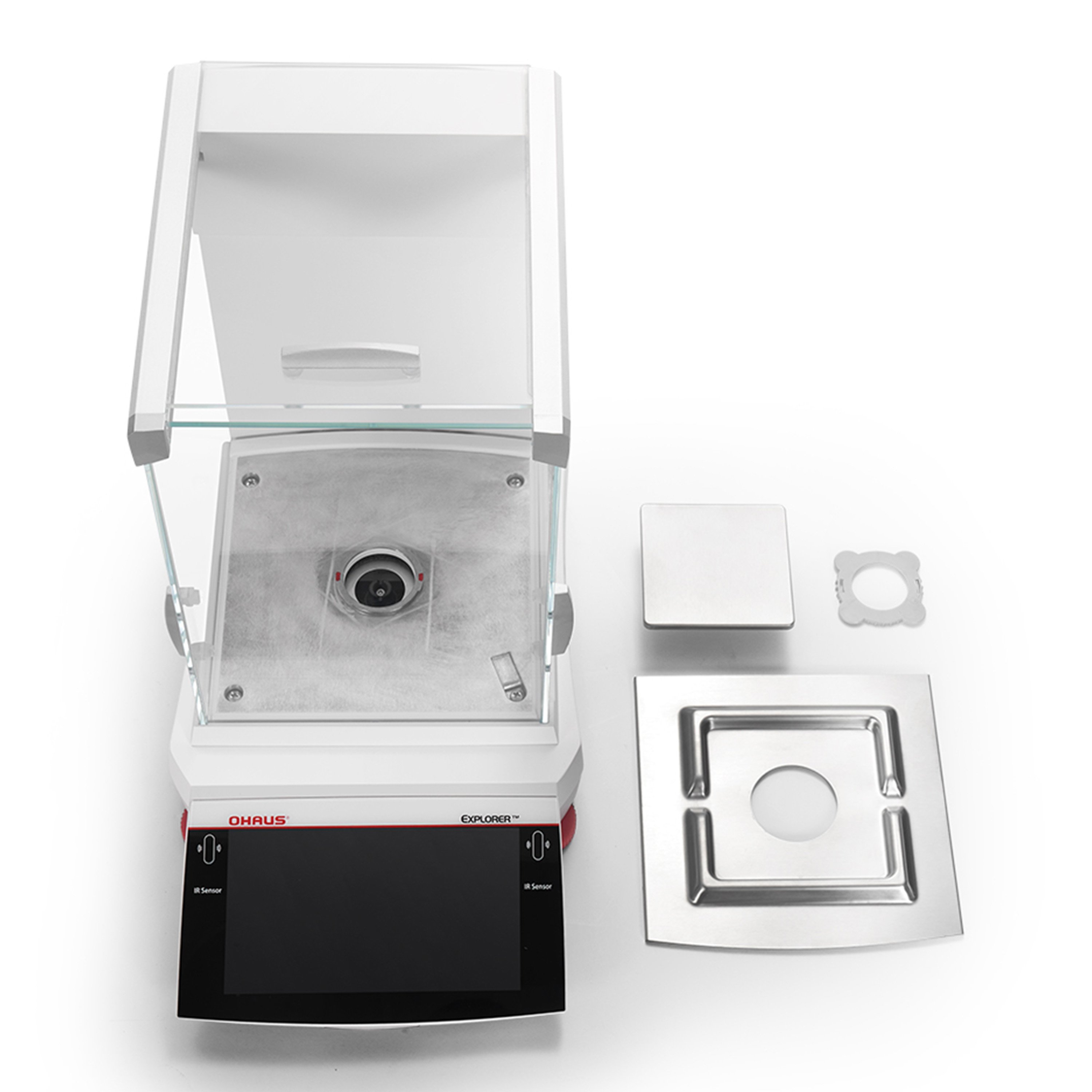

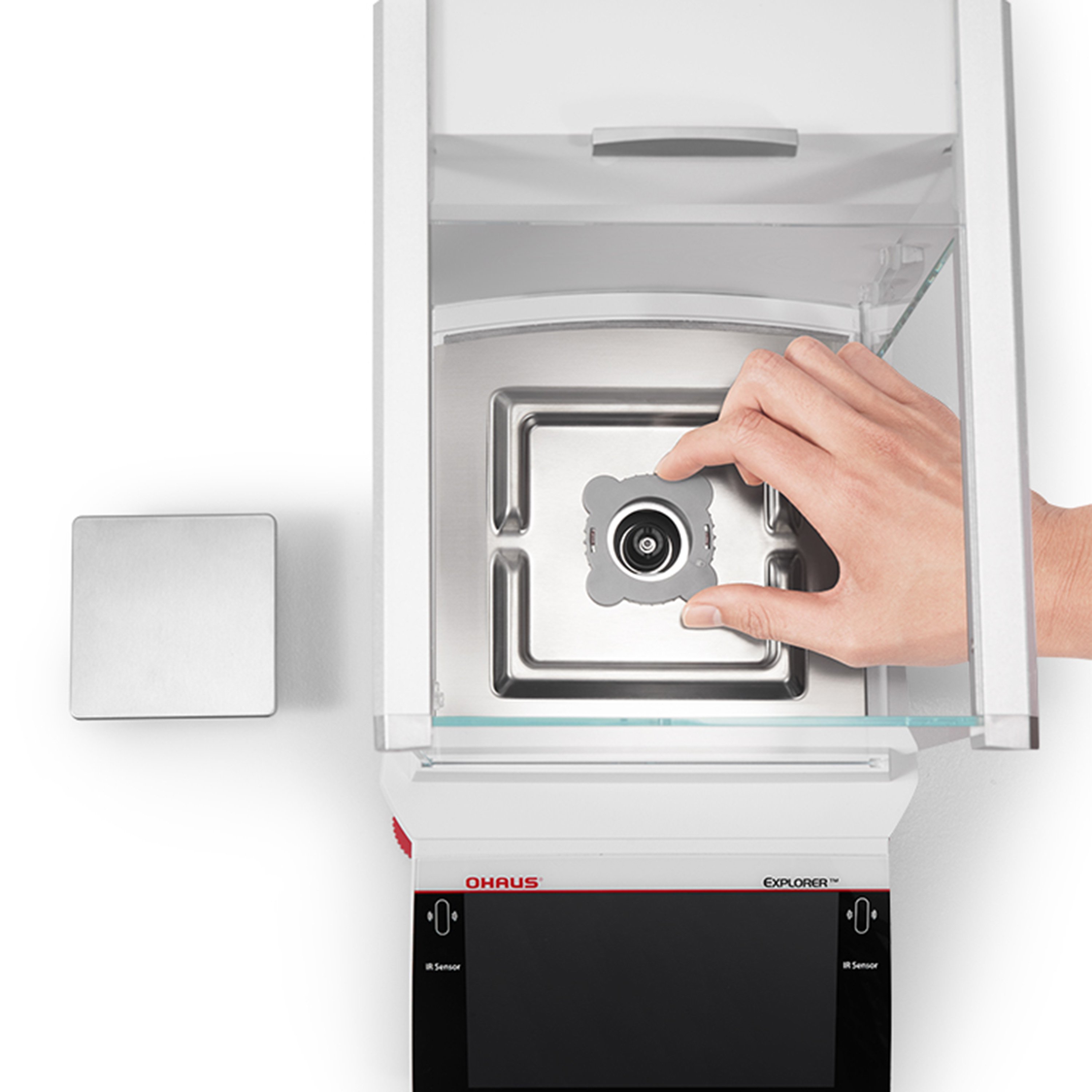

- Equipped with internal calibration systems (AutoCal™), a digital high-speed load cell, a removable draftshield, and a routine repeatability test for long-term accuracy and reliability
- Enhanced security and user management with a 4-level user management system with an internal system log capacity of 100,000 entries and 1,000 application sample libraries
- Supports Compliance for Data Traceability:
- Provides a two-way communication with RS232, USB, Ethernet, and optional Bluetooth and Wi-Fi (not included), hassle-free data transfer with a driverless Human Interface Device (HID) for easy data input, advanced communication capabilities with straightforward integration to Laboratory Information Management System (LIMS) and Manufacturing Execution System (MES)
- Features time synchronization via Network Time Protocol (NTP) for accurate timekeeping, electronic signature, direct data transfer, label printing function, and a system log for record-keeping
- Construction: Large weighing chamber, eco-friendly design, metal base and top housing, stainless steel (SST 316) weighing pan, and anti-static glass draftshield
- Available in 120 g, 220 g, and 320 g Capacities
Technical Specifications:
- Terminal Display: 7" TFT 16.7M Color Touch Screen with Glass Overlay
- Display Resolution: 800 x 480 Pixels

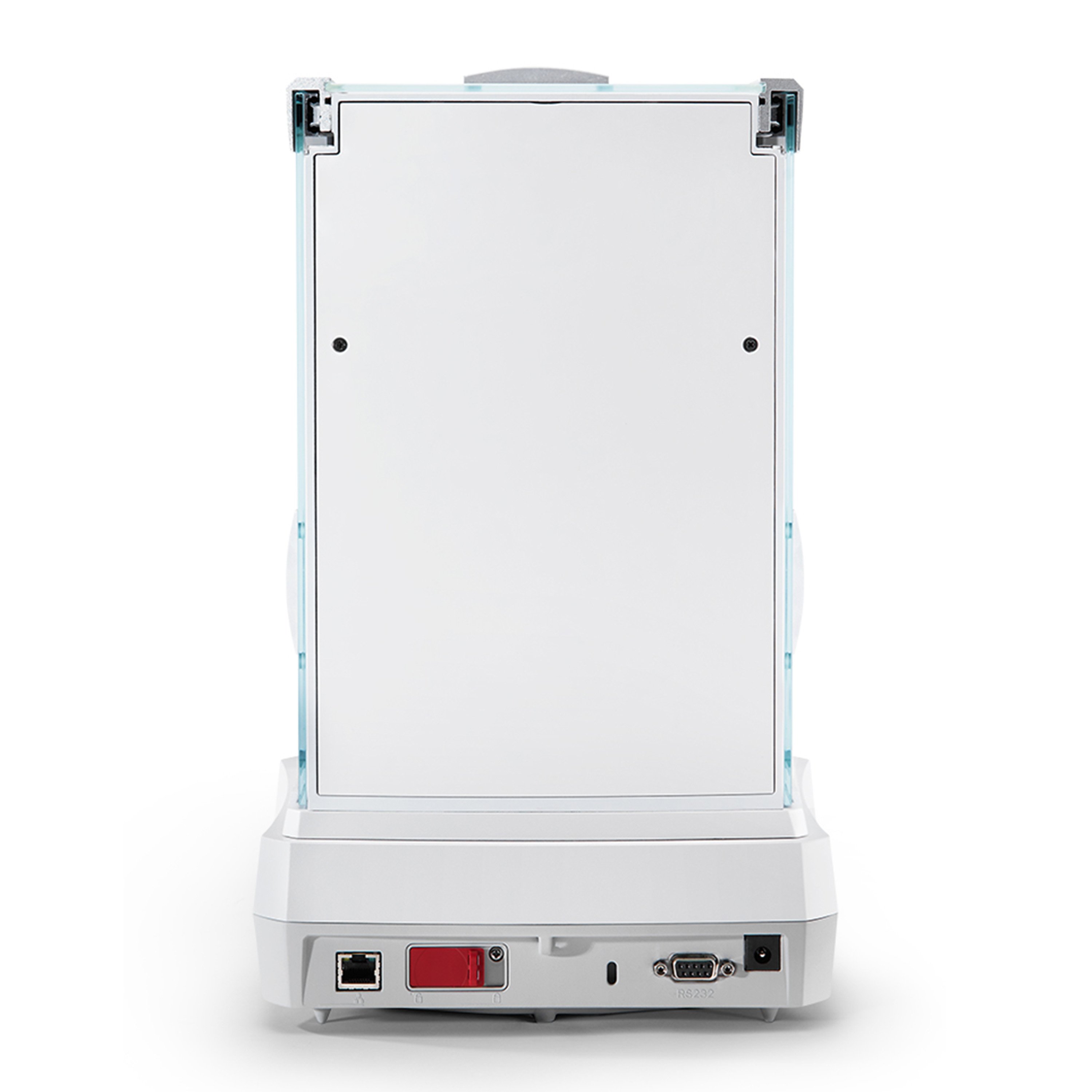

- Communication:
- 2 USB Host (Type A)
- 1 USB Device (Type C)
- 1 Ethernet (RJ45)
- 1 RS232
- Optional Wi-Fi/Bluetooth Dongle (Not Included)

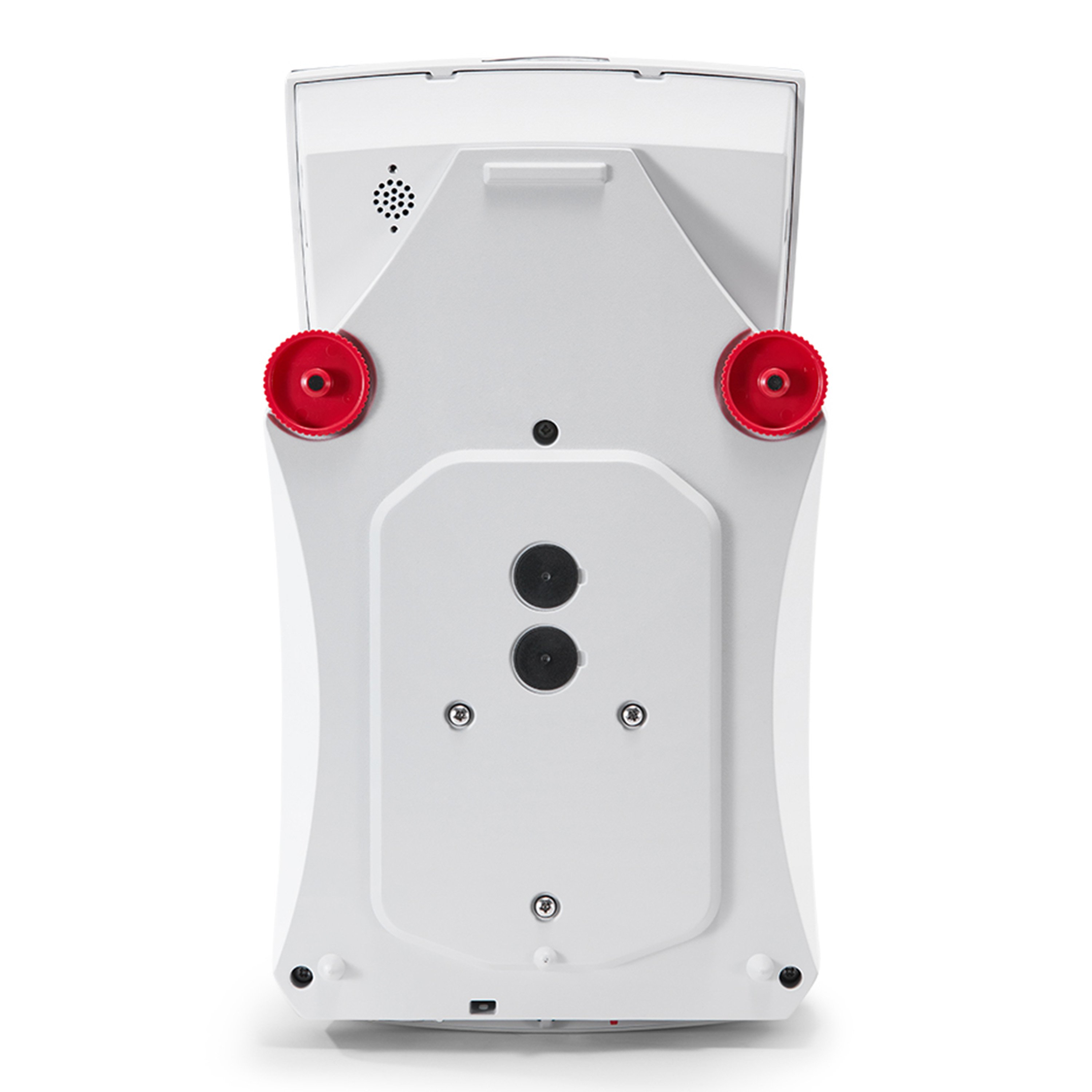

- Leveling System: 2 Leveling Feet with Digital Leveling Bubble
- Weighing Pan Size: 3.54" x 3.54" (Square Pan)
- Touchless Sensor: 2 Touchless Sensors on the Terminal
- Draftshield with Anti-Static Coating: Standard
- Terminal Status Lights: Standard, 7-Color Selectable
- Auxiliary Display Model (Not Included): Available as an Accessory
- Power Supply:
- AC Adapter Input: 100-240 V AC, 0.5 A, 50-60 Hz
- AC Adapter Output: 12 V DC, 1.5 A
- Metrology: NIST Handbook 44, Measurement Canada Weights and Measures Regulations
- Product Safety: IEC/EN 61010-1, CAN/CSA C22.2 61010-1, UL 61010-1
- Electromagnetic Compatibility: IEC/EN 61326-1 (Class B, Basic Environments), FCC Part 15 (Class A), Canada ICES-003 (Class A)
- Operational Condition: 10°C to 30°C, 80% RH, Non-Condensing
- Material:
- Top and Bottom Housing: Die-Cast Aluminum, Painted
- Terminal: Glass, Die-Cast Aluminum
- Weighing Platform: Plastic (PC)
- Weighing Pan: Stainless Steel (SST 316)
- In-Use Cover: Plastic (PET)
- Draftshield: Glass, Aluminum, Plastic
- Tare Range: To Capacity by Subtraction
- Weighing Units: g, mg, ct, N, oz, ozt, Grain, dwt, mo, msg, tl H, tl S, tl T, tcl, tola, baht, Custom 1, Custom 2
- Applications: Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold
- Overall Dimensions: 15.47" L x 9.06" W x 14.57" H
- Actual Product Weight: 16.31 lbs
Models Comparison:
| Model | EXR124 | EXR224 | EXR324 |
| SKU | 31059210 | 31059211 | 31059212 |
| Capacity | 120 g | 220 g | 320 g |
| Readability d | 0.1 mg | ||
| Repeatability (sd.), ≤ 5% of Full Load Typical | 0.05 mg | ||
| Repeatability (sd.), 5% of Full Load to Full Range | 0.1 mg | ||
| Linearity Deviation Typical | 0.06 mg | ||
| Linearity Deviation | 0.2 mg | ||
| Span Calibration Points | 25 g, 50 g, 75 g, 100 g | 50 g, 100 g, 150 g, 200 g | 100 g, 150 g, 200 g, 300 g |
| Stabilization Time (Typical) | 2 seconds | ||
| Sensitivity Temperature Drift | 1.5 ppm/°C | ||
| Min-Weight (Typical; k=2, U=1%) | 10 mg | ||
| Min-Weight (Typical; USP, k=2, U=0.10%) | 100 mg | ||
| Min-Weight (Optimal; USP, k=2, U=0.10%, SRP≤0.41d) | 82 mg | ||
Please note: The calibration weight, Wi-Fi/Bluetooth dongle, and auxiliary display model are not included.
