NextVein Wheeled Stand for Digital Vein Finder System

Name: NextVein Wheeled Stand for Digital Vein Finder System
Brand: NextVein LLC
SKU: S800NV
Price: 700 USD
Availability: InStock

Usually Ships in 1-2 Business Days

In stock

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

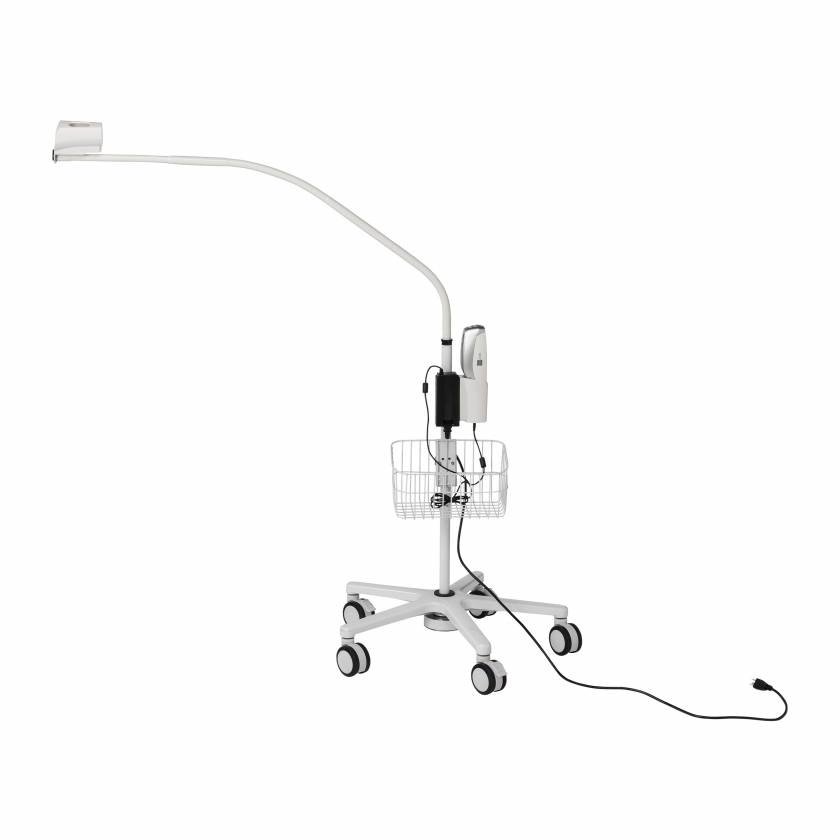

NextVein S800NV Wheeled Stand for Digital Vein Finder System

NextVein S800NV Wheeled Stand for Digital Vein Finder System - Size Comparison to Human

NextVein S800NV Wheeled Stand for Digital Vein Finder System - Front View of Digital Vein Finder System Being Attached (Digital Vein Finder System is Sold Separately)

NextVein S800NV Wheeled Stand for Digital Vein Finder System - Side View of Digital Vein Finder System Attached and Being Held (Digital Vein Finder System is Sold Separately)

Move your mouse over image or click to enlarge

Is this item the best fit for your needs?

Let our experts help.

800-423-2767

Live Chat

Product Description

The NextVein Wheeled Stand for Digital Vein Finder System is used to hold the V800NV Digital Vein Finder System during use and charging.

Features:

It has an extremely long articulating arm that can reach the other side of the hospital bed
With 2 holding cups:
- Procedure Cup - It is a latched cup located at the end of the flex arm and is used to hold the device and free up the user's hand while performing the procedure
- Transport/Charging Cup - It is located on the vertical pole. This is where the device should be placed before transporting the stand to another location
Storage Basket - Can store some lightweight items that could fit into it
Power Supply Holder - It can hold a power supply when the vein finder system needs to be charged while being transported to another location

Technical Data:

Charging In Stand: Yes
Adjustment Mechanism: Goose Neck
Stand Type: 5-Wheel with Wheel Locks
Arm Reach: 44"
Minimum Height Adjustment: 28"
Maximum Height Adjustment: 64"
Overall Dimensions: 25" W x 29" D x 45" H
Actual Product Weight: 16 lbs

Comes Standard With:

5-wheel stand base, pre-installed wheels
Locking wheels
Stand pole
Gooseneck arm with holder
Setup and User Manual

*Digital Vein Finder System is sold separately

Specifications

Specifications
Manufacturer	NextVein LLC
Latex Free	Yes
Actual Product Weight	16 lbs
Overall Height	45"
Overall Width	25"
Overall Depth	29"
Country of Manufacture	United States
Item Ships From	South Dakota

Literature

Assembly Instructions

(Size: 10.4 MB)

Instructions for Use

(Size: 433.4 KB)

Warranty Information

(Size: 145.1 KB)

Instructions

Warranty: NextVein LLC ("Company") warrants only to the original purchaser of this product from a Company-authorized reseller or distributor that this product will be free from defects in material and workmanship under normal use and service, for 1 Year.

For Complete Warranty Details, please see the literature above.
