Product Description

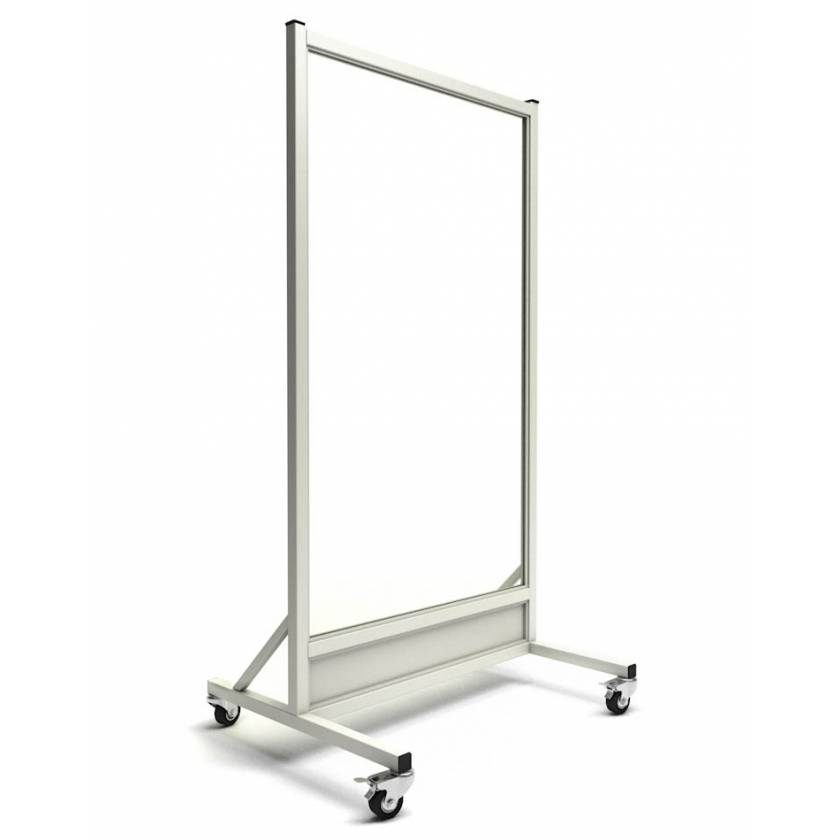

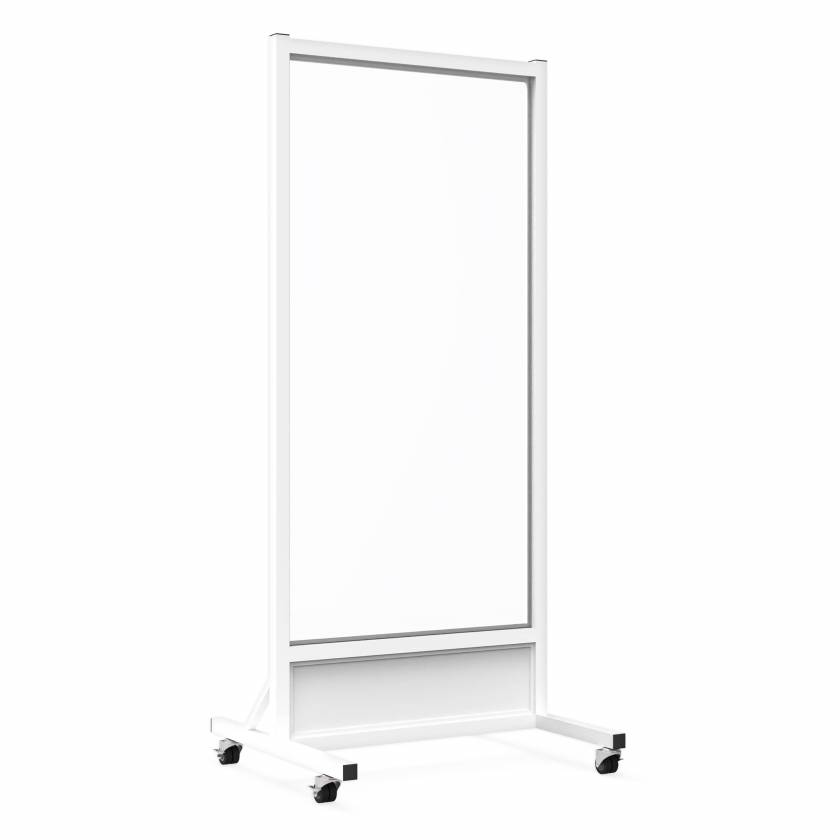

LB-3060 Mobile Lead Barrier with tall viewing panel, 60"H x 30"W glass window, is a portable, full-body radiation barrier designed to protect against secondary radiation.

Features:

  • 2.0mm lead equivalent high quality Schott German leaded glass window
  • 2.0mm lead equivalent opaque panels of solid, leaded x-ray protection with contoured sides
  • Large 60" H x 30" W clear leaded glass window is shatter resistant and provides excellent visibility
  • Travels easily on a four caster locking base steel legs
  • It is recommended that two people move the barrier together at all times

Specifications:

  • Overall Dimensions: 75" H x 33.50" W x 30" W
  • Glass Clear Window Dimensions: 60" H x 30" W
  • Opaque Panel Dimensions: 12" H x 30" W
  • Total Caster Height (including insertion area): 4.25", Caster Wheel Diameter: 3.50"
  • Some assembly required - the casters/wheels must be screwed on to the barrier
  • Latex-Free
  • Manufacturer Warranty: 1 year

Please Note: This item ships motor freight carrier. During the checkout process you will be required to indicate whether your facility requires liftgate or inside delivery services. (These services are described on our shipping information page.) In the order comments please include a name & phone number for the delivery point of contact. Please also include receiving hours and any other delivery requirements or instructions. If additional services necessitate an additional fee, you will be contacted by Customer Service. If you have questions about the motor freight delivery process please contact Customer Service prior to placing your order.

About this Brand

Specifications

Specifications
Manufacturer Phillips Safety Products
Overall Height 75"
Overall Length 30"
Overall Width 33.50"
Country of Manufacture United States
Item Ships From New Jersey
GSA Contract Number V797D-40246

Literature 1

pdf
(Size: 137.2 KB)

Product Video



Instructions

WARRANTY: All Phillips Safety lead barriers are fully guaranteed against manufacturer defects (material and workmanship) for 1 year from the date of purchase. This does not cover negligent use of the product. Phillips-Safety will repair or replace any defective merchandise at no charge. All shipping charges remain payable by the purchaser.



CLEANING:

    • Glass Leaded Barrier: Window is made with high lead oxide content glass; the surface is susceptible to scratches and attack by acids and alkalis. Use only water, non-abrasive cleaning agents and a soft cloth. Always dry the glass. Barrier frame may be cleaned with any non-Ammonia based or non-chlorine based cleaner. Any neutral based disinfecting product may be used for disinfecting if necessary. Products such as Neutral Q, Century Q, DC Gold etc. DO NOT USE Ammonia, Bleach or other Acid or Alkali based cleaners.
    • Acrylic Leaded Barrier: Use only clear water and mild non-abrasive detergent solution. Avoid any cleaning products with ammonia, ketones, halogens, window cleaners, kitchen scouring compounds, aromatics and solvents such as thinners, acetone, gasoline, benzene and tetrachloride. Any cleaner that is abrasive should be avoided. For disinfection or to remove adhesives, a 70% alcohol solution, followed by rinsing with clear water may be used.



STORAGE: When not in use, barrier should be stored in area free of loose objects that may accidentally fall and break glass. Caster should be locked to prevent unintentional movement. Normal room temperature and low relative humidity is ideal.



MAINTENANCE: Examine barrier frequently. If window become pitted, chipped or in other ways damaged cease use immediately and contact your distributor for instructions. No end user maintenance required or recommended other than cleaning.



RECYCLING: Leaded glass contains 70% lead oxide, frames are powder coated steel and a small amount of plastic. Frames can be recycled with normal metal or plastic. Windows should be sent to an approved lead recycling facility or may be returned to the manufacturer for appropriate disposal.

Returns

This item can not be returned as it is made in your size selection when ordered.
