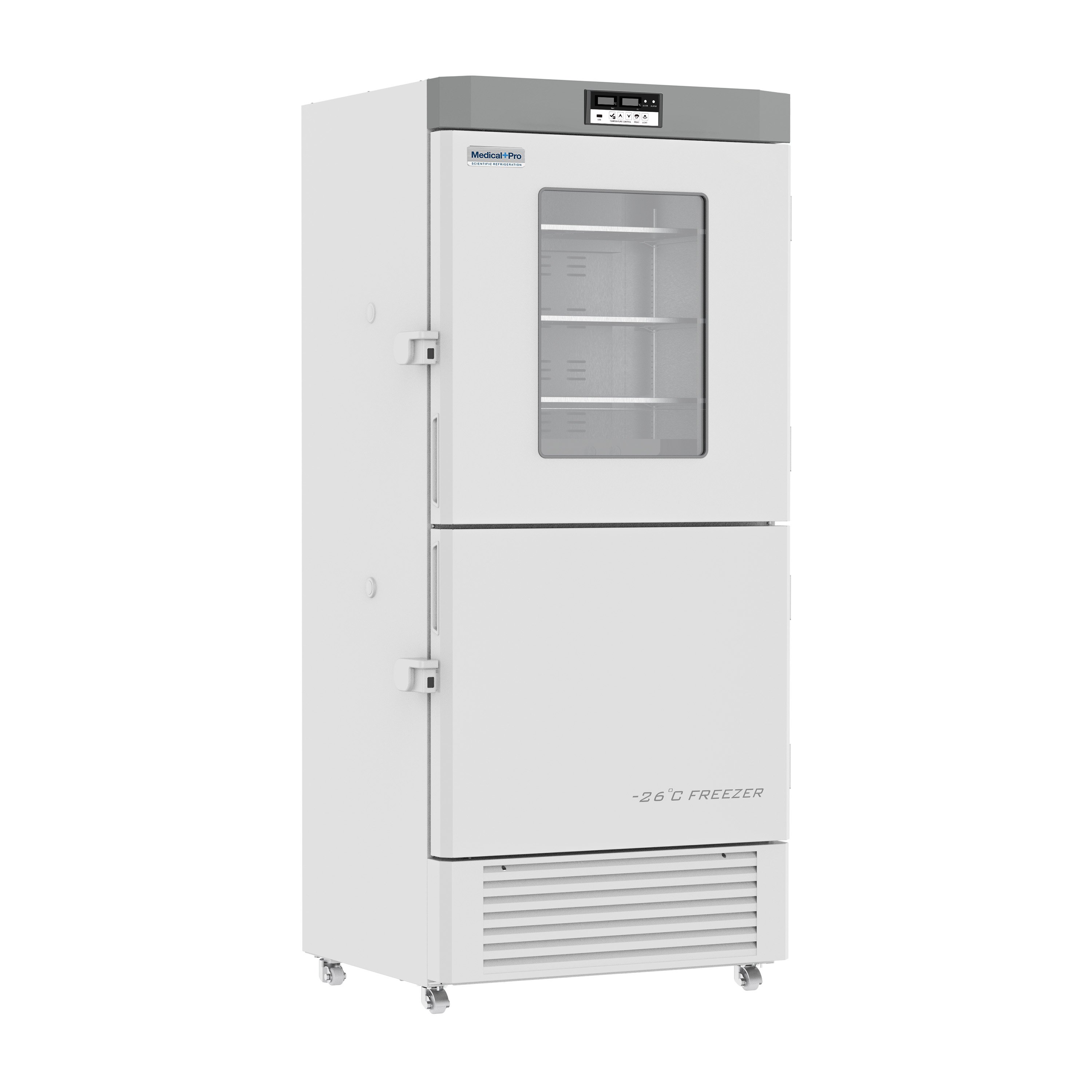

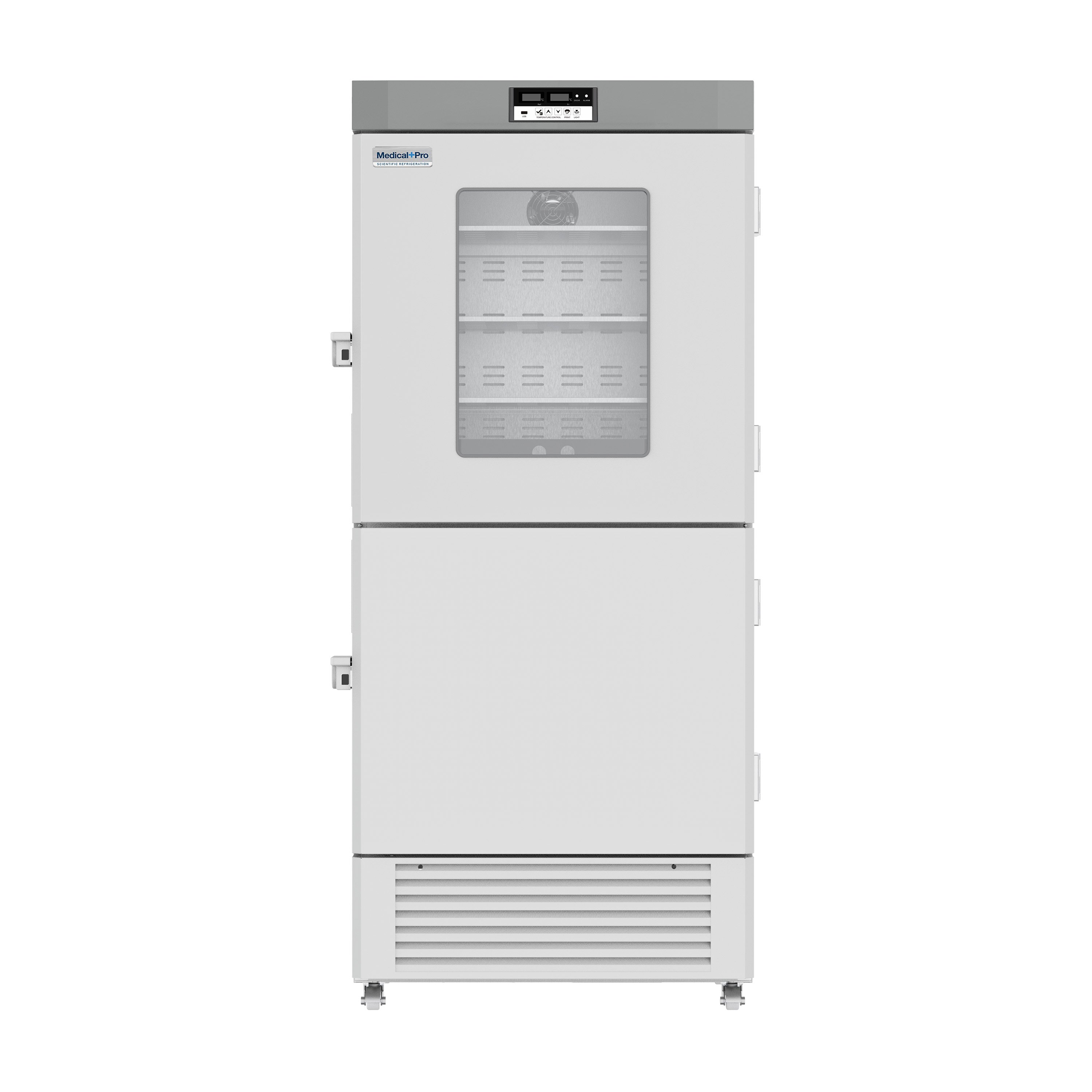

Migali Scientific Medical Pro® Upright Dual Temperature Refrigerator/Freezer - 18.3 Cubic Feet
Product Description
The Migali Scientific Medical Pro® Upright Dual Temperature Refrigerator/Freezer - 18.3 Cubic Feet is a combined refrigerator/freezer with precise temperature control and data storage for pharmacy, vaccine, and laboratory use.
Features:
- Performance and Cooling:
- Energy Saving: Environmentally-friendly, all-natural hydrocarbon refrigerants, and a high-efficiency compressor to ensure quiet operation and low energy consumption
- Refrigeration System: Two independent high-efficiency compressors separately operate the upper refrigeration chamber and the lower freezing chamber with quick pull-down, temperature recovery, and stability
- Thermal Insulation System: CFC-free polyurethane foam technology to improve the storage chambers' thermal insulation
- Intelligent Controls and Data Storage:
- High-Precision Computerized Temperature Controller: With built-in sensors for high/low temperature alarms for chamber, ambient, and evaporator temperatures
- Digital Interface: 1" Digital temperature display indicates operating status, allowing users to easily set high/low temperature alarm points based on their needs
- Microprocessor Control: Independently controls the refrigerator and freezer chambers
- Optional Chart Recorder (Not Included): Temperature chart recorder includes pen and paper, no power supply required
- Connectivity: Equipped with a remote alarm access port and a 232/485 data access port
- Security System:
- System Alarms: Audible and visual alarms alert users in the rare event of a temperature or system failure
- Alarm Functions: Include high/low temperature, high ambient temperature, sensor probe failure, door ajar, and power failure alarms
- Door Ajar Alarm: Audible alarm activates after 1 minute of opening and is automatically muted when the door is closed
- Ergonomic Design:
- Shelving: Freezer chamber is equipped with six drawers, and the refrigeration chamber with three stainless steel main shelves and one additional smaller shelf
- Casters: 4, with two front locking casters and two rear non-locking casters
- Handle: Specially equipped external door handles and padlocks to prevent unauthorized door openings
- Interior Lights: Equipped with an LED lighting system, ensuring high visibility inside the chamber
- Scope of Application:
- Storage: Suitable for storage of biological products, vaccines, drugs, reagents, etc.
- Facilities: Suitable for use in pharmacies, pharmaceutical distribution centers, manufacturing plants, hospitals, centers for disease prevention and control, research laboratories, clinics, etc.
- Comes Standard With:
- RS-485
- Remote Alarm Contact
Technical Specifications:
| Refrigerator | Freezer | |
| Cabinet Type | Upright | |
| Number of Removable Shelves | 3 Main Shelves + 1 Additional Smaller Shelf | 0 |
| Number of Removable Drawers | 0 | 6 |
| Shelving Material | Stainless Steel Shelves | ABS Plastic Drawers |
| Overall Capacity | 18.3 Cubic Feet | |
| Individual Capacities | 11.4 Cubic Feet | 6.9 Cubic Feet |
| Door | Glass | Solid |
| Door Lock with Key | Yes | |
| Door Heaters | Yes | |
| External Material | Powder-Coated Steel | |
| Inner Material | Stainless Steel | |
| Lighting | LED | |
| Number of Access Ports | 2 | |
| Diameter of Access Port | Ø 1" | |
| Number of Casters | 4 (2 with Brakes) | |
| Data Logging Device | USB | |
| Data Logging Interval | Records Every 10 Minutes | |
| Data Logging Recording Time | 2 Years of Data Storage | |
| Backup Battery | Yes | |
| Temperature Range | 2-8°C | 10-26°C |
| Ambient Temperature | 16-32°C | |
| Cooling Performance | 5°C | -23°C |
| Climate Class | N | |
| Controller | Microprocessor | |
| Display | Digital | |
| Number of Compressors | 2, Independent for Refrigerator and Freezer | |
| Cooling Method | Forced Air Cooling | Direct Cooling |
| Defrost Method | Automatic | Manual |
| Refrigerant | R290 | |
| Insulation Thickness | 1.97" | 3.94" |
| Temperature Alarm | High/Low Temperature, High Ambient Temperature | |
| Electrical Alarm | Power Failure, Low Battery | |
| System Alarm | Sensor Probe Failure, Door Ajar, USB Datalogger Failure, Communication Failure | |
| Optional Accessories | RS232 and Printer (Not Included) | |
| Power Supply | 110 V, 60Hz, Single-Phase | |
| Internal Dimensions | 29.53" W x 24" D x 29.13" H | 25.60" W x 22" D x 22.24" H |
| Overall Dimensions | 35.83" W x 29.13" D x 77.64" H | |
| Actual Product Weight | 410 lbs | |
Please note: The chart recorder, RS232, and printer are not included.
Specifications
| Manufacturer | Migali Scientific Refrigeration |
|---|---|
| Latex Free | Yes |
| Actual Product Weight | 410 lbs |
| Overall Height | 77.64" |
| Overall Width | 35.83" |
| Overall Depth | 29.13" |
| Country of Manufacture | China |
| Item Ships From | New Jersey |
