LW Scientific DM Dual Mag Binocular Stereo Microscope with Pneumatic Flex Arm

Name: LW Scientific DM Dual Mag Binocular Stereo Microscope with Pneumatic Flex Arm
Brand: LW Scientific
SKU: DMM-S12N-PA77
Price: 1505 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

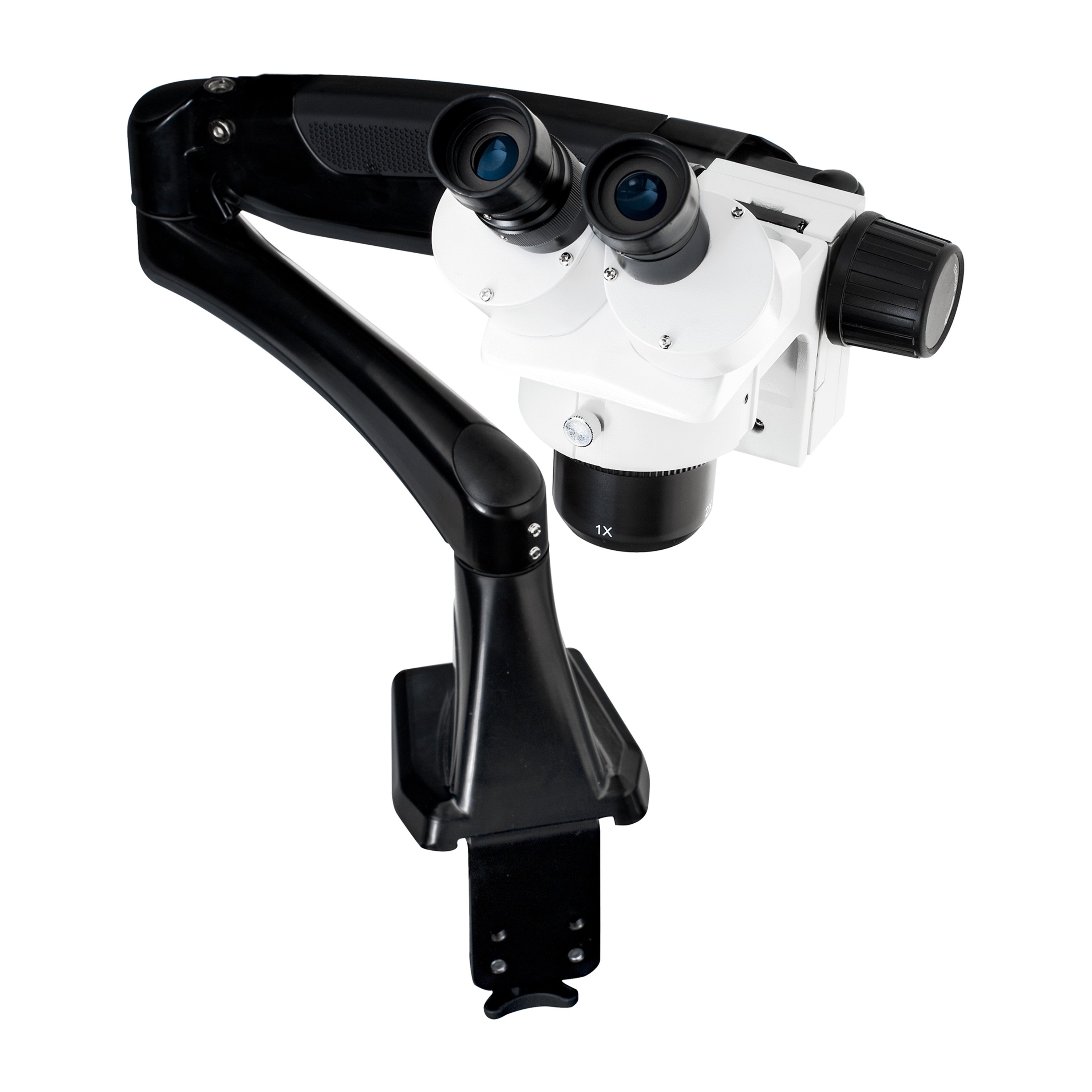

LW Scientific DMM-S12N-PA77 DM Dual Mag Binocular Stereo Microscope with Pneumatic Flex Arm

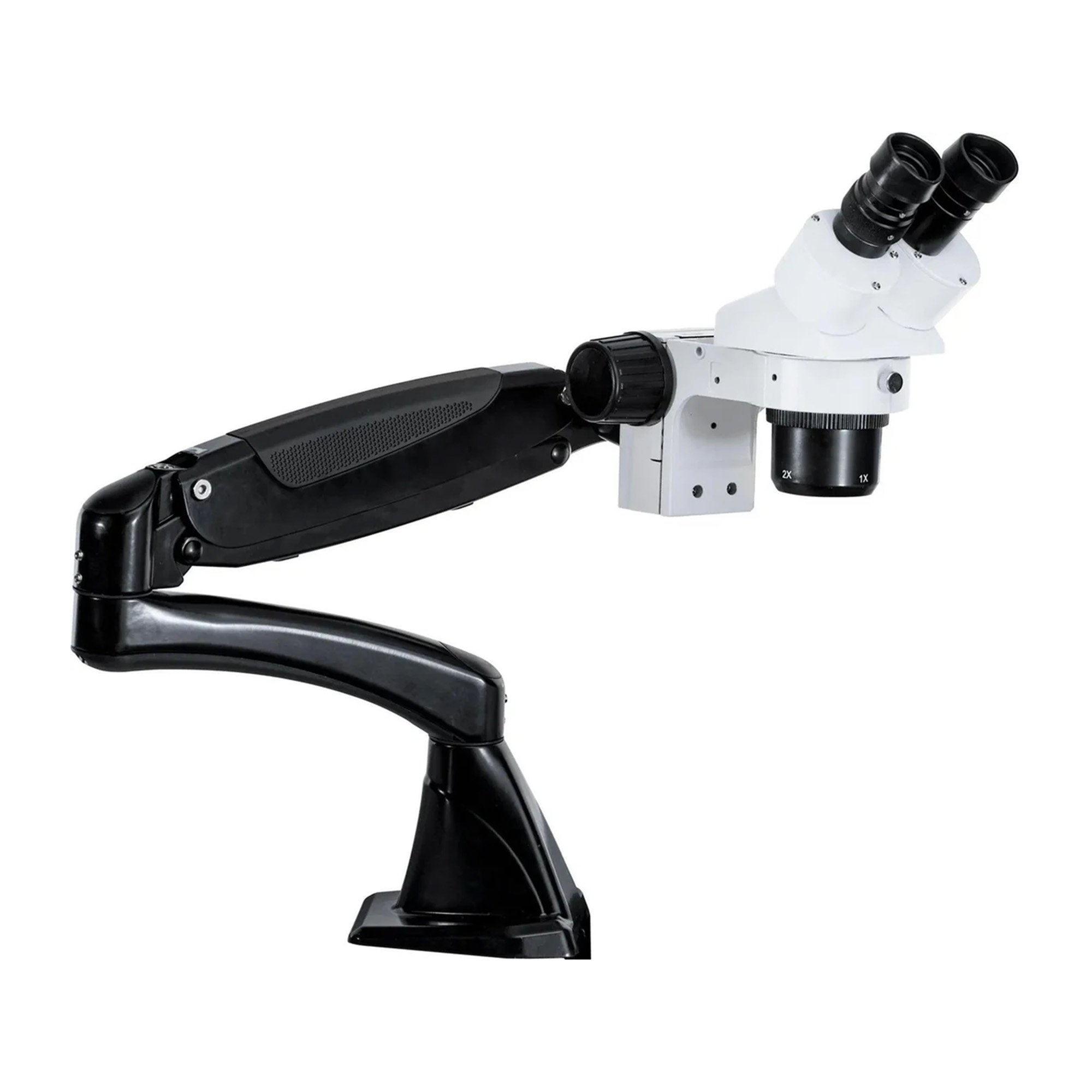

LW Scientific DMM-S12N-PA77 DM Dual Mag Binocular Stereo Microscope with Pneumatic Flex Arm - Side View

Move your mouse over image or click to enlarge

Is this item the best fit for your needs?

Let our experts help.

800-423-2767

Live Chat

Usually Ships in 1 Week

In stock

Be the first to review this product

Product Description

The LW Scientific DM Dual Mag Binocular Stereo Microscope with Pneumatic Flex Arm is a symbol of functionality and ingenuity, allowing vertical, horizontal, and complete 360° adjustments. It gives control of the space and the knowledge that the scope is secure.

Features:

Pneumatic flex arm with adjustable tension allows precise positioning for hands-free operation
High-quality, dual-magnification stereomicroscope designed for laboratories, industrial quality control, and educational use
Built with a durable aluminum alloy frame and ergonomic binocular head
Delivers sharp, three-dimensional imaging with precise focusing capabilities
Provide flexibility for a variety of work environments, from benchtop setups to industrial workstations
Smooth rack-and-pinion focusing system ensures fine adjustments for detailed observation, while optional LED lighting enhances image clarity*
The included 0.5X supplementary lens doubles the field of view, expands magnification options, and extends your working distance for hands-under work-space
Ideal for biological dissection, circuit board inspection, forensic analysis, and sample preparation

Technical Specifications:

Head	Binocular, dual magnification 10X/20X Inclined at 45° and rotates 360° 10X/20 WF eyepieces 30 mm eye tube diameter Interpupillary Distance Range: 55 mm - 75 mm
Objectives	1X/2X paired objectives 0.5X supplementary lens included
Adjustment Controls	Rack and pinion focusing Tension adjustment on pneumatic horizontal arm Adjustable-width C-clamp for mounting to a bench
Illumination	Ambient bench light may be sufficient Optional ring lights offer shadow-free illumination and are highly-recommended*
Construction	Aluminum alloy construction Acid- and reagent-resistant finish
Physical Specifications	Maximum Radius: 14.96" Minimum Radius: 10.83" Actual Product Weight: DM Head: 2.60 lbs Pneumatic Arm: 13.89 lbs

*Please note: Ring light is sold separately.

Specifications

Specifications
Manufacturer	LW Scientific
Latex Free	Yes
Country of Manufacture	China
Item Ships From	Georgia

Literature

Instruction Manual

(Size: 100.6 KB)

Specification Sheet

(Size: 132.5 KB)

Warranty Information

(Size: 41.9 KB)

Instructions

Limited Warranty: When purchased from LW Scientific or an authorized distributor, Professional Stereoscopes and Laboratory Microscopes are covered by a limited lifetime warranty against defects in materials and workmanship. Electronic components are covered by a one (1) year limited warranty from the date of purchase. All other LW Scientific products, including Student Microscopes and Stereoscopes, are covered by a one (1) year limited warranty, while accessories carry a 90-day limited warranty.

This warranty does not cover normal wear and tear, cosmetic damage caused by chemicals, solvents, or cleaning solutions, or damage resulting from acts of God.

For Complete Warranty Details, please see the literature above.

Returns

Products must be returned in unused, resalable condition with the original packaging. Please contact Customer Service for a valid return authorization within 30 days of receipt of purchase. A minimum restocking fee of 15% of the purchase price will be deducted from the refund. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
