Large Positioning Kit (8 Pieces)
Product Description
8-Piece Kit includes the following position blocks:
Includes | Quantity | Size (HxWxL) |
Item 100 - 27 Degree Torso Block | 1 Piece | 7" x 16" x 12" |
Item 101 - Basal Block | 1 Piece | 7" x 16" x 12" |
Item 102- Adult AP-PA Head Holder | 1 Piece | |
Item 104 - Pressure Block | 1 Piece | 5.50" x 7.38" x 10" |
Item 105 - 17.85 Degree Cranial Wedge | 2 Pieces | 3.75" x 9" x 8" |
Item 106 - 45 Degree Extremity Wedge | 1 Piece | 6.63" x 6.63" x 12" |
Item 169 - Rectangle | 1 Piece | 3" x 7.50" x 10" |
Foam/Covering Options: All coverings/material are Latex Free, MRI Safe & Biocompatible

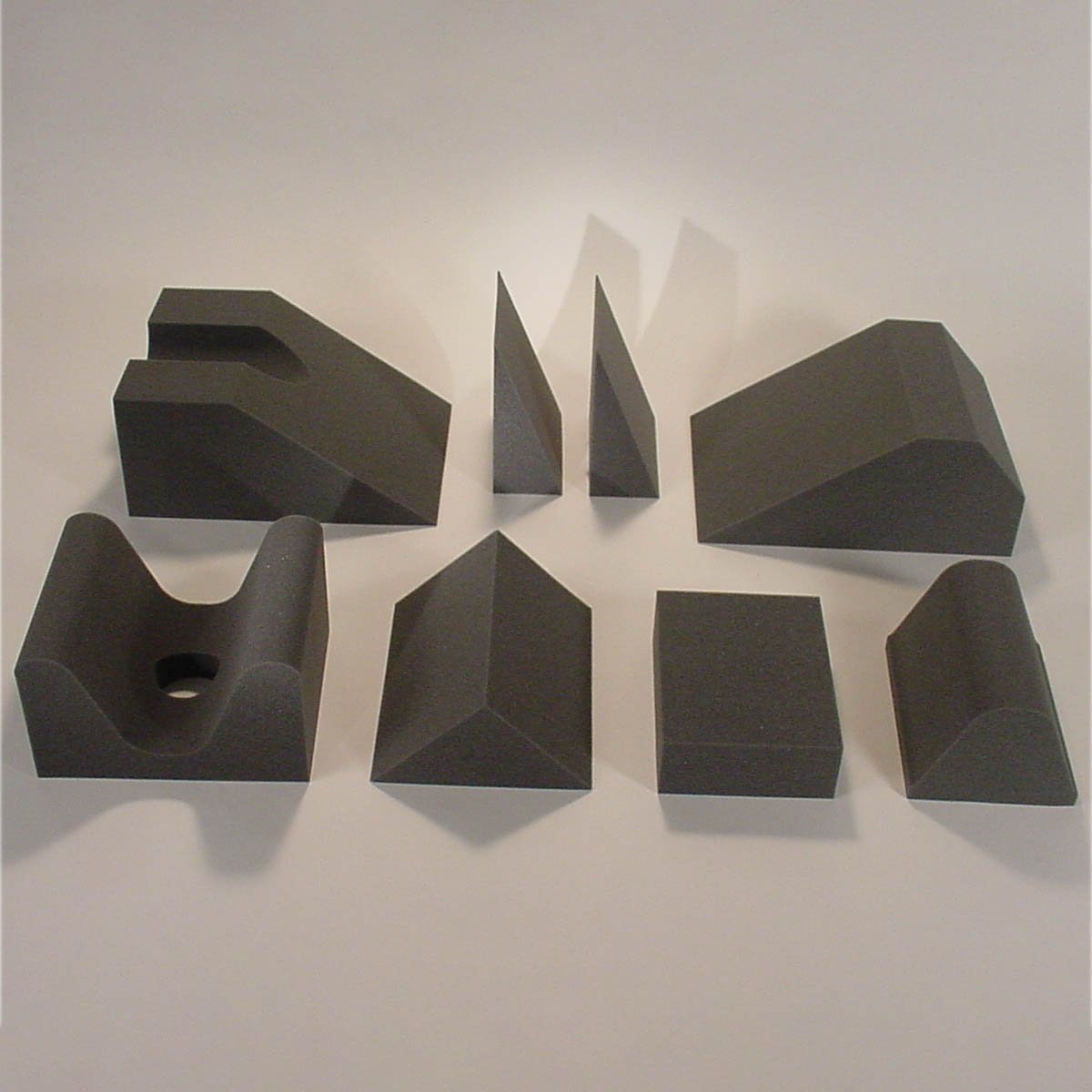

- Uncovered Standard Foam (Image #1) - Charcoal colored, open cell foam, radiolucent, fire retardant, economic, useful for general positioning.
- ScanCoat Black (Image #2) - State of the art sprayed vinyl coating, withstands tearing or peeling, skid resistant, resists fluid absorption/contamination, very low attenuation, this item may artifact, please see artifacting disclaimer.
Artifacting Disclaimer: In some instances, the optional covering and ultrafoam positioners may present artifacting issues when used for imaging applications. Depending on technique, it may be possible to work around artifact issues, as they typically appear along the edges of the positioning device. If the positioner is placed such that the edges are not in the field of view, artifacting may be avoided. Please note artifacting is most likely to occur for images below 70 KvP. For images above 70 KvP the edges are less obvious and may not present a problem. If you are concerned with artifacting, please select the uncovered, standard foam positioner option.
Specifications
Manufacturer | Domico Med-Device |
---|---|
Latex Free | Yes |
Country of Manufacture | United States |
Item Ships From | Michigan |
Literature
Instructions
Warranty: 60 days from date of shipment against manufacturing defects.
