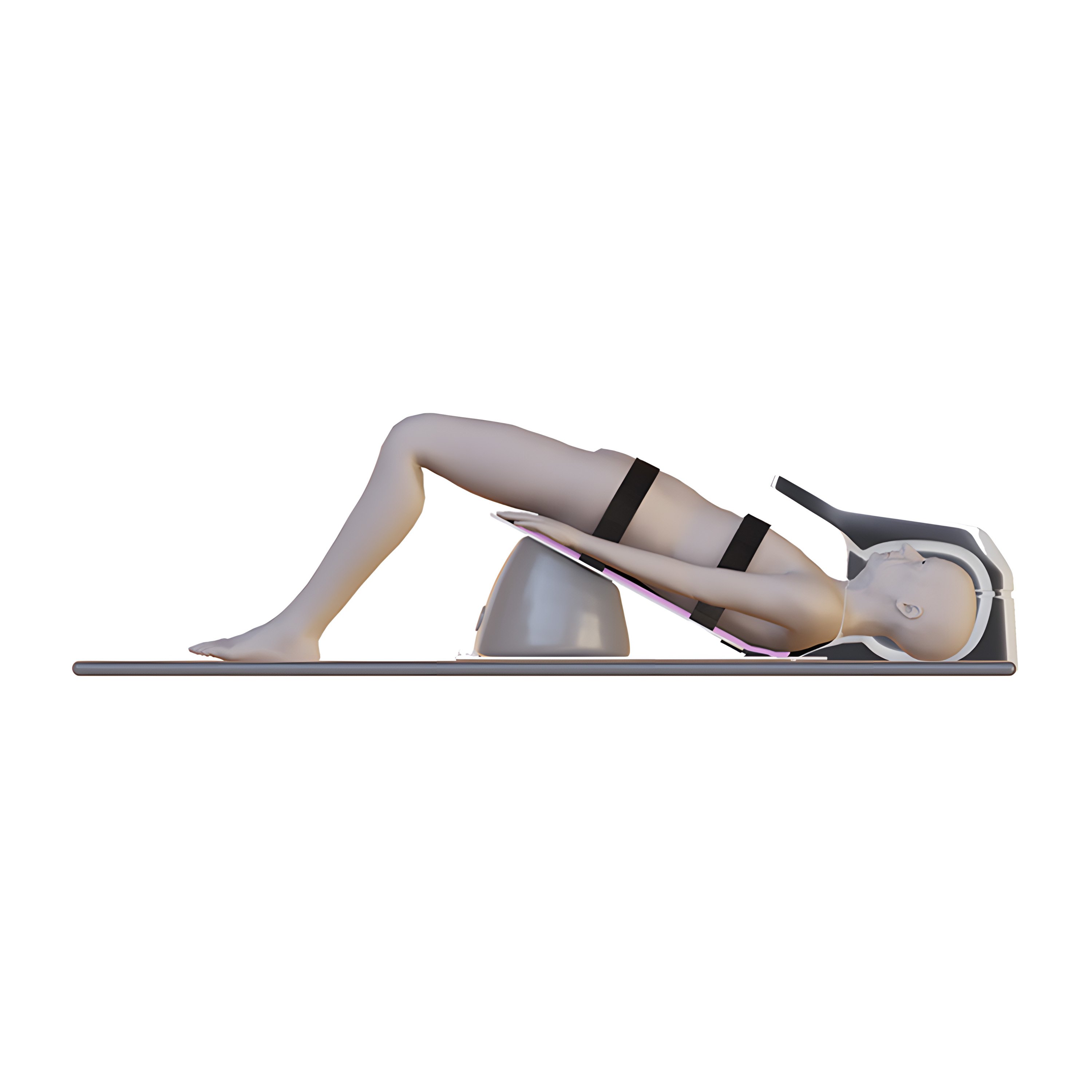

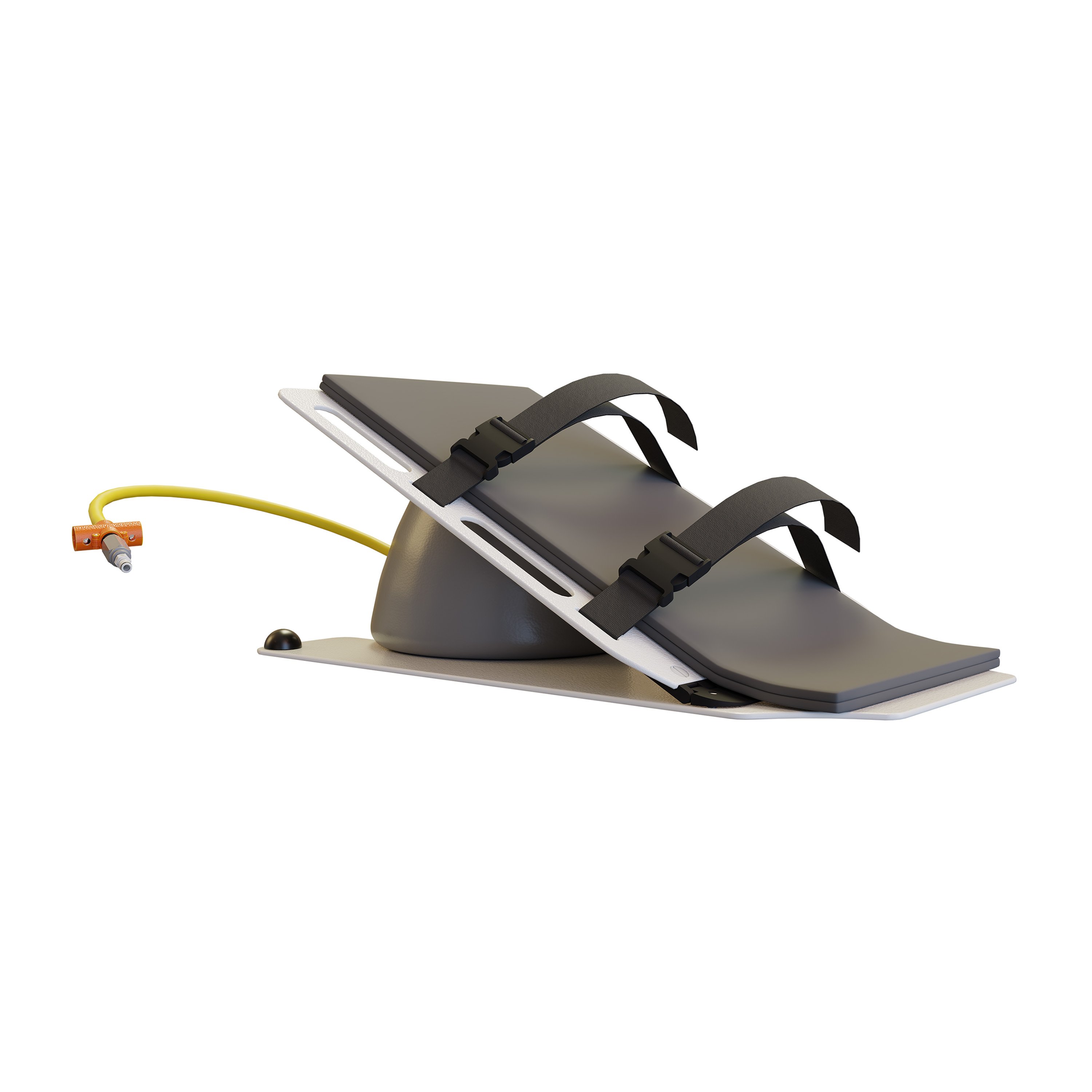

KyphoLift™ Complete System

The KyphoLift™ Complete System redefines MRI workflow with an inflatable positioning system that elevates patients safely and efficiently, protecting staff and accelerating throughput.

Features:

• Ensures patient comfort by using stable platforms that keep the patient's center of gravity as close to the imaging table as possible
• Streamlines workflows, eliminates manual lifting, and enables a single technologist to safely manage even the most challenging cases
• Ergonomic, no-lift design reduces staff injuries by lowering physical strain and liability
• Promotes staff safety in settings affected by shortages or on-call coverage
• Ideal for limited-staff or after-hours settings where safety and speed matter most

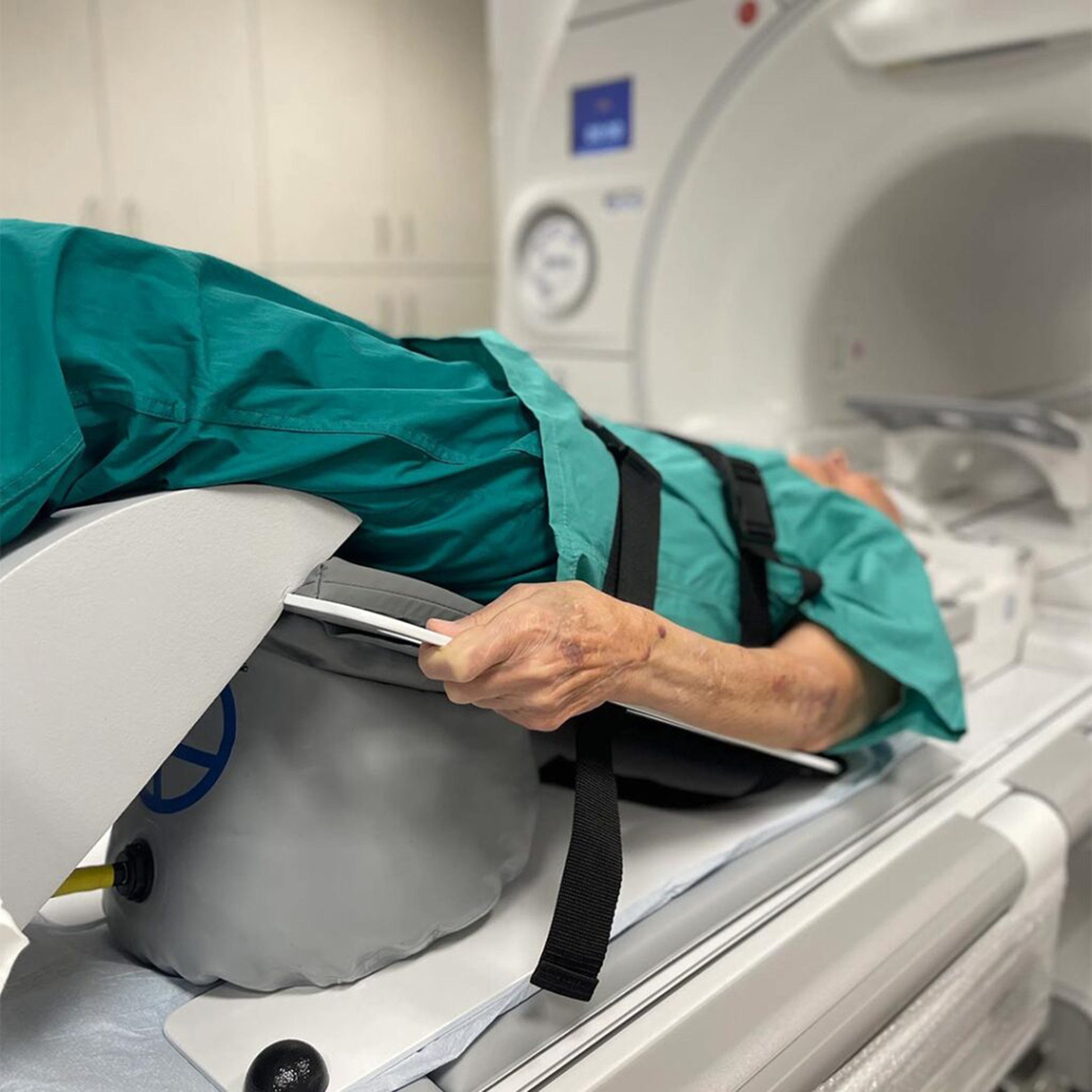

• Safe positioning and stabilization of kyphotic, obese, and mobility-limited patients without manual lifting
• Aligns with the patient-centered care initiatives through tailored support and improved comfort
• Expands access to care by enabling safe imaging for marginalized or mobility-limited patient groups
• Enhances image reproducibility and reduces motion artifact
• Improves scan consistency
• Optimizes value-added time
• Improves throughput efficiency while minimizing appointment delays caused by complex setups or staff availability

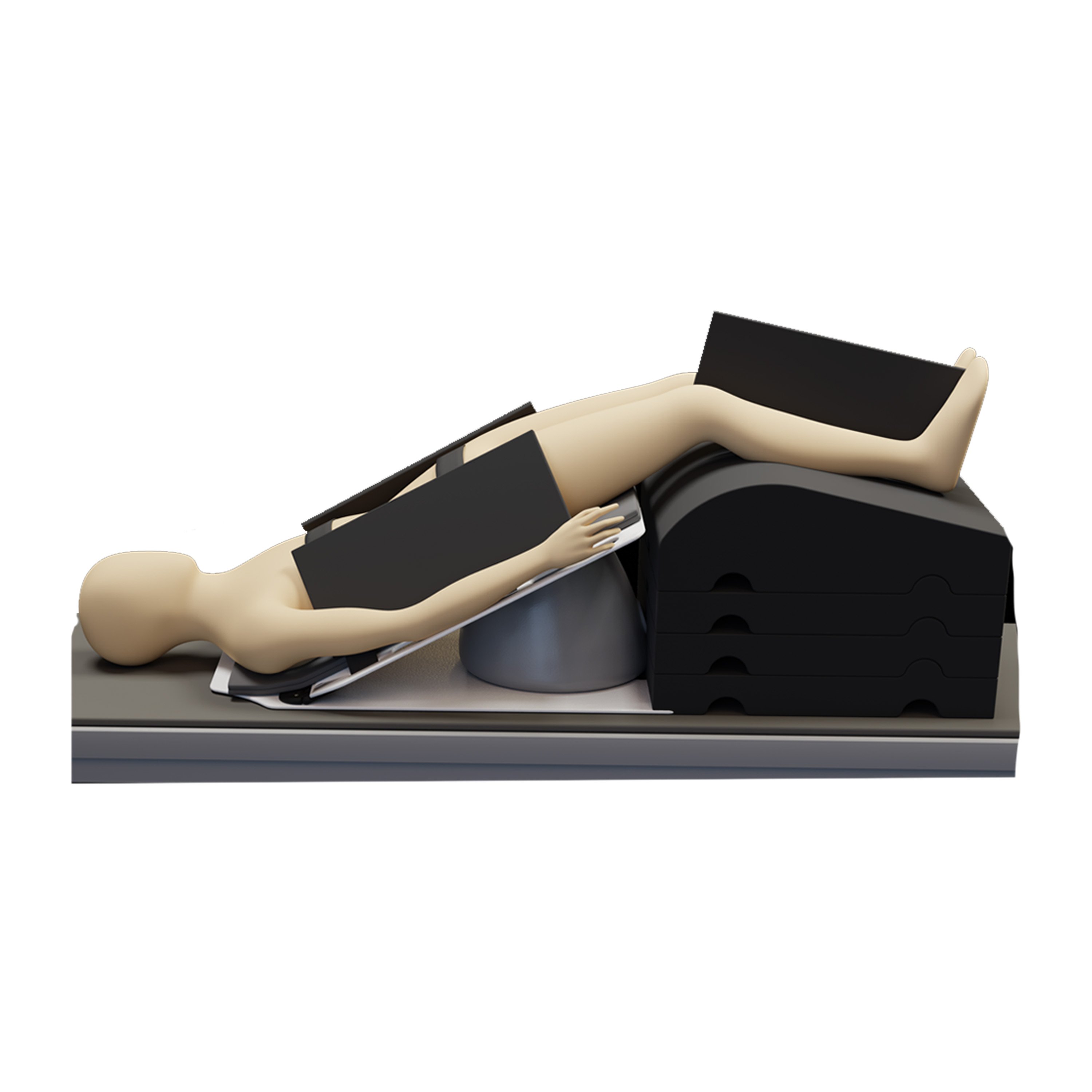

• Designed for seamless integration with KyphoWedge™ or effective use on its own
• Comes Standard with:

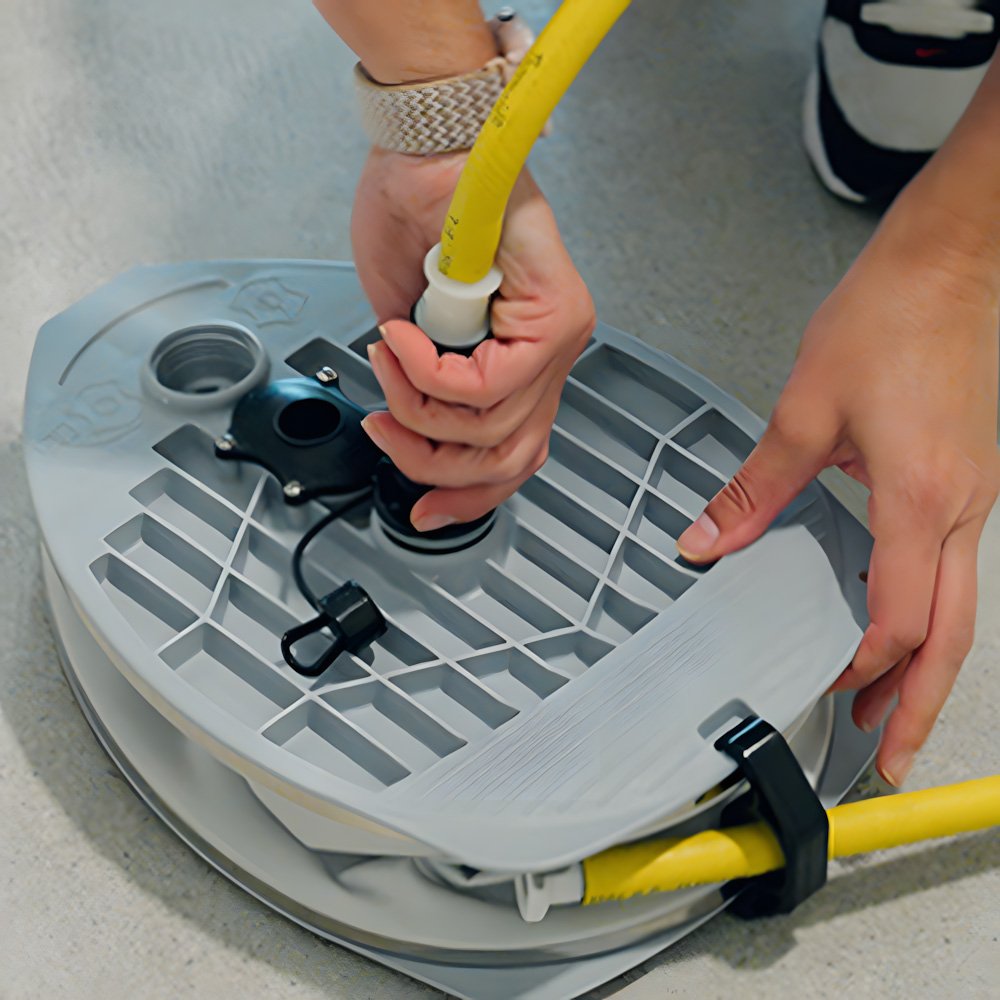

  • Quick-release hose assembly

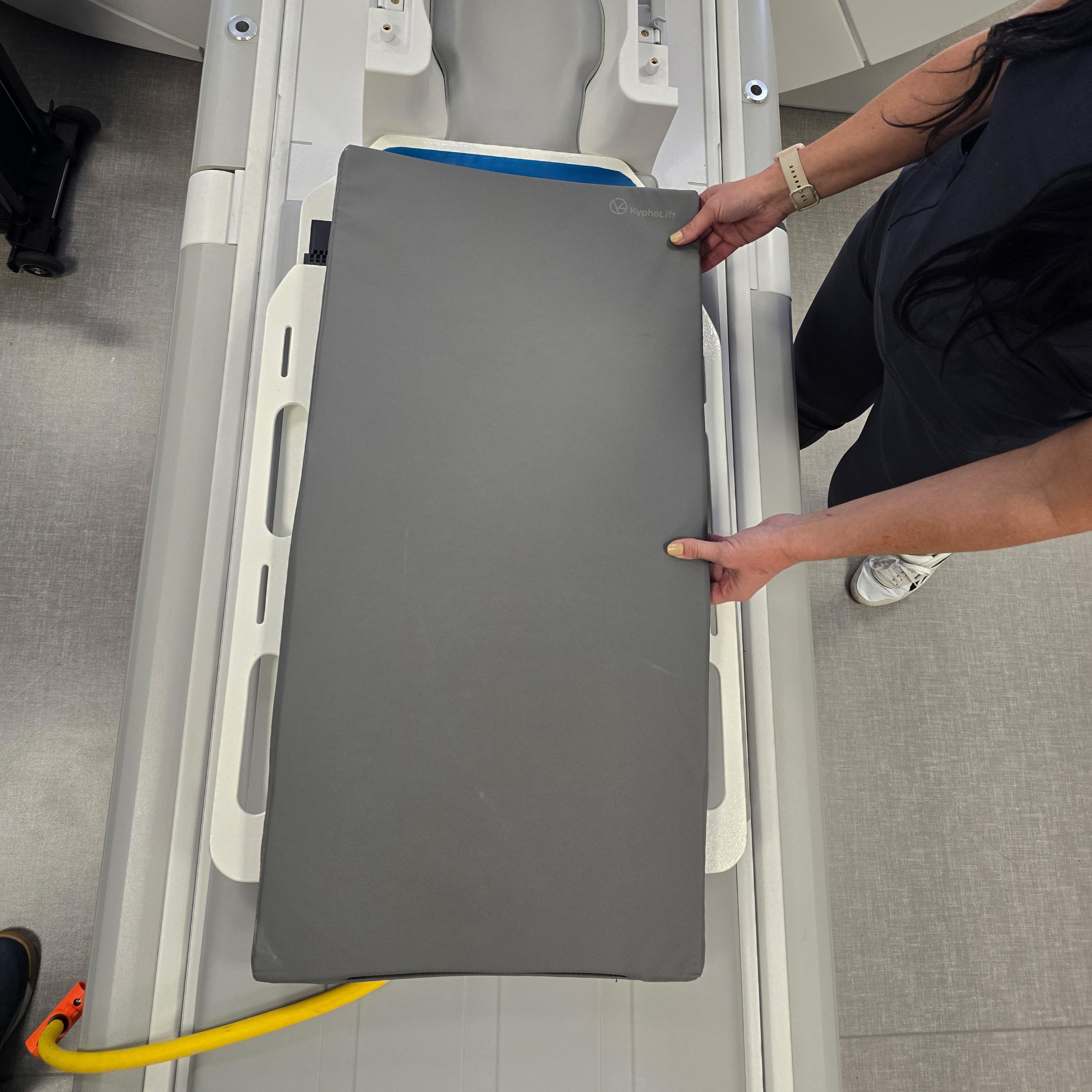

  • Multi-use pad (set of 3)
  • Quick inflate/deflate pneumatic bladder
  • Hands-free foot pump
  • Inclinometer
  • Blue gel substrate

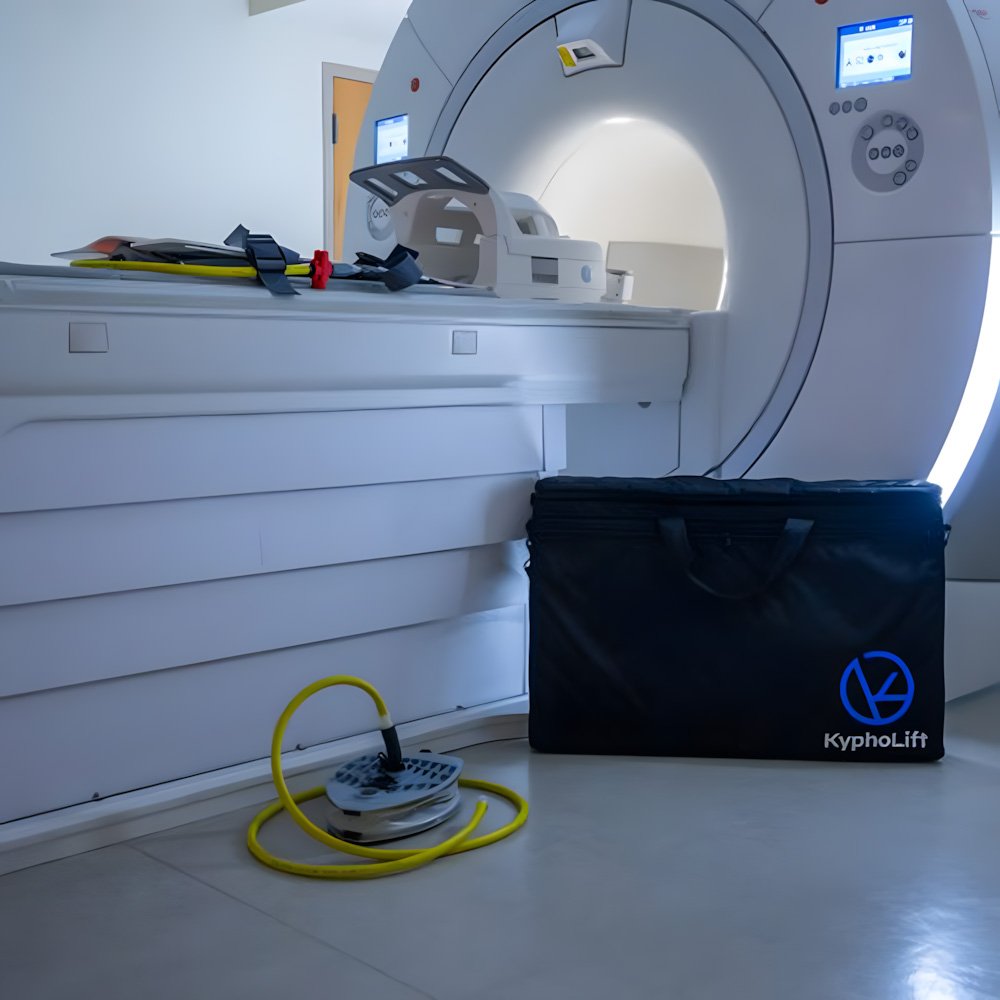

  • Carrying case
  • Instructions for use

Technical Specifications:

• Material:
  • Bladder: Rubber/polyurethane
  • Reusable Pads: Memory foam covered in a polyurethane polyester fabric
  • Platform: G10
• The KyphoLift is Compatible with: This product does have some magnetic materials and has been tested for MR compatibility. This device is MR conditional up to 3.0 Tesla
• The Carrying Case is Compatible with: This product does have some magnetic materials and has been tested for MR compatibility. This carrying case is MR conditional up to 3.0 Tesla, but should remain outside the 200 gauss line
• Storage Temperature: 10°C - 40°C
• Storage Relative Humidity Range: <70%
• Operating Temperature and Operating Relative Humidity Range: This device is intended to be used in a controlled MRI imaging room environment
• Product Dimensions:
  • Bladder Volume (Inflated): .792 ftˆ3
  • Reusable Pads: (1) 32" L x 15.75" W x 1" H and (2) 8" L x 5" W x 1" H
  • Foam: 31" L x 15" W x 0.25" H
  • Platform: 33" L x 21" W x 21" H
• Weight Capacity: 550 lbs
• Warranty Period: 1 Year
• Overall Dimensions: 33" L x 21" W
• Actual Product Weight: 34 lbs

*Please Note: KyphoWedge™ is sold separately.
