Product Description

The Seated Interventional X-ray Barrier allows you to work comfortably in a variety of positions, while standing or sitting. There is a combination of a flexible lead rubber shield that covers your feet and lower body.

  • This barrier allows you to work comfortably, while maintaining 0.5mm lead equivalent X-ray protection
  • Barrier may be rotated vertically 360 degrees and has a flexible velcro attached lead rubber shield that is 14" wide
  • The clear lead acrylic barrier measures 31.5" W x 23.6" H less the cutout areas (80 cm W x 60 cm H)
  • The lower lead rubber shield is 25.60" W x 35" H (65 cm. W x 89 cm H)
  • Mobile and moves easily
  • May also be locked in position with its locking casters

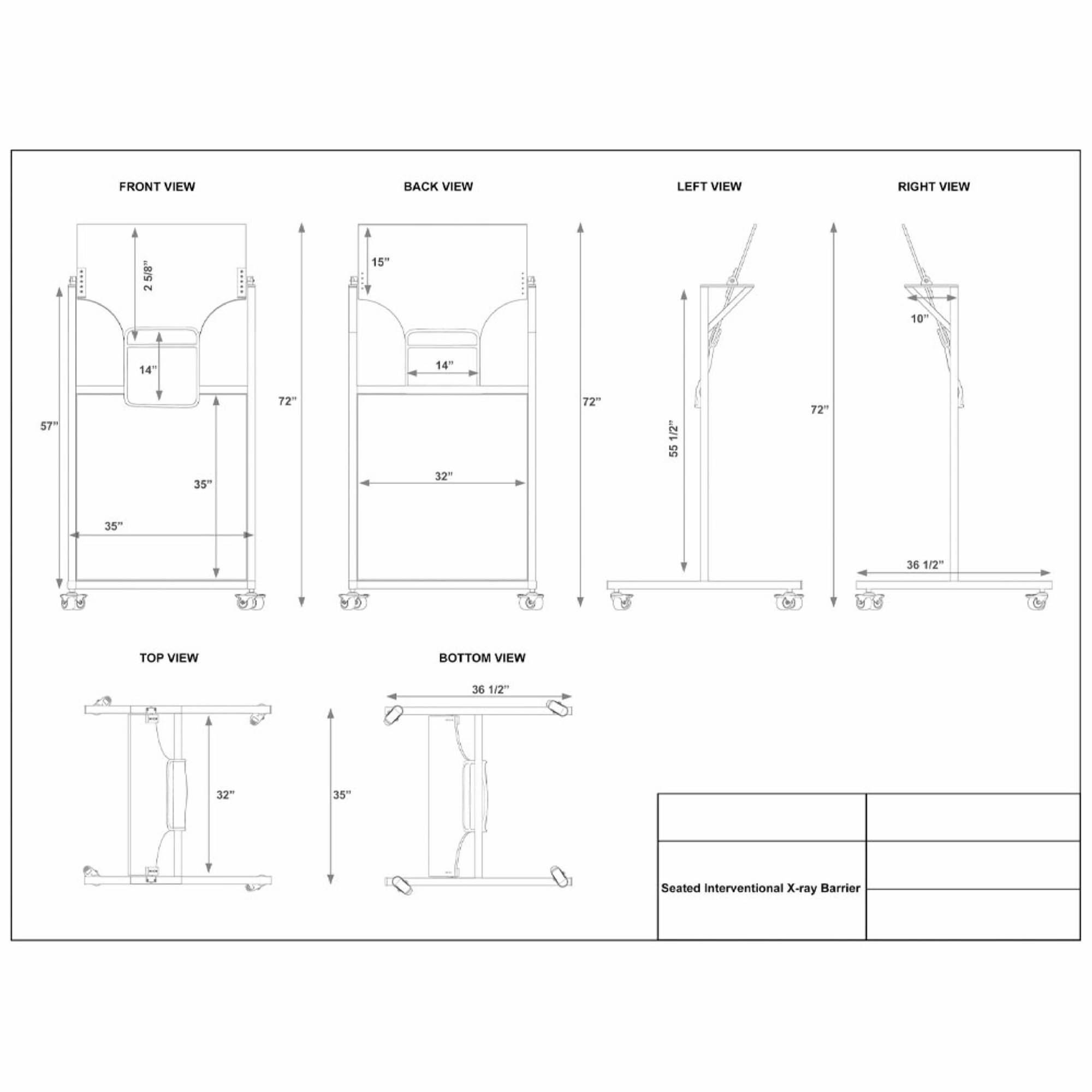

  • Overall Dimensions: 72" H x 35" W x 36.50" L
  • Latex-Free
  • 1-year warranty

About this Brand

Specifications

Specifications
Manufacturer Phillips Safety Products
Country of Manufacture United States
Item Ships From New Jersey
Actual Product Weight 105 Lbs
Overall Height 72"
Overall Length 36.50"
Overall Width 35"
Latex Free Yes

Instructions

WARRANTY: All Phillips Safety lead barriers are fully guaranteed against manufacturer defects (material and workmanship) for 1 year from the date of purchase. This does not cover negligent use of the product. Phillips-Safety will repair or replace any defective merchandise at no charge. All shipping charges remain payable by the purchaser.



CLEANING:

    • Glass Leaded Barrier: Window is made with high lead oxide content glass; the surface is susceptible to scratches and attack by acids and alkalis. Use only water, non-abrasive cleaning agents and a soft cloth. Always dry the glass. Barrier frame may be cleaned with any non-Ammonia based or non-chlorine based cleaner. Any neutral based disinfecting product may be used for disinfecting if necessary. Products such as Neutral Q, Century Q, DC Gold etc. DO NOT USE Ammonia, Bleach or other Acid or Alkali based cleaners.
    • Acrylic Leaded Barrier: Use only clear water and mild non-abrasive detergent solution. Avoid any cleaning products with ammonia, ketones, halogens, window cleaners, kitchen scouring compounds, aromatics and solvents such as thinners, acetone, gasoline, benzene and tetrachloride. Any cleaner that is abrasive should be avoided. For disinfection or to remove adhesives, a 70% alcohol solution, followed by rinsing with clear water may be used.



STORAGE: When not in use, barrier should be stored in area free of loose objects that may accidentally fall and break glass. Caster should be locked to prevent unintentional movement. Normal room temperature and low relative humidity is ideal.



MAINTENANCE: Examine barrier frequently. If window become pitted, chipped or in other ways damaged cease use immediately and contact your distributor for instructions. No end user maintenance required or recommended other than cleaning.



RECYCLING: Leaded glass contains 70% lead oxide, frames are powder coated steel and a small amount of plastic. Frames can be recycled with normal metal or plastic. Windows should be sent to an approved lead recycling facility or may be returned to the manufacturer for appropriate disposal.

Freight Shipping

Please Note: This item ships via motor freight carrier. Shipping fees often have to be re-quoted when purchasing this item. Our website estimates freight charges based on delivery to a location with a truck height dock. Examples of additional services include liftgate service, inside delivery, call ahead service, or limited access. If you would like to know the total delivery charges in advance of placing an order, we recommend requesting a quote for this item prior to placing your order. At quote or order submission, please make note of your receiving hours and specific delivery needs. Customer Service will reach out to you if additional details are needed. If you have questions about the motor freight delivery process please contact Customer Service.

Returns

This item cannot be returned as it is made to order.
