Product Description

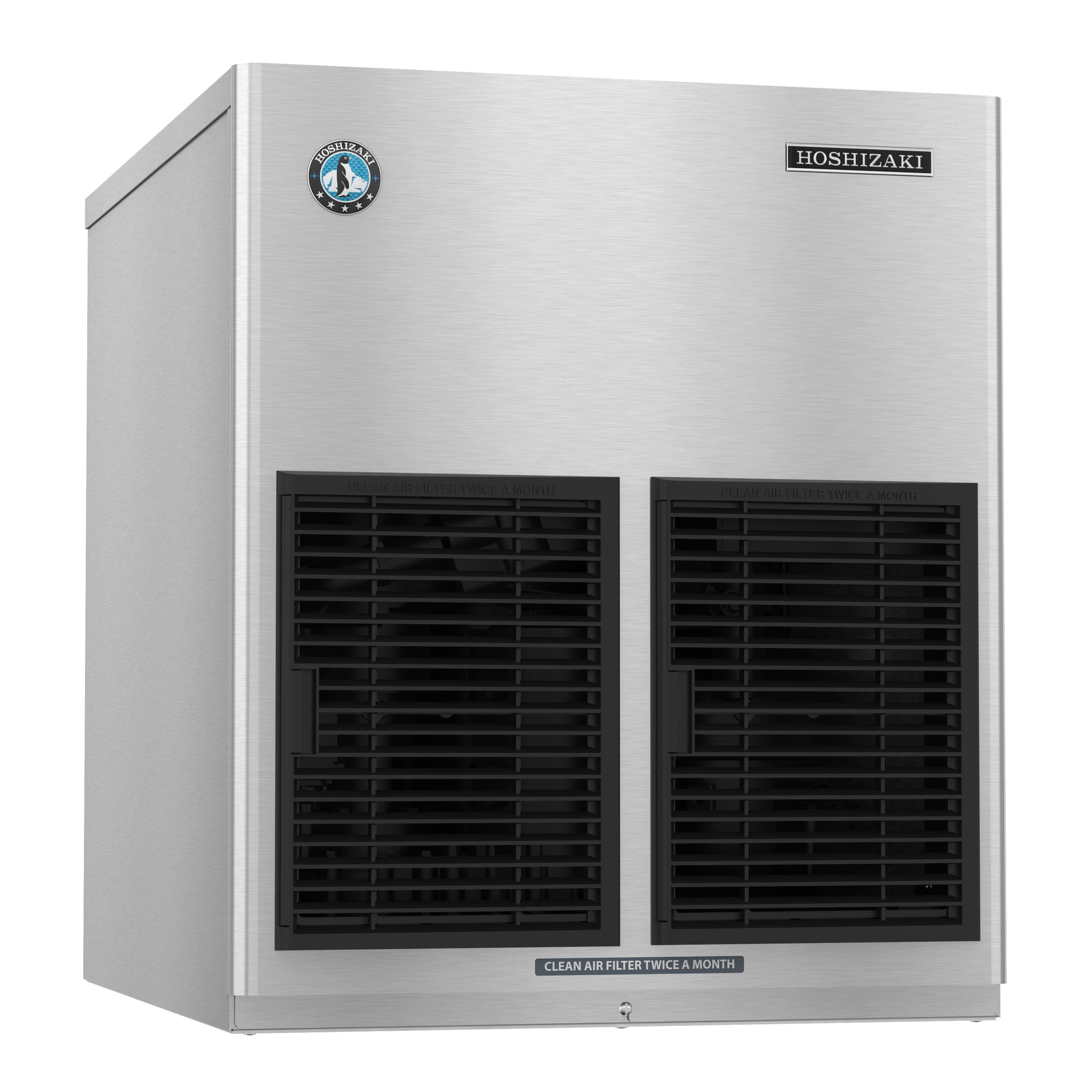

The Hoshizaki Slim-Line Series Water-Cooled Modular Flaker Ice Machine produces up to 955 lbs of flaked ice per day for applications requiring long-lasting sanitary ice.

Features:

The Advanced CleanCycle24™ design automatically performs a two-second purge every hour to clean itself
Flush cycle removes sediment for cleaner ice
Infrared bin control for easy cleaning and reliability
Clean ice and easy maintenance lead to longer unit life span
Stainless steel auger with greaseless bearing for easy maintenance
Mount two units, side-by-side, in only 44” W of floor space for double the amount of ice production
Durable stainless steel exterior
Must be hardwired at the site; no cord and plug included
Compatible Ice Storage Bins (Sold Separately):
- B-250SF, B-300SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, and B-1300SS
- Two Unit Application Only: B-1500SS and B-1650SS
Certifications:
- AHRI Certified
- NSF Certified
- UL Listed

Technical Specifications:

Ice Production per 24 Hours:
- At 70°F Air / 50°F Water Temperature: 955 lbs
- At 90°F Air / 70°F Water Temperature: 833 lbs
Cooling Type: Water-Cooled
Ice Type: Flaked Ice
Refrigerant: R-404A
Refrigerant Charge Amount: 12.30 oz
Heat Rejection: 8,200 BTU/hour
Operating Limits:
- Ambient Temperature: 45-100°F
- Water Temperature: 45-90°F
- Water Pressure: 10-113 PSIG
- Voltage: 104-127V
Utility Consumption at 90°F Air / 70°F Water Temperature
- Potable Water Usage: 12 gal per 100 lbs of Ice
- Condenser Water Usage: 110 gal per 100 lbs of Ice
- kWh Used: 3.57 kWh per 100 lbs of Ice
Electrical Voltage: 115V / 60 Hz / Single-Phase
Max Fuse/HACR Breaker: 20 A
Amperage: 13.73 A
Circuit Wires (Including Ground): 3

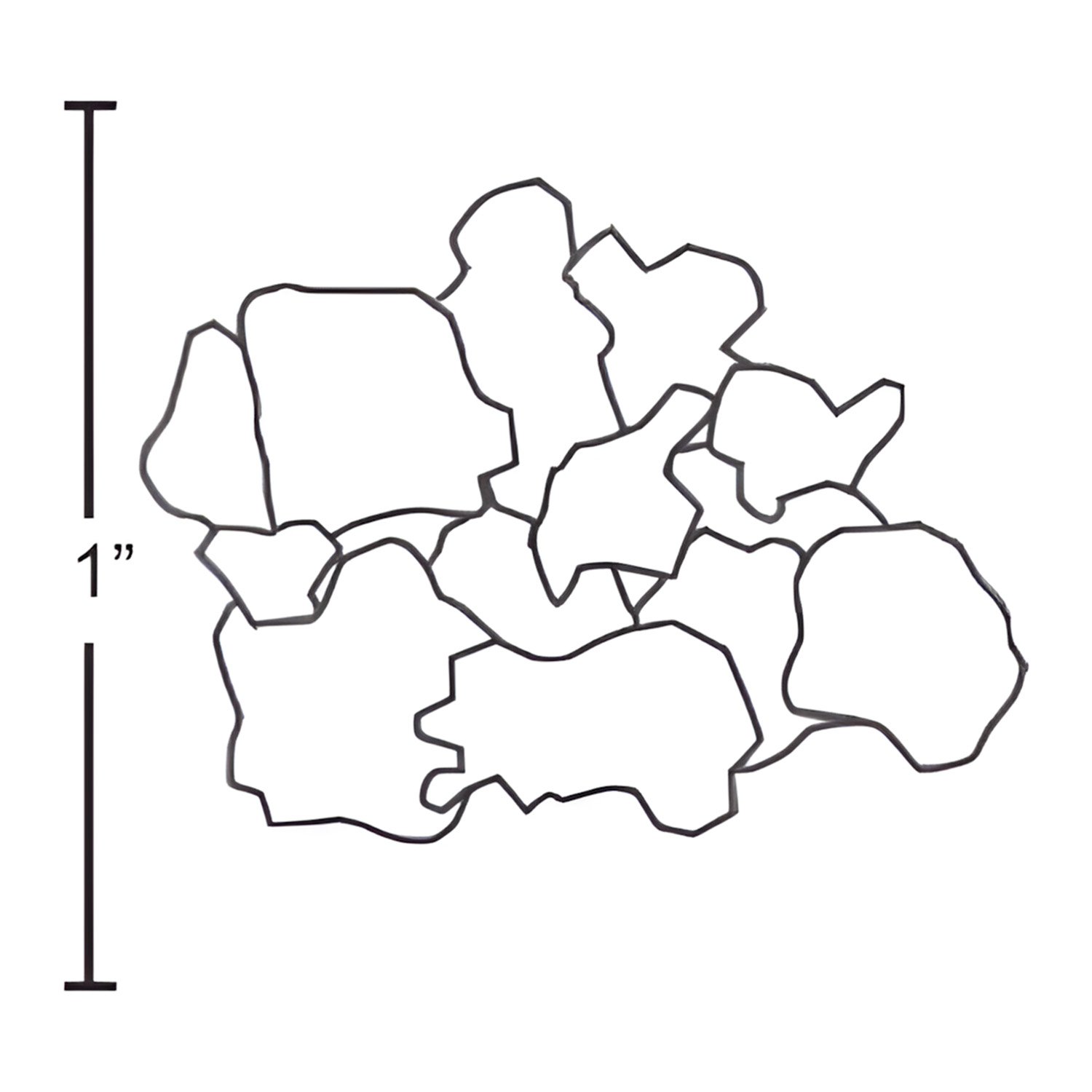

Approximate Flaked Ice Height: 1"
Overall Dimensions: 22" W x 27.38" D x 25.94" H
Warranty: 3 Years Parts and Labor

Please note: The ice storage bin and glass are not included.
