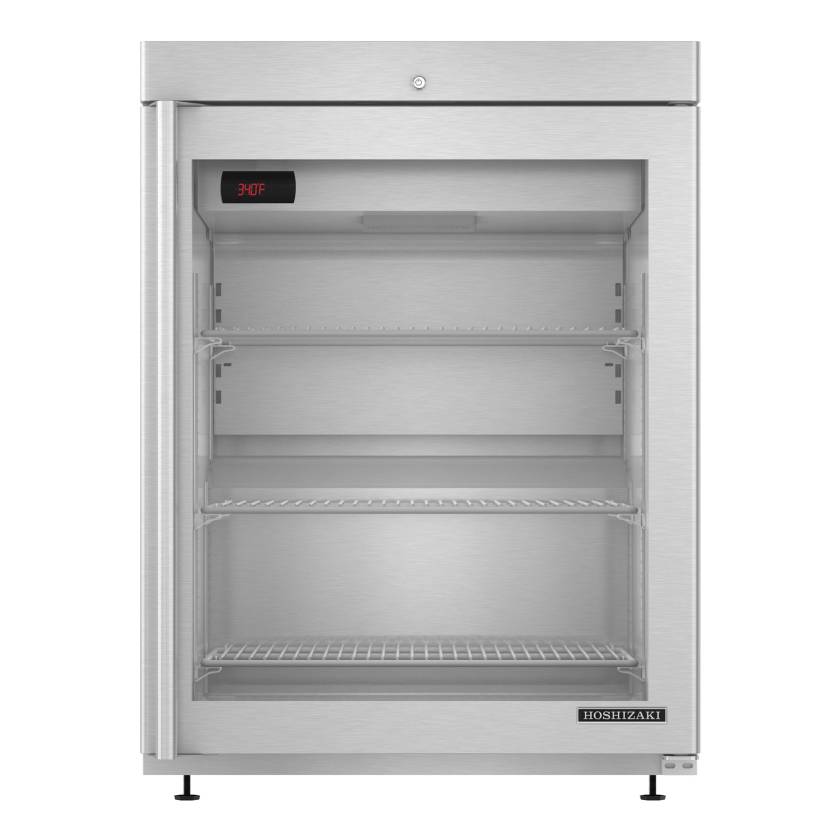

Hoshizaki HR Series Single-Section Undercounter Refrigerator with 3 Wire Shelves, Glass Door - 3.87 Cubic Feet
Usually Ships in 5-7 Business Days
In stock
Product Description
The Hoshizaki HR Series Single-Section Undercounter Refrigerator with 3 Wire Shelves, Glass Door - 3.87 Cubic Feet is a space-saving refrigeration solution that provides secure storage for perishable goods in a compact footprint. It features simple electronic controls with an LED temperature display, stainless steel construction, and various certifications.
Features:
- Audio/visual alarm
- High and low temperature alarms as well as “Door Open” alarm
- ADA-compliant height, under 32″ tall
- Field-reversible door with lock (no kit required)
- Full door-length stainless steel door handle
- Magnetic door gasket is easily removable for cleaning
- Stainless steel interior and exterior (front, sides, top) with Stainless door and aluminum interior
- Insulated with environmentally friendly insulation
- 3 Epoxy-coated wire shelves adjustable in 1-1/2″ increments on built-in ABS supports
- Automatic time-initiated heated defrost
- Allows you the convenience of refrigeration in just about any setting
- Cooled with earth-friendly R-600a refrigerant, it operates at the peak of efficiency
- Uses a front vent airflow, so it requires no clearance for side air circulation
- It can fit seamlessly into tight areas
- Standard with (4) 0.50” built-in adjustable legs
- 9 ft. cord and plug
- Certifications:
- UL EPH Listed
- UL Listed
- ADA Compliant
Technical Specifications:
- Capacity: 3.87 Cubic Feet
- Sections: Single-Section
- Shelf Type: Epoxy-coated Adjustable Wire
- Shelf Quantity: 3
- Door: Glass Door
- Electrical Voltage: 115 V / 60 Hz / Single-Phase
- HACR Breaker: 15 A
- Electrical Connection: NEMA 5-15P
- Voltage Range: 115-127 V
- Ambient Temperature Range: 45°F to 100°F
- Control Setpoint Range: 34°F to 52°F
- Amperage: 1.1 A
- Energy Consumption @ ASHRAE: 0.64 kWh/day
- Heat Rejection @NSF: 648 BTU/hr
- Compressor: 1/8 HP
- Approximate Nominal Compressor Capacity: 501 BTU/hr
- Refrigerant: R600a (0.9 oz)
- Cord and Plug Length: 9' L
- Shelf Dimensions:
- (1) 18.50" W x 17" D
- (2) 18.50" W x 12" D
- Depth with Door Open at 90º: 46.70” D
- Overall Dimensions: 23.40" W x 24.70″ D x 31.50" H
Note: If a GFCI is required, a GFCI breaker must be used in lieu of a GFCI receptacle.
Specifications
| Manufacturer | Hoshizaki America |
|---|---|
| Latex Free | Yes |
| Overall Height | 31.50″ |
| Overall Width | 23.40″ |
| Overall Depth | 24.70″ |
| Door Style | Glass |
| Country of Manufacture | United States |
| Item Ships From | California |
Literature
Instructions
Warranty: Hoshizaki products are warranted to the original owner/user to be free from defects in materials and workmanship under normal use and proper maintenance. Warranty coverage varies by product and may include parts, labor, and other major components for specified warranty periods. Compressor warranty coverage, where applicable, varies by product. Warranty does not cover improper installation, misuse, abuse, neglect, unauthorized modifications, electrical or plumbing issues, adverse operating conditions, or failure to perform the required cleaning and maintenance outlined in the product documentation.
For Complete Warranty Details, please see the literature above.
Freight Shipping
Please Note: This item ships via motor freight carrier. Shipping fees often have to be re-quoted when purchasing this item. Our website estimates freight charges based on delivery to a location with a truck height dock. Examples of additional services include liftgate service, inside delivery, call ahead service, or limited access. If you would like to know the total delivery charges in advance of placing an order, we recommend requesting a quote for this item prior to placing your order. At quote or order submission, please make note of your receiving hours and specific delivery needs. Customer Service will reach out to you if additional details are needed. If you have questions about the motor freight delivery process please contact Customer Service.
Returns
Products must be returned in unused, resalable condition with the original packaging. To return this item you must contact Customer Service within 14 days of receipt to obtain a valid Return Authorization Number. Restocking fees may apply at the discretion of the manufacturer. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
