Product Description

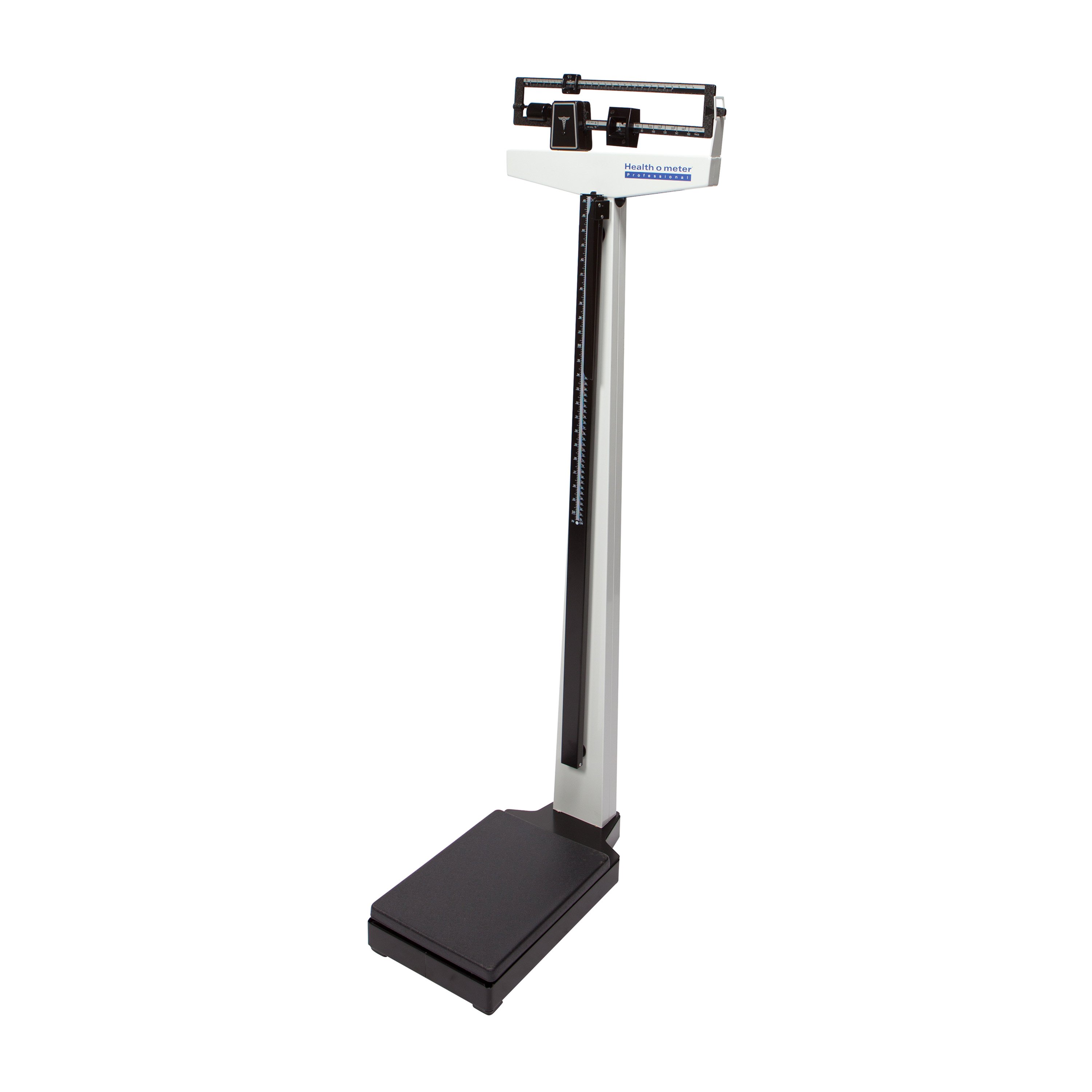

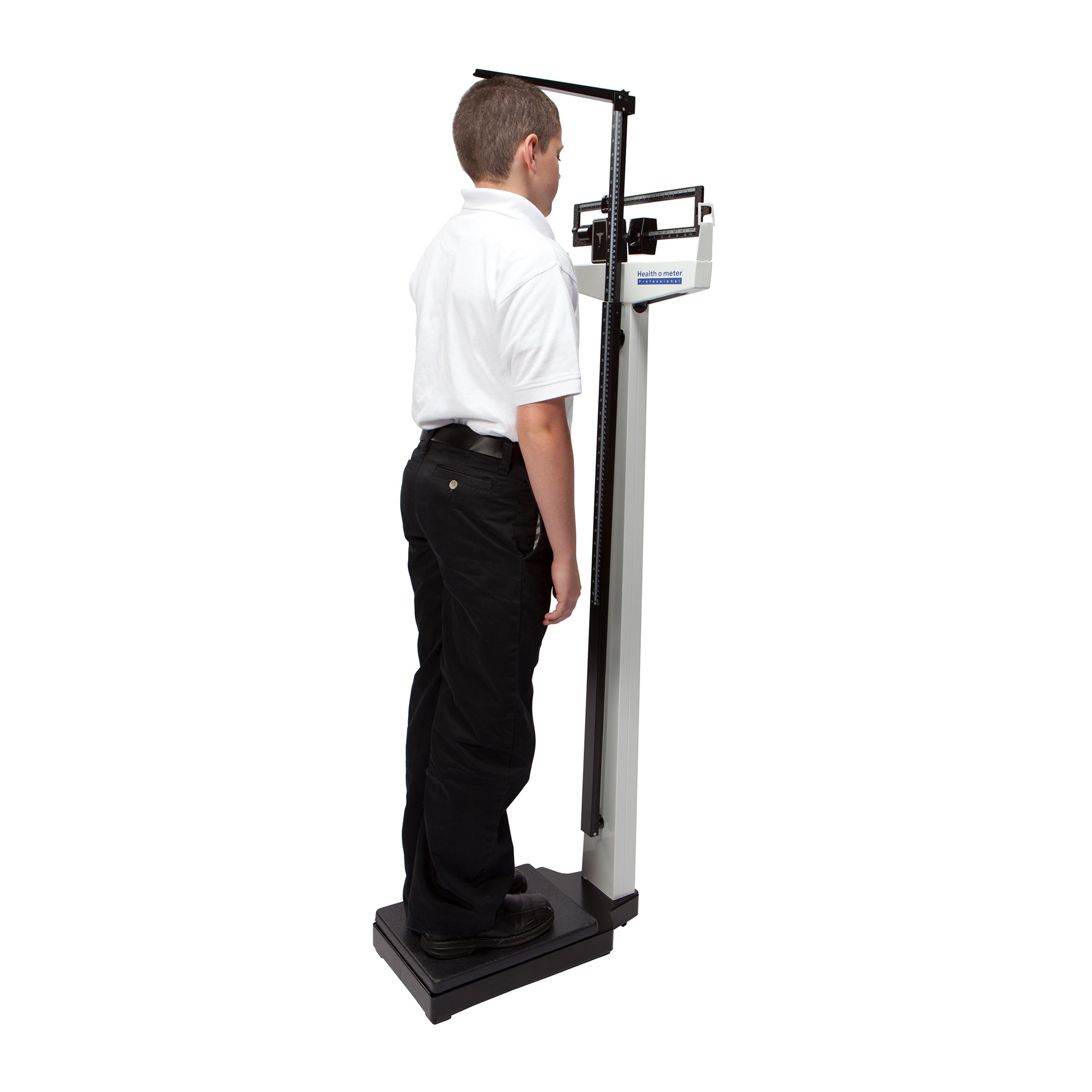

The Health o Meter Mechanical Beam Scale with Height Rod employs a proven and rugged mechanical design to measure patients' weight and height. It is built with a robust steel frame and powder-coated column to prevent rust.

Features:

  • Powder coating inside and out protects it from rust, enhancing the scale's durability
  • Includes a convenient height rod to measure height and weight all in one place
  • Fixed beam: Kilograms and pounds can be read on both sides (except for 402LB and 402LBWH)
  • Exclusive 10-year limited warranty

Technical Specifications:

  • Graduation: 1/4 lbs / 100 g
  • Platform Mat: Non-slip Black
  • Height Rod:
    • Measuring Range: 11 7/8" - 84" / 30 cm - 213 cm
    • Graduation: 1/8" x 1 mm
    • Overall Dimension: 13 1/2" W x 1 1/2" D x 80 1/4" H
  • Platform Size: 10 1/2" W x 14" D x 3 1/4" H
  • Overall Dimensions: 10 1/2" W x 20 1/4" D x 57 1/2" H
  • Actual Product Weight: 28 lbs (Scale and Height Rod Only)
SKU Configuration Weight Capacity
402KL Kilograms and Pounds, Scale Only 390 lbs / 180 kg
402KLCW Kilograms and Pounds, Scale with Counter Weight 490 lbs / 210 kg
402KLWH Kilograms and Pounds, Scale with Wheel Bracket 390 lbs / 180 kg
402KLWHCW Kilograms and Pounds, Scale with Wheel Bracket and Counter Weight 490 lbs / 210 kg
402LB Pounds, Scale Only 400 lbs
402LBWH Pounds, Scale with Wheel Bracket 400 lbs

About this Brand

Specifications

Specifications
Manufacturer Pelstar LLC
Overall Height 57 1/2"
Overall Width 10 1/2"
Overall Depth 20 1/4"
Country of Manufacture China
Item Ships From Illinois

Literature

pdf
(Size: 211.3 KB)
pdf
(Size: 1 MB)

Instructions

Warranty: Health o meter® Professional scales are warranted from the date of purchase against defects of materials or in workmanship for a period of time (see product instruction manual for the warranty period). Your warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, abuse including tampering, damage in transit, or unauthorized repair or alternations. If the manufacturer determines that a defect of material or workmanship exists, a customer’s sole remedy will be the replacement of scale at no charge. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. All parts including replaced parts are covered only for the original warranty period.
