The Harloff SCSS8044DREDP-DSS3316 SureDry High Volume 16-Scope Capacity Drying Cabinet is the industries most spacious scope cabinet, allowing for easy hanging and retrieval of all scope types. Perfect for busy units with high traffic and frequent scope changeouts, this cabinet has a wider profile, greater cabinet depth and increased spacing between scope holders for easy in or out.

This High Volume Endoscope Drying Cabinet with Dri-Scope Aid® features an external HEPA filtered positive pressure drying system and a Dri-Scope Aid® system that supplies HEPA-filtered air to all internal channels. This combination provides facilities with the assurance that they will be able to meet all current and anticipated future guidelines for external and internal drying of endoscopes, providing their patients the best possible assurance of infection prevention.

  • The industry best external HEPA filtered positive pressure drying system with three intake fans, two exhaust fans, and an easy to replace filter system! Meets or exceeds current AORN, SGNA and AAMI Guidelines.

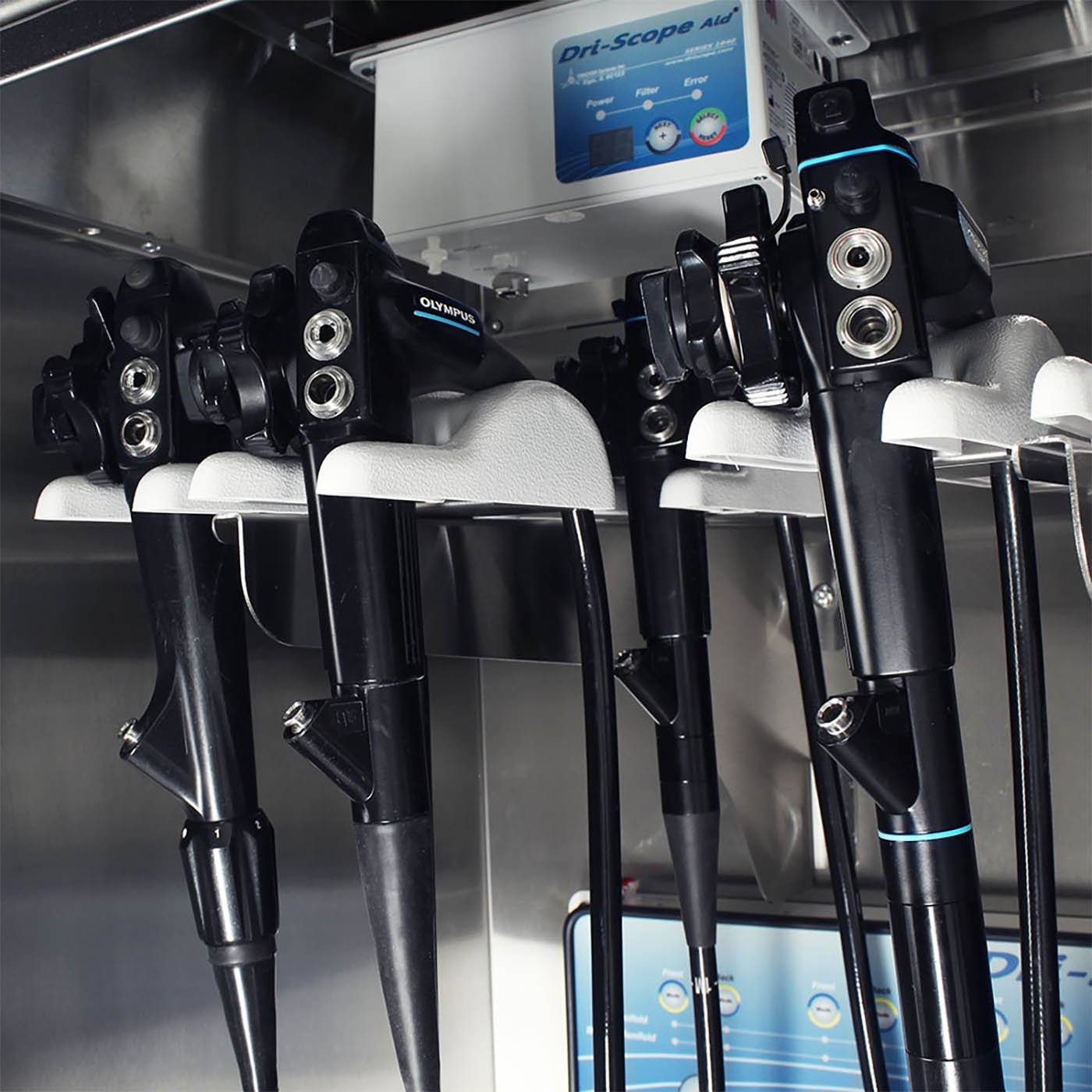

  • Dri-Scope Aid® is the industry leading internal lumen drying system. The Dri-Scope Aid® Cabinet supplies HEPA-filtered air to all internal channels to aid in drying endoscopes with an automated drying cycle for improved turn-around time, and a continuous venting cycle for overnight storage. The Dri-Scope Aid® system in the SureDry Scope Cabinets provides a complete drying system for your facility.

Dri-Scope Aid® Features & Benefits:

  • Constant Flow - Consistent Pressure - Repeatable Results
  • Significantly improves drying of internal channels
  • HEPA filter offers a 99.97% retention rate of particles that have a size > 0.3μm
  • Provides constant air delivery through all internal endoscope channels
  • Short drying cycle for quick turn-around time
  • Continuous venting cycle for overnight storage
  • Automatic high-pressure shutoff
  • Fulfills forced air recommendations
  • Self-adjusting high-pressure regulation

Dri-Scope Aid® Ease of Operation:

  • Hands-free operation
  • Visual display of purging times
  • Simple to attach, disposable, individual scope connectors meet SGNA and AORN guidelines (Sold Separately)
  • Works with all major endoscope brands
  • Filter replacement indicator light
  • Dries 1 to 16 endoscopes

Scope Cabinet Features:

  • Industries most spacious scope cabinet allows for easy hanging and retrieval of all scope types
  • Positive pressure fully redundant fan system
  • Industries only medical drying cabinet with 3 intake fans and 2 exhaust fans
  • Fan run time is fully adjustable and activated each time cabinet is closed
  • HEPA filter removes 99.7% of particulates, 0.03 Microns
  • Replaceable HEPA Filter system without removal of scopes
  • Holds 16 scopes with secure adjustable mounting system
  • Medical grade electrical system
  • Easy to clean removable drip tray
  • Tempered glass double doors
  • Basic Electronic Push Button lock
    • Key lock override
    • Cabinet may be programmed in the field
    • Membrane keypad with pass/fail and low battery light indicators
    • Up to 75,000 cycles before power depletion with standard batteries
    • Batteries are changed externally using a tamper-proof screw
    • 20 user codes available, up to 19 users and 1 supervisor
    • Factory set 1 user code and 1 supervisor code
  • Stainless Steel is commonly used in the manufacturing of medical devices due to its rust and corrosion resistance, anti-bacterial properties and ease of cleaning and sterilization
  • Cabinets are delivered fully assembled
  • Twelve (12) year warranty on manufactured parts
  • One (1) year warranty on any bought-out (not fabricated or manufactured by Harloff) part or component (i.e. hardware, casters, drawer slides, plastic tops, electronic components, etc.)
  • Overall Dimensions: 93" H x 44" W x 24" D
  • Images shown with endoscopes - not included
  • Scope Connectors and tubing are sold separately by Dri-Scope Aid® to ensure you receive the proper accessories for use with your specific endoscope brand and model(s)

About this Brand

Specifications

Specifications
Manufacturer Harloff
Latex Free Yes
Actual Product Weight 518 lbs
Overall Height 93"
Overall Length 24"
Overall Width 44"
Cabinet Capacity 16 Scopes
Material Stainless Steel
Door Style Double
Lock Type Digital Keypad
Country of Manufacture United States
Item Ships From Colorado
