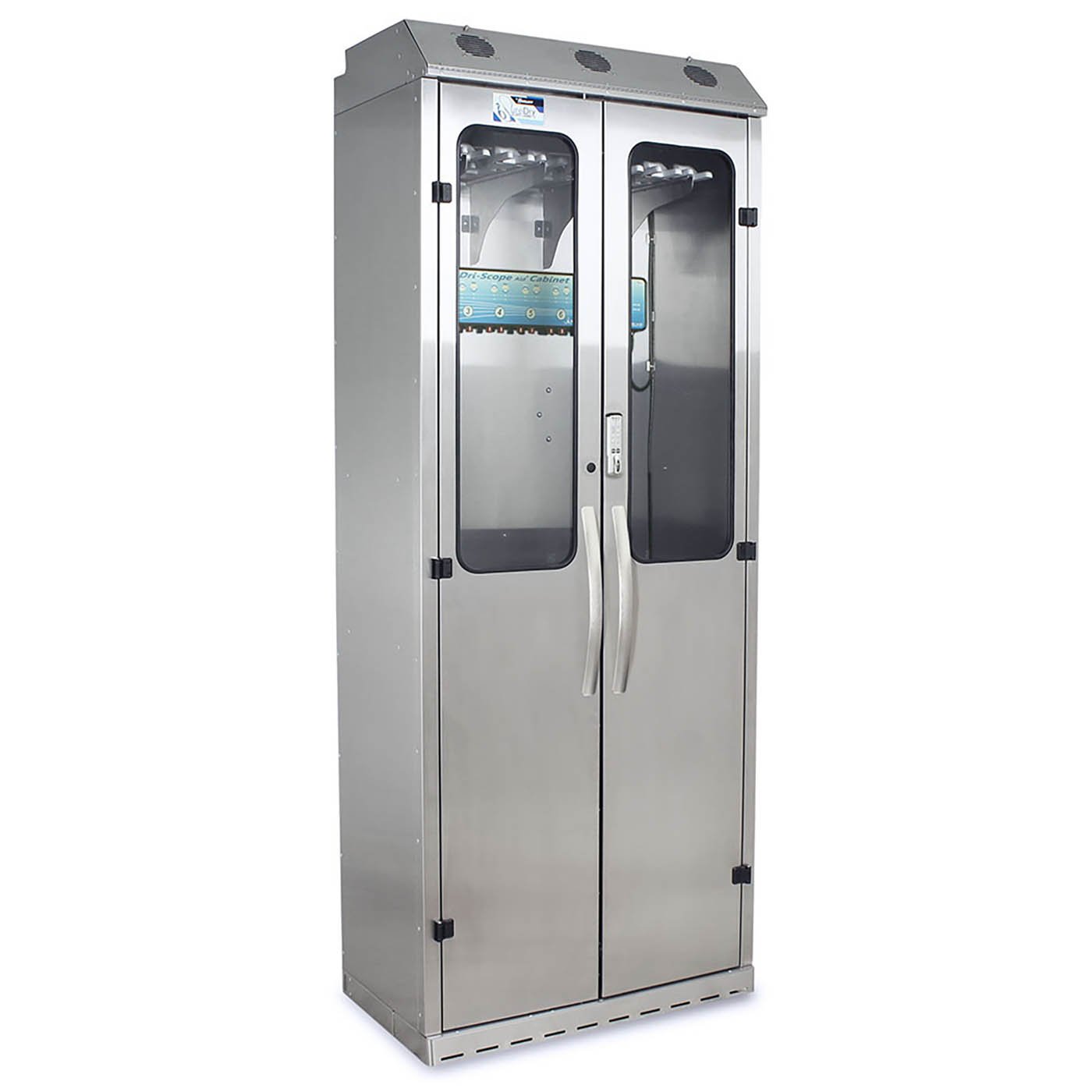

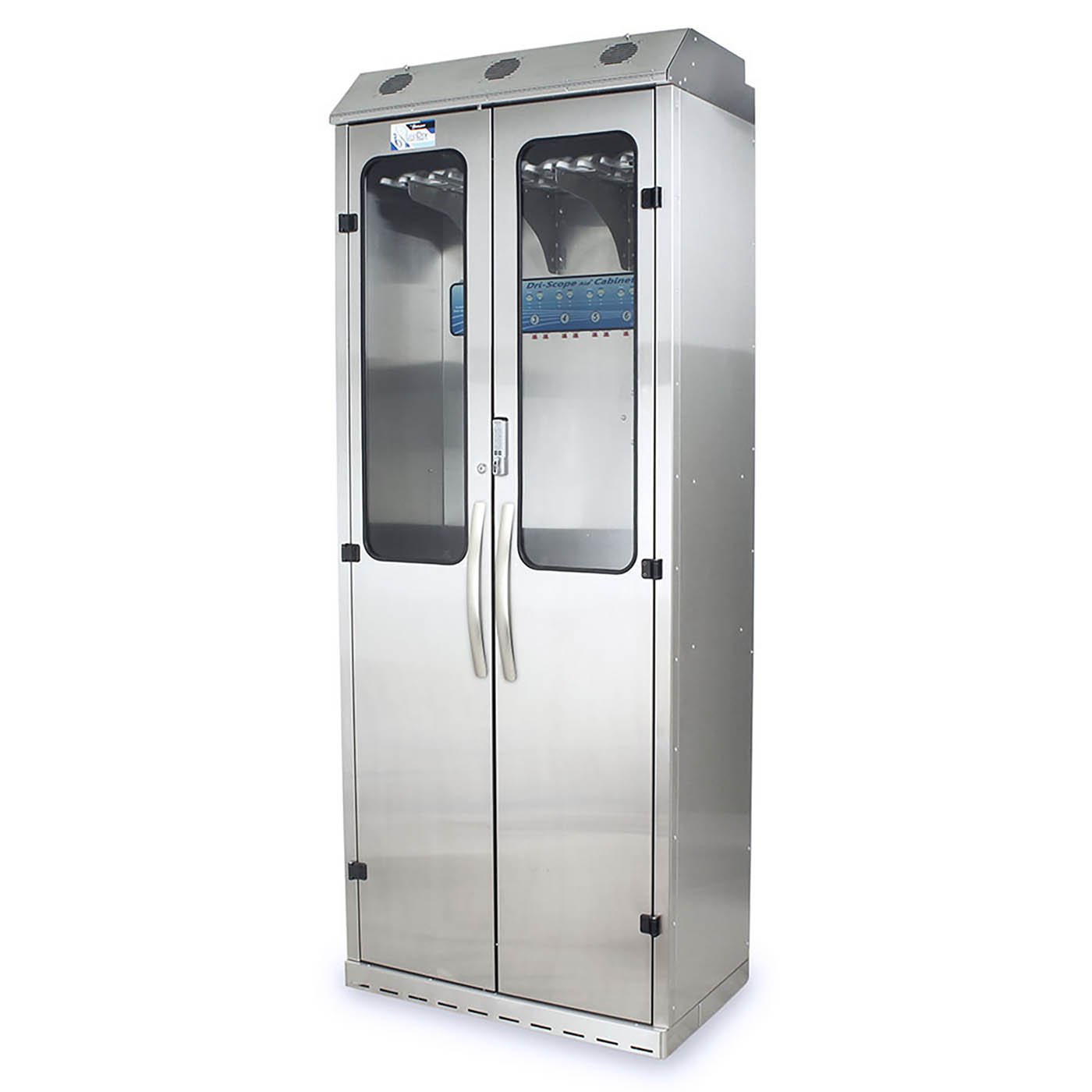

The Harloff Model SCSS8036DREDP-14-DSS3316 SureDry Scope Drying Cabinet with 14-Scope capacity features an external HEPA filtered positive drying system and a Dri-Scope Aid® system that supplies HEPA-filtered air to all internal channels. This combination provides facilities with the assurance that they will be able to meet all current and anticipated future guidelines for external and internal drying of endoscopes, providing their patients the best possible assurance of infection prevention.
The industry best external HEPA filtered positive pressure drying system with three intake fans, two exhaust fans, and an easy to replace filter system! Meets or exceeds current AORN, SGNA and AAMI Guidelines.
Dri-Scope Aid® is the industry leading internal lumen drying system. The Dri-Scope Aid® Cabinet supplies HEPA-filtered air to all internal channels to aid in drying endoscopes with an automated drying cycle for improved turn-around time, and a continuous venting cycle for overnight storage. The Dri-Scope Aid® system in the SureDry Scope Cabinets provides a complete drying system for your facility.
Significantly improves drying of internal channels
HEPA filter offers a 99.97% retention rate of particles that have a size > 0.3μm
Provides constant air delivery through all internal endoscope channels
Short drying cycle for quick turn-around time
Continuous venting cycle for overnight storage
Automatic high-pressure shutoff
Fulfills forced air recommendations
Self-adjusting high-pressure regulation
Dri-Scope Aid® Ease of Operation:
Visual display of purging times
Simple to attach individual scope connectors
Works with all major endoscope brands
Filter replacement indicator light
Disposable connectors to meet SGNA and AORN guidelines
Dries 1 to 14 endoscopes
Scope Cabinet Features:
Possitive pressure fully redundant fan system
Industries only medical unit with 3 intake fans and 2 exhaust fans
Fan run time is fully adjustable and activated each time cabinet is closed
HEPA filter removes 99.7% of particulates, 0.03 Microns
Replaceable HEPA Filter system without removal of scopes
Holds 14, 12, or 8 scopes with secure adjustable mounting system
Medical grade electrical system
Easy to clean removable drip tray
Tempered glass double doors
Basic Electronic Push Button lock
Key lock override
Factory set user and supervisor code
Cabinet may be programmed in the field
Constructed of Stainless Steel
Cabinets are delivered fully assembled
Twelve (12) year limited manufacturers warranty
One (1) year warranty on any bought-out (not fabricated or manufactured by Harloff) part or component (i.e. hardware, casters, drawer slides, plastic tops, electronic components, etc.)
Overall Dimensions: 93" H x 36" W x 24" D

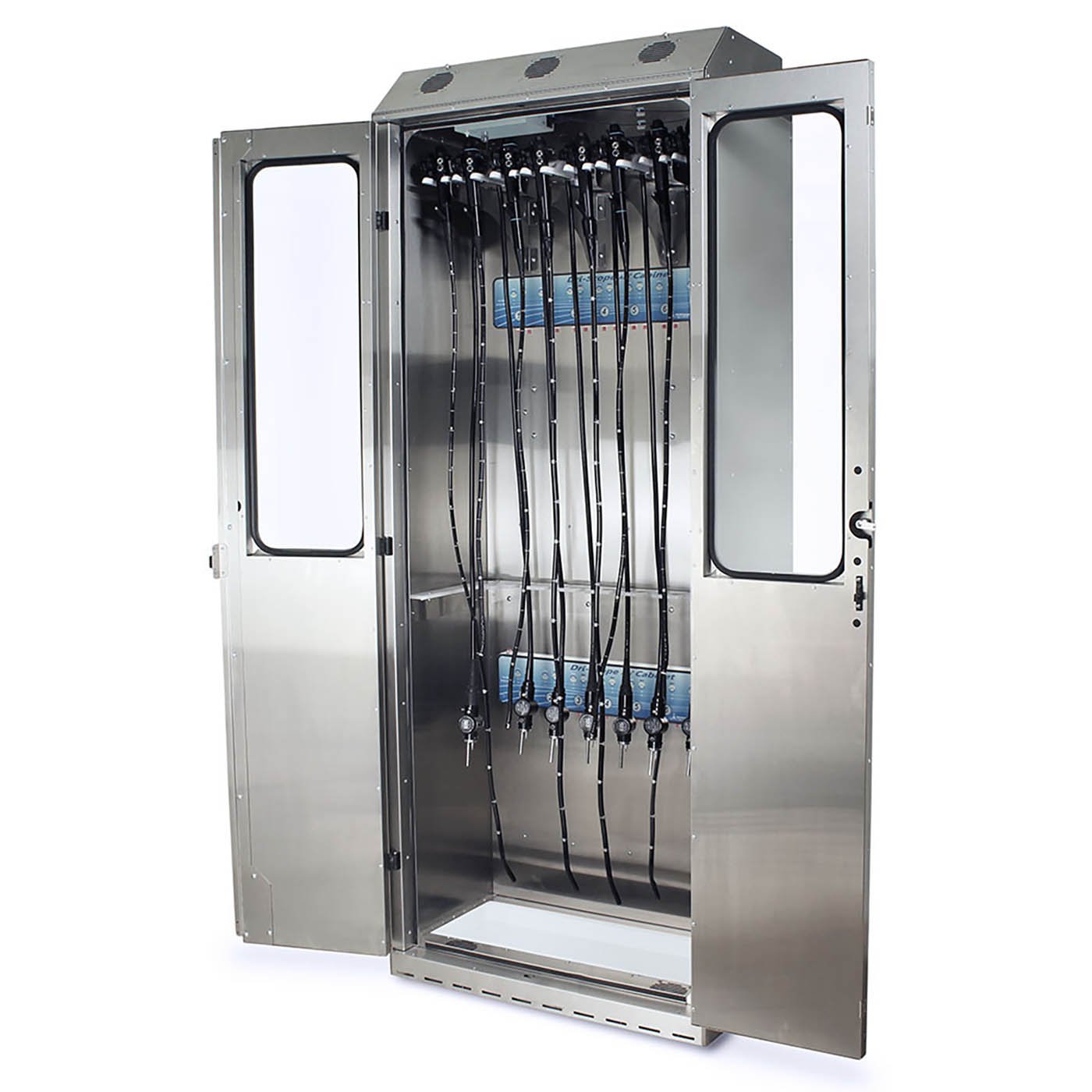

Images shown with endoscopes - not included
