Product Description

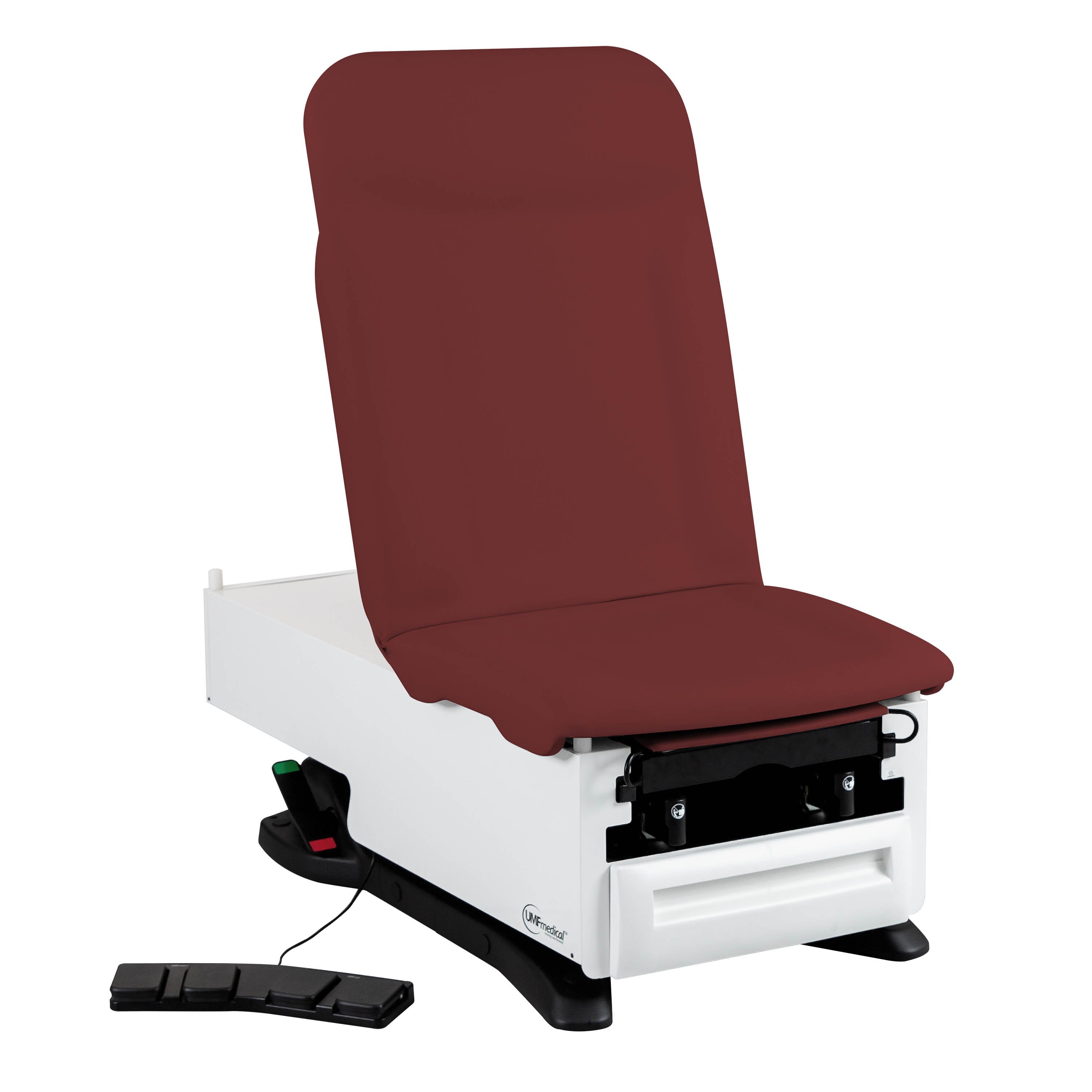

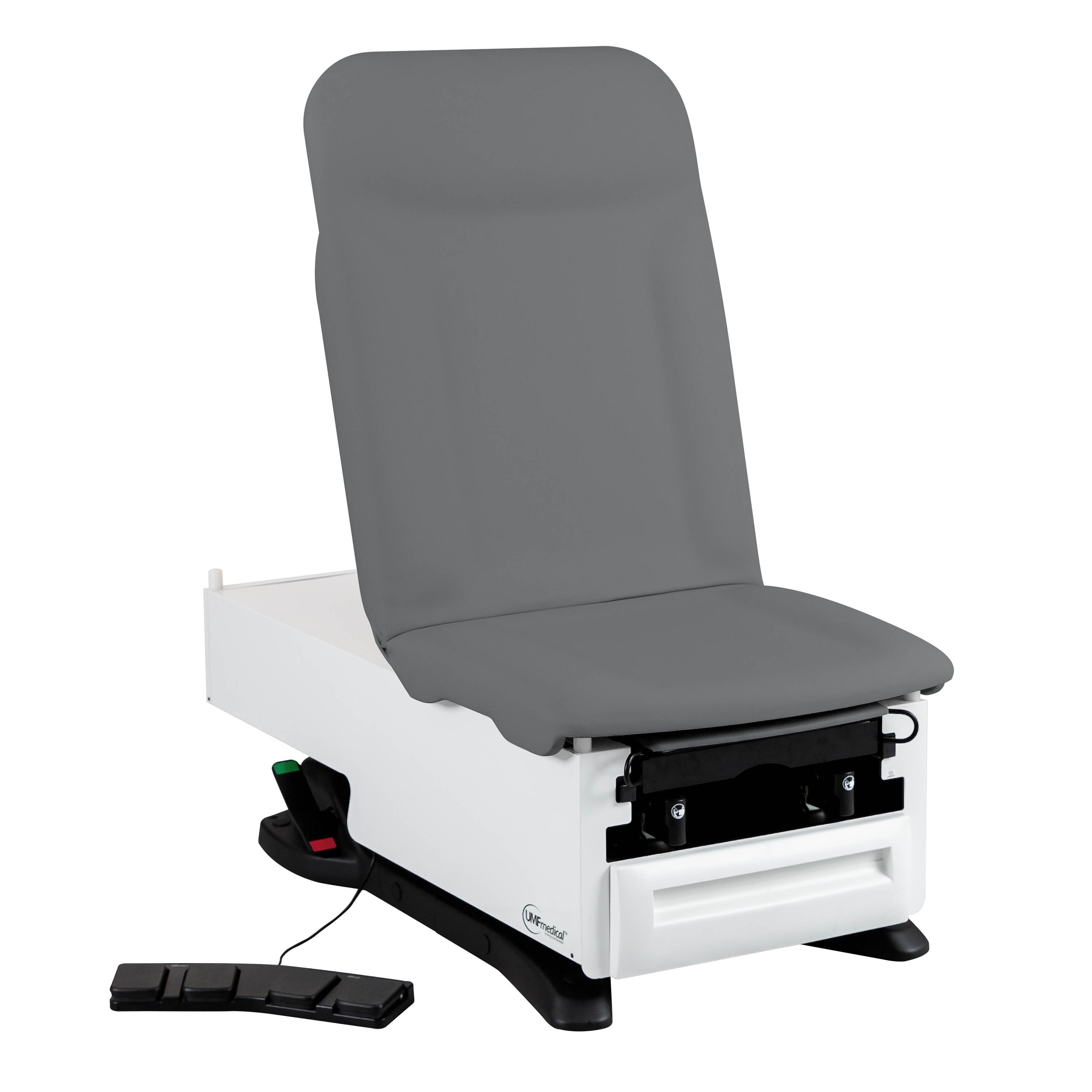

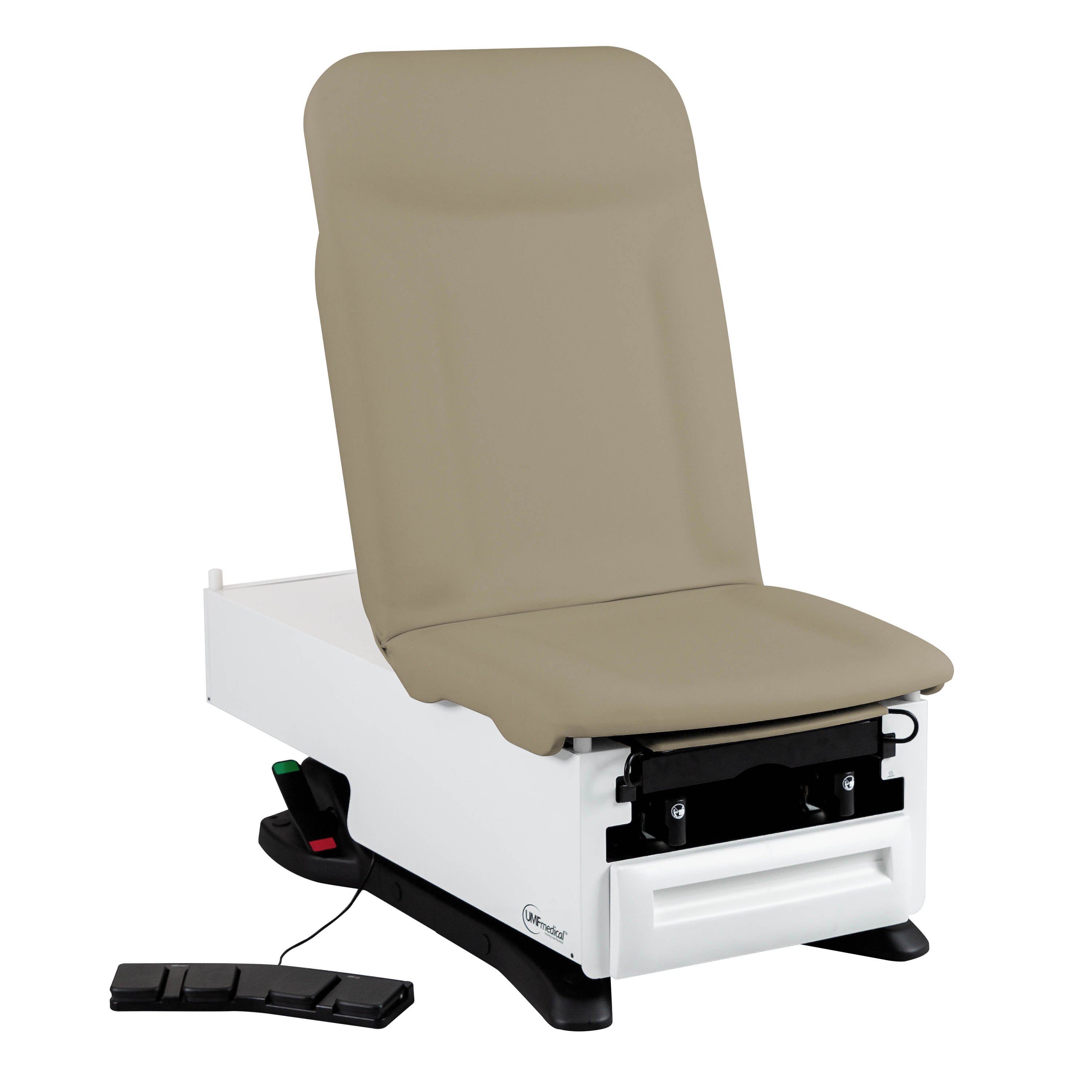

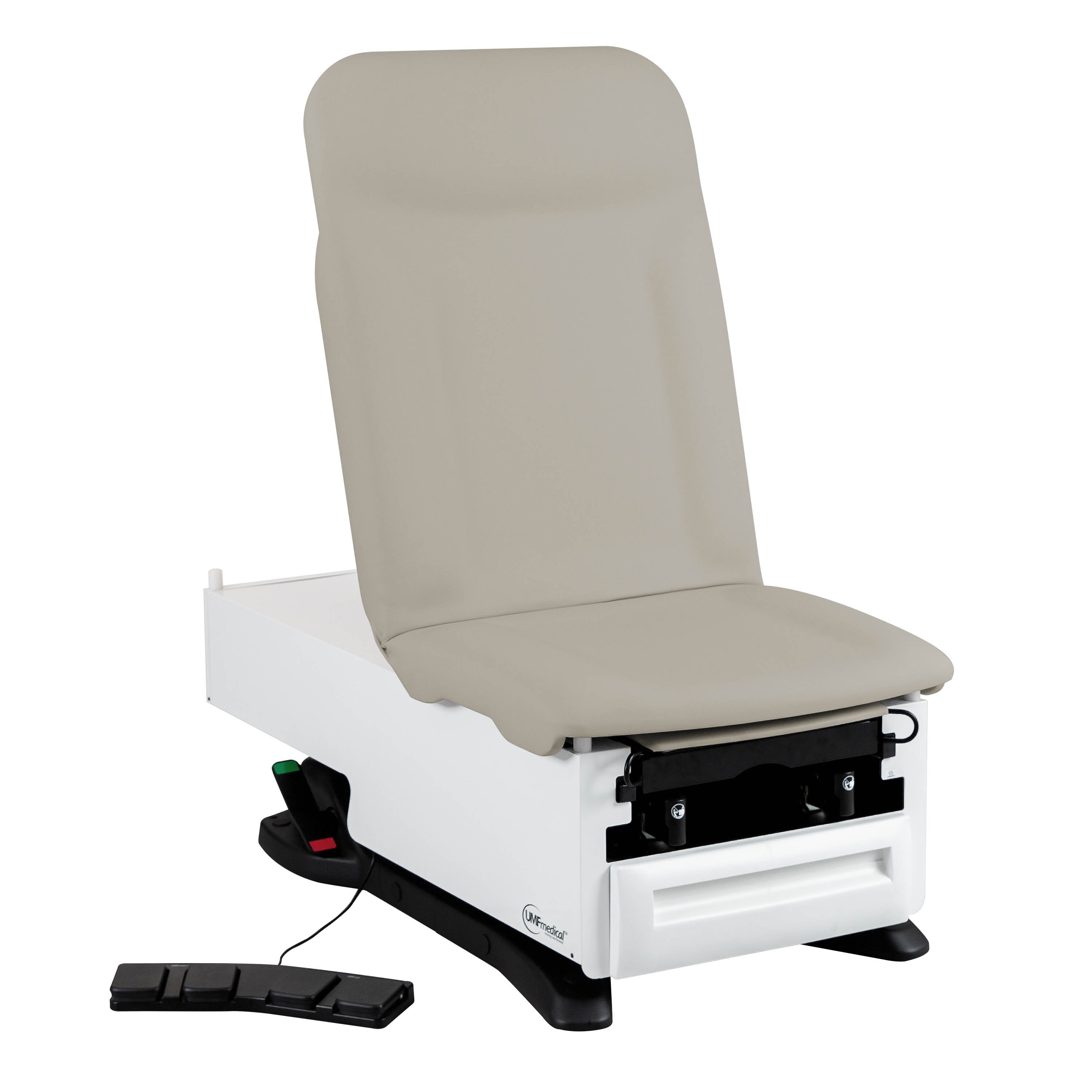

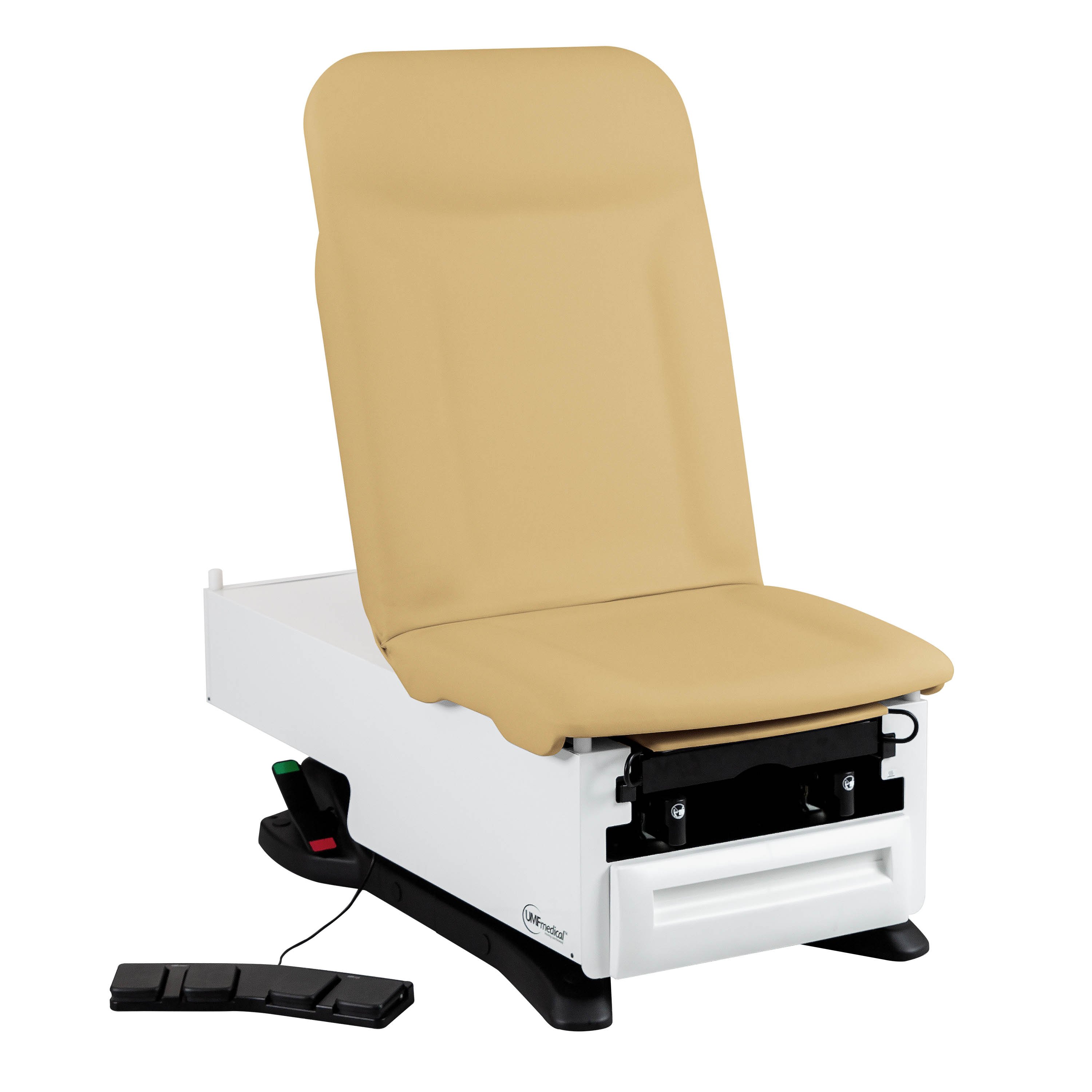

Fusing the accessibility of a power table and the affordability of a fixed-height box table, the FusionONE+™ ProGlide™ Model 3503-500-305 offers the features healthcare providers need most. Featuring a power back, this hi-lo exam table can accommodate multiple specialties. It enables simple ADA access and ease of examination for patients of all ages and abilities. The power backrest makes it easy to lie patients back and sit them up safely and comfortably.

The OneTouch WheelBase® System from UMF Medical makes moving the ProGlide™ Series of products as easy as pushing a pedal. The integrated central-locking wheelbase with an intuitive foot pedal enables staff to move the equipment easily and quickly for cleaning and then lock it solidly into place for exams.

Infection Prevention:

  • OneTouch WheelBase® System
    • Quickly gain access to clean and disinfect under and around the exam table, helping to reduce healthcare-associated infections
    • Conveniently flex room space - no more heavy lifting is needed to move equipment
    • Comfortably accommodate more patients - equipment is easy to move if a patient needs more room to access the exam table
  • Removable, premium seamless upholstered top with PreFixx® Protective Finish
  • Easy-clean powder-coated enamel surfaces

Efficiencies:

  • Contoured Top
  • Pelvic tilt (7°)
  • Foldaway stirrups with four lateral positions and adjustable length
  • Power hi-lo and power backrest
  • Two-function foot control
  • Large front storage drawer
  • 1.5" deep, plastic drain pan
  • 18"-21" paper roll holder
  • Heavy-gauge steel extension leg pull-out to accommodate most patient heights
  • Single-column electro-magnetic actuator

Patient Experience:

  • Drawer Warmer
  • Comfortable front leg cushion

Accessibility:

  • ADA accessible 19"
  • 500 lbs patient weight capacity

Electrical:

  • Hospital-grade electrical receptacle
  • UL60601-1 and CAN/CSA-22.2 No. 601.1 classification

Quality:

  • Durable, galvanized steel construction
  • 3-year limited warranty

Also available: Model 3503-500-300 FusionONE+™ ProGlide™ Power Hi-Lo Power Backrest Exam Table with WheelBase System, Foot Control, Stirrups, Drawer Warmer, Pelvic Tilt & Electrical Receptacle

Upholstery with PreFixx® Protective Finish helps enhance infection prevention initiatives.

  • Non-porous and engineered for repeated cleaning and disinfection
  • Compatible with a broad range of common healthcare cleaners and disinfectants
  • Resists staining, discoloration, damage, scuffs, abrasions and bacteria growth
  • Eco-preferred and does not contain phthalates, fire retardants or antimicrobial additives

Specifications:

FusionONE+™ ProGlide™ Model 3503-500-305
Height min. 19" at seat max. 32"
Width 28"
Length 58"-76" with leg rest extended
Leg Rest 18" W x 18" D
Storage Drawer (Front) 18" W x 12" D x 3" H
Electrical 120 VAC, 10.5 AMP, 50-60 HZ
Weight Capacity 500 lbs
Product Weight 350 lbs


Specifications

Specifications
Manufacturer United Metal Fabricators
Country of Manufacture United States
Item Ships From Pennsylvania
Actual Product Weight 350 lbs
Overall Height 32"
Overall Length 76"
Overall Width 28"
Latex Free Yes
Weight Capacity 500 lbs
