Product Description

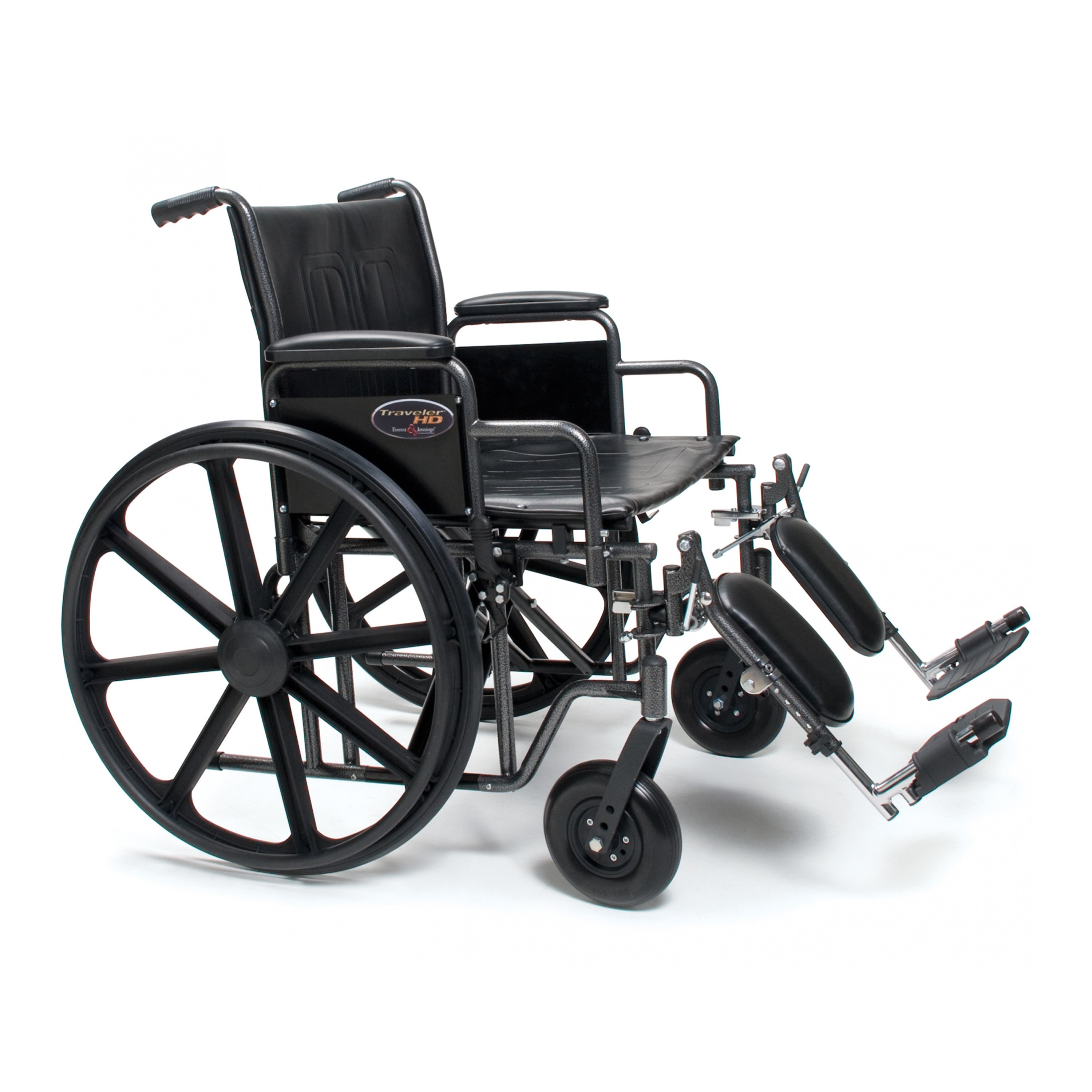

The Everest & Jennings® Traveler® HD Heavy Duty Wheelchair is designed for optimal patient transport as well as hospital and clinical use. It features a reinforced carbon steel frame with double cross braces and reinforcement at all critical load-bearing points, embossed black leatherette upholstery with a double inner lining for durability and support, and multiple seat widths from 20" to 24" with an 18" seat depth - 1" longer than standard to accommodate a large variety of patients.

Features:

  • Carbon steel reinforced frame includes double cross braces, heavy-duty 0.63" diameter axles
  • Embossed black leatherette upholstery with double inner lining for durability, with standard chart pocket on back
  • Hammertone paint provides a long-lasting and durable finish

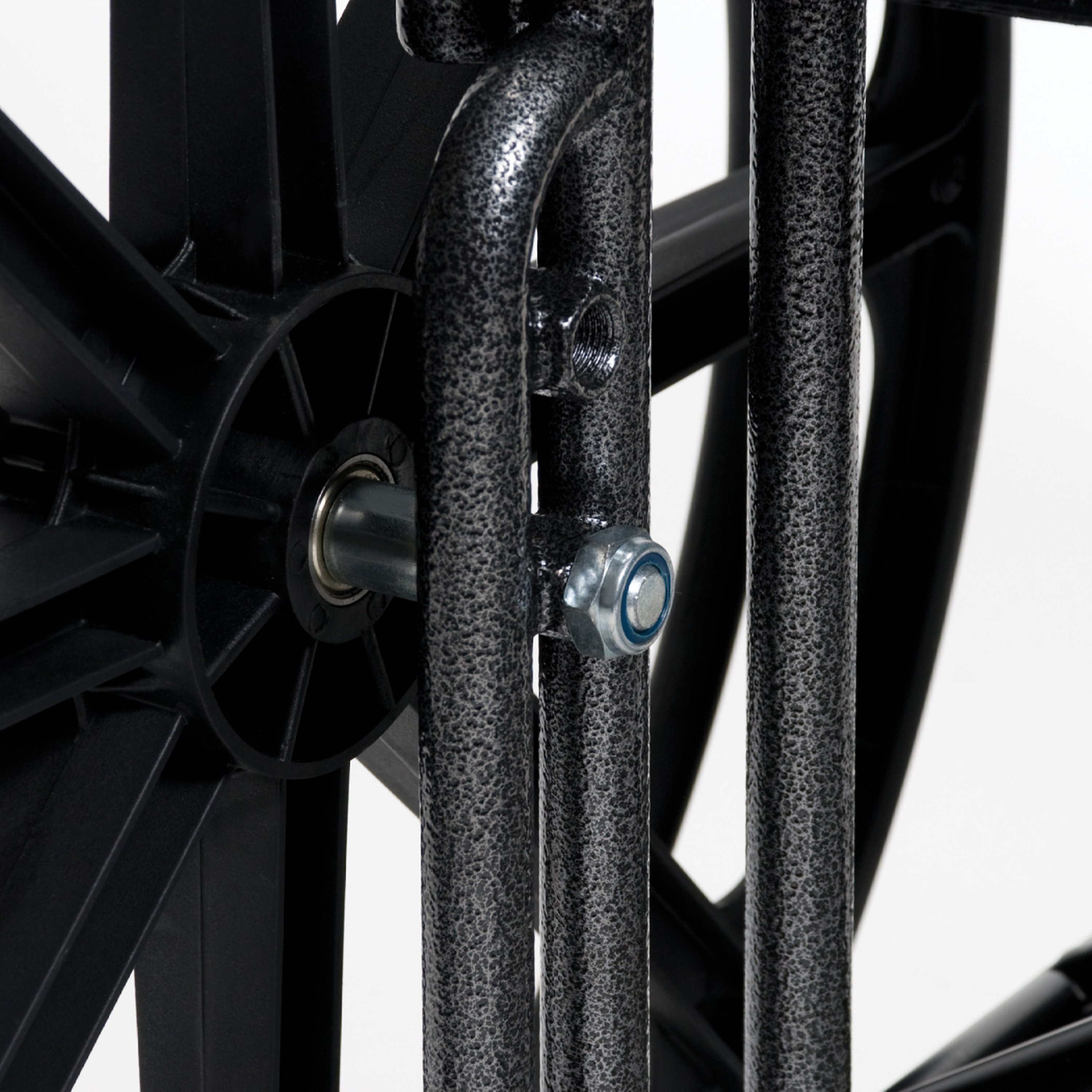

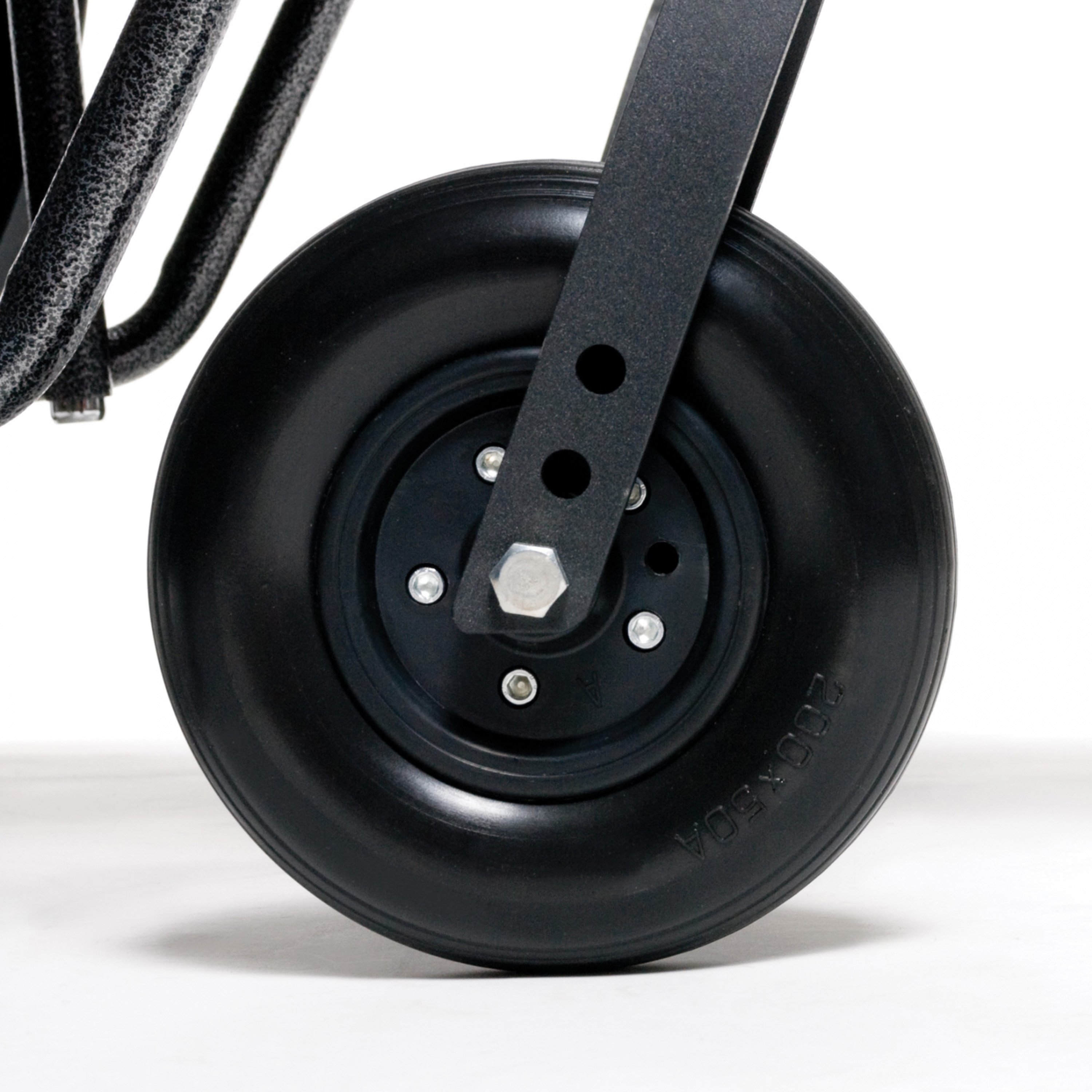

  • Two-position axle and caster fork provide 2" seat height adjustment for a hemi position
  • Tool-free adjustable front rigging with durable aluminum black footplates
  • Rear 24" x 1" black plastic wheels with black handrims and non-marking polyurethane tires
  • Designed to meet the requirements for Healthcare Common Procedure Coding System (HCPCS) code: K0007
  • Comes Standard With:

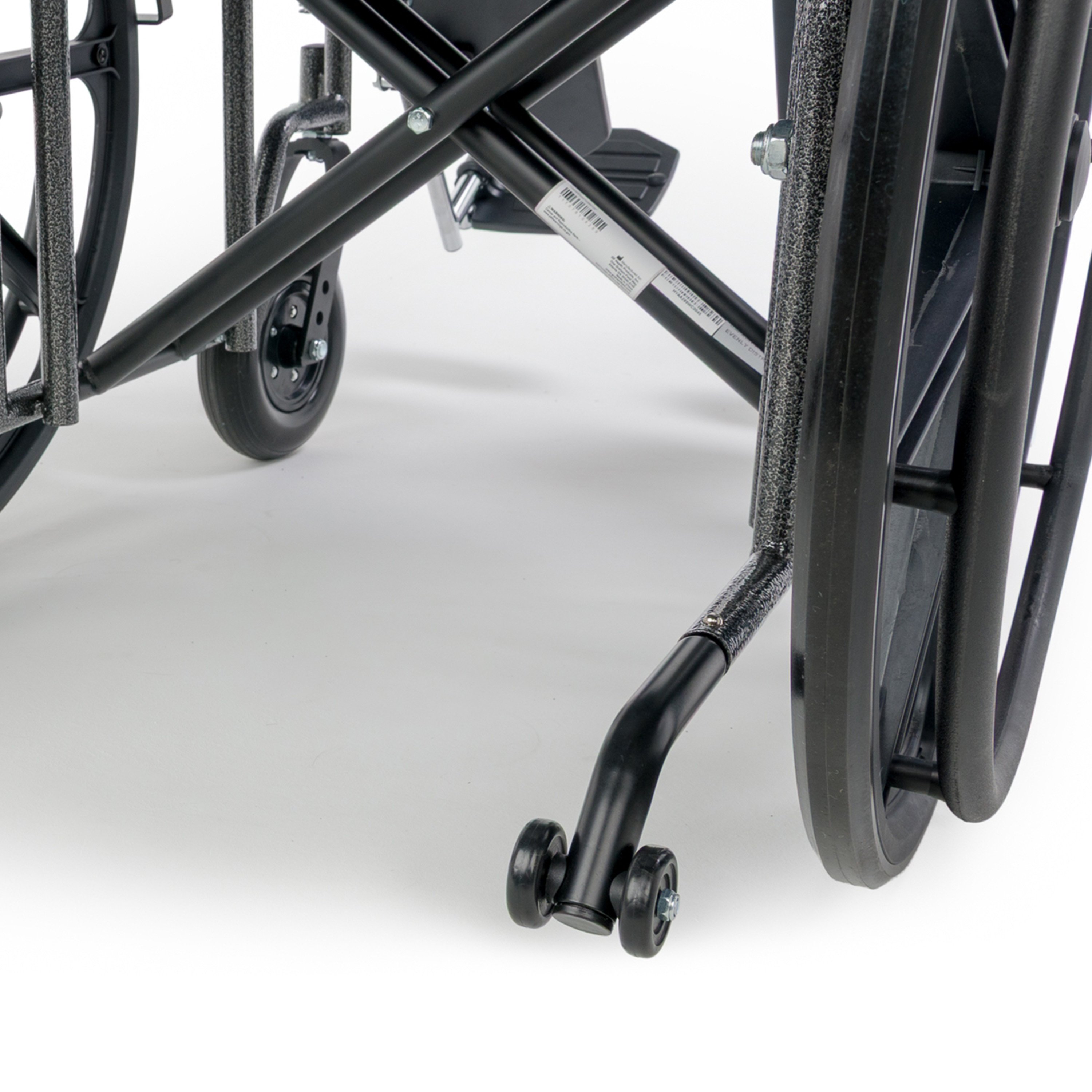

    • (1) Pair of Anti-Tippers
    • (1) For a Pair of Swingaway Footrests: Includes right and left hangers with release and aluminum footplate with extension and heel loop

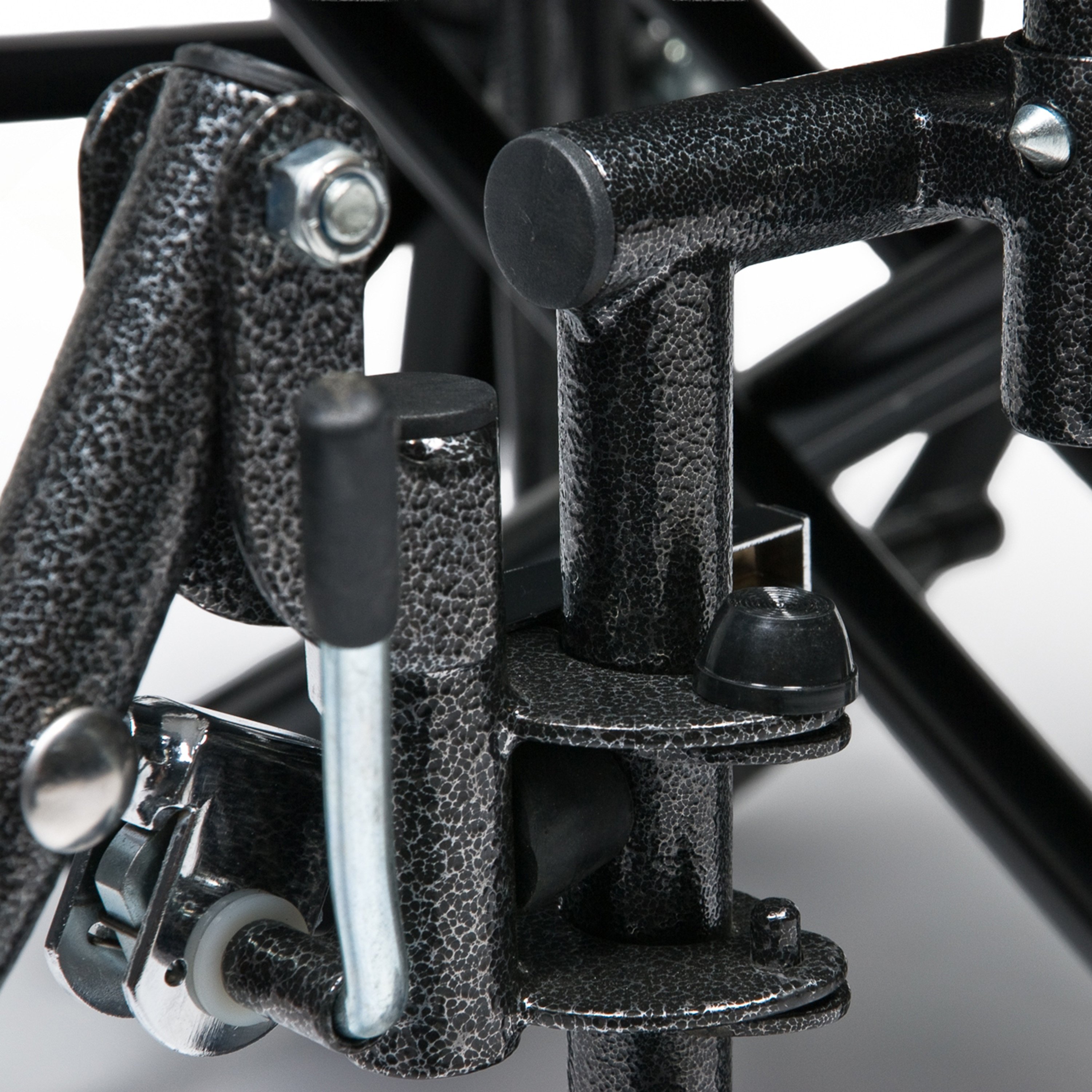

    • (1) For a Pair of Low-Pivot Elevating Legrests: Includes right and left hangers with release, aluminum footplate with extension, and legrest panel

Technical Specifications:

  • Weight Capacity: 500 lbs - Evenly Distributed
  • Seat Height (Adjustable): 18" to 20"
  • Back Height: 16.50"
  • Chair Width (Folded): 12.50"
  • Wheel Diameter: 24"
  • Caster Diameter: 8"
  • *Actual Product Weight: 57 lbs - Without Front Rigging
  • Warranty: 5 Years

Available Options:

SKU Configuration Seat Dimensions Overall Dimensions
3G010320 With Detachable Desk Arms and Swingaway Footrests 20" W x 18" D 28.50" W x 34" D x 36" H
3G010340 With Detachable Full Arms and Swingaway Footrests
3G010330 With Detachable Desk Arms and Elevating Legrests
3G010350 With Detachable Full Arms and Elevating Legrests
3G010420 With Detachable Desk Arms and Swingaway Footrests 22" W x 18" D 30.50" W x 34" D x 36" H
3G010440 With Detachable Full Arms and Swingaway Footrests
3G010430 With Detachable Desk Arms and Elevating Legrests
3G010450 With Detachable Full Arms and Elevating Legrests
3G010520 With Detachable Desk Arms and Swingaway Footrests 24" W x 18" D 32.50" W x 34" D x 36" H
3G010540 With Detachable Full Arms and Swingaway Footrests
3G010530 With Detachable Desk Arms and Elevating Legrests
3G010550 With Detachable Full Arms and Elevating Legrests
3G020500 With Fixed Full Arms and Fixed Footrests

*Approximate measurement: product weight - as seat width and rigging change, so does product weight.

Please note: The composite footplate shown does not come as standard with the product.

Specifications

Specifications
Manufacturer Graham-Field
Latex Free No
Actual Product Weight 57 lbs
Weight Capacity 500 lbs
Proposition 65 Warning Yes
Country of Manufacture China
Item Ships From Missouri

Literature

pdf
(Size: 628.1 KB)
Wheel Kit
pdf
(Size: 663.2 KB)
pdf
(Size: 1.7 MB)
pdf
(Size: 389.1 KB)
pdf
(Size: 2.8 MB)

Product Videos

Instructions

Warranty: GF Health Products, Inc. warrants its products to the original purchaser against defects in materials and workmanship under normal use and service, effective from the date of shipment to the original customer. Warranty coverage is subject to proper use and maintenance in accordance with GF instructions. GF will, at its discretion, repair or replace defective components covered under the warranty.

For Complete Warranty Details, please see the literature above.

Returns

Products must be returned in unused, resalable condition with the original packaging. Please contact Customer Service for a valid return authorization within 30 days of receipt of purchase. A minimum restocking fee of 25% of the purchase price will be deducted from the refund. Customers original shipping charges will not be reimbursed. The customer is responsible for return shipping charges and insuring the package. Credit will not be issued if product is received damaged.
