Product Description

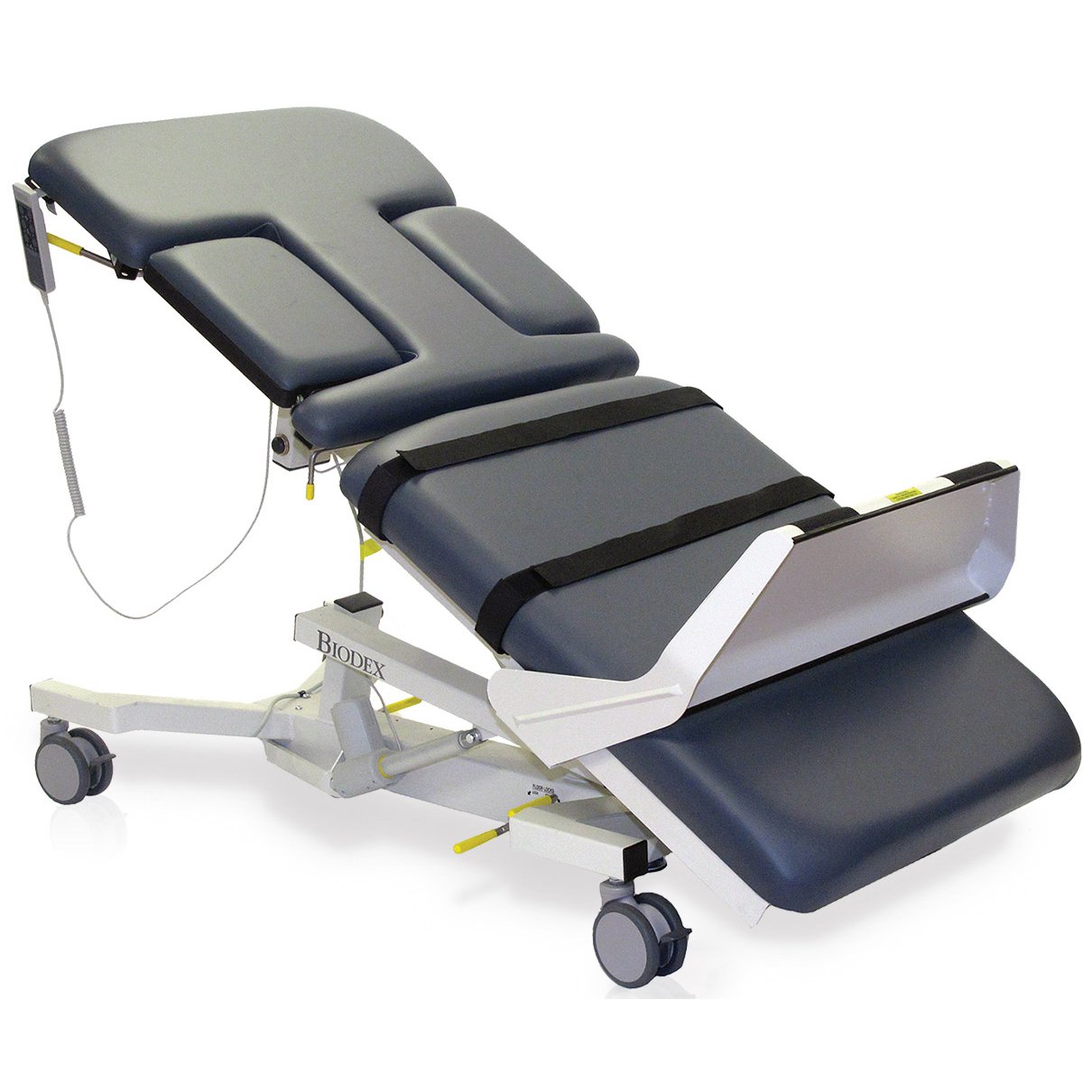

The Echo/Vasc Pro™ Vascular Echocardiography Table is the logical choice for performing vascular scanning and echocardiography. It has been redesigned with many features that help obtain the best quality image and keep the sonographer safe from injury. Accommodates Bariatric Patients and patients of various heights.

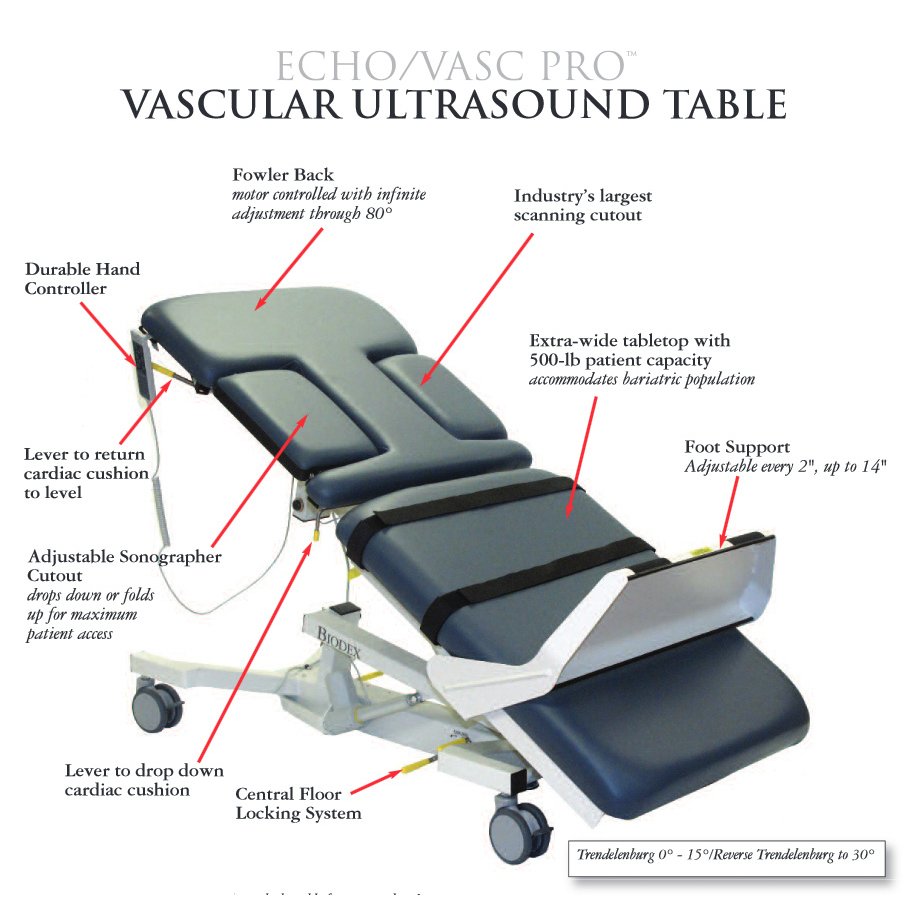

  • Cardiac drop-down cushion, allows release and return from either side of table
  • Industry's largest cardiac scanning cutout - 9.5" W x 15.75" L

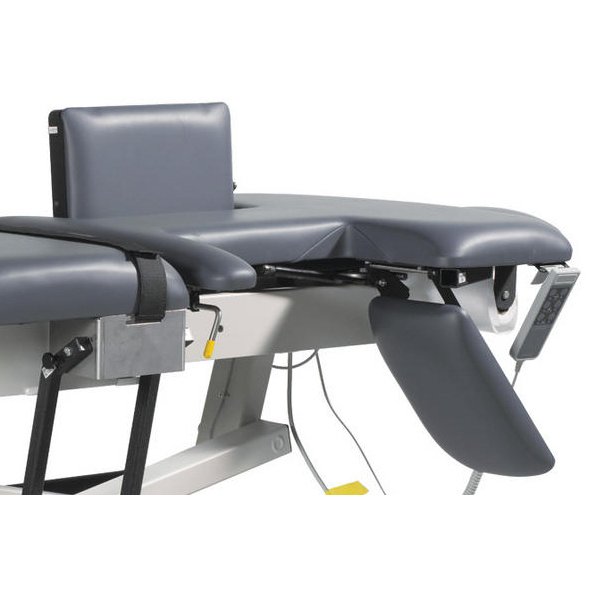

  • Adjustable sonographer cushion drops down or folds up for maximum patient access and comfortable scanning positioning
  • Height range down to 23" accommodates wheelchair transfers and those with ambulatory difficulties
  • Reverse Trendelenburg to 30°
  • Fowler positioning, 0 - 80°, redesigned to accommodate natural body extension and sitting position without slide or shift
  • Extra-wide top with 500-lb patient capacity, suitable for bariatric patients. Weight tested to four times the patient load rating
  • Ergonomic design helps prevent musculoskeletal injuries - comfortable shoulder, arm and hand positions when scanning
  • Motorized height, Fowler positioning, Trendelenburg motions and auto-level adjustment

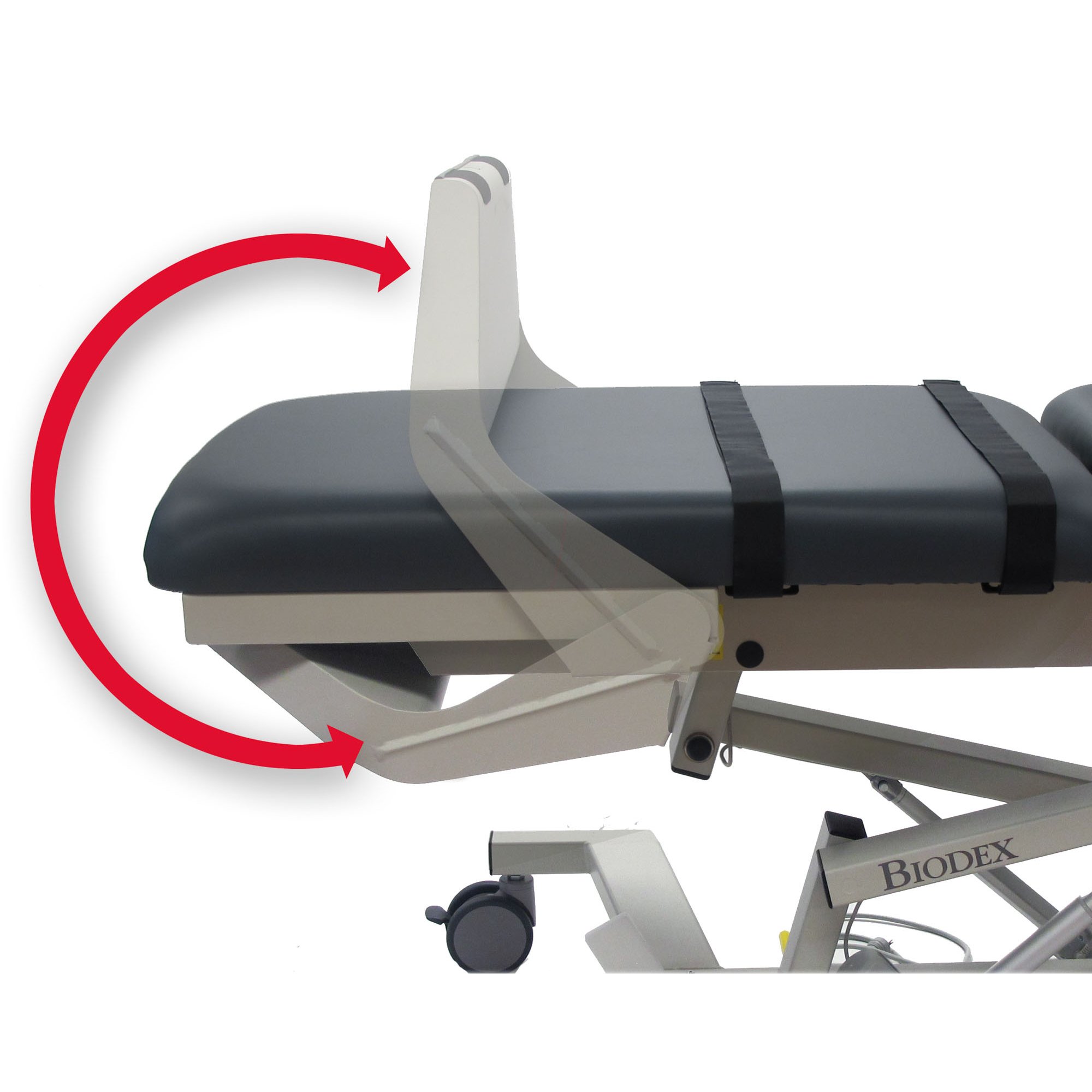

  • Adjustable foot support provides sonographer with comfortable access to patients of various heights
  • Naugahyde®, antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria
  • Central floor-locking system maintains table stability
  • Allows seated or standing work positions
  • Includes Hand Controller and Foot Support
  • Optional Vascular scanning arm board mounts to either side of table

The new Echo/Vasc Pro features 30 degree reverse Trendelenburg positioning, ideal for expanding lower extremity veins for maximum vessel dilation. Enhanced foot support provides the sonographer comfortable access to a patient’s calves without crouching. Body straps stabilize the patient and ensure safety throughout the entire procedure. The new design also includes a cardiac drop-down cushion, with the ability to release and return from either side of the table, providing ample scanning access for an unobstructed apical approach.

As with all Biodex ultrasound tables the Echo/Vasc Pro has enhanced Fowler positioning to accommodate natural body extension and sitting position without slide and shift, redesigned optional side rails for easy access to the patient, an optional Articulating Scanning Arm Board adjustable from 0 to 130-degrees and new soft antimicrobial vinyl upholstery.

The Echo/Vasc Pro Vascular Ultrasound Table is equipped with a motor-controlled hand controller to actuate table positions, 2"- and 3"-thick table padding covered in easy-to-clean Naugahyde, two patient restraining straps with hook and loop fasteners, five-inch locking swivel casters and a central locking system, accessible from either side of the table, to secure table position.

Optional table accessories include foot controller (058-741), vascular scanning arm board (058-735), fold away side rails (058-632), IV pole (058-656) and paper dispenser with cutter strap (058-610) are installed by the customer.


  • Overall Dimensions: 73" L x 30" W; 35" W with optional side rails
  • Cardiac Scanning Cutout Dimensions: 9.5" W x 15.75" L
  • Sonographer Cutout Dimensions: 8" W x 14.75" L
  • Motions: Height Adjustable: 23" to 39" - Trendelenburg: 0° to 15° - Reverse Trendelenburg: 0° to 30° - Fowler Back: 0° to 80° infinitely adjustable
  • Controls: Hand Control (include): Activates height, Trendelenburg motions, Fowler positioning and auto level motions - Foot Control (optional): Activates height, Trendelenburg motions, and Fowler positioning
  • Tabletop: Two primary sections: torso section features sonographer and patient cutouts with Fowler positioning, and lower body section remains fixed
  • Mattress: Torso section 2" thick, lower body section 3" thick; Naugahyde®, antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria
  • Upholstery Color: Graphite
  • Wheels: 5" Individual locking swivel casters; central floor locking system
  • Foot Support: Adjustable every 2", up to 14"
  • Patient Restraints: Two body straps
  • Finish: Powder coat
  • Patient Capacity: 500 lb; weight tested to four times the patient load rating
  • Weight: 335 lb
  • Power: 115 VAC
  • Certifications: ETL and cETL Listed to UL 60601-1 and CAN/CSA C22.2 No. 601.1-M90 and EN 60601-1 standards
