Product Description

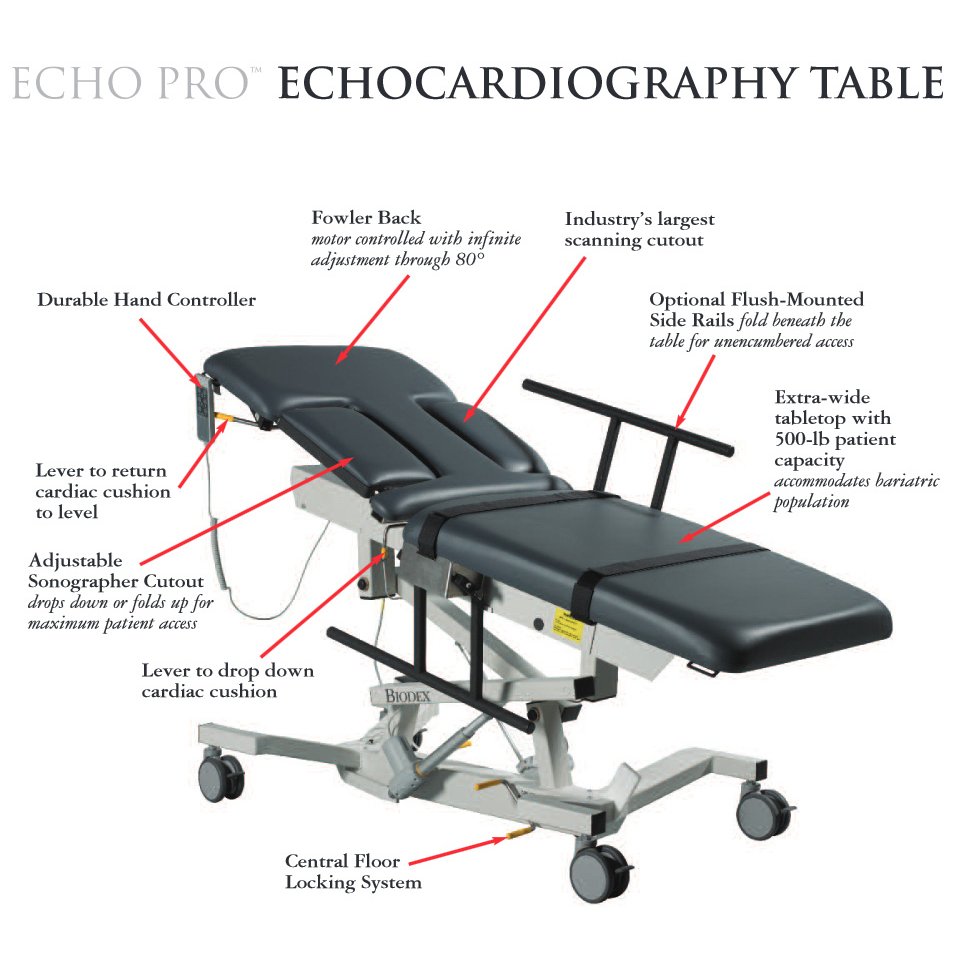

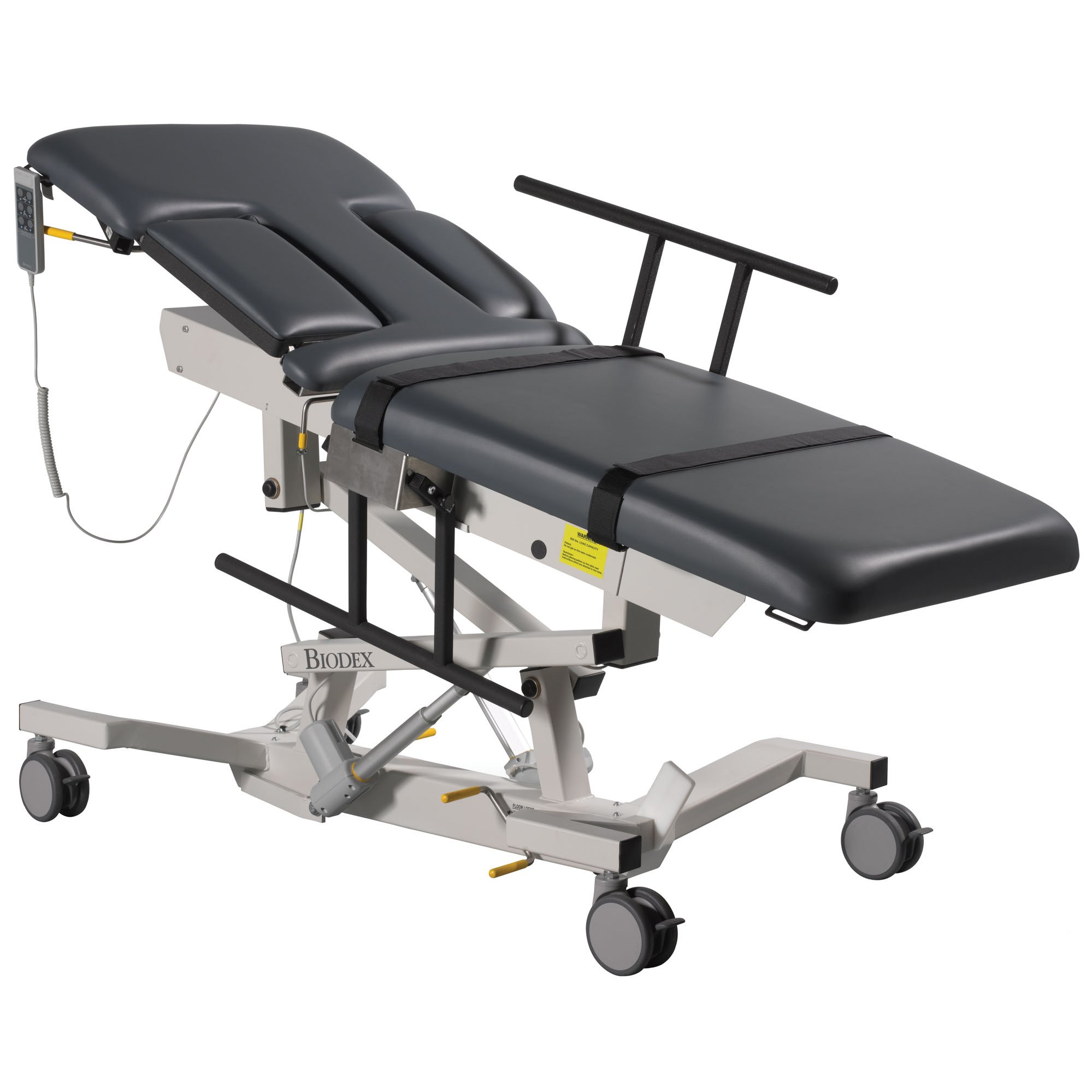

The Echo Pro™ Echocardiography Table has been re-engineered with the sonographer in mind. The new ergonomic design provides a barrier-free imaging experience. The result is less sonographer injury and better quality images.

Redesigned features make it easier for the sonographer to access the patient from all sides. The new cardiac scanning cushion now drops down and releases from either side of the table with nothing protruding. The sonographer has open access to the left thorax area for an unobstructed apical approach. New side rails are flush to the table and fold completely beneath the table out of the sonographer's way, eliminating potential obstruction.

Patient comfort is assured even during lengthy procedures with our new softer feel, Naugahyde® antimicrobial mattress cover, which also provides protection against bacteria.

  • Accommodates Bariatric Patients
  • Ergonomic design helps prevent musculoskeletal injuries; comfortable shoulder, arm and hand positions when scanning
  • Allows seated or standing work positions
  • Extra wide top with 500-lb patient capacity, suitable for bariatric patients

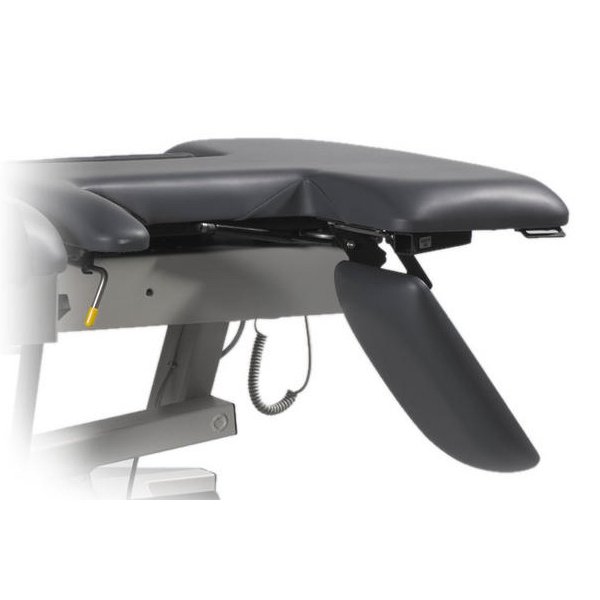

  • Cardiac drop-down cushion, allows release and return from either side of table
  • Industry's largest cardiac scanning cutout - 9.5" W x 15.75" L
  • Adjustable sonographer cutout for maximum patient access and comfortable scanning positioning

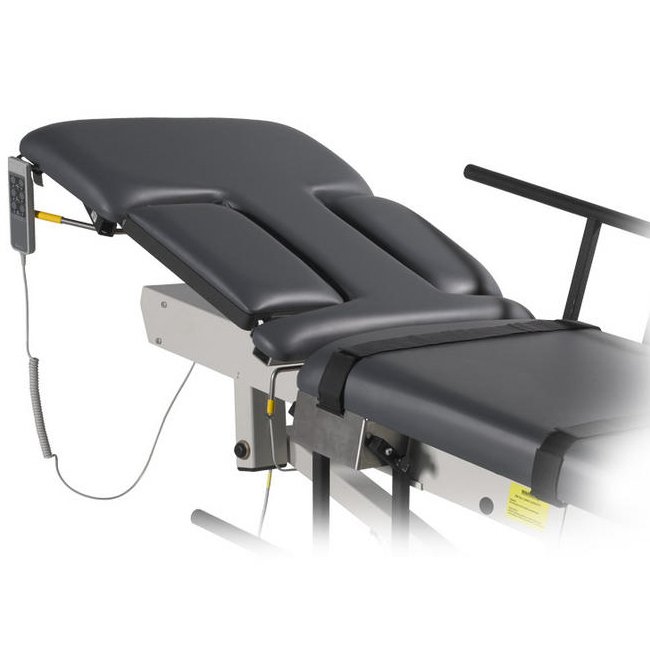

  • Fowler positioning, 0-80 degrees, redesigned to accommodate natural body extension and sitting position without slide or shift
  • Height range down to 23" accommodates wheelchair transfers and those with ambulatory difficulties
  • Motorized height, Fowler back, Trendelenburg and auto level adjustment
  • Naugahyde®, antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria
  • Central floor-locking system maintains table stability
  • Includes durable hand controller
  • Optional Vascular scanning arm board mounts to either side of table

Optional table accessories include foot controller (058-741), vascular scanning arm board (058-735), folding side rails (058-633),IV pole (058-656) and paper dispenser (058-610) are installed by the customer.


  • Dimensions: 73" L x 30" W; 35" W with optional side rails
  • Height Adjustable: 23" to 39"
  • Tabletop: Two primary sections: torso section features sonographer and patient cutouts with Fowler back positioning, and lower body section remains fixed.
    • Cardiac Scanning Cutout (9.5" W x 15.75" L): drop-down cushion releases from either side of the table
    • Adjustable Sonographer Cutout (8" W x 14.75"L): drops down or folds up for maximum access to the patient
    • Mattress: Torso section 2" (5 cm) thick, lower body section 3" (8 cm) thick; Naugahyde®, antimicrobial mattress cover with Advanced BeautyGard®
  • Upholstery Color: Graphite
  • Motions:
    • Trendelenburg: 0° to ±15°
    • Fowler Back: 0° to 80° infinitely adjustable
  • Controls: Hand Control: Activates height, Trendelenburg motions, Fowler back and auto level motions. Foot Control (optional): Activates height, Trendelenburg motions and Fowler positioning.
  • Wheels: 5" Individual locking swivel casters; central floor locking system
  • Patient Restraints: Two body straps
  • Finish: Powder coat
  • Patient Capacity: 500 lb; weight tested to four times the patient load rating
  • Item Weight: 335 lb.
  • Power: 115 VAC
  • Certifications: ETL and cETL Listed to UL60601-1 and CAN/CSA C22.2 No. 601.1-M90 and EN 60601-1 standards
