Product Description

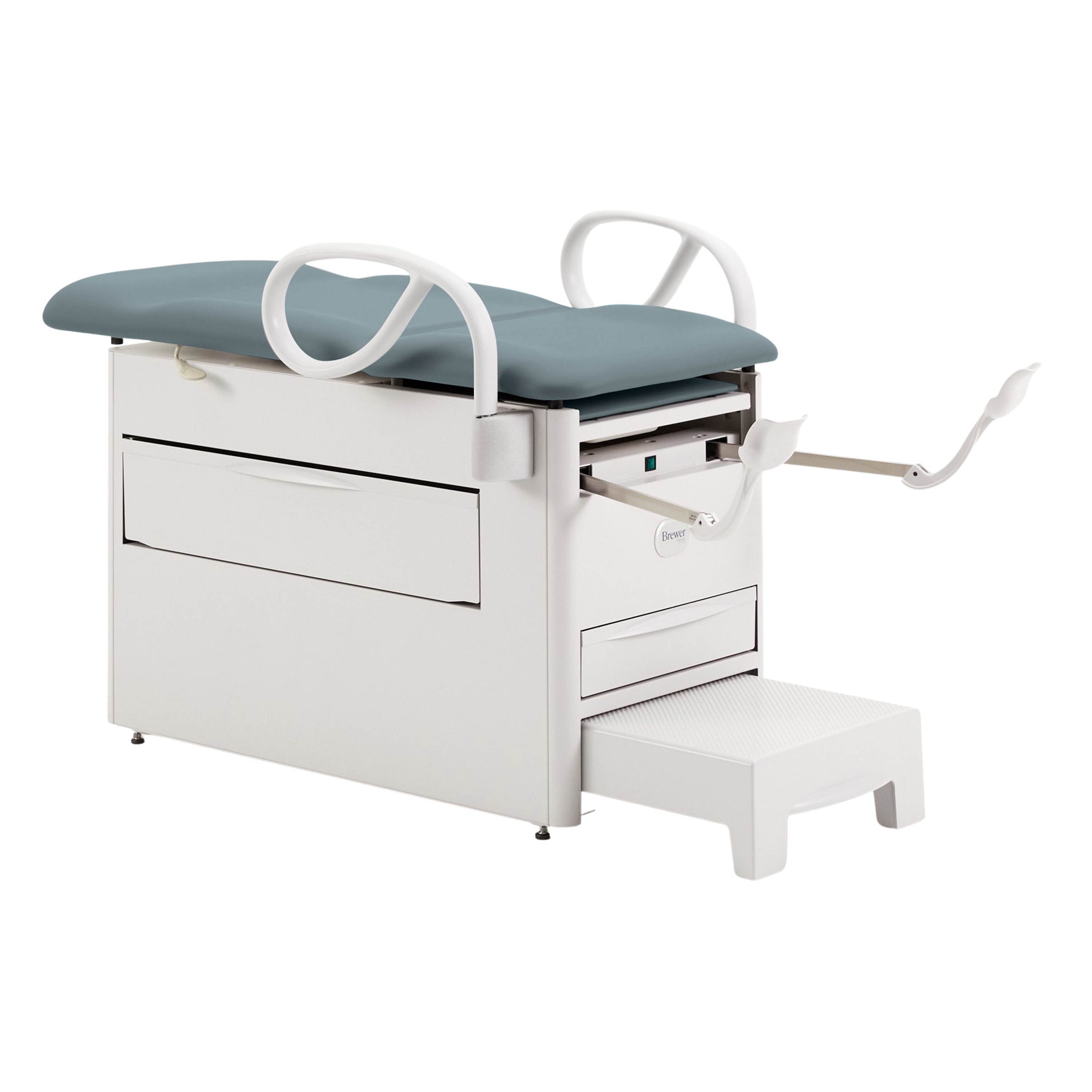

The Brewer Versa Exam Table with Patient Assist Handles, Stirrups, Pelvic Tilt and Outlet gives you the ability to readily and cost-effectively adapt to your changing needs. When it comes to care, the standard model provides a new standard of quality and efficiency for most practices. Easy-connect, removable upholstery top is available in standard & pediatric configurations.

Features:

  • Electric Receptacle locates on the left hand side of the table
  • Pelvic Tilt feature sets the seat angle at 0° (horizontal) or 5° (up) position
  • Adjustable Ergonomic Stirrups can manually be extended to ensure a comfortable fit. When not in use, stirrups are neatly stored in table.
  • Multi-position patient assist handles offer security and support patient self-positioning
  • Pneumatic/Manual Back
  • Easy-connect, removable upholstery top
  • Easy-to-clean, premium seamless upholstery offers superior patient comfort
  • Rounded corners and softened edges throughout safeguard patients and caregivers while improving patient access
  • Stable cushioned platform with 500 pound patient weight capacity comfortably supports patients of all builds
  • Ergonomically designed pass-through side drawer positioned purposefully at waist height to reduce bending and twisting for caregivers
  • Two included side drawer dividers make organization a breeze
  • Front drawer strategically positioned at lower leg height to eliminate uncomfortable situations for caregivers and patients
  • Large, sturdy step with anti-slip surface enhances patient security, and is easy to clean
  • Paper roll holder offers added convenient
  • Available in various table pad colors
  • Contemporary gray cabinet color
  • Industry-best 5-year warranty

Specifications:

  • Upholstered Top Dimensions: 27.25" W x 58" L (72" L with leg extension fully extended)
  • Leg Extension Length: 14"
  • Seat Height: 32.5"
  • Base Dimensions: 23.3" W x 46.1" L x 29.2" H
  • Stirrup Extension (maximum): 16"
  • Stirrup Lateral Positions: 4 lateral positions
  • Pelvic Tilt: 5° rise
  • Patient Assist Handles: two locking positions - backward at 5° and forward at 175°
  • Front Storage Drawer:
    • Dimensions: 21.3" x 19.75" x 4.25"
    • Capacity: 1.0-cu-feet of space
  • Side Storage Drawer:
    • Dimensions: 23.6" x 35.75" x 7.6"
    • Capacity: 3.7-cu-feet of space
  • Paper Roll Holder: accommodates up to 21" paper rolls
  • Weight capacity:
    • Seat/Back: 500 lbs.
    • Leg Support: 50 lbs.
    • Step: 500 lbs.
    • Assist Handles: 100 lbs.
  • Electrical: 120 VAC nominal, 60 Hz, 3 Amps maximum including maximum 2 Amp accessory outlet

Certification: Brewer products conform to US electrical and medical industry codes and regulations and meet or exceed industry requirements. UL certified: IEC60601-1 Ed. 3.1

Please Note:

  • Images shown table with Drawer Warmer Switch which is NOT included with this model.

Specifications

Specifications
Manufacturer The Brewer Company
Actual Product Weight 250 lbs
Latex Free Yes
Overall Length 72"
Overall Width 27.25"
Weight Capacity 500 lbs
Country of Manufacture United States
Item Ships From Wisconsin

Literature

pdf
(Size: 870.9 KB)
pdf
(Size: 4.5 MB)

Instructions

Warranty: Brewer shall manufacture the Products in accordance with the requirements of all applicable law, including without limitations, the regulations promulgated by and for the Federal Food and Drug Administration and industry standards. Brewer warrants its Products to be free from defects in parts and workmanship under normal use and service for a period of 5 years from the date of delivery to original end user. Brewer will not be responsible for any Product failure due to abuse, modification or improper use, or for any use which exceeds the published capacity of the Product. Do not discard parts before contacting Brewer for warranty service, as Brewer may require the customer to send in defective parts for examination to determine the applicability of these warranty provisions. If this occurs, the customer will be invoiced against a new purchase order for the replacement part. If the part is found to our satisfaction to have been defective under the terms of the warranty, the customer will be credited the amount of the replacement part and outbound shipping costs. If the part is found not to be defective under the terms of this warranty, the customer is liable for the cost of the replacement part, shipping, and/or any repair costs.

Returns

Requests for return authorization of unused, resalable items must be in writing within 30 days of item shipment. Return goods shipments must be made PREPAID. Unauthorized returns will be refused. All returns are subject to a minimum 25%, or $50 restocking fee, whichever is greater. Some upholstered items can not be returned. Please contact Customer Service to determine if an upholstered item is not able to be returned.
