Product Description

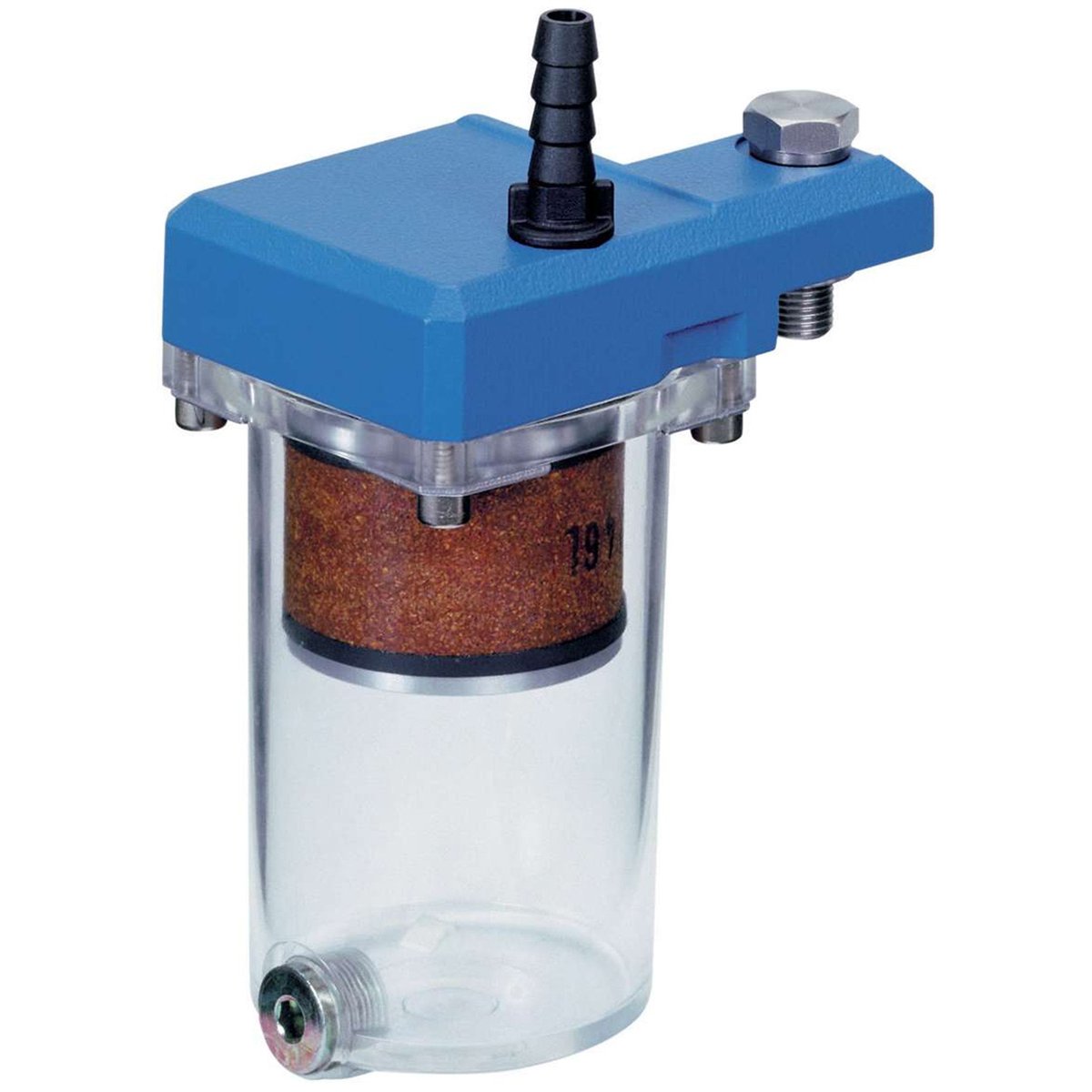

Exhaust gases from oil-sealed rotary vane pumps always carry a certain quantity of oil mist. This is extremely unpleasant, and even harmful, for those working nearby. VACUUBRAND oil mist filters (FO) separate nearly 100% of oil mist at the ultimate vacuum of the pump. Oil mist filters (FO) protect air, both inside and outside the laboratory, from contaminated oil mist. It has catchpot made of plastic (PMP) with good chemical resistance.

  • Very high degree of separation
  • Optimal control by transparent catchpot
  • Easy draining of oil
  • Direct mounting on the oil reservoir outlet
  • Integrated pressure relief valve for burst protection in case of blocked filter

Technical Data:

  • Inlet: directly mountable
  • Outlet: Hose nozzle DN 10 mm
  • Permissible Volume Flow Rate: 6m3/h
  • Wetted Materials: Aluminum, PMP, fiberglass epoxy
  • Max. Collecting Volume: 180ml
  • Dimensions: 4.69" L x 3.15" W x 7.13" H
  • For VACUUBRAND Pumps: RZ2.5 and RZ6

Specifications

Specifications
Manufacturer Brandtech Scientific
Actual Product Weight 1.76 lbs
Overall Height 7.13"
Overall Width 3.15"
Overall Length 4.69"
Country of Manufacture Germany
Item Ships From Connecticut

Instructions

Seller warrants that its Products are free from defects in materials and workmanship as set forth in applicable operating instructions at the date of shipment to the original Buyer and will conform to the Contract specifications or such other specifications which constitute technical improvements to the Product.* The exclusive remedy of the Buyer in the event of a breach of the foregoing warranty is replacement or repair (at Seller's option) of any defective Product. No goods shall be returned to Seller for repair or replacement pursuant to this warranty without prior written approval and accompanied by a completed health and safety declaration (as specified in Paragraph 7). All cleaning, decontamination, and shipping costs shall be the sole responsibility of the Buyer together with any damage to the goods that might occur in transit to or from Seller. Under no circumstances does Seller's responsibility or warranty extend to Products other than those manufactured or distributed by Seller; nor does Seller's liability extend to any Products, articles or parts which are furnished by Buyer or obtained from other manufacturers or suppliers at Buyer's request and/or in accordance with Buyer's specifications. In the event that Seller is unwilling or unable to repair or replace any defective or nonconforming Product due to change in technical standards, technical modifications, unavailability of material or parts, or any other reason, Buyer shall be entitled to a return of the purchase price paid for such Product as its sole and exclusive remedy. Seller assumes no responsibility for the effective performance of any specific scientific application relying on Products supplied under this Contract beyond published Product specifications at the time of sale. Seller assumes no responsibility for conformance with local building codes as they may apply in the installation of Products supplied by the Seller. Seller assumes no responsibility whatsoever for the accuracy of designs, specifications or materials furnished or specified by Buyer.

Returns

No return will be accepted by the seller for any reason without prior written authorization within 30 days of product shipment date. Returns will be accepted only if products are in new, unused, resalable condition in the original packaging, and accompanied by a Health and Safety Declaration as regards potential contamination with hazardous materials due to customer use of the product. The manufacturer reserves the right to assess a minimum 25 percent restocking fee at their discretion. All shipping charges remain payable. This manufacturer assesses order cancellation fees if a submitted order is cancelled prior to shipment.

Reviews

Ask a Question (1)

Customer Questions
How does the oil mist filter return kit work?
The Oil Mist Filter is an accessory that can be used with the Rotary Vane Vacuum Pumps. The user guide for the vacuum pumps can be seen on the vacuum pump item detail pages. One can be seen here: https://www.universalmedicalinc.com/brandtech-vacuubrand-rz9-rotary-vane-vacuum-pump-120v-60hz.html This may better explain how the pump works.
