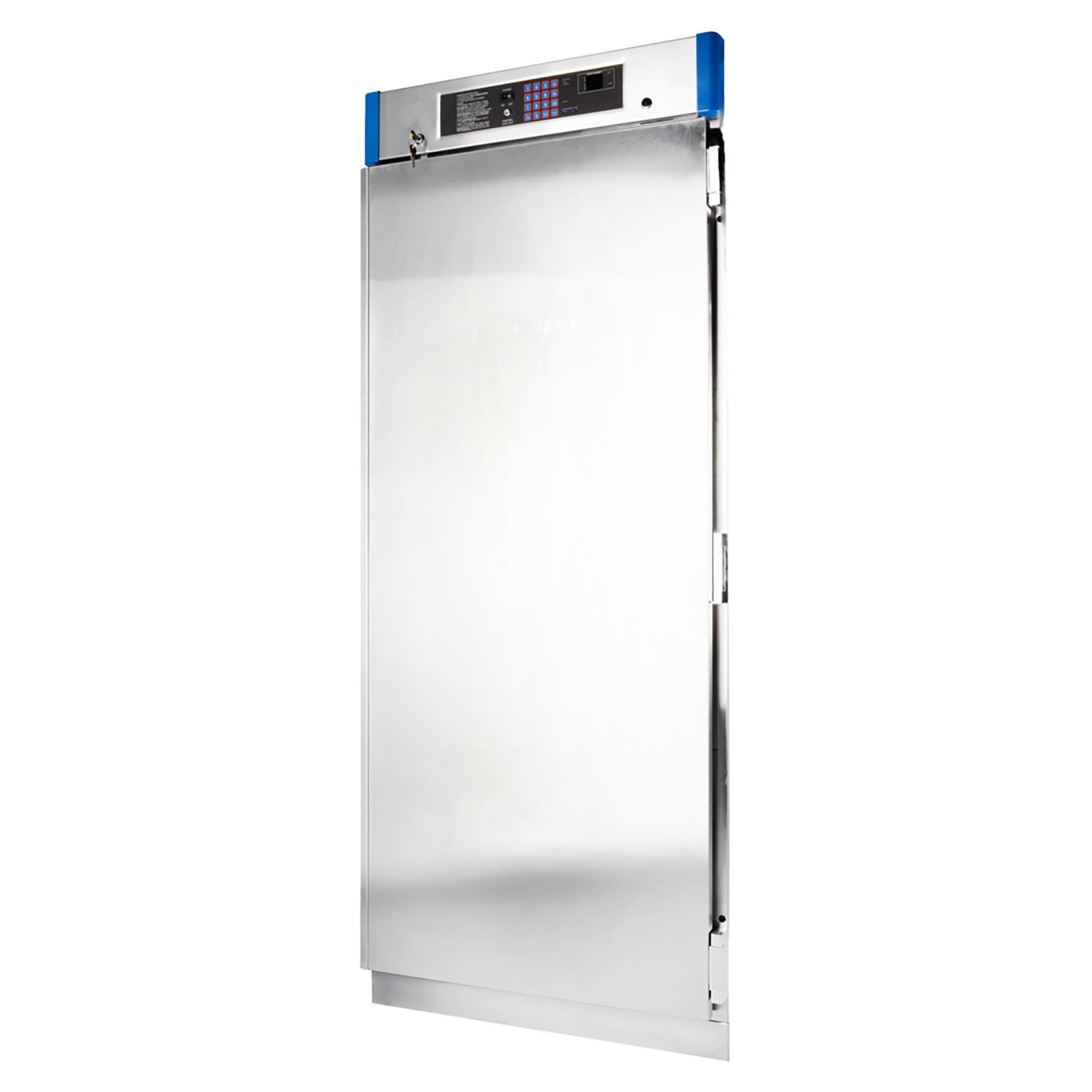

Product Description

  • Designed for recessed or built-in installation
  • Most common application for this unit would be a built-in Operating Room wall console
  • Dimensions: 30"W x 20 5/8"D x 60"H
  • Interior cubic foot capacity: 13.22; 7.5 AMPS / 750 total wattage
  • Temperature control range allows for setting from 90 - 160°F
  • Solutions only warming cabinets can be easily programmed by user to heat only between 90 - 110°F
  • Self-tune temperature feature maintains set-temperature to within +/- 1°
  • Set temperature can be protected with a Key-Lock, or User Defined Pass Code
  • Galvanized closed back with circuit breaker - no fuse
  • 3 Adjustable shelves (two shown)
  • Available with glass or stainless steel door
  • Self-closing, adjustable tension, magnetic-gasket door for hands-free closing
  • Fully self-contained with no heat vents
  • Easy-to-use keypad with controls for setting internal temperature is conveniently located above door
    • Digital Proportional-Intergral-Derivative (PID) Control Panel Features visual/audible alarm, digital adjustment, built-in temperature data recorder, with RTC- realtime clock, auto-tune to set temperature, calibration due date reminder, lost pass code view, graphical temperature trend view, and set temperature "lock-out".
    • 160 x 180 pixel graphical display with dual color (red/green)
  • Locking door standard
  • Hospital grade NEMA 5-15HP plug
  • No special connectors needed
  • UL and CSA approved, FDA registered
  • This cabinet is not susceptible to electromagnetic fields; temperature controller complies with EN61326
  • Meets AAMI Electrical leakage specifications, and conforms to Medical Electrical Equipment standard UL 60601-1 and CSA C22.2#601.1-M90
  • Approx. shipping weight: 370 lbs.
  • Wet towels cannot be used in warming cabinets; they will trigger the unit to overheat
  • Please see below for technical information

Please Note:

  • This item is not able to be returned. Production of the item will begin immediately upon order receipt, orders for this item can not be cancelled once the order has been processed.

About this Brand

Specifications

Specifications
Manufacturer Blickman
Country of Manufacture Mexico
Item Ships From Texas

Literature

pdf
(Size: 36.4 KB)
pdf
(Size: 27.8 KB)

Instructions

Warranty:

Blickman warrants to the original purchaser that its Proprietary Products will be free from defects in workmanship or materials under normal use and service for the life of the product, so long as owned by the original purchaser, according to the limitations set forth below. Defective products shall be repaired or replaced at Blickman's option at no cost to the original purchaser provided: 1. The customer must obtain a written return authorization supplied by Universal Medical 2. The customer must pre-pay freight charges to and from Blickman and must ship merchandise in the original packaging.

This warranty does not apply to products, which have been subject to abuse, misuse, accident, modification, alteration, tampering, negligence, lack of routine maintenance or misapplication; or products that have been repaired by other than Blickman or its authorized representatives. This warranty does not apply to glass, fabrics, vinyl, seat coverings, cushions, padding or their stitching, gluing or installation. Component parts not manufactured by Blickman, such as casters, caster inserts, any components made from rubber or plastic, circuit boards, fan heaters, plumbing parts, electrical switches and components are also excluded. For these component parts, Blickman will pass on the original manufacturer's warranty to Blickman equipment original purchasers. Please consult factory for questions regarding the warranties of these component parts. This warranty does not apply to custom fabricated products. Consult factory.

Unless expressly set fortn in this warranty, there are no other warranties, whether express or implied, of fitness and/or merchantability or any other warranty implied by custom, usage or course of dealing. Liability of Blickman under this warranty is limited to the repair and / or replacement of any products. Blickman specifically excludes and disclaims any responsibility for any incidental or consequential damages claimed to have arisen from any defect in workmanship or materials. No representative has any authority to change or enlarge the above warranty or Blickman liability. This document supersedes all previous warranty provisions.

Returns

This item is not able to be returned. Production of the item will begin immediately upon order receipt, orders for this item can not be cancelled once the order has been processed.
